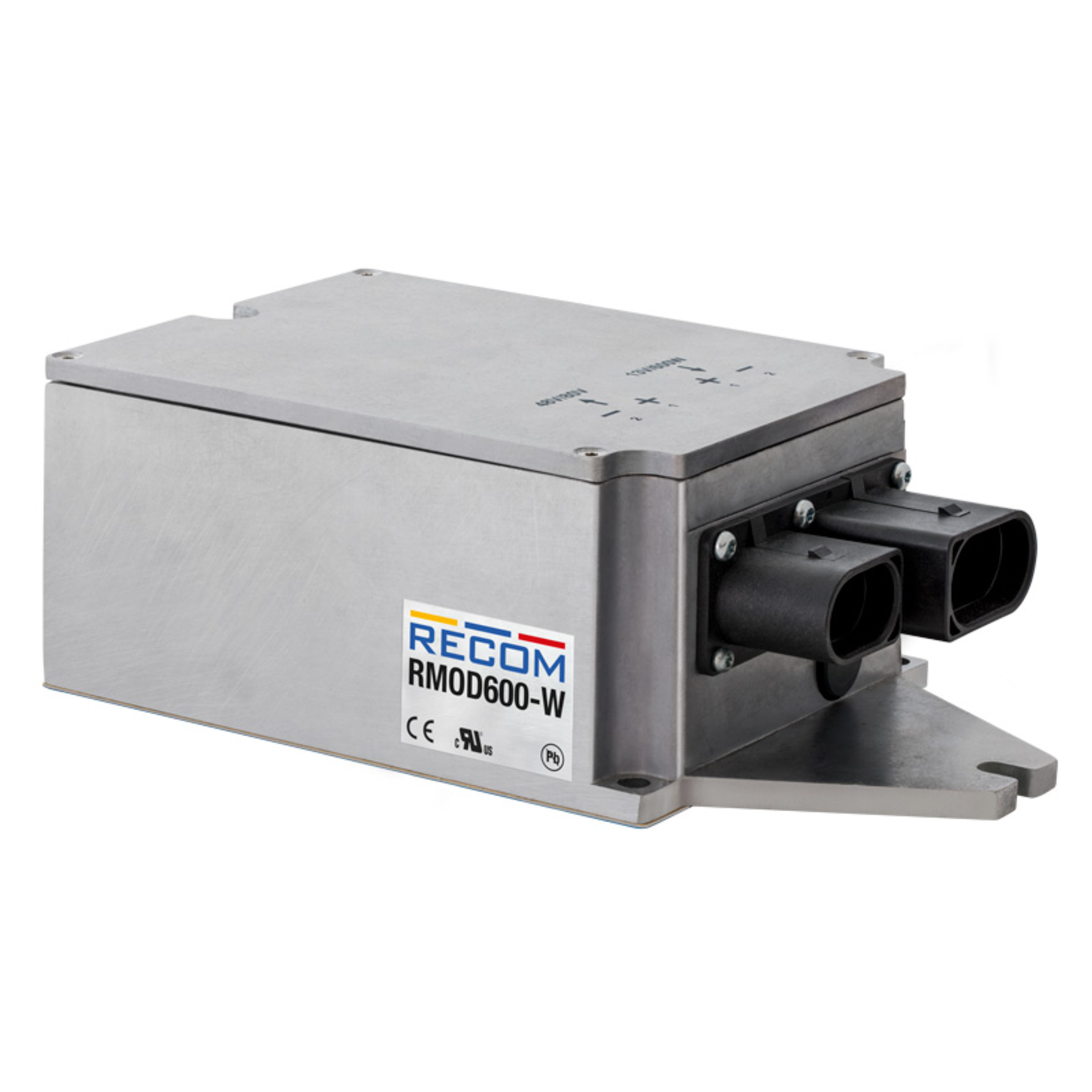

RMOD600-60-24SW

Recom DC/DC converter regulated 24 V 25 A Enclosed 2.500 V

Manufacturer Part No.
RMOD600-60-24SW
Schukat Part No.
RMOD600-60-24SW
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
10 Pcs.
Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
regulated
Package/Case
Enclosed
Output Power
600 W
Output voltage
24 V
Output current
25.000 A
Isolation voltage I/P-O/P
2,500 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Recom
Series
  • RMOD600-W
Product group
  • M2104 RECOM RMOD600-W DC/DC Converter Single Output
Application
  • ITE
  • Industry
  • Railway
Operating mode
  • regulated
Package/Case
  • Enclosed
Dimension: Length
  • 203 mm
Dimension: Width
  • 115 mm
Dimension: Height
  • 71 mm
Weight
  • 2,000 g
Manufacturer's warranty (years)
  • 2
Features
  • Parallel Function

Operating conditions

MTBF
  • 500,000 h
Operating Temperature Min.
  • -35 °C
Operating Temperature Max.
  • 85 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Nominal input voltage
  • 60 V
Input voltage min. DC
  • 33.6 V
Input voltage max. DC
  • 96 V
Input voltage range
  • 3:1
Efficiency
  • 89 %
Connection type, input
  • Connector

Output

Number of outputs
  • 1
Output Power
  • 600 W
Output voltage
  • 24 V
Output voltage tolerance
  • -4 %
Ripple & Noise
  • 500 mVp-p
Output current
  • 25.000 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Connector

Safety/Certifications

Protection Class IP
  • IP96K
Isolation voltage I/P-O/P
  • 2,500 V
Approvals
  • CE
  • CSA
  • EN
  • IEC
  • UKCA
  • UL
Standards (safety)
  • EN 62368-1
  • IEC 62368-1
  • UL 62368-1
