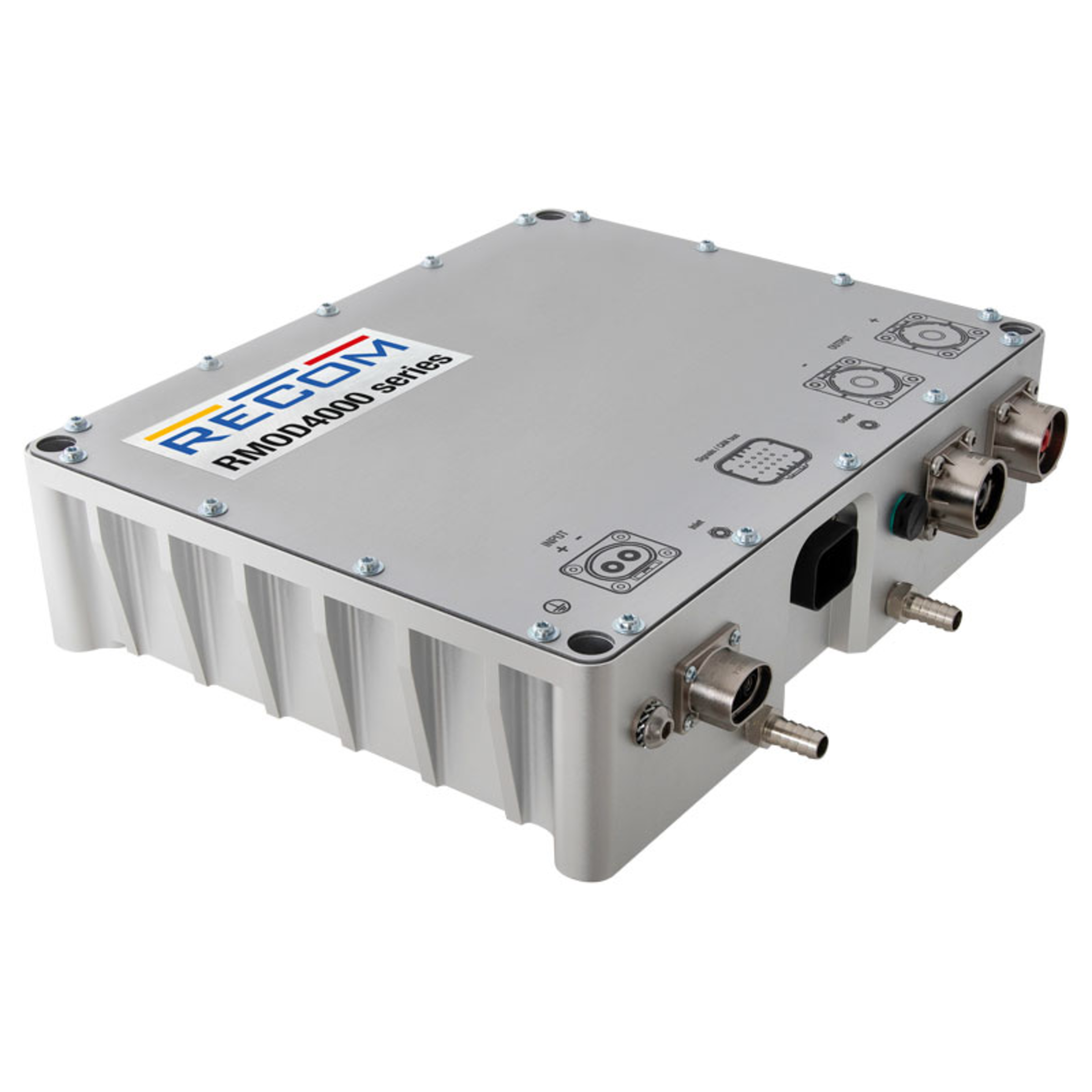

RMOD4000-650-28SEW

Recom DC/DC converter regulated 28 V 150 A Enclosed 3.050 V

RMOD4000-650-28SEW
NEW
Manufacturer Part No.
RMOD4000-650-28SEW
Schukat Part No.
RMOD4000-650-28SEW
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
regulated
Package/Case
Enclosed
Output Power
4,200 W
Output voltage
28 V
Output current
150.000 A
Isolation voltage I/P-O/P
3,050 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Recom
Series
  • RMOD4000-EW
Product group
  • M2160
Application
  • ITE
  • Industry
Operating mode
  • regulated
Package/Case
  • Enclosed
Dimension: Length
  • 316 mm
Dimension: Width
  • 254 mm
Dimension: Height
  • 83 mm
Packaging
  • Cardboard
Weight
  • 6,500 g
Manufacturer's warranty (years)
  • 2
Product description
  • The RMOD high-voltage families are integrated DC/DC converters for generating the low-voltage network (12/24 V) from the vehicle's high-voltage traction battery. The devices are extremely robust plug-and-play modules and operate reliably even under the most adverse conditions. The extremely wide input voltage range from 180 V to 950 VDC covers all battery voltages from 250 V to 800 V nominal, which are commonly used in on- and off-highway vehicles. Thanks to its excellent efficiency, the device is extremely compact and can be easily integrated into the vehicle's control network via a CAN interface. The housing is water- and dust-tight, and the device is operated with base plate cooling or water cooling. This solution is ideal for HV battery-powered electric vehicles in “on- and off-highway e-mobility applications” such as material handling, forklifts, golf carts, AGVs, loaders, construction vehicles, airport equipment, people movers, special vehicles, transporters, tractors, etc.
Features
  • Parallel Function
  • Programmable

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Nominal input voltage
  • 400 V
Input voltage min. DC
  • 180 V
Input voltage max. DC
  • 950 V
Input voltage range
  • 5:1
Efficiency
  • 94 %
Connection type, input
  • Connector

Output

Number of outputs
  • 1
Output Power
  • 4,200 W
Output voltage
  • 28 V
Output voltage tolerance
  • -2.2 %
Ripple & Noise
  • 1,400 mVp-p
Output current
  • 150.000 A
Overload protection
Type of overload protection
  • Constant Current Limitting
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Connector

Safety/Certifications

Protection Class IP
  • IP67
Isolation voltage I/P-O/P
  • 3,050 V
Isolation voltage I/P-FG
  • 1,520 V
Isolation voltage O/P-FG
  • 110 V
Approvals
  • CE
