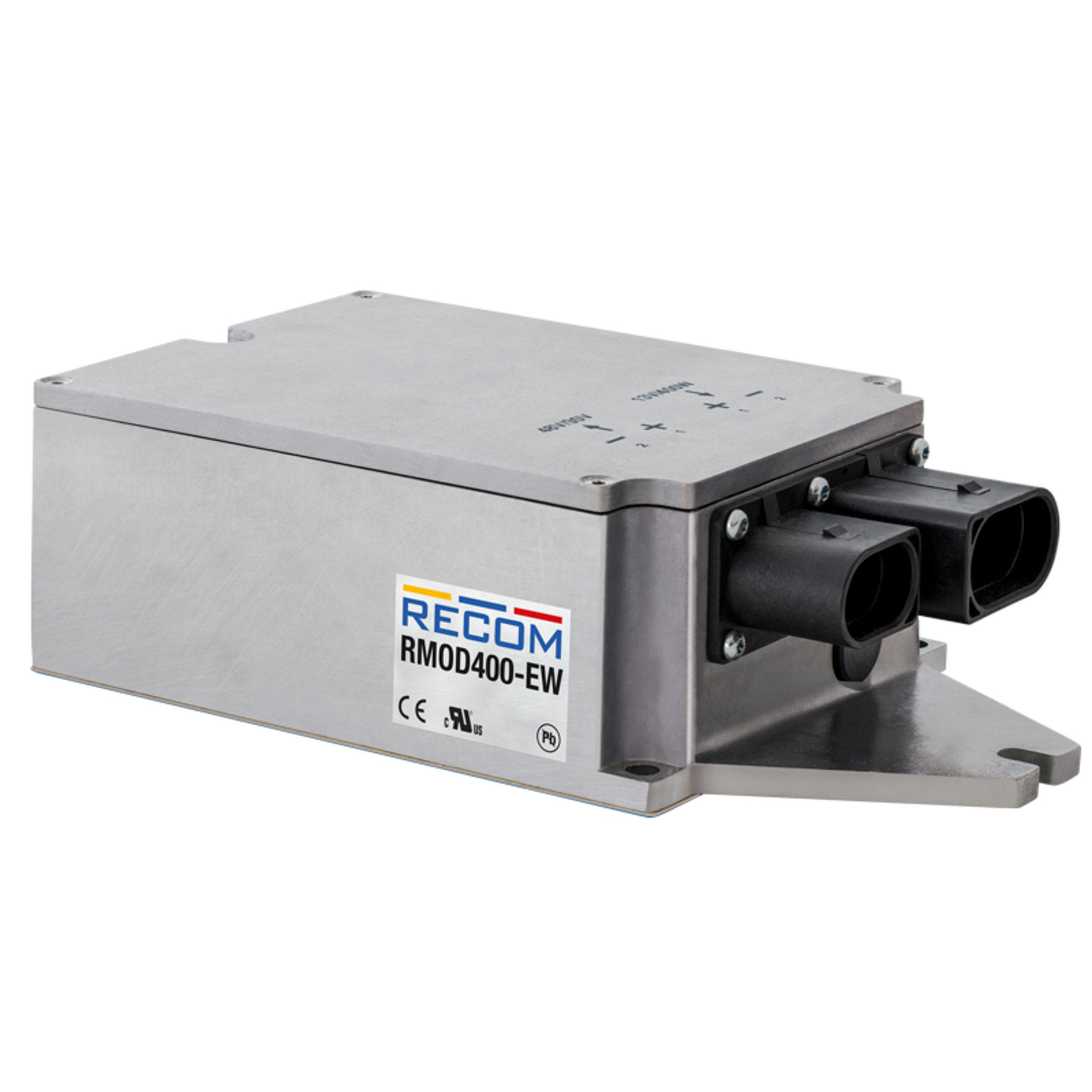

RMOD400-80-13SEW
Recom DC/DC converter regulated 13 V 30,8 A Enclosed 2.500 V
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
10 Pcs.
10 Pcs.
Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Operating mode
- regulated
- Package/Case
- Enclosed
- Output Power
- 400 W
- Output voltage
- 13 V
- Output current
- 30.800 A
- Isolation voltage I/P-O/P
- 2,500 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 1,000,000 h
- Operating Temperature Min.
- -35 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
Input
- Nominal input voltage
- 80 V
- Input voltage min. DC
- 33.6 V
- Input voltage max. DC
- 125 V
- Input voltage range
- 4:1
- Efficiency
- 80 %
- Connection type, input
- Connector
Output
- Number of outputs
- 1
- Output Power
- 400 W
- Output voltage
- 13 V
- Output voltage tolerance
- -4 %
- Ripple & Noise
- 500 mVp-p
- Output current
- 30.800 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Connector
Safety/Certifications
- Protection Class IP
- IP96K
- Isolation voltage I/P-O/P
- 2,500 V
- Approvals
- CE
- CSA
- EN
- IEC
- UKCA
- UL
- Standards (safety)
- EN 62368-1
- IEC 62368-1
- UL 62368-1
Documents
RECOM_SelectionGuide_EN_24-01_web.pdf
