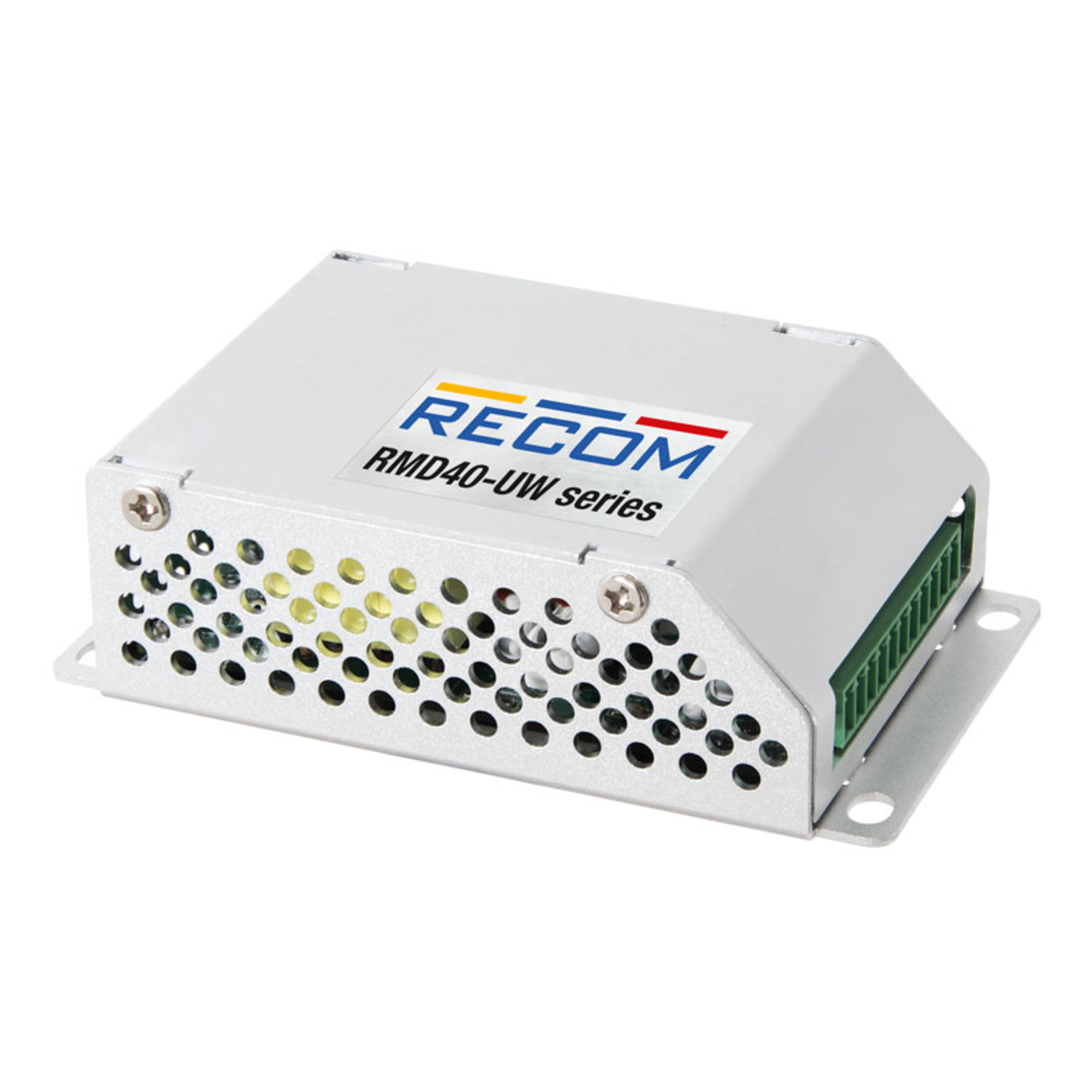

RMD40-110-24SUW

Recom DC/DC converter regulated 24 V 2,5 A Enclosed 4.200 V

RMD40-110-24SUW
NEW
Manufacturer Part No.
RMD40-110-24SUW
Schukat Part No.
RMD40-110-24SUW
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 12 or multiple of 12)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
regulated
Package/Case
Enclosed
Output Power
40 W
Output voltage
24 V
Output current
2.500 A
Isolation voltage I/P-O/P
4,200 V
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Recom
Series
  • RDM40-UW
Product group
  • M2021
Application
  • ITE
  • Industry
  • Railway technology
Operating mode
  • regulated
Package/Case
  • Enclosed
Dimension: Length
  • 100 mm
Dimension: Width
  • 60 mm
Dimension: Height
  • 30 mm
Packaging
  • Cardboard
Weight
  • 157 g
Manufacturer's warranty (years)
  • 2
Product description
  • The RMD40-UW series of chassis-mountable DC/DC converters has been developed for railway and transport applications and complies with all relevant standards: EN50155, EN50121-3-2, DB-EMV06, EN50124-1, EN50125-1, EN 61373 1B, EN 62368-1, EN 45545-2. The unit is designed with an input voltage range of 11:1 to accommodate input voltages from 14.4 VDC to 154 VDC for nominal voltages of 24, 36, 48, 72 and 110 V, covering a range suitable for all applications – in any vehicle worldwide. These isolated and regulated outputs utilise a reinforced insulation system. As it is mounted on a base plate, the unit operates at full power within the wide temperature range for Class OT4+ST1&ST2 (from -40 °C to +85 °C) without the need for additional cooling systems. Input reverse polarity protection, inrush current limitation, a 10 ms hold-up time, remote control and an output OR diode, as well as an efficiency of up to 92%, round off the functionality of this fully rail-compliant plug-and-play unit.
Features
  • Adjustable output voltage
  • DC-OK-Signal
  • Parallel Function
  • Peak Power
  • Remote Function

Operating conditions

MTBF
  • 550,000 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 85 °C

Input

Nominal input voltage
  • 24 V
Input voltage min. DC
  • 16.8 V
Input voltage max. DC
  • 137.5 V
Input voltage range
  • 11:1
Efficiency
  • 92 %
No load power, less than
  • 0.5 W
Connection type, input
  • Connector

Output

Number of outputs
  • 1
Output Power
  • 40 W
Output voltage
  • 24 V
Output Voltage Min.
  • 21.6 V
Output Voltage Max.
  • 26.4 V
Output voltage tolerance
  • -3.3 %
Ripple & Noise
  • 240 mVp-p
Output current
  • 2.500 A
Overload protection
Type of overload protection
  • Constant current limiting
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Connector
Capacitive load, max.
  • 8,000 µF

Safety/Certifications

Protection Class IP
  • IP20
Isolation voltage I/P-O/P
  • 4,200 V
Isolation voltage I/P-FG
  • 2,200 V
Isolation voltage O/P-FG
  • 1,500 V
Approvals
  • CE
  • EN
  • IEC
Standards (safety)
  • EN 45545-2
  • EN 50155
  • EN 62368-1
  • IEC 62368-1
