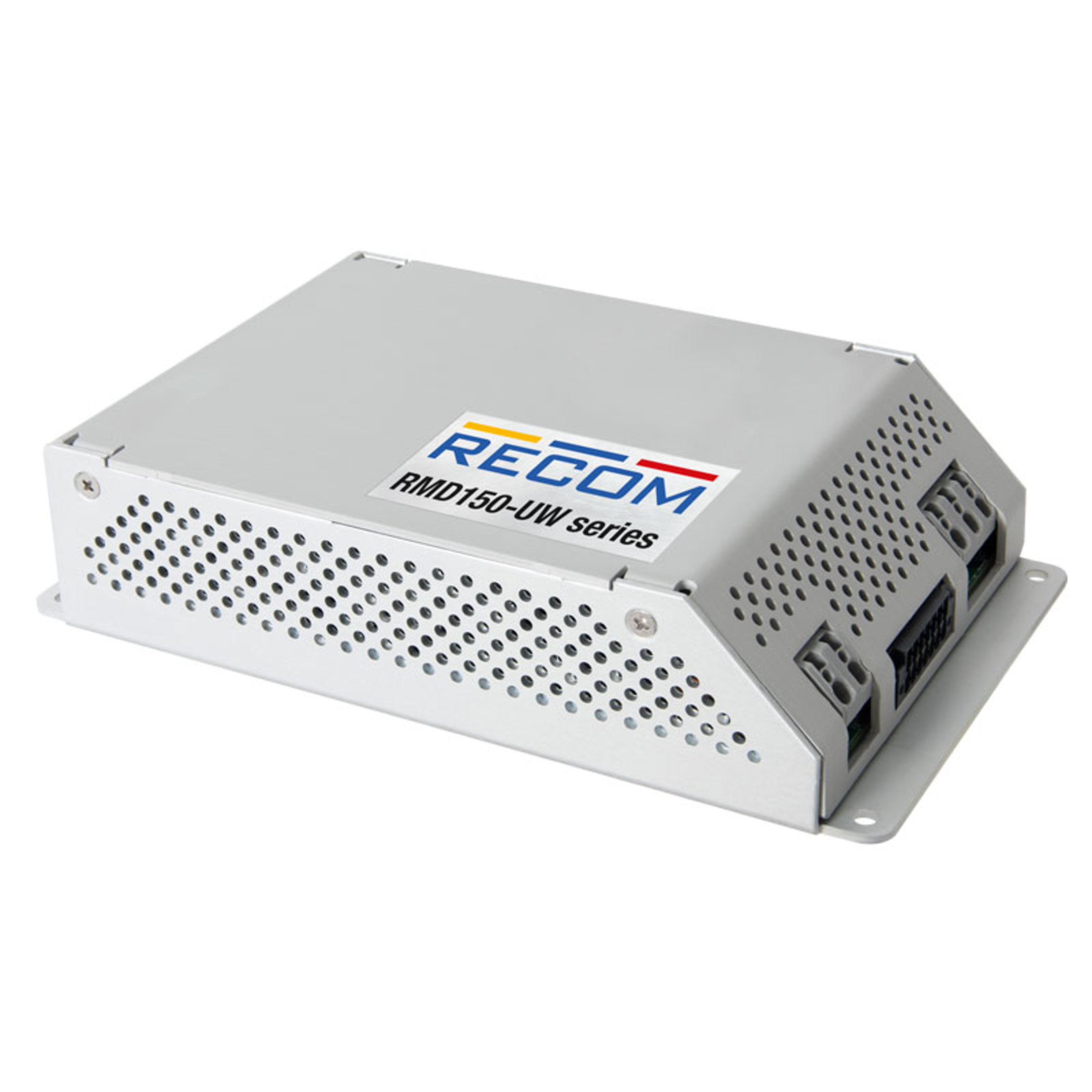

RMD150-110-24SUW

Recom DC/DC converter regulated 24 V 6,25 A Enclosed 5.000 V

RMD150-110-24SUWRMD150-110-24SUW
Manufacturer Part No.
RMD150-110-24SUW
Schukat Part No.
RMD150-110-24SUW
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
regulated
Package/Case
Enclosed
Output Power
150 W
Output voltage
24 V
Output current
6.250 A
Isolation voltage I/P-O/P
5,000 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Recom
Series
  • RMD150-UW
Product group
  • M2095
Application
  • ITE
  • Industry
  • Railway
Operating mode
  • regulated
Package/Case
  • Enclosed
Dimension: Length
  • 188.6 mm
Dimension: Width
  • 116 mm
Dimension: Height
  • 42.5 mm
Packaging
  • Cardboard
Weight
  • 700 g
Manufacturer's warranty (years)
  • 2
Product description
  • The RMD150-UW series DC/DC converter for installation is designed for use in rail and transportation applications and meets all relevant standards: EN50155, EN50121-3-2, DB-EMV06, EN50124-1, EN50125-1, EN61373 1B, EN62368-1, EN45545-2. The device is designed with an input voltage range of 11:1 to cover input voltages from 14.4VDC to 154VDC for nominal 24, 36, 48, 72 and 110V in one range for all applications - in every vehicle worldwide. vehicle worldwide. The isolated and regulated 24V output works with a reinforced isolation system. Due to the base plate mounting, the device operates with the OT4+ST1&ST2 class from -40°C to +85°C with full power and no additional cooling systems are required. Input reverse polarity protection, inrush current limiting, 10 ms bypass time, remote control and output OR diode as well as an efficiency of up to 94 % round off the functionality of this fully rail-compatible device. functionality of this fully railroad-compatible plug & play device.
Features
  • Adjustable Output Voltage
  • DC-OK-Signal
  • Parallel Function
  • Peak Power
  • Remote Function

Operating conditions

MTBF
  • 1,400,000 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 90 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Nominal input voltage
  • 110 V
Input voltage min. DC
  • 16.8 V
Input voltage max. DC
  • 137.5 V
Input voltage range
  • 11:1
Efficiency
  • 94 %
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 1
Output Power
  • 150 W
Output voltage
  • 24 V
Output Voltage Min.
  • 19.2 V
Output Voltage Max.
  • 25.2 V
Output voltage tolerance
  • -1.1 %
Ripple & Noise
  • 80 mVp-p
Output current
  • 6.250 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Push-In Terminal

Safety/Certifications

Isolation voltage I/P-O/P
  • 5,000 V
Isolation voltage I/P-FG
  • 3,000 V
Isolation voltage O/P-FG
  • 3,000 V
Approvals
  • CE
  • EN
  • IEC
  • UKCA
Standards (safety)
  • EN 45545-2
  • EN 50155
  • EN 62368-1
  • IEC 62368-1
