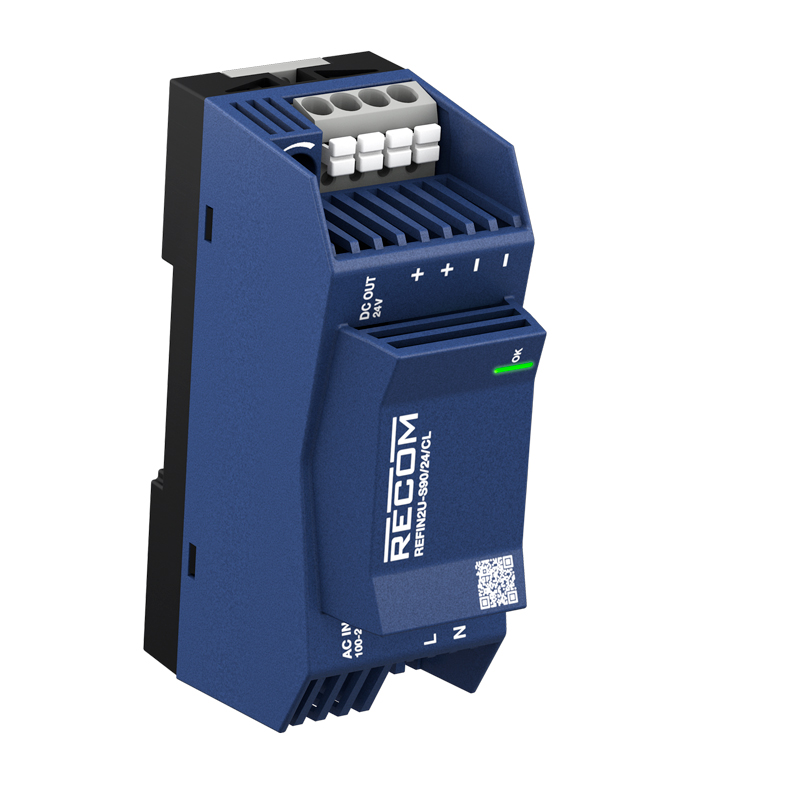

REFIN2U-S90/24/CL

Recom AC/DC industrial power supply unit DIN Rail 90W 24V 3,8A

REFIN2U-S90/24/CL
NEW
Manufacturer Part No.
REFIN2U-S90/24/CL
Schukat Part No.
REFIN2U-S90/24/CL
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

5 Pcs. in stock

Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable redundancy modules.
Here you will find suitable buffer modules.
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable busbars & bus ducts.
Here you will find suitable EMC & interference suppression components. <
Package/Case
DIN Rail
Output Power
90 W
Output voltage
24 V
Output current
3.800 A
Efficiency
93.6 %
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Recom
Series
  • REFIN2U-S
Product group
  • M3665
Application
  • ITE
  • Industry
Package/Case
  • DIN Rail
Dimension: Length
  • 94.1 mm
Dimension: Width
  • 36.2 mm
Dimension: Depth
  • 58.6 mm
Weight
  • 151 g
Manufacturer's warranty (years)
  • 3
Product description
  • The REFIN2U-S90/CL, a high-end AC/DC module in an ultra-slim, stepped 2U housing with push-in terminals, delivers a continuous output power of 90 watts and a peak power of 150% for 4.5 seconds. These intelligent, current-limited power supplies are IEC and UL certified, with an output limitation in accordance with UL1310 NEC Class 2. The DIN rail mounting is designed for any orientation and is supported, where required, by additional wings on the rear. Thanks to their unique suppression of audible noise, these flat-panel power supplies are ideal for distribution boards in office and residential environments. Together with their sister series featuring 30 and 60 W models in the same slim 36 mm housing, the REFIN product families cover a wide power range with a cost-effective selection in just 2U, which fits into the same slot in a ‘flat distribution board’ should the system’s power requirements increase at a later date.
Features
  • Adjustable Output Voltage
  • LPS
  • Parallel Function
  • Peak Power
Notice

Operating conditions

MTBF
  • 1,800,000 h
Operating expectation
  • 270,000 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 85 V
Input voltage max. AC
  • 276 V
Input voltage min. DC
  • 88 V
Input voltage max. DC
  • 370 V
Input current
  • 1.6 A
Efficiency
  • 93.6 %
No load power, less than
  • 0.3 W
Inrush current, max.
  • 20 A
Power factor correction (PFC)
Power factor
  • 0.5
Connection type, input
  • Push-In Terminal

Output

Number of outputs
  • 1
Output Power
  • 90 W
Output voltage
  • 24 V
Output voltage tolerance
  • -1.1 %
Ripple & Noise
  • 240 mVp-p
Output current
  • 3.800 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Push-In Terminal

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Approvals
  • CE
  • CSA
  • EN
  • IEC
  • UKCA
  • UL
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1
  • IEC 62368-1
  • UL 62368-1
