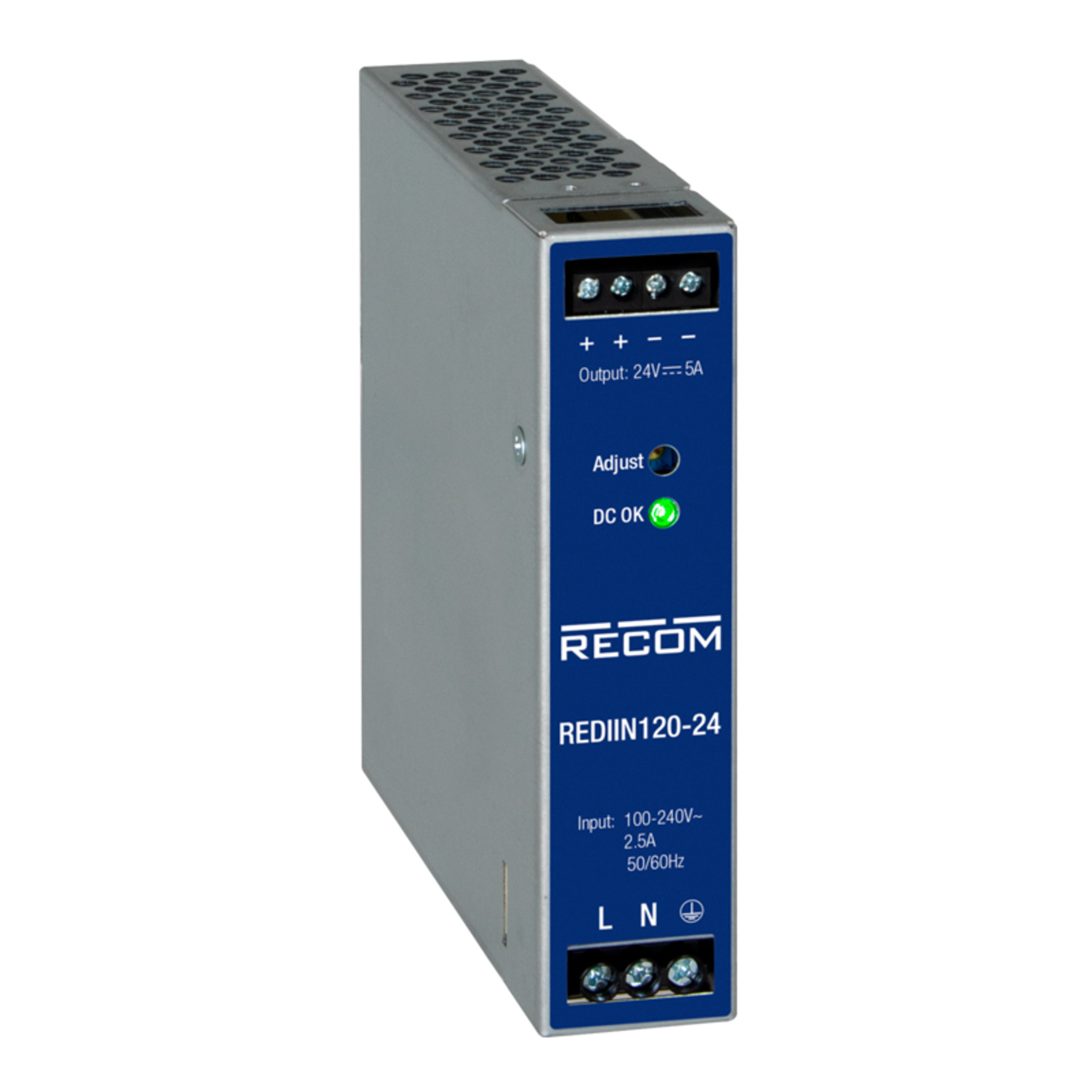

REDIIN120-24
Recom AC/DC industrial power supply unit DIN Rail 120W 24V 5A
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
3 Pcs. in stock
Planned delivery time
Ø 37 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 13 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- DIN Rail
- Output Power
- 120 W
- Output voltage
- 24 V
- Output current
- 5.000 A
- Efficiency
- 88.5 %
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 700,000 h
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
Input
- Mains connection/phases
- I
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 90 V
- Input voltage max. AC
- 264 V
- Input current
- 1.3 A
- Efficiency
- 88.5 %
- No load power, less than
- 0.15 W
- Leakage current, max.
- 1 mA
- Inrush current, max.
- 35 A
- Power factor
- 0.5
- Connection type, input
- Screw Terminal
Output
- Number of outputs
- 1
- Output Power
- 120 W
- Output voltage
- 24 V
- Output voltage tolerance
- -1 %
- Output current
- 5.000 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Screw Terminal
Safety/Certifications
- Protection class
- I
- Isolation voltage I/P-O/P
- 3,000 V
- Isolation voltage I/P-FG
- 2,000 V
- Isolation voltage O/P-FG
- 1,000 V
- Overvoltage category
- 2
- Approvals
- CE
- CSA
- EN
- IEC
- UKCA
- UL
- Standards (EMC)
- EN 55032 Class B
- EN 61204-3
- Standards (safety)
- EN 61010-1
- EN 62368-1
- IEC 61010-1
- IEC 62368-1
- UL 61010-1
- UL 62368-1
Documents
REDIIN120_installation_guide.pdf
REDIIN120_installation_guide.pdf
