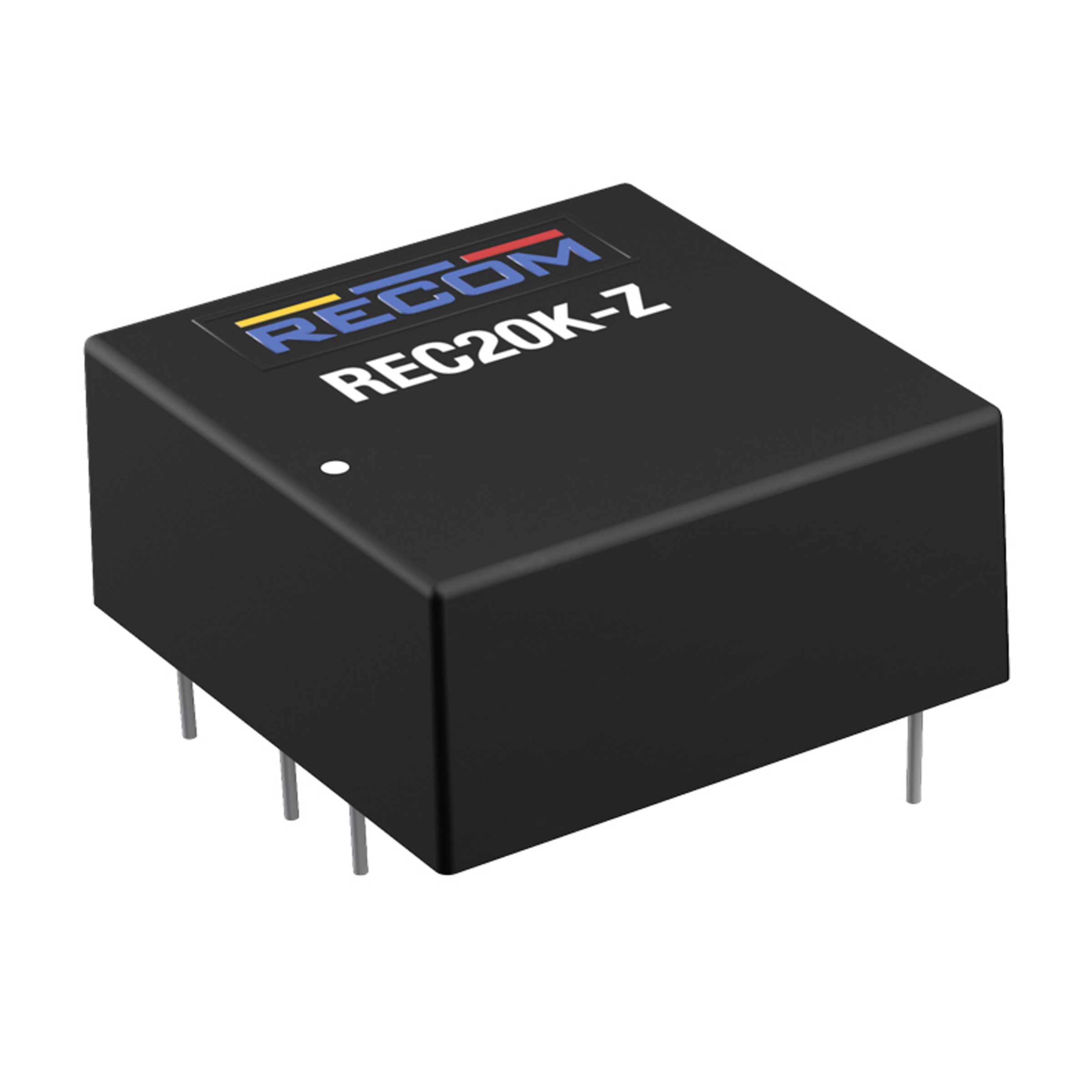

REC20K-2424SZ
Recom DC/DC converter regulated 24 V 0,833 A 1"*1" 2.000 V
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 18 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Operating mode
- regulated
- Package/Case
- 1"*1"
- Output Power
- 20 W
- Output voltage
- 24 V
- Output current
- 0.833 A
- Isolation voltage I/P-O/P
- 2,000 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 1,100,000 h
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 125 °C
Input
- Nominal input voltage
- 24 V
- Input voltage min. DC
- 9 V
- Input voltage max. DC
- 36 V
- Input voltage range
- 4:1
- Efficiency
- 88 %
- Connection type, input
- THT
Output
- Number of outputs
- 1
- Output Power
- 20 W
- Output voltage
- 24 V
- Output Voltage Min.
- 21.6 V
- Output Voltage Max.
- 26.4 V
- Output voltage tolerance
- -1 %
- Ripple & Noise
- 200 mVp-p
- Output current
- 0.833 A
- Overload protection
- Type of overload protection
- Hiccup
- Short-circuit protection
- Overvoltage protection
- Connection type, output
- THT
- Capacitive load, max.
- 4,000 µF
Safety/Certifications
- Isolation voltage I/P-O/P
- 2,000 V
- Approvals
- CSA
- EN
- IEC
- UL
- Standards (EMC)
- EN 55032 Class A
- EN 55032 Class B
- Standards (safety)
- EN 62368-1
- IEC 62368-1
- UL 62368-1
