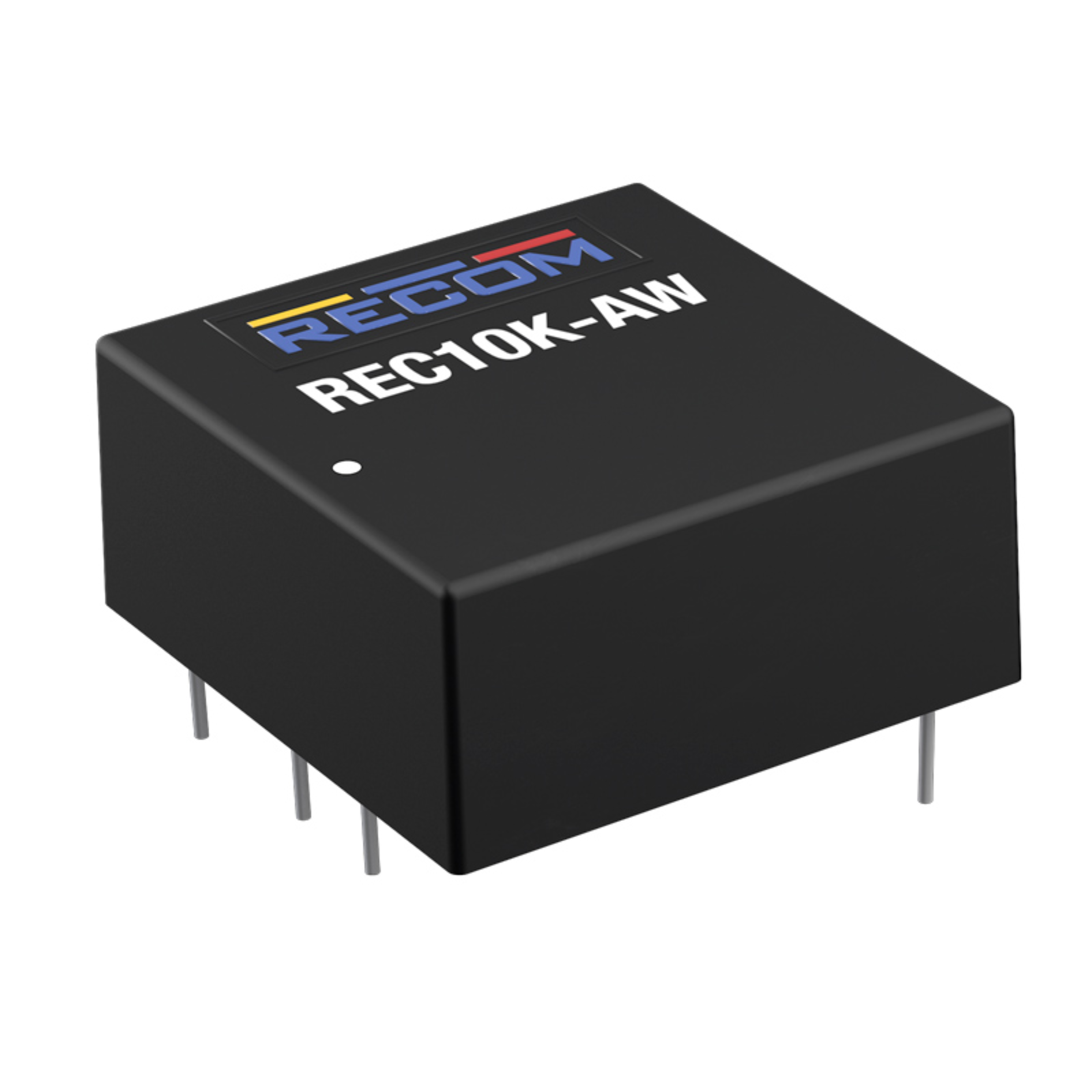

REC10K-2405DAW/H2
Recom DC/DC converter regulated -5 V 1 A 1"*1" 1.600 V
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
18 Pcs.
18 Pcs.
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 18 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 18 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Operating mode
- regulated
- Package/Case
- 1"*1"
- Output Power
- 10 W
- Output voltage
- -5 V
- Output voltage, channel 2
- 5 V
- Output current
- 1.000 A
- Output current, channel 2
- -1.000 A
- Isolation voltage I/P-O/P
- 1,600 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 800,000 h
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 100 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 125 °C
Input
- Nominal input voltage
- 24 V
- Input voltage min. DC
- 9 V
- Input voltage max. DC
- 36 V
- Input voltage range
- 4:1
- Efficiency
- 83 %
- Connection type, input
- THT
Output
- Number of outputs
- 2
- Output Power
- 10 W
- Output voltage
- -5 V
- Output voltage, channel 2
- 5 V
- Output voltage tolerance
- -1 %
- Output voltage tolerance, channel 2
- -1 %
- Ripple & Noise
- 150 mVp-p
- Ripple & Noise, Channel 2
- 150 mVp-p
- Output current
- 1.000 A
- Output current, channel 2
- -1.000 A
- Overload protection
- Type of overload protection
- Hiccup
- Short-circuit protection
- Overvoltage protection
- Connection type, output
- THT
- Capacitive load, max.
- 2,000 µF
Safety/Certifications
- Isolation voltage I/P-O/P
- 1,600 V
- Approvals
- CSA
- EN
- IEC
- UL
- Standards (EMC)
- EN 55032 Class B
- Standards (safety)
- EN 62368-1
- IEC 62368-1
- UL 62368-1
