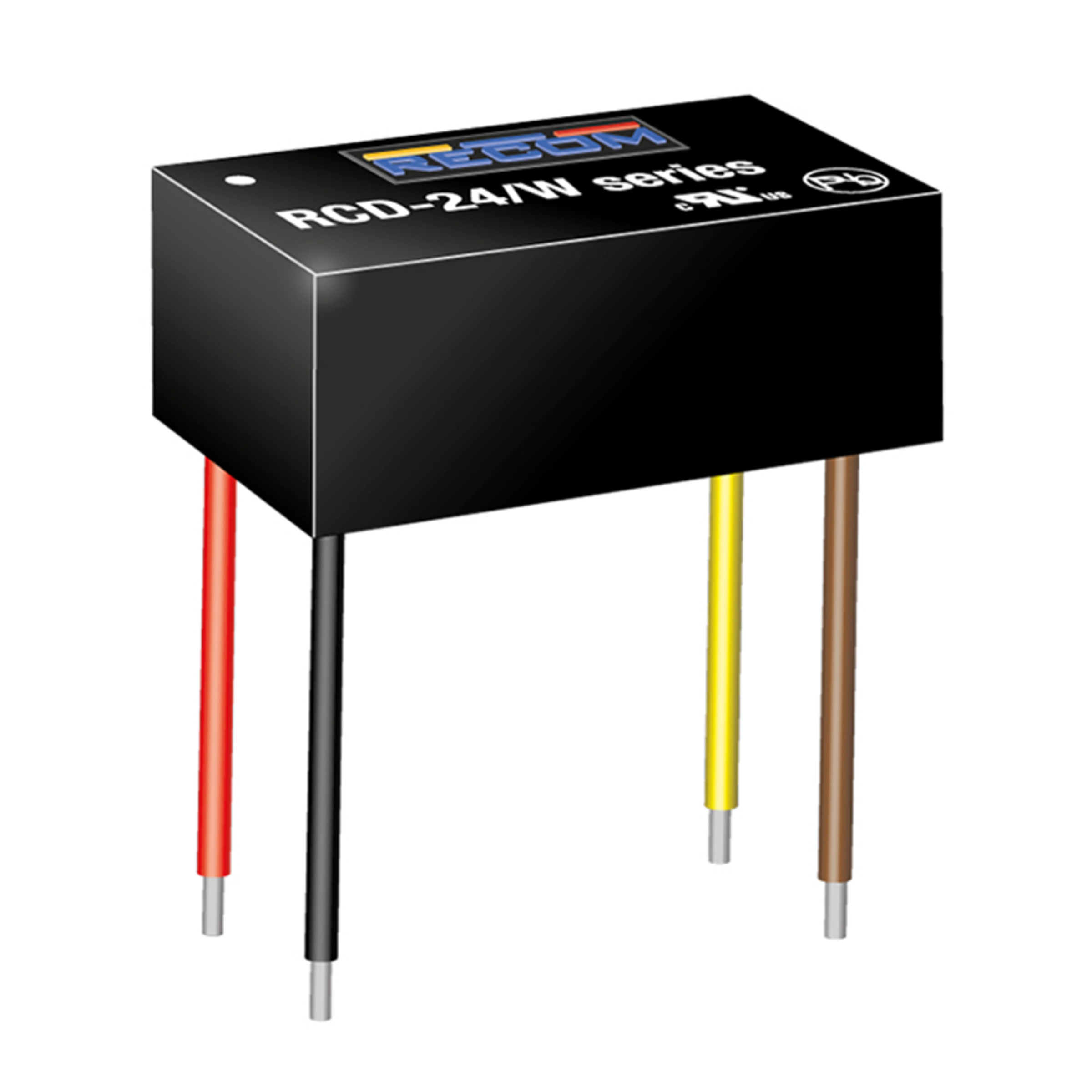

RCD-24-0.70/W/VREF

Recom DC/DC LED driver 0,700 A 2 V 35 V Analog Control Voltage

Unable to load the image!

Unable to load the image!

Unable to load the image!

Manufacturer Part No.
RCD-24-0.70/W/VREF
Schukat Part No.
RCD-24-0.70/W/VREF
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

90 Pcs. in stock

Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Qty in Pcs. Price per 1 Pcs.
Price Type
STP = Standard price
RRP = Recommended retail price
CPL = Customer price list
1 17,27 € STP
5 16,72 € STP
10 15,94 € STP
25 15,47 € STP
Manufacturer bundle 5 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs. 17,27 €

Quantity and Options

(at least 1 or multiple of 1)
Price per 1 Pcs.
17,27 €

Ext. Price

17,27 €
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Output current
0.700 A
Output Voltage Min.
2 V
Output Voltage Max.
35 V
Interfaces
Analog Control Voltage
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Recom
Series
  • RCD-24
Product group
  • M4610
Application
  • ITE
  • Industry
  • Lighting
Operating mode
  • buck
Package/Case
  • DIP6
Dimension: Length
  • 22.1 mm
Dimension: Width
  • 12.6 mm
Dimension: Height
  • 8.5 mm
Weight
  • 6.8 g
Dimmable
Interfaces
  • Analog Control Voltage
Manufacturer's warranty (years)
  • 5

Operating conditions

MTBF
  • 516,000 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 71 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 125 °C

Input

Input voltage min. DC
  • 4.5 V
Input voltage max. DC
  • 36 V
Efficiency
  • 96 %
Connection type, input
  • Strand
Cable length, input
  • 10 cm

Output

Output Power
  • 24.5 W
Output Voltage Min.
  • 2 V
Output Voltage Max.
  • 35 V
Ripple & Noise
  • 150 mVp-p
Output current
  • 0.700 A
Output current tolerance
  • -1 %
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Strand
Cable length, output
  • 10 cm
Capacitive load, max.
  • 100 µF

Safety/Certifications

Protection Class IP
  • IP67
Approvals
  • CSA
  • EN
  • UL
Standards (safety)
  • EN 60950-1
  • UL 60950-1

Documents

RECOM_SelectionGuide_EN_24-01_web.pdf
