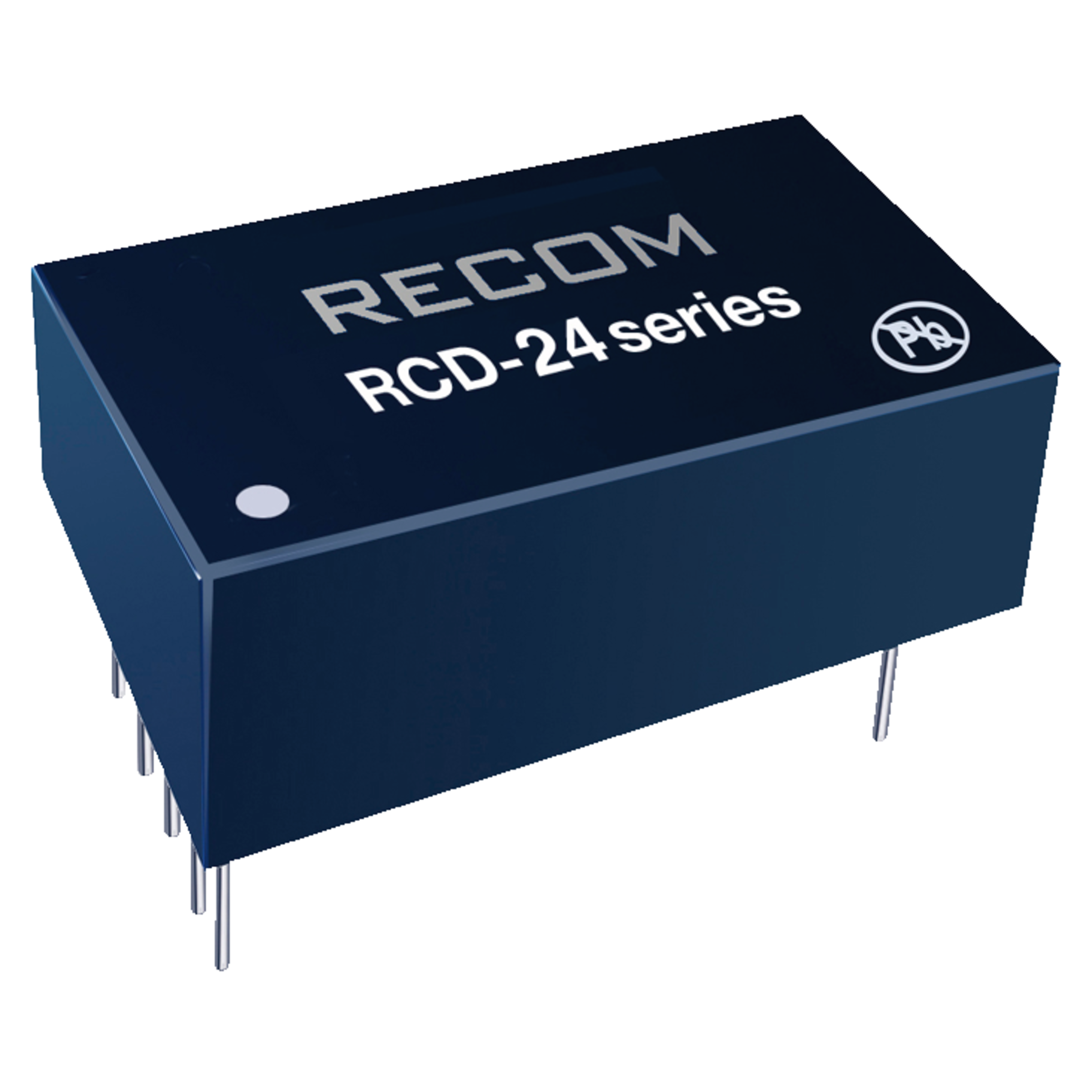

RCD-24-0.50
Recom DC/DC LED driver 0,500 A 2 V 35 V not dimmable
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
125 Pcs. in stock
Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 39 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Output current
- 0.500 A
- Output Voltage Min.
- 2 V
- Output Voltage Max.
- 35 V
- Interfaces
- not dimmable
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 516,000 h
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 80 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 125 °C
Input
- Input voltage min. DC
- 4.5 V
- Input voltage max. DC
- 36 V
- Efficiency
- 96 %
- Connection type, input
- THT
Output
- Output Power
- 17.5 W
- Output Voltage Min.
- 2 V
- Output Voltage Max.
- 35 V
- Ripple & Noise
- 150 mVp-p
- Output current
- 0.500 A
- Output current tolerance
- -1 %
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- THT
- Capacitive load, max.
- 100 µF
Safety/Certifications
- Protection Class IP
- IP67
- Approvals
- CSA
- EN
- UL
- Standards (safety)
- EN 60950-1
- UL 60950-1
