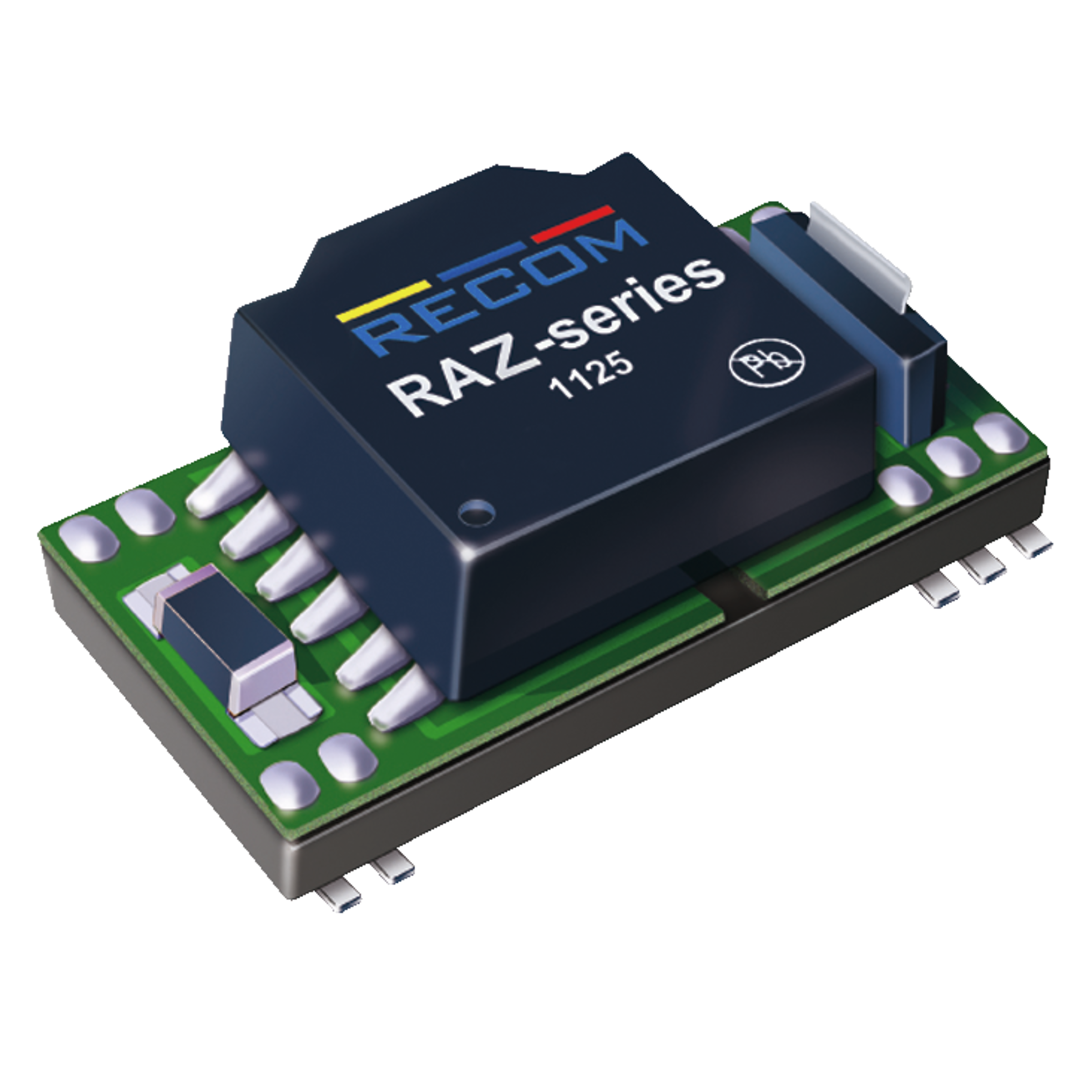

RAZ-0505S

Recom DC/DC converter regulated 5,00 V 0,200 A SMD 1.000 V

RAZ-0505SRAZ-0505SRAZ-0505S
Manufacturer Part No.
RAZ-0505S
Schukat Part No.
RAZ-0505S
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
-
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
LTB 23.05.2025
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 27 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 27 or multiple of 27)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
regulated
Package/Case
SMD
Output Power
1 W
Output voltage
5 V
Output current
0.200 A
Isolation voltage I/P-O/P
1,000 V
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Recom
Series
  • RAZ
Product group
  • M4999
Application
  • ITE
  • Industry
  • Medical
Operating mode
  • regulated
Package/Case
  • SMD

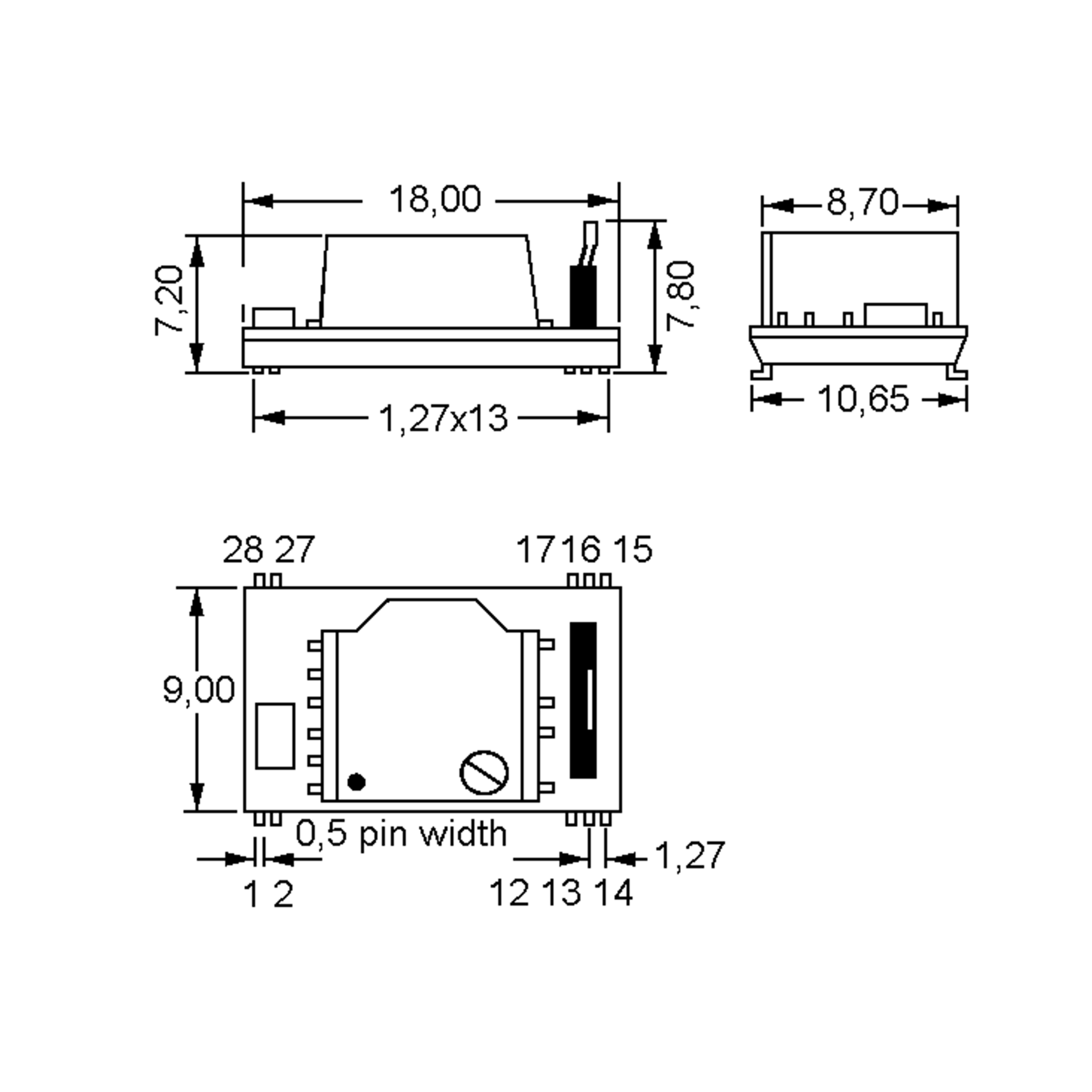

Dimension: Length
  • 18 mm
Dimension: Width
  • 8.7 mm
Dimension: Height
  • 7.8 mm
Packaging
  • Tube
Weight
  • 1.6 g
Manufacturer's warranty (years)
  • 3

Operating conditions

MTBF
  • 3,914,000 h

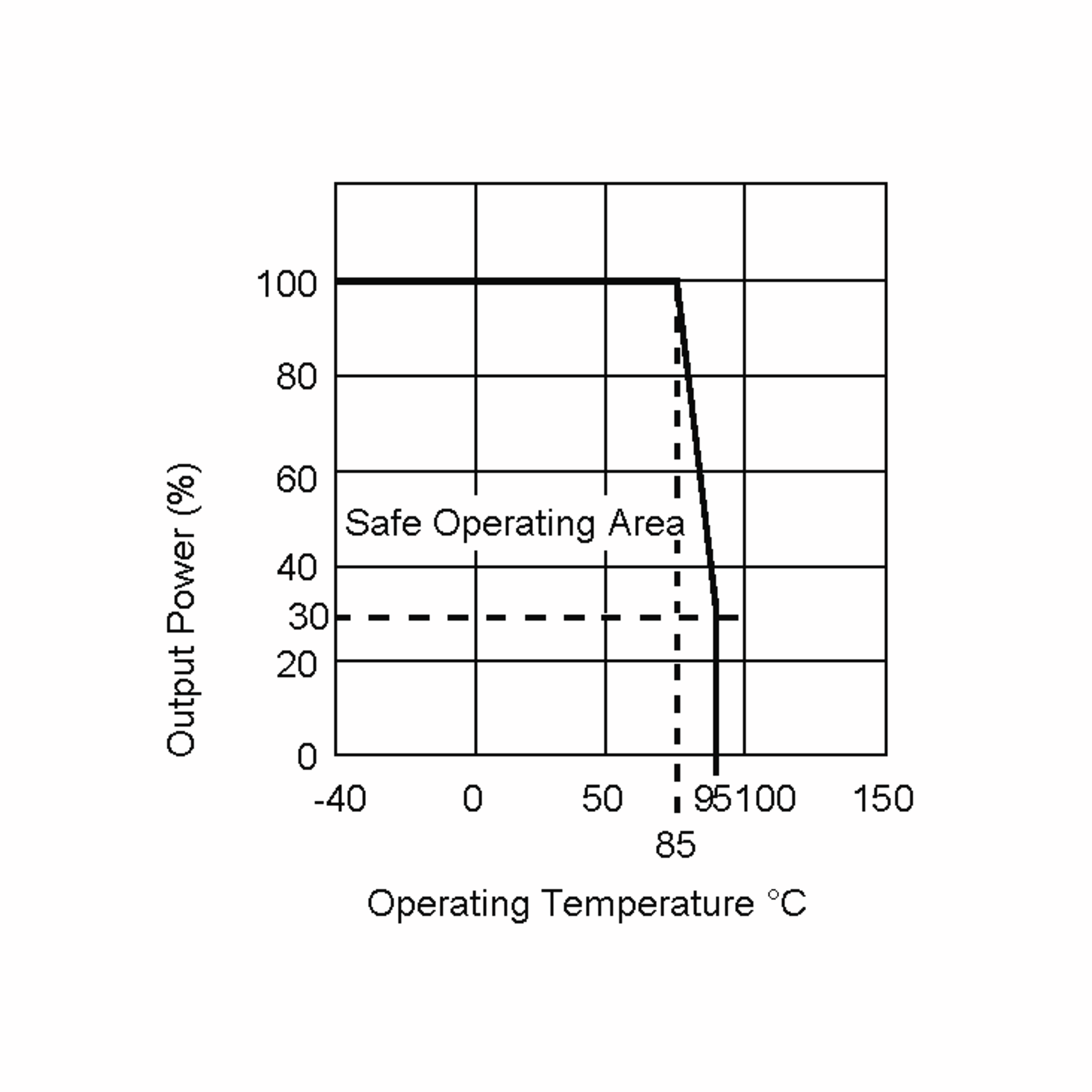

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 125 °C

Input

Nominal input voltage
  • 5 V
Input voltage min. DC
  • 4.5 V
Input voltage max. DC
  • 5.5 V
Input voltage range
  • 1:1
Efficiency
  • 75 %
Connection type, input
  • SMD

Output

Number of outputs
  • 1
Output Power
  • 1 W
Output voltage
  • 5 V
Output voltage tolerance
  • -5.5 %
Ripple & Noise
  • 75 mVp-p
Output current
  • 0.200 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • SMD
Capacitive load, max.
  • 2,200 µF

Safety/Certifications

Isolation voltage I/P-O/P
  • 1,000 V
Approvals
  • EN
  • IEC
Standards (safety)
  • EN 60950-1
  • IEC 60601-1

Documents

Recom_Katalog.pdf
Download (pdf, 10.818 KB)
