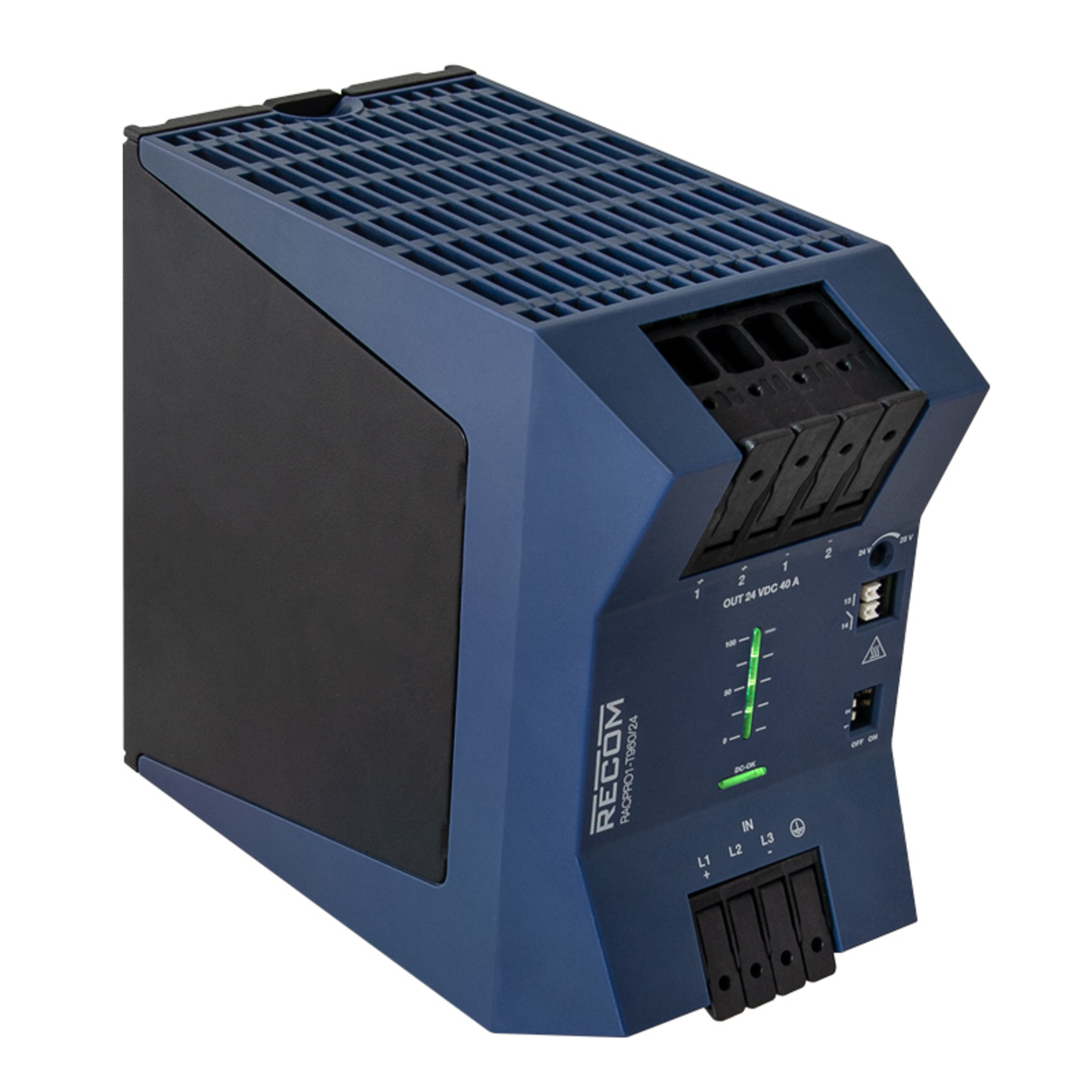

RACPRO1-T960/24
Recom AC/DC industrial power supply unit DIN Rail 960W 24V 40A
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Next Stock Receipt
Week 04/2025
3 Pcs.
3 Pcs.
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- DIN Rail
- Output Power
- 960 W
- Output voltage
- 24 V
- Output current
- 40.000 A
- Efficiency
- 96 %
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 680,000 h
- Operating expectation
- 80,000 h
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
Input
- Mains connection/phases
- III
- Mains frequency min.
- 50 Hz
- Mains frequency max.
- 60 Hz
- Input voltage min. AC
- 320 V
- Input voltage max. AC
- 575 V
- Input voltage min. DC
- 450 V
- Input voltage max. DC
- 815 V
- Input current
- 4.8 A
- Efficiency
- 96 %
- No load power, less than
- 3 W
- Leakage current, max.
- 3.5 mA
- Inrush current, max.
- 5 A
- Power factor correction (PFC)
- Power factor
- 0.9
- Connection type, input
- Push-In Terminal
Output
- Number of outputs
- 1
- Output Power
- 960 W
- Output voltage
- 24 V
- Output voltage tolerance
- -1 %
- Ripple & Noise
- 85 mVp-p
- Output current
- 40.000 A
- Overload protection
- Type of overload protection
- Hiccup
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Push-In Terminal
Safety/Certifications
- Protection class
- I
- Protection Class IP
- IP20
- Isolation voltage I/P-O/P
- 3,500 V
- Isolation voltage I/P-FG
- 1,600 V
- Isolation voltage O/P-FG
- 500 V
- Overvoltage category
- 2
- Approvals
- CSA
- EN
- IEC
- UKCA
- UL
- Standards (safety)
- EN 61010-1
- EN 62368-1
- IEC 61010-1
- IEC 62368-1
- UL 61010-1
- UL 62368-1
Documents
RACPRO1-Txxx_installation_guide.pdf
RECOM_SelectionGuide_EN_24-01_web.pdf
