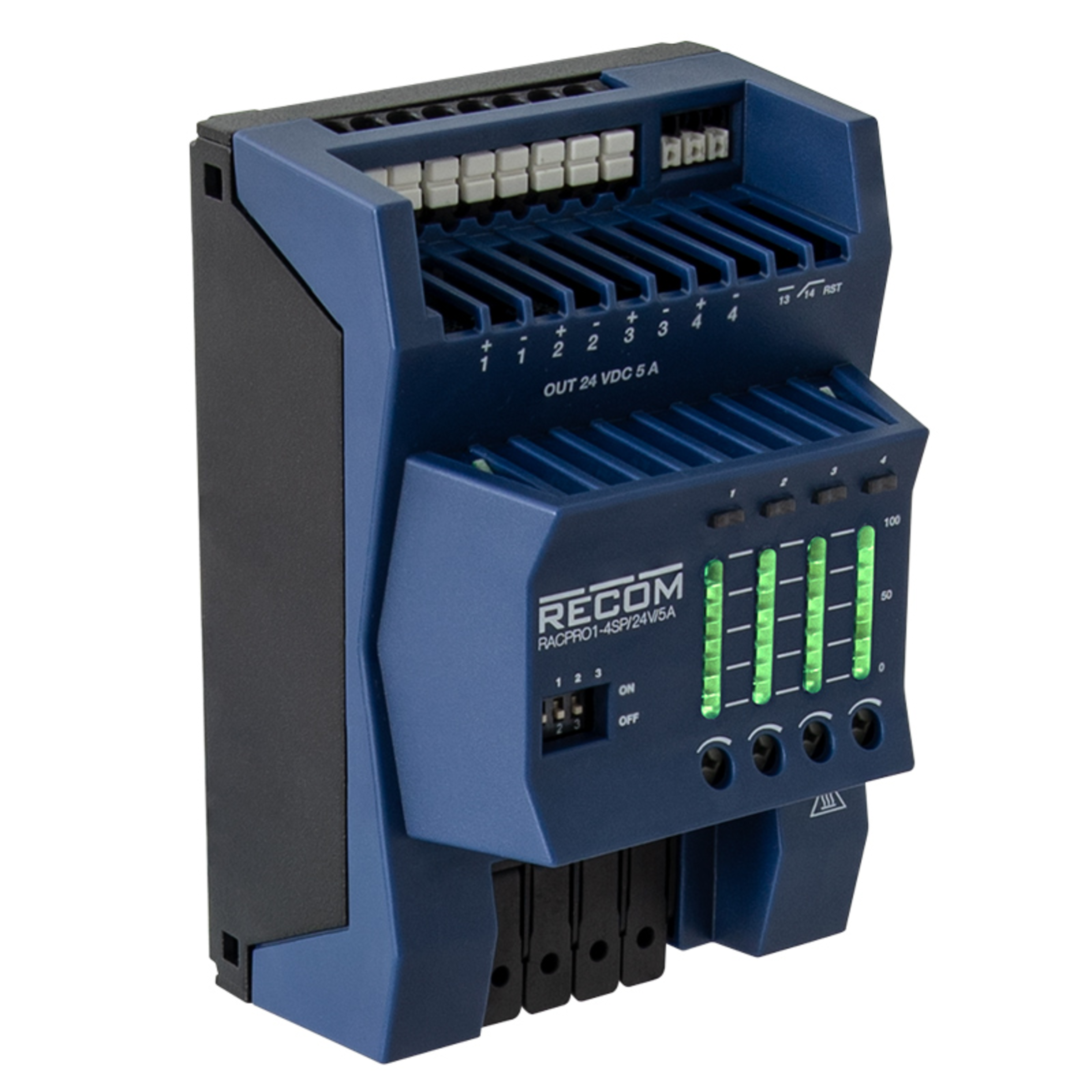

RACPRO1-4SP/24V/5A

Recom RACPRO1-4SP Electronic fuse

RACPRO1-4SP/24V/5A
Manufacturer Part No.
RACPRO1-4SP/24V/5A
Schukat Part No.
RACPRO1-4SP/24V/5A
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Electronic fuse
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Recom
Series
  • RACPRO1-4SP
Product group
  • M4853
Type
  • Electronic fuse
Package/Case
  • DIN Rail
Dimension: Width
  • 72 mm
Dimension: Height
  • 110.2 mm
Dimension: Depth
  • 61.9 mm
Weight
  • 250 g
Manufacturer's warranty (years)
  • 3
Product description
  • The RACPRO1-4SP series are 4-channel load switches with electronic fuse (e-Fuse) that feature independent overcurrent limit control and real-time output current indication. Each channel is separately protected so that overload or fault conditions on a single load will not affect the reliability or function of the entire system. The useful LED indicators show the output current and change from green to yellow (current within limit) to orange (current at limit) to red (overcurrent or short circuit). A voltage-free DC-OK output can be used to monitor the system function. Each channel can also be switched on or off to facilitate fault diagnosis or maintenance. The RECOM RACPRO1-4SP/24V/10A e-fuses are available with 10A maximum channel current and 150% power gain for 5s, but can handle 150% overload for up to 120ms to prevent false tripping. The channels switch on in sequence to reduce the inrush current with a pre-settable delay time. If the system is overloaded, the channels switch off the loads in reverse order so that important functions continue to run until the end. The output overload hiccup or trip mode can be set via a switch. The e-fuses have a long life expectancy (>80,000h/40°C) and simple wiring with tool-free push-in and lever terminals. The input and output terminals are also paired to allow easy daisy chaining.
Features
  • DC-OK-Signal

Input

Input voltage min. DC
  • 22 V
Input voltage max. DC
  • 28 V
Connection type, input
  • Push-In Terminal

Output

Output Power
  • 240 W
Output voltage
  • 24 V
Output current
  • 5.000 A
Connection type, output
  • Push-In Terminal

Safety/Certifications

Approvals
  • CE
  • CSA
  • EN
  • UKCA
  • UL
Standards (safety)
  • EN 61010-1
  • EN 62368-1
  • IEC 61010-1
  • IEC 62368-1
  • UL 62368-1

Documents

RACPRO1-4SP_installation_guide.pdf
Download (pdf, 1.103 KB)
Recom_Katalog.pdf
Download (pdf, 10.818 KB)

Other Products

All Products of the Series
Loading...

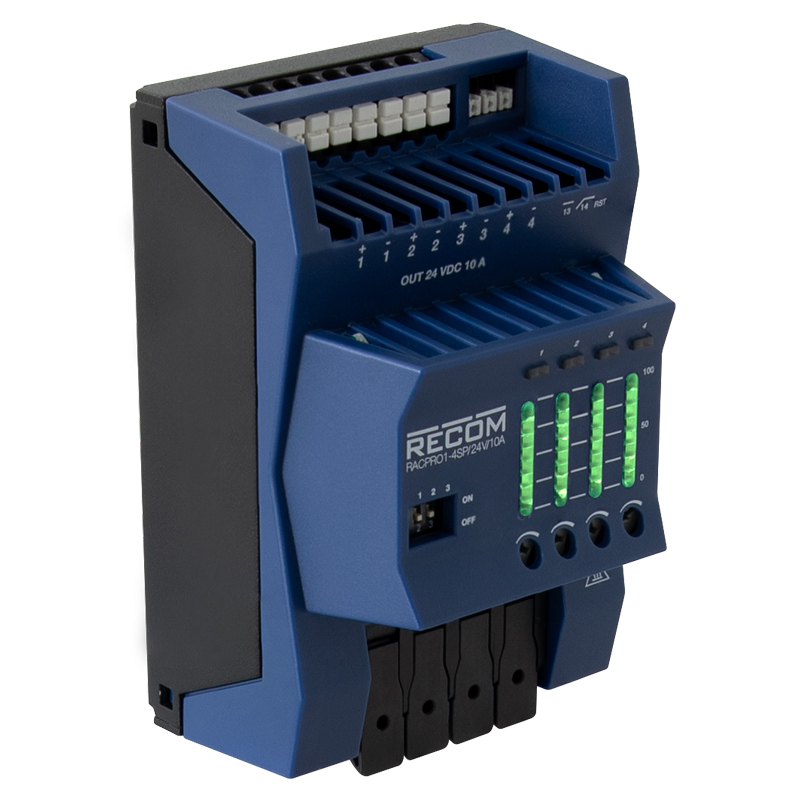

RACPRO1-4SP/24V/10A
