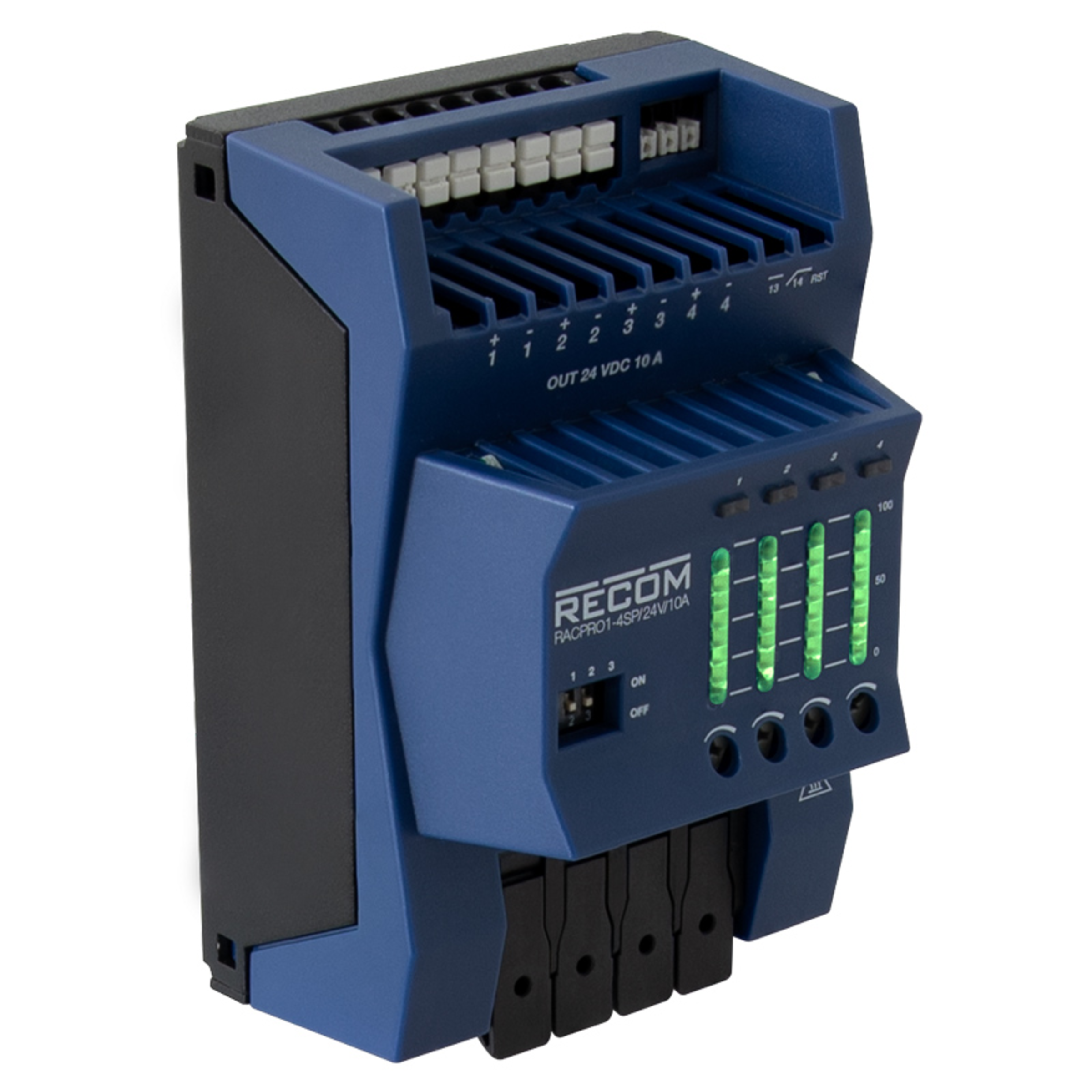

RACPRO1-4SP/24V/10A

Recom RACPRO1-4SP Electronic fuse

RACPRO1-4SP/24V10A
Manufacturer Part No.
RACPRO1-4SP/24V/10A
Schukat Part No.
RACPRO1-4SP/24V10A
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

5 Pcs. in stock

Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Electronic fuse
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Recom
Series
  • RACPRO1-4SP
Product group
  • M4853
Type
  • Electronic fuse
Package/Case
  • DIN Rail
Dimension: Width
  • 72 mm
Dimension: Height
  • 111 mm
Dimension: Depth
  • 61.9 mm
Weight
  • 250 g
Manufacturer's warranty (years)
  • 3
Product description
  • The RACPRO1-4SP series are 4-channel electronic fuse (e-Fuse) load switches with independent overcurrent limit control and real-time output current indication. Each channel is separately protected so that overload or fault conditions on an individual load do not affect overall system reliability or function. The useful LED indicators show the output current and change from green to yellow (current within limit) to orange (current at limit) to red (overcurrent or short-circuit). A volt-free DC-OK output can be used to monitor system function. Each channel can also be switched ON or OFF to ease fault diagnostics or for maintenance. The RECOM e-Fuses RACPRO1-4SP/24V/10A are available with 10A maximum channel current and 150% power boost for 5s but can handle 150% overload for up to 120ms to avoid nuisance tripping. The channels power up in sequence to reduce the input inrush current with a pre-settable delay time. Under system overload conditions, the channels will disconnect the loads in reverse sequence, keeping essential functions running to the last. Output overload hiccup or tripping mode is adjustable by a switch. The e-Fuses have a high lifetime expectancy >80.000h/40°C and easy wiring with tool-less push-in and lever-release terminals. The input and output terminals are also paired to allow easy daisy chaining.
Features
  • DC-OK-Signal

Input

Input voltage min. DC
  • 22 V
Input voltage max. DC
  • 28 V
Connection type, input
  • Push-In Terminal

Output

Output Power
  • 120 W
Output voltage
  • 24 V
Output current
  • 10.000 A
Connection type, output
  • Push-In Terminal

Safety/Certifications

Approvals
  • CSA
  • EN
  • IEC
  • UKCA
  • UL
Standards (safety)
  • EN 61010-1
  • EN 62368-1
  • IEC 61010-1
  • IEC 62368-1
  • UL 62368-1

Documents

RACPRO1-4SP_installation_guide.pdf
Download (pdf, 1.103 KB)
Recom_Katalog.pdf
Download (pdf, 10.818 KB)

Other Products

All Products of the Series
Loading...

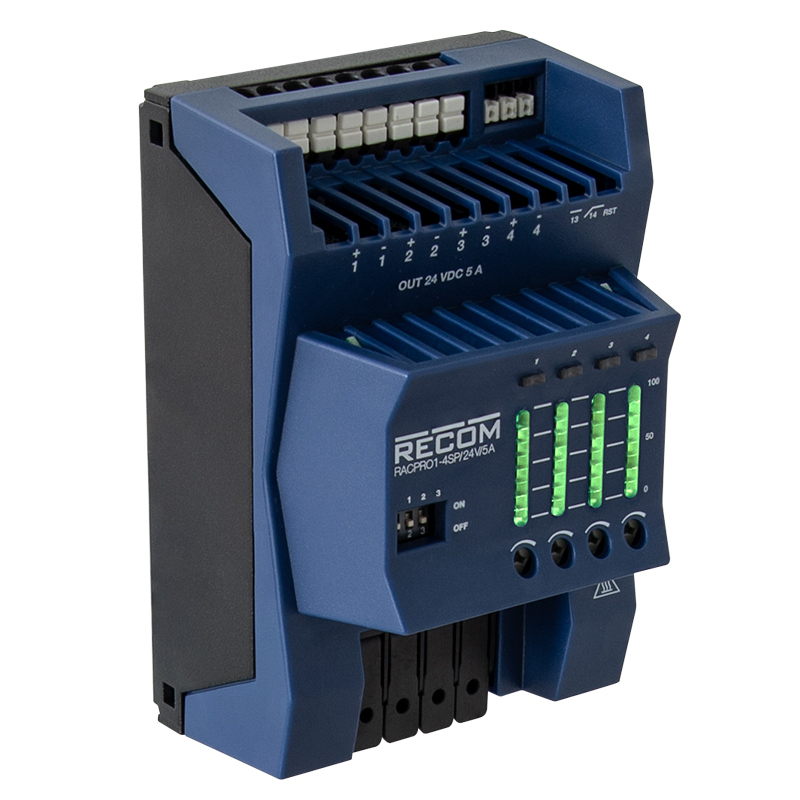

RACPRO1-4SP/24V/5A
