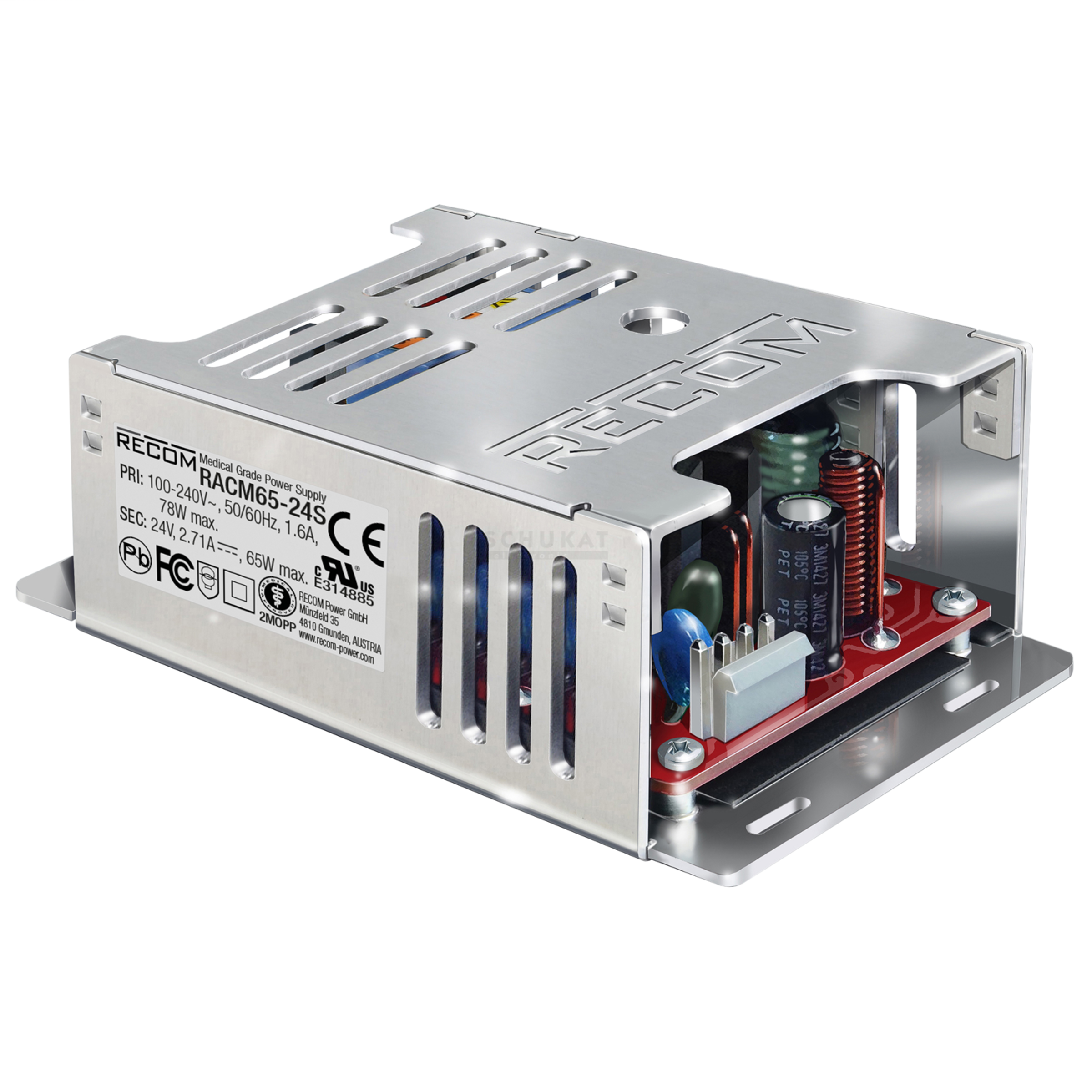

RACM65-24S
Recom AC/DC industrial power supply unit Enclosed Metal 65W 24,00V 2,710A 2*MOPP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- Enclosed Metal
- Output Power
- 65 W
- Output voltage
- 24 V
- Output current
- 2.710 A
- Efficiency
- 93 %
- Medical protection classification
- 2*MOPP
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 1,494,000 h
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
Input
- Mains connection/phases
- I
- Mains frequency min.
- 50 Hz
- Mains frequency max.
- 60 Hz
- Input voltage min. AC
- 85 V
- Input voltage max. AC
- 264 V
- Input voltage min. DC
- 100 V
- Input voltage max. DC
- 370 V
- Input current
- 0.9 A
- Efficiency
- 93 %
- No load power, less than
- 0.11 W
- Leakage current, max.
- 0.075 mA
- Inrush current, max.
- 60 A
- Power factor correction (PFC)
- Connection type, input
- Connector
Output
- Number of outputs
- 1
- Output Power
- 65 W
- Output voltage
- 24 V
- Output voltage tolerance
- -1 %
- Ripple & Noise
- 75 mVp-p
- Output current
- 2.710 A
- Overload protection
- Type of overload protection
- Hiccup
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Connector
Safety/Certifications
- Protection class
- II
- Isolation voltage I/P-O/P
- 4,000 V
- Approvals
- CE
- CSA
- EAC
- EN
- IEC
- UKCA
- UL
- Standards (EMC)
- EN 55032
- EN 60601-1-2
- Standards (safety)
- ANSI/AAMI ES 60601-1
- EN 60601-1
- IEC 60950-1
- Medical protection classification
- 2*MOPP
