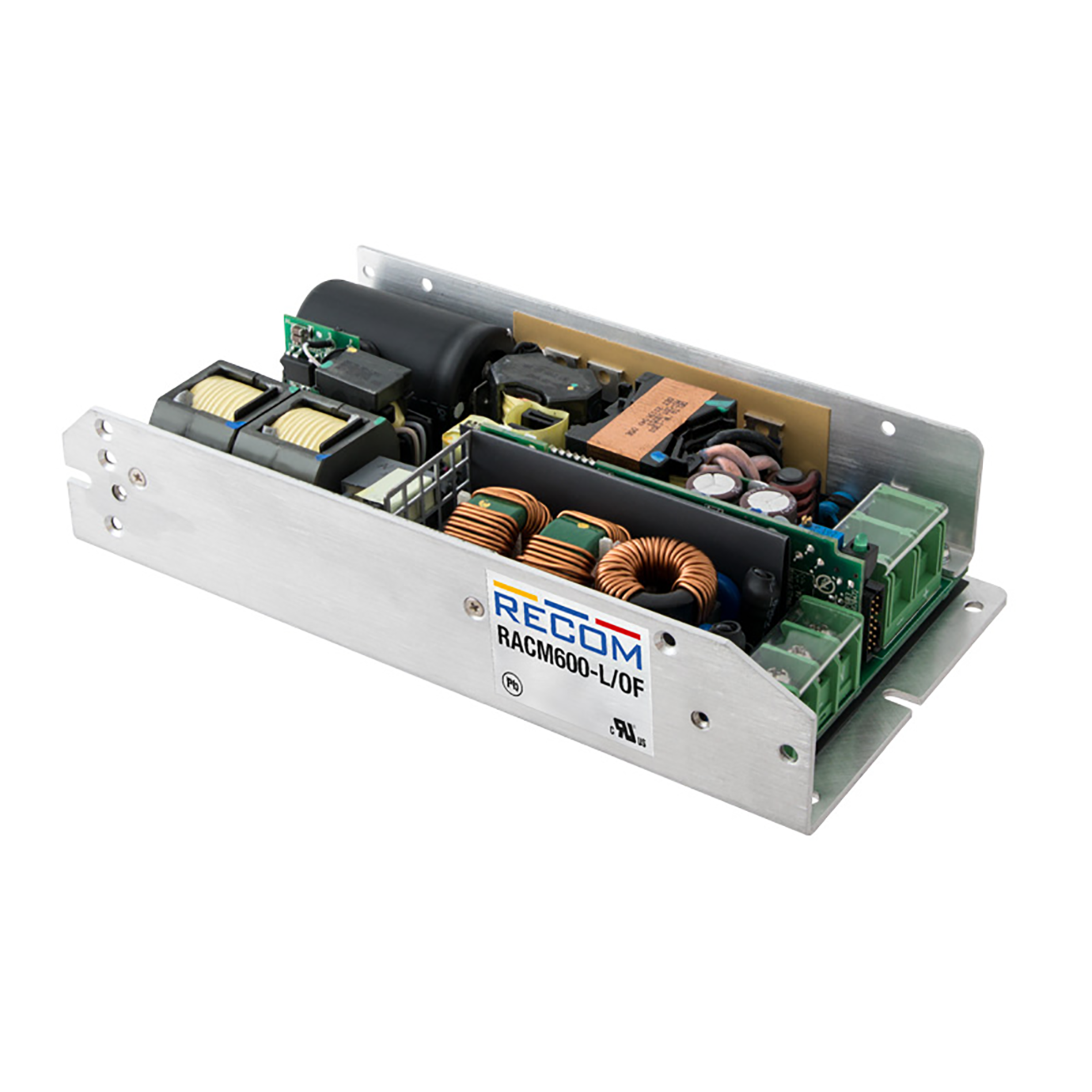

RACM600-48SL/OF
Recom AC/DC industrial power supply unit Open Frame 600W 48V 12,5A PM-Bus 2*MOPP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
13 Pcs. in stock
Planned delivery time
Ø 30 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 7 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- Open Frame
- Output Power
- 600 W
- Output voltage
- 48 V
- Output current
- 12.500 A
- Efficiency
- 93 %
- Medical protection classification
- 2*MOPP
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 500,000 h
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
Input
- Mains connection/phases
- I
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 80 V
- Input voltage max. AC
- 275 V
- Input voltage min. DC
- 120 V
- Input voltage max. DC
- 300 V
- Efficiency
- 93 %
- Leakage current, max.
- 0.3 mA
- Inrush current, max.
- 20 A
- Power factor correction (PFC)
- Power factor
- 0.9
- Connection type, input
- Screw Terminal
Output
- Number of outputs
- 1
- Output Power
- 600 W
- Output power convection cooled
- 450 W
- Output voltage
- 48 V
- Output voltage tolerance
- -2.25 %
- Output current
- 12.500 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Screw Terminal
Safety/Certifications
- Protection class
- I
- Isolation voltage I/P-O/P
- 4,000 V
- Isolation voltage I/P-FG
- 1,500 V
- Isolation voltage O/P-FG
- 1,500 V
- Approvals
- CE
- CSA
- EN
- IEC
- UKCA
- UL
- Standards (EMC)
- EN 55032
- EN 55032 Class B
- EN 60601-1-2
- Standards (safety)
- ANSI/AAMI ES 60601-1
- EN 60601-1
- EN 62368-1
- IEC 60601-1
- IEC 62368-1
- UL 62368-1
- Medical protection classification
- 2*MOPP
