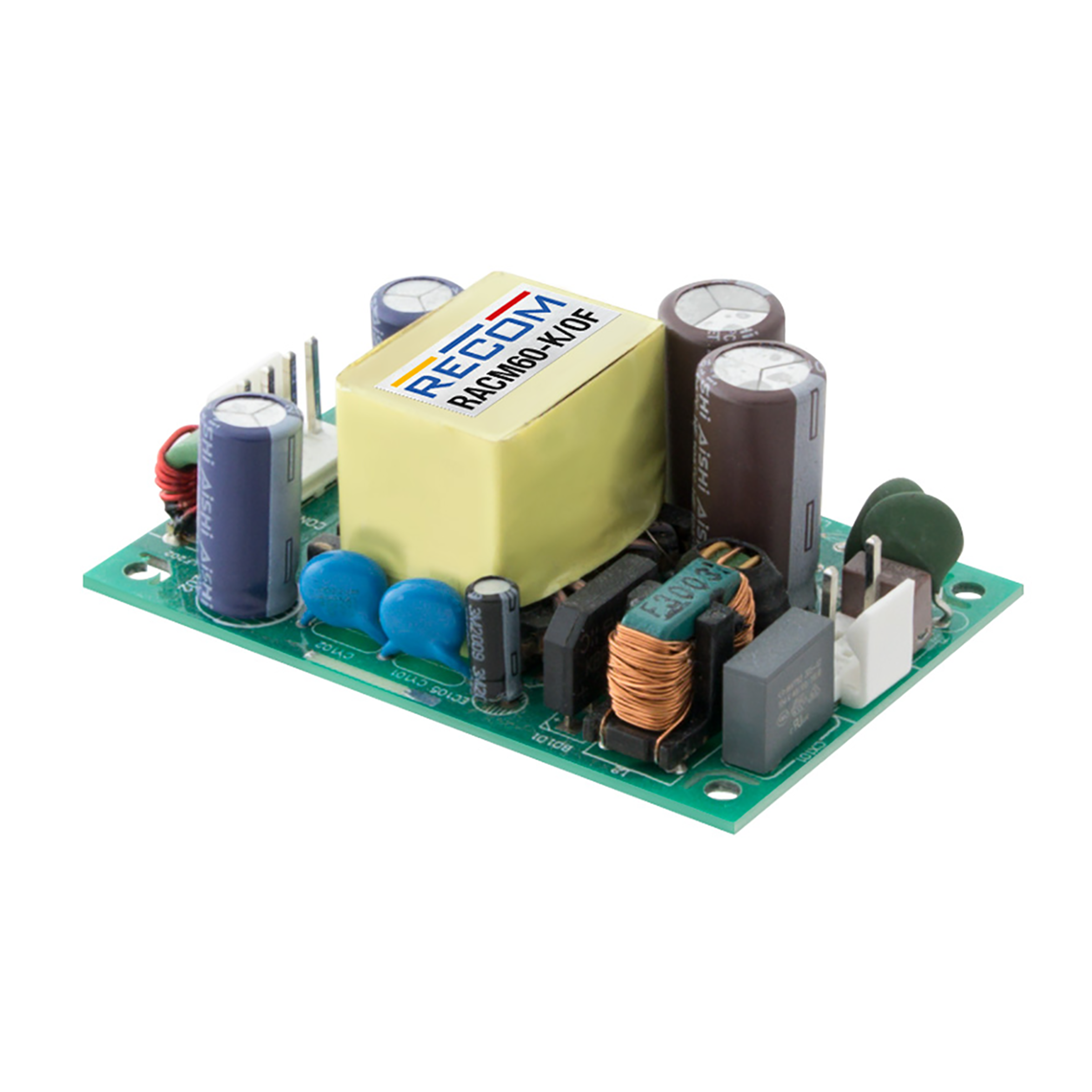

RACM60-48SK/277/OF-T
Recom AC/DC industrial power supply unit Open Frame 60W 48V 1,25A 2*MOPP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
20 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- Open Frame
- Output Power
- 60 W
- Output voltage
- 48 V
- Output current
- 1.250 A
- Efficiency
- 90 %
- Medical protection classification
- 2*MOPP
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 900,000 h
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 90 °C
Input
- Mains connection/phases
- I
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 80 V
- Input voltage max. AC
- 305 V
- Input voltage min. DC
- 120 V
- Input voltage max. DC
- 430 V
- Input current
- 0.6 A
- Efficiency
- 90 %
- No load power, less than
- 0.1 W
- Inrush current, max.
- 60 A
- Power factor correction (PFC)
- Connection type, input
- Connector
Output
- Number of outputs
- 1
- Output Power
- 60 W
- Output voltage
- 48 V
- Output voltage tolerance
- -1 %
- Ripple & Noise
- 480 mVp-p
- Output current
- 1.250 A
- Overload protection
- Type of overload protection
- Hiccup
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Connector
Safety/Certifications
- Protection class
- II
- Isolation voltage I/P-O/P
- 4,800 V
- Approvals
- CE
- CSA
- EN
- IEC
- UKCA
- UL
- Standards (EMC)
- EN 55032
- EN 60601-1-2
- Standards (safety)
- ANSI/AAMI ES 60601-1
- EN 60335-1
- EN 61558-1
- EN 61558-2-16
- IEC 60335-1
- IEC 61558-1
- IEC 61558-2-16
- Medical protection classification
- 2*MOPP
