0 Pcs. in stock
Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 11 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Package/Case
Enclosed Plastic
Output Power
30 W
Output voltage
36 V
Output current
0.833 A
Efficiency
88 %
Medical protection classification
2*MOPP
RoHS-Conform
Specifications
Close all
General
Manufacturer
Recom
Series

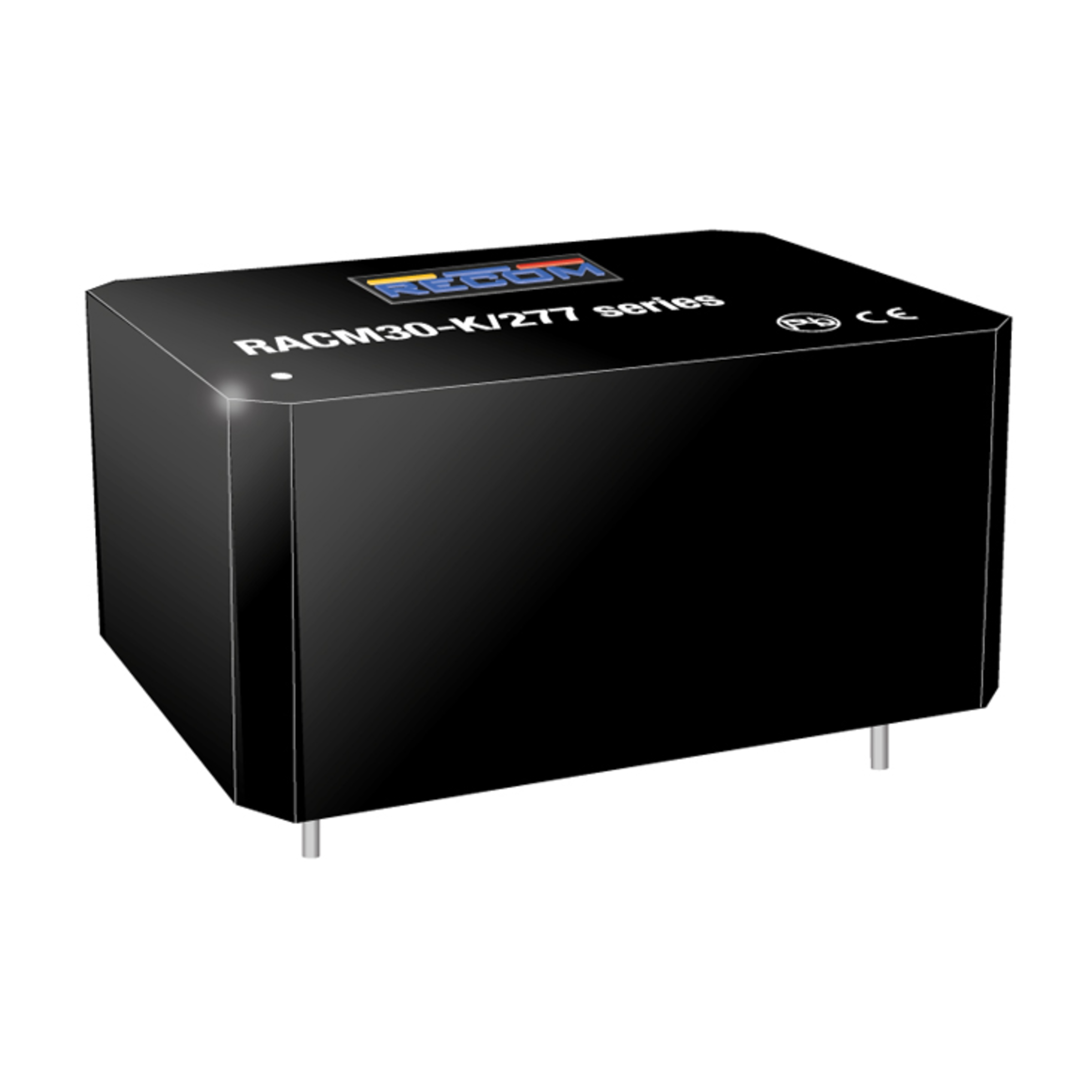

RACM30-K/277
Product group
M3255
Application
Household
ITE
Industry
Medical
Package/Case
Enclosed Plastic
Dimension: Length
52.5 mm
Dimension: Width
40 mm
Dimension: Height
25.5 mm
Weight
93 g
Manufacturer's warranty (years)
3
Product description
RACM30-K/277 AC/DC modules provide a leading thermally effective Power yield of 9.2 Watts per inch³ at 60°C still air for continuous loads of 30 Watts plus additional peak capability. These Modules operate in a temperature range of -40° to 90°C in compliance with safety standards of medical MOPP, household-, industrial, and measurement markets. Safety reports rate the series as LPS limited power source and OVCIII for an operating altitude of up to 5000m. A comfortable margin to EMI Class B limits, even with outputs connected to the ground, ease system implementation for quick time-to-market
without additional external circuitry such as fuses or filters. For designers, maximum flexibility for these encapsulated, solder-mountable modules is pin-to-pin compatible with the well-established series RAC20-K. Further mechanical derivates are potted modules with wires or a panel mount option with spring-clamp connectors which is convertible to DIN-Rail mounting via available RECOM Clip accessory.
Features
DC compatible
LPS
Peak Power
Application note
These power supplies are intended for installation in terminal equipment.
