RAC60-15S/OF

Recom AC/DC industrial power supply unit Open Frame 60W 15,00V 4A

RAC60-15S/OFRAC60-15S/OFRAC60-15S/OFRAC60-15S/OF
Manufacturer Part No.
RAC60-15S/OF
Schukat Part No.
RAC60-15S/OF
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

30 Pcs. in stock

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 30.10.2020
Cancelled by manufacturer without replacement
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable redundancy modules.
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable EMC & noise suppression components.
Here you will find suitable equipment fans.
Package/Case
Open Frame
Output Power
60 W
Output voltage
15 V
Output current
4.000 A
Efficiency
84 %
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Recom
Series
  • RAC60
Product group
  • M3350
Application
  • ITE
  • Industry
Package/Case
  • Open Frame

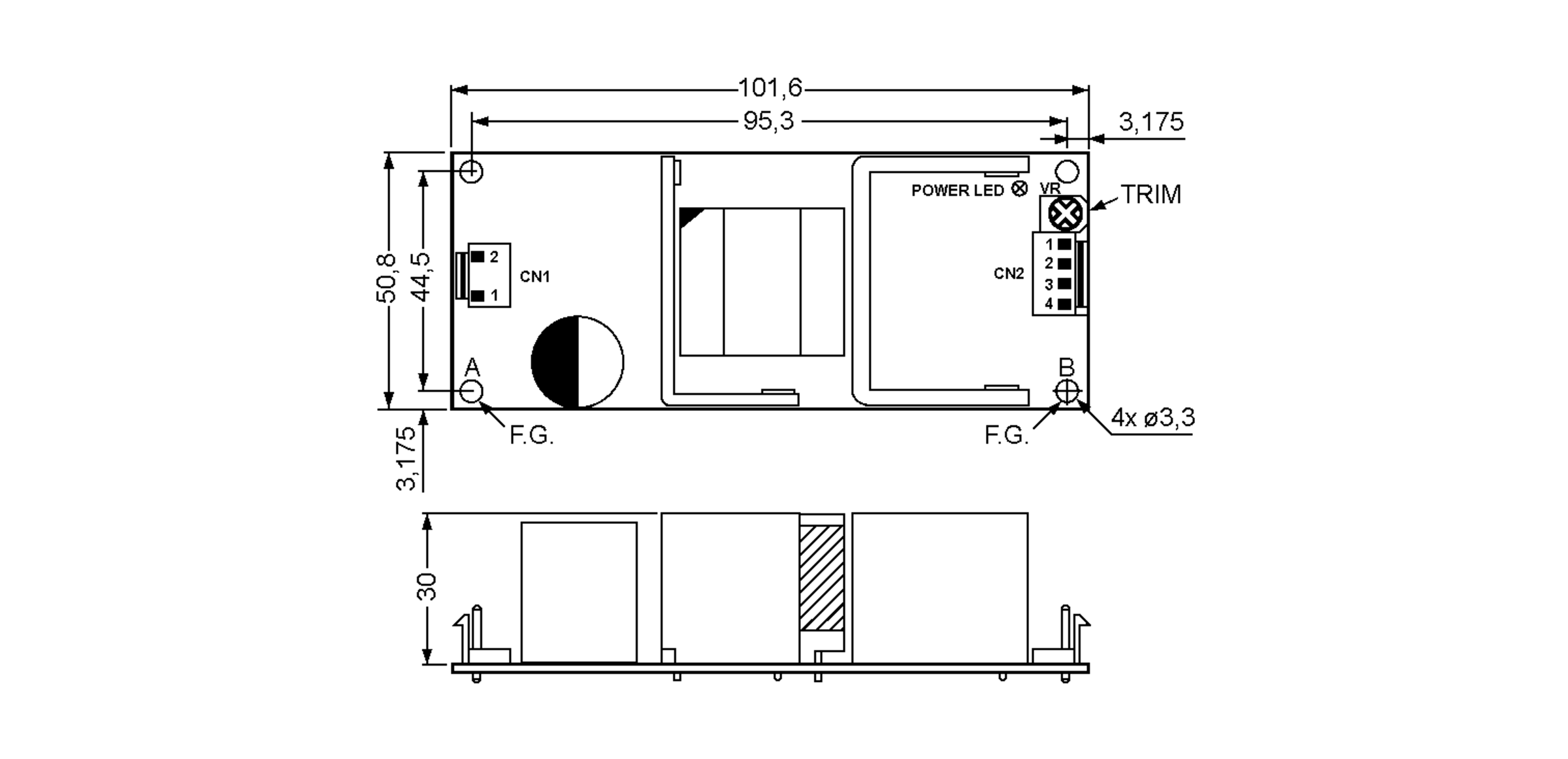

Dimension: Length
  • 101.6 mm
Dimension: Width
  • 50.8 mm
Dimension: Height
  • 30 mm
Weight
  • 145 g
Label
  • FCC
Manufacturer's warranty (years)
  • 3
Features
  • Adjustable output voltage
  • DC compatible
Application note
  • These power supplies are considered as a component that has to be installed in a final equipment.
Notice

Operating conditions

MTBF
  • 450,000 h

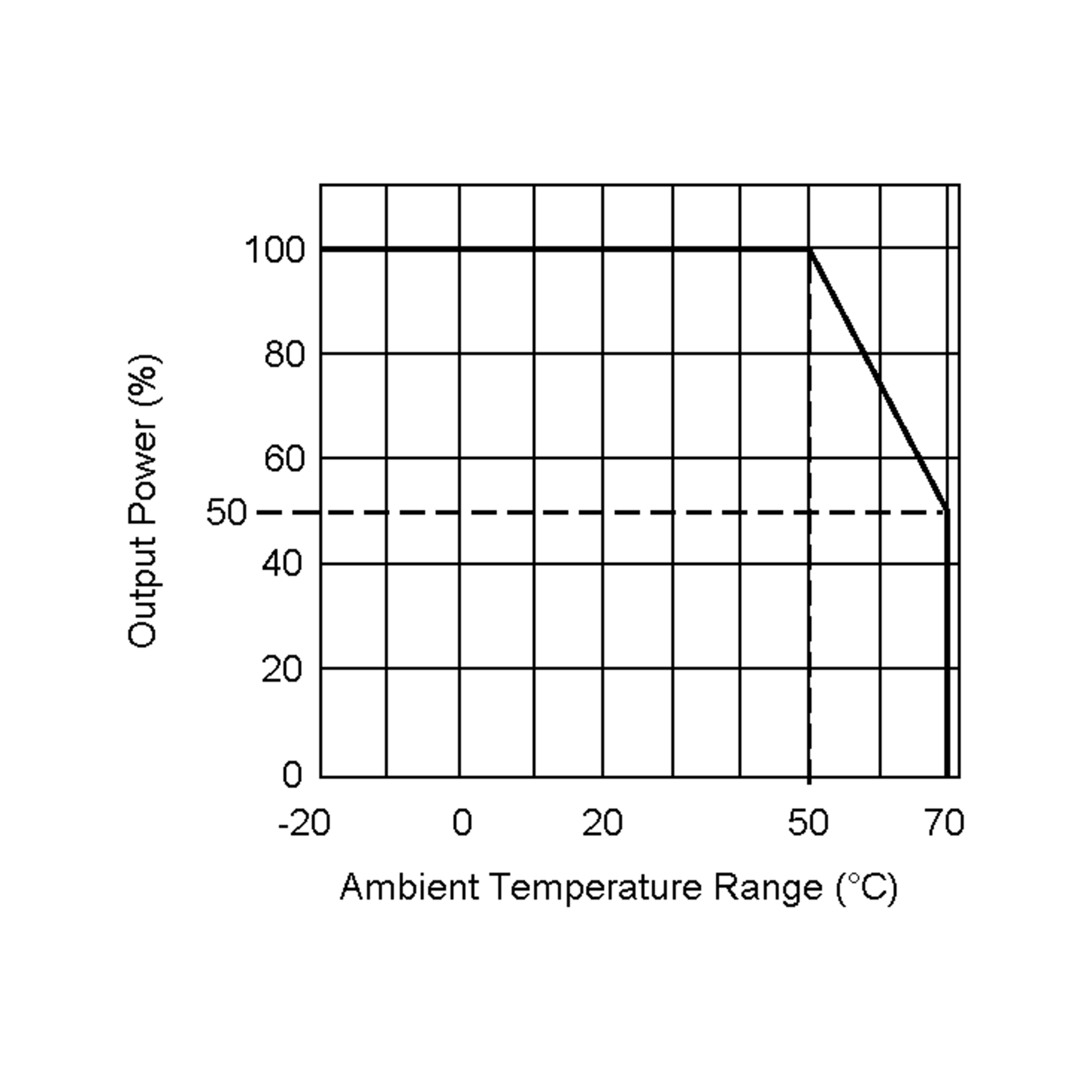

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 50 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 80 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 127 V
Input voltage max. DC
  • 370 V
Input current
  • 1 A
Efficiency
  • 84 %
No load power, less than
  • 0.5 W
Leakage current, max.
  • 0.75 mA
Inrush current, max.
  • 60 A
Power factor correction (PFC)
Connection type, input
  • Connector

Output

Number of outputs
  • 1
Output Power
  • 60 W
Output voltage
  • 15 V
Output voltage tolerance
  • -2.2 %
Ripple & Noise
  • 150 mVp-p
Output current
  • 4.000 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Connector

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Approvals
  • CE
  • CSA
  • EAC
  • EN
  • IEC
  • UKCA
  • UL
Standards (EMC)
  • EN 55032 Class B
Standards (safety)
  • EN 60950-1
  • IEC 60950-1
  • UL 60950-1

Documents

Recom_Katalog.pdf
Download (pdf, 10.818 KB)
