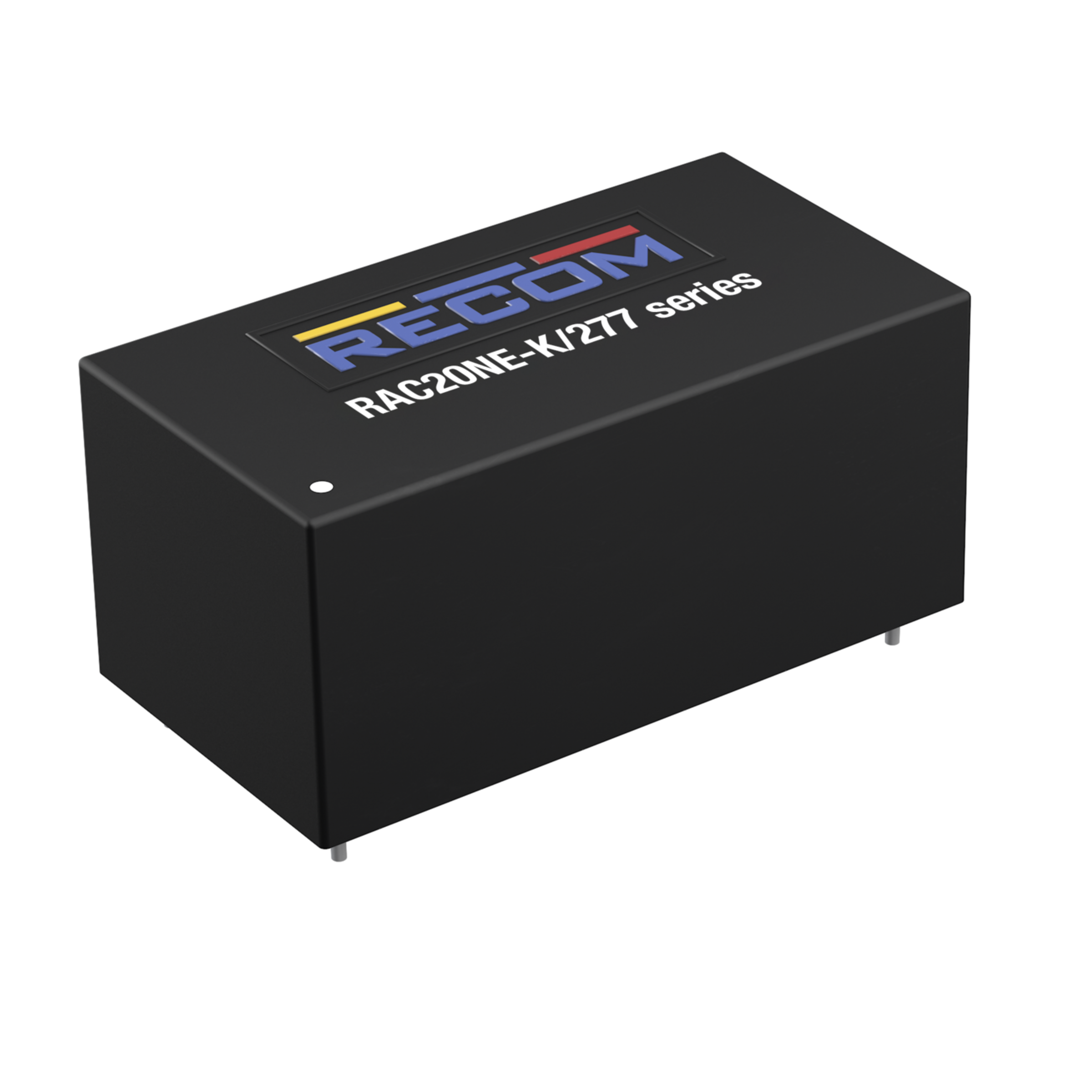

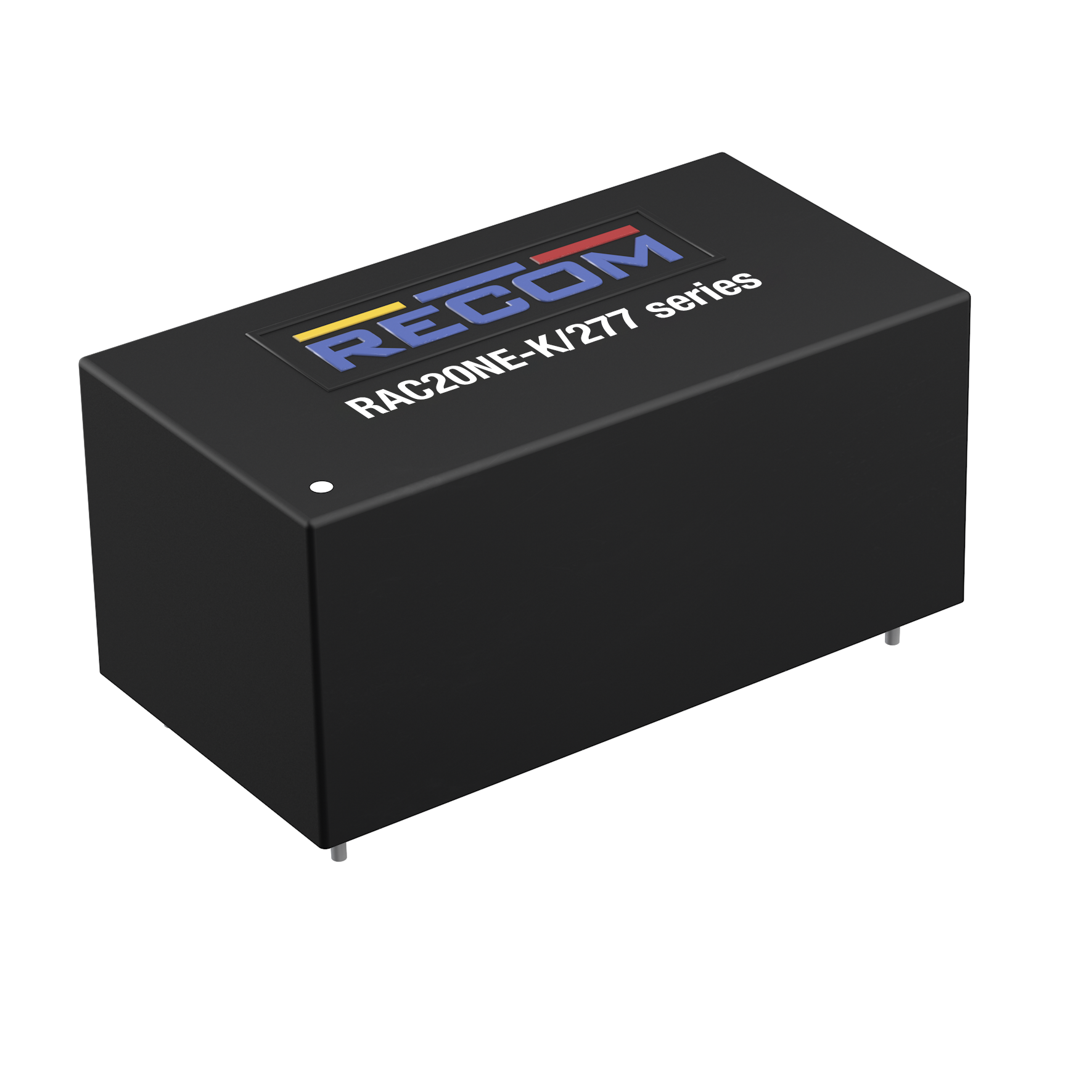

RAC20NE-36SK/277
Recom AC/DC industrial power supply unit Enclosed Plastic 20W 36V 0,555A
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
15 Pcs.
15 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 15 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 15 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- Enclosed Plastic
- Output Power
- 20 W
- Output voltage
- 36 V
- Output current
- 0.555 A
- Efficiency
- 88 %
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 1,190,000 h
- Operating expectation
- 130,000 h
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 90 °C
Input
- Mains connection/phases
- I
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 85 V
- Input voltage max. AC
- 305 V
- Input current
- 0.45 A
- Efficiency
- 88 %
- No load power, less than
- 0.1 W
- Inrush current, max.
- 50 A
- Power factor correction (PFC)
- Power factor
- 0.5
- Connection type, input
- THT
Output
- Number of outputs
- 1
- Output Power
- 20 W
- Output voltage
- 36 V
- Output voltage tolerance
- -2 %
- Ripple & Noise
- 360 mVp-p
- Output current
- 0.555 A
- Overload protection
- Type of overload protection
- Hiccup
- Short-circuit protection
- Overvoltage protection
- Connection type, output
- THT
Safety/Certifications
- Protection class
- II
- Isolation voltage I/P-O/P
- 4,200 V
- Overvoltage category
- 3
- Approvals
- CE
- CSA
- EN
- IEC
- UKCA
- UL
- Standards (EMC)
- EN 55032
- EN 61204-3
- Standards (safety)
- EN 60335-1
- EN 61347-1
- EN 61347-2-13
- EN 61558-1
- EN 61558-2-16
- EN 62368-1
- IEC 60335-1
- IEC 61347-1
- IEC 61347-2-13
- IEC 61558-1
- IEC 61558-2-16
- IEC 62368-1
- UL 62368-1
