RAC20NE-12DK/277/HT

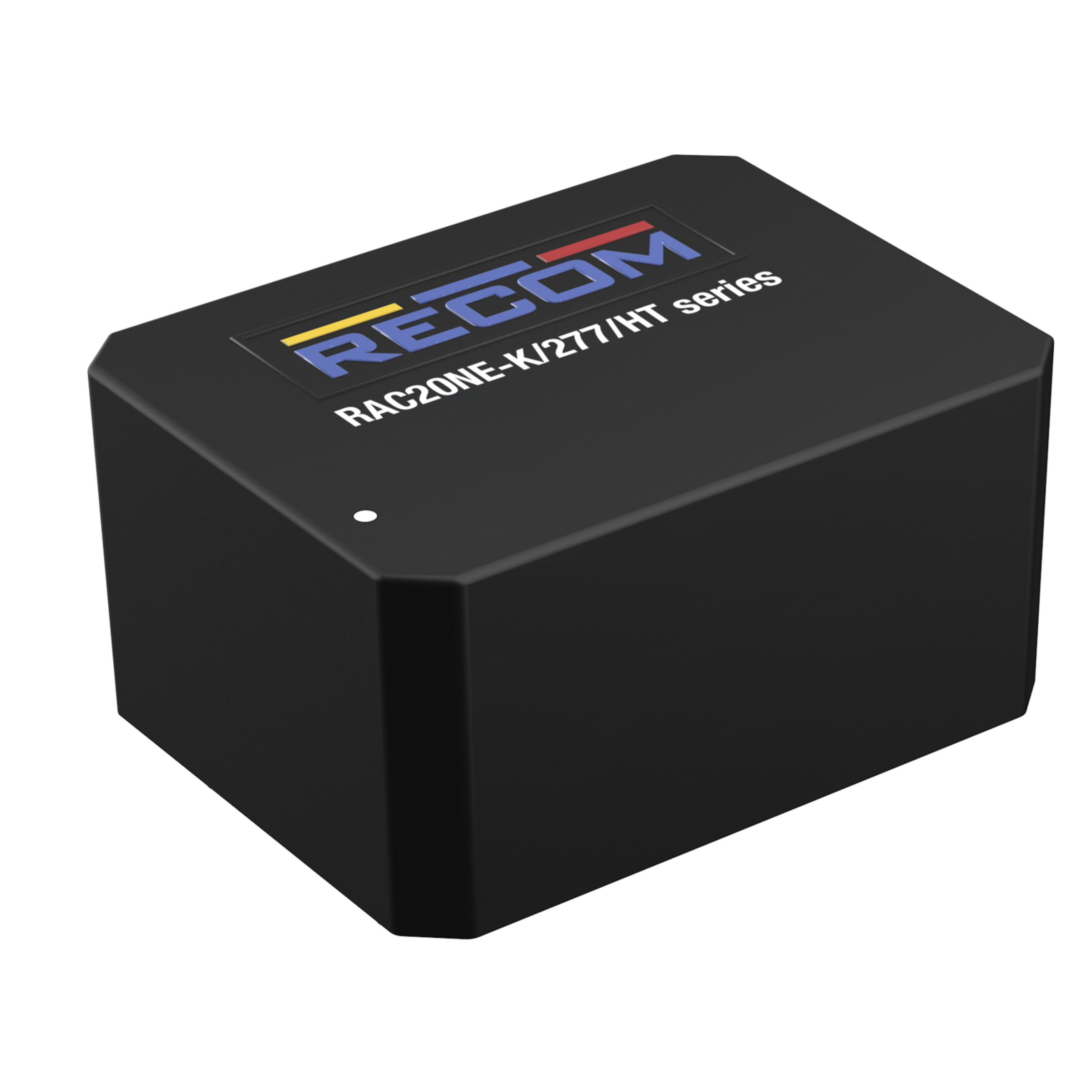

Recom AC/DC industrial power supply unit Enclosed Plastic 20W -12V -0,083A

RAC20NE-12DK/277HT
NEW
Manufacturer Part No.
RAC20NE-12DK/277/HT
Schukat Part No.
RAC20NE-12DK/277HT
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 27 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 11 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 11 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Enclosed Plastic
Output Power
20 W
Output voltage
-12 V
Output voltage, channel 2
12 V
Output current
-0.083 A
Output current, channel 2
1.580 A
Efficiency
88 %
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Recom
Series
  • RAC20NE-K/277
Product group
  • M3236
Application
  • Household
  • ITE
  • Industry
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 52.5 mm
Dimension: Width
  • 40 mm
Dimension: Height
  • 25.5 mm
Weight
  • 93 g
Manufacturer's warranty (years)
  • 3
Product description
  • RAC20NE-K built-in power supplies with encapsulated solder mounting are optimized for the requirements of new energy applications such as energy management, monitoring or actuator operation. These compact AC/DC modules meet increased requirements in terms of ambient temperatures, high immunity to transients, assumed insulation barriers, freedom from EMC interference with secondary earthing or ground coupling and low power loss in full load operation as well as in standby and sleep mode. For the supply of universal input voltages from 100 to 277 VAC, the modules are approved in various versions according to worldwide industrial, household and safety transformer standards at operating altitudes of up to 5000 m or up to 3000 m under OVC III. High effective power density and industry standard P12 pinning on a footprint of 1 “x2” and 1.5'x2' for “/HT” fit into space critical applications.
Features
  • DC compatible
  • Peak Power

Operating conditions

MTBF
  • 1,190,000 h
Operating expectation
  • 130,000 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 90 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 85 V
Input voltage max. AC
  • 305 V
Input voltage min. DC
  • 120 V
Input voltage max. DC
  • 430 V
Input current
  • 0.25 A
Efficiency
  • 88 %
No load power, less than
  • 0.1 W
Inrush current, max.
  • 40 A
Power factor correction (PFC)
Connection type, input
  • THT

Output

Number of outputs
  • 2
Output Power
  • 20 W
Output voltage
  • -12 V
Output voltage, channel 2
  • 12 V
Output voltage tolerance
  • -3.3 %
Output voltage tolerance, channel 2
  • -3.3 %
Ripple & Noise
  • 120 mVp-p
Ripple & Noise, Channel 2
  • 120 mVp-p
Output current
  • -0.083 A
Output current, channel 2
  • 1.580 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • THT

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 4,200 V
Overvoltage category
  • 3
Standards (EMC)
  • EN 55032 Class B
  • EN 61204-3
Standards (safety)
  • EN 60335-1
  • EN 61347-1
  • EN 61347-2-13
  • EN 61558-1
  • EN 62368-1
  • IEC 60335-1
  • IEC 61347-1
  • IEC 61347-2-13
  • IEC 61558-1
  • IEC 62368-1
  • UL 62368-1
