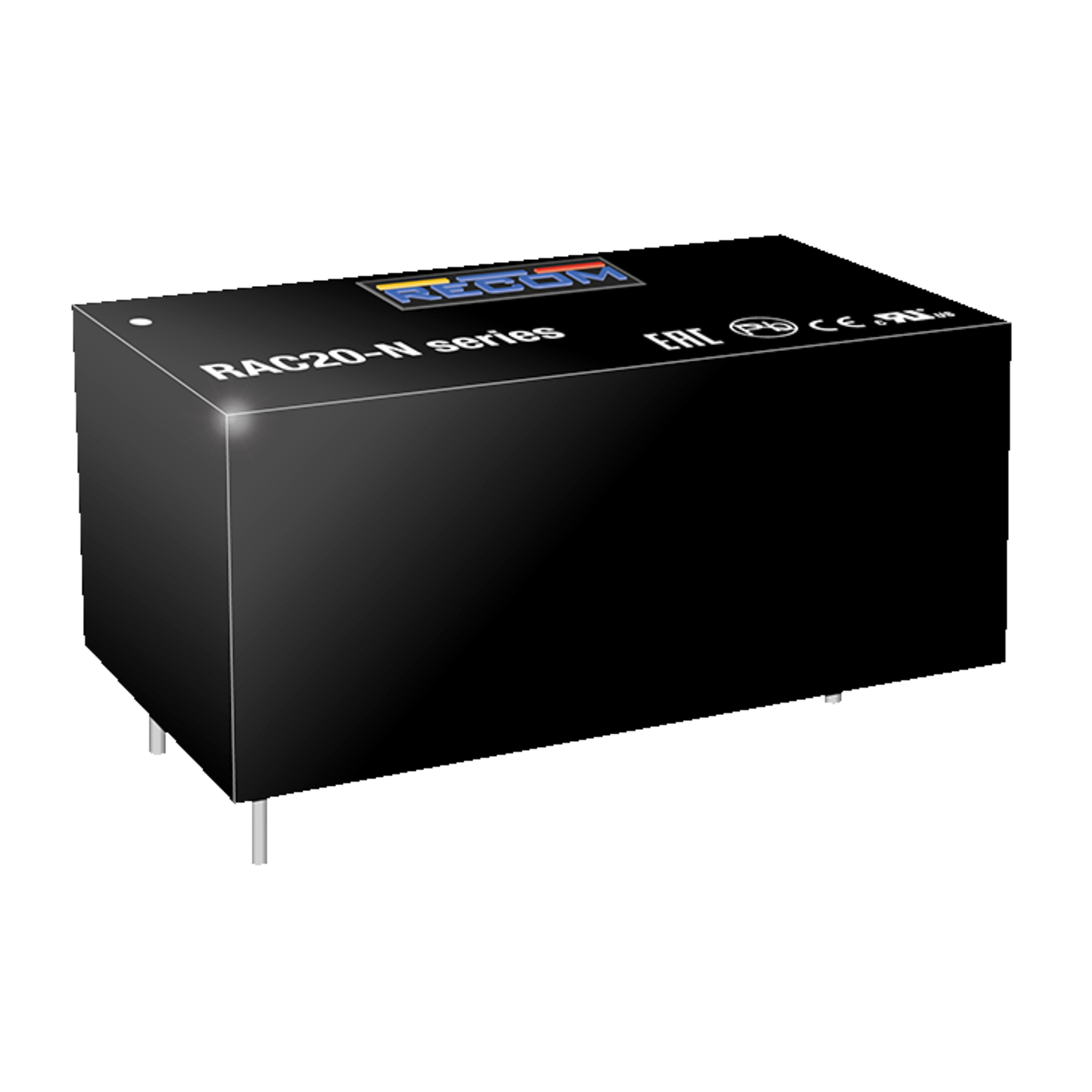

RAC20-12SN

Recom AC/DC industrial power supply unit Enclosed Plastic 20W 12,00V 1,660A

RAC20-12SNRAC20-12SN
Manufacturer Part No.
RAC20-12SN
Schukat Part No.
RAC20-12SN
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 11 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
NRND
Not Recommended for New Designs
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 8 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 8 or multiple of 8)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Enclosed Plastic
Output Power
20 W
Output voltage
12 V
Output current
1.660 A
Efficiency
82 %
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Recom
Series
  • RAC20-N
Product group
  • M3235
Application
  • ITE
  • Industry
Package/Case
  • Enclosed Plastic

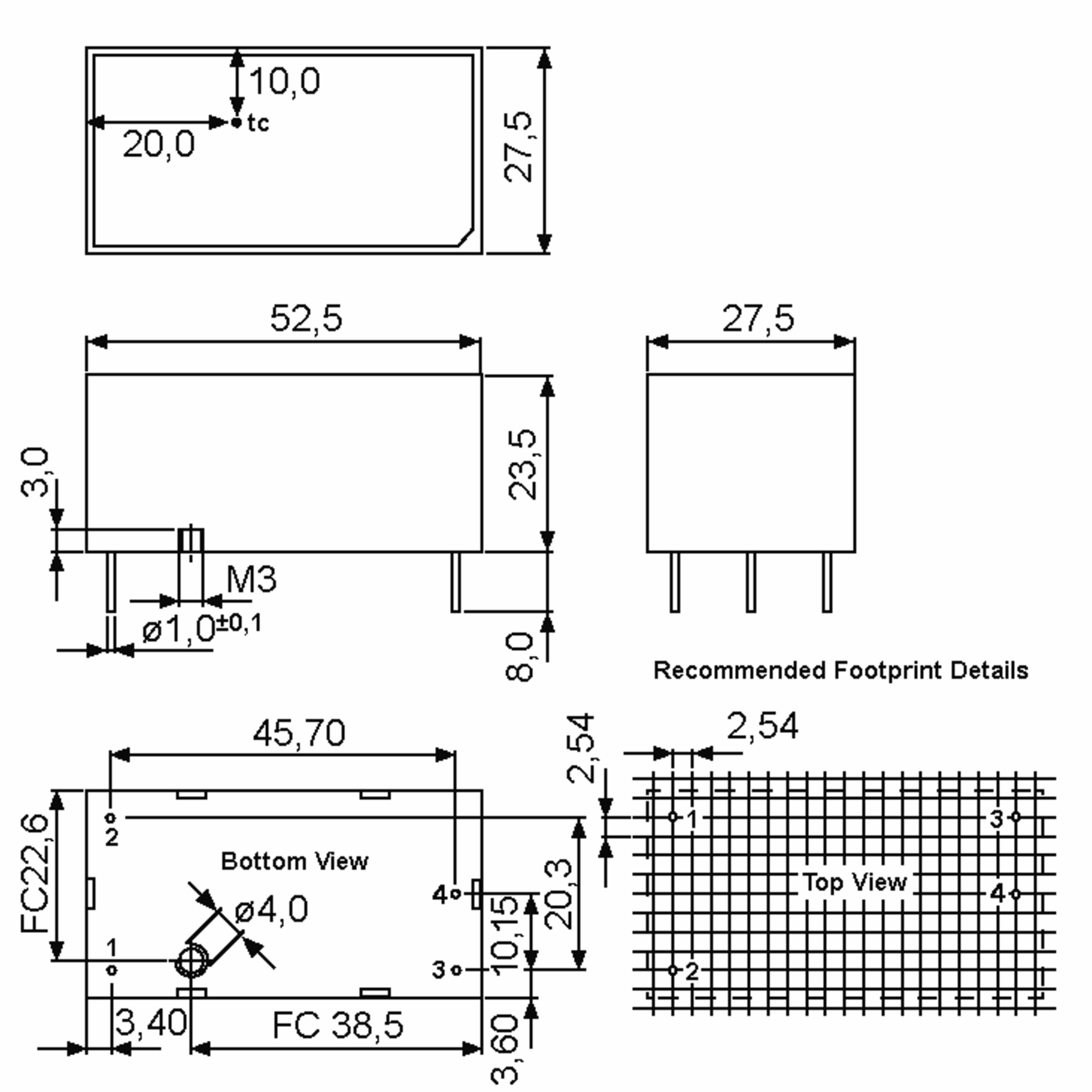

Dimension: Length
  • 52.5 mm
Dimension: Width
  • 27.5 mm
Dimension: Height
  • 23.5 mm
Weight
  • 62 g
Manufacturer's warranty (years)
  • 3
Features
  • DC compatible
Application note
  • These power supplies are considered as a component that has to be installed in a final equipment.

Operating conditions

MTBF
  • 400,000 h
Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 35 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 440 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 120 V
Input voltage max. DC
  • 370 V
Input current
  • 0.25 A
Efficiency
  • 82 %
No load power, less than
  • 0.25 W
Inrush current, max.
  • 40 A
Power factor correction (PFC)
Connection type, input
  • THT

Output

Number of outputs
  • 1
Output Power
  • 20 W
Output voltage
  • 12 V
Output voltage tolerance
  • -2.2 %
Ripple & Noise
  • 120 mVp-p
Output current
  • 1.660 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • THT

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Approvals
  • CE
  • CSA
  • EAC
  • EN
  • IEC
  • UKCA
  • UL
Standards (EMC)
  • EN 55032 Class B
Standards (safety)
  • EN 60950-1
  • IEC 60950-1
  • UL 60950-1
