11 Pcs. in stock
Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Package/Case
Enclosed Plastic
Output Power
15 W
Output voltage
12 V
Output current
1.250 A
Efficiency
83 %
RoHS-Conform
Specifications
Close all
General
Manufacturer
Recom
Series
RAC15-K/W
Product group
M3209
Application
Household
ITE
Industry
Package/Case
Enclosed Plastic
Dimension: Length
52.5 mm
Dimension: Width
40 mm
Dimension: Height
25.5 mm
Weight
91 g
Manufacturer's warranty (years)
3
Product description

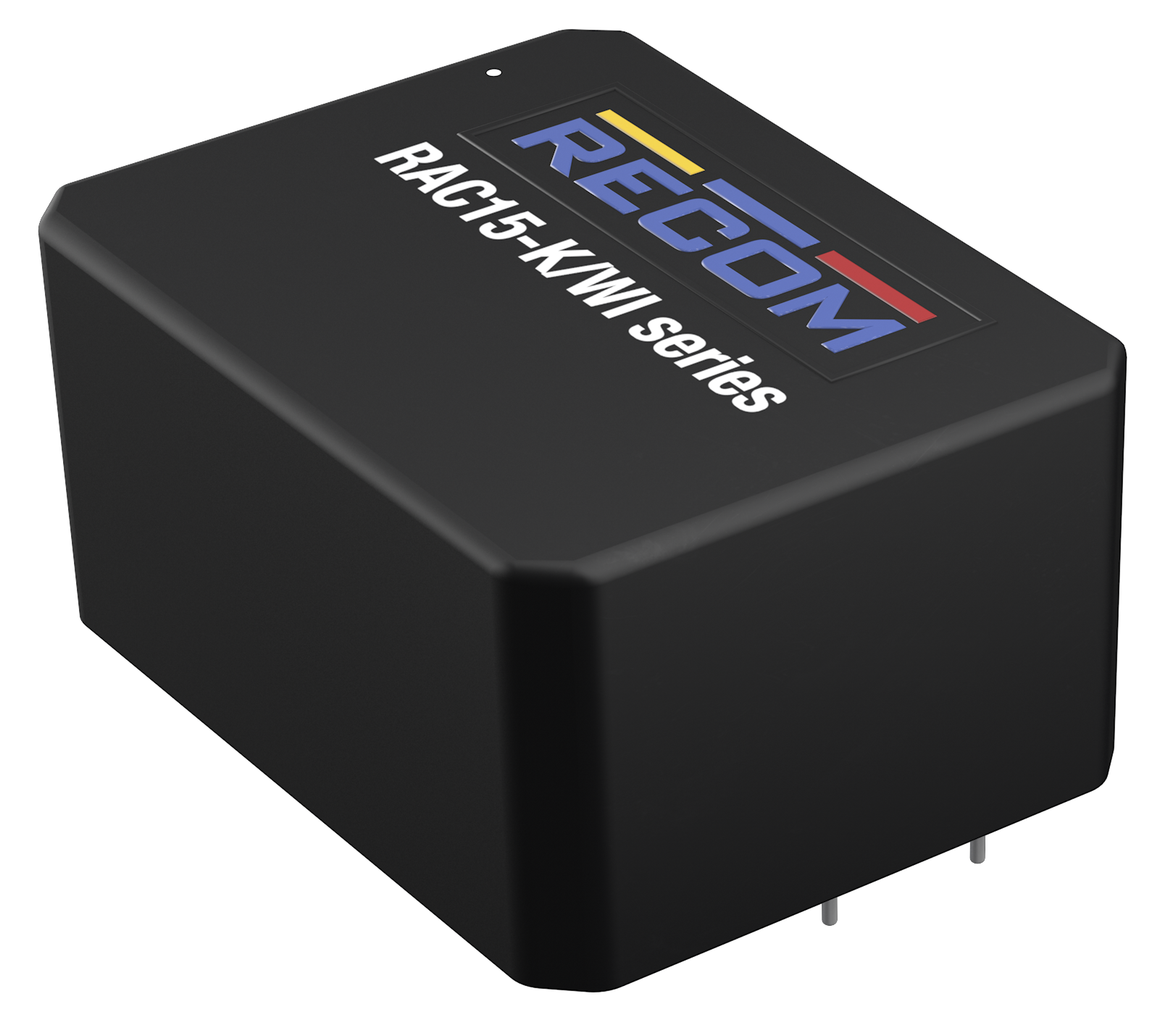

The RAC15-K/WI series of current transformers with an extended input voltage range down to extremely low mains voltages converts input voltages from 24 to 240 VAC (nominal voltage) or 18 to 375 VDC into regulated output voltages from 5 to 54 VDC. The sealed modules in a compact size of 1.5 x 2 inches with the industry-standard “P12” pin assignment enable integration via solder mounting or flexible cable connections. The power supplies are certified for operation at altitudes up to 3000 m under OVC III or up to 5000 m under OVC II requirements and meet strict safety standards in accordance with UL and IEC certifications for industrial and household standards. In addition, the integrated EMI EN55032 “B” filter ensures minimal electromagnetic interference for compliant integration into a wide range of applications. Together with the mechanically identical RAC15-K/480 series, RECOM's range of 1.5“x2” modules opens up a total accessible conversion range from 24 VAC to 480 VAC with only two items of the same form factor.
Features
DC compatible
LPS
Application note
These power supplies are considered as a component that has to be installed in a final equipment.
