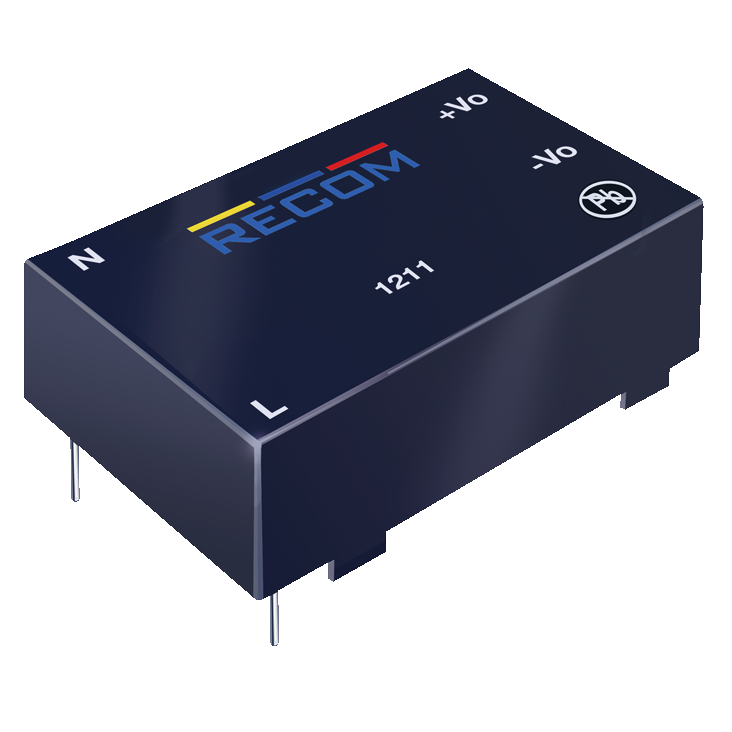

RAC02-24SC
Recom AC/DC industrial power supply unit Enclosed Plastic 2W 24,00V 0,083A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 01.12.2022
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 22 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- Enclosed Plastic
- Output Power
- 2 W
- Output voltage
- 24 V
- Output current
- 0.083 A
- Efficiency
- 77 %
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 125,000 h
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 75 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 100 °C
Input
- Mains connection/phases
- I
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 80 V
- Input voltage max. AC
- 264 V
- Input voltage min. DC
- 115 V
- Input voltage max. DC
- 370 V
- Input current
- 0.036 A
- Efficiency
- 77 %
- No load power, less than
- 0.08 W
- Leakage current, max.
- 0.25 mA
- Inrush current, max.
- 60 A
- Power factor correction (PFC)
- Connection type, input
- THT
Output
- Number of outputs
- 1
- Output Power
- 2 W
- Output voltage
- 24 V
- Output voltage tolerance
- -5.5 %
- Ripple & Noise
- 100 mVp-p
- Output current
- 0.083 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- THT
Safety/Certifications
- Protection class
- II
- Isolation voltage I/P-O/P
- 3,000 V
- Approvals
- CE
- CSA
- EAC
- EN
- IEC
- UKCA
- UL
- Standards (EMC)
- EN 55014
- EN 55032
- Standards (safety)
- EN 60335-1
- EN 60950-1
- IEC 60950-1
- UL 60950-1
