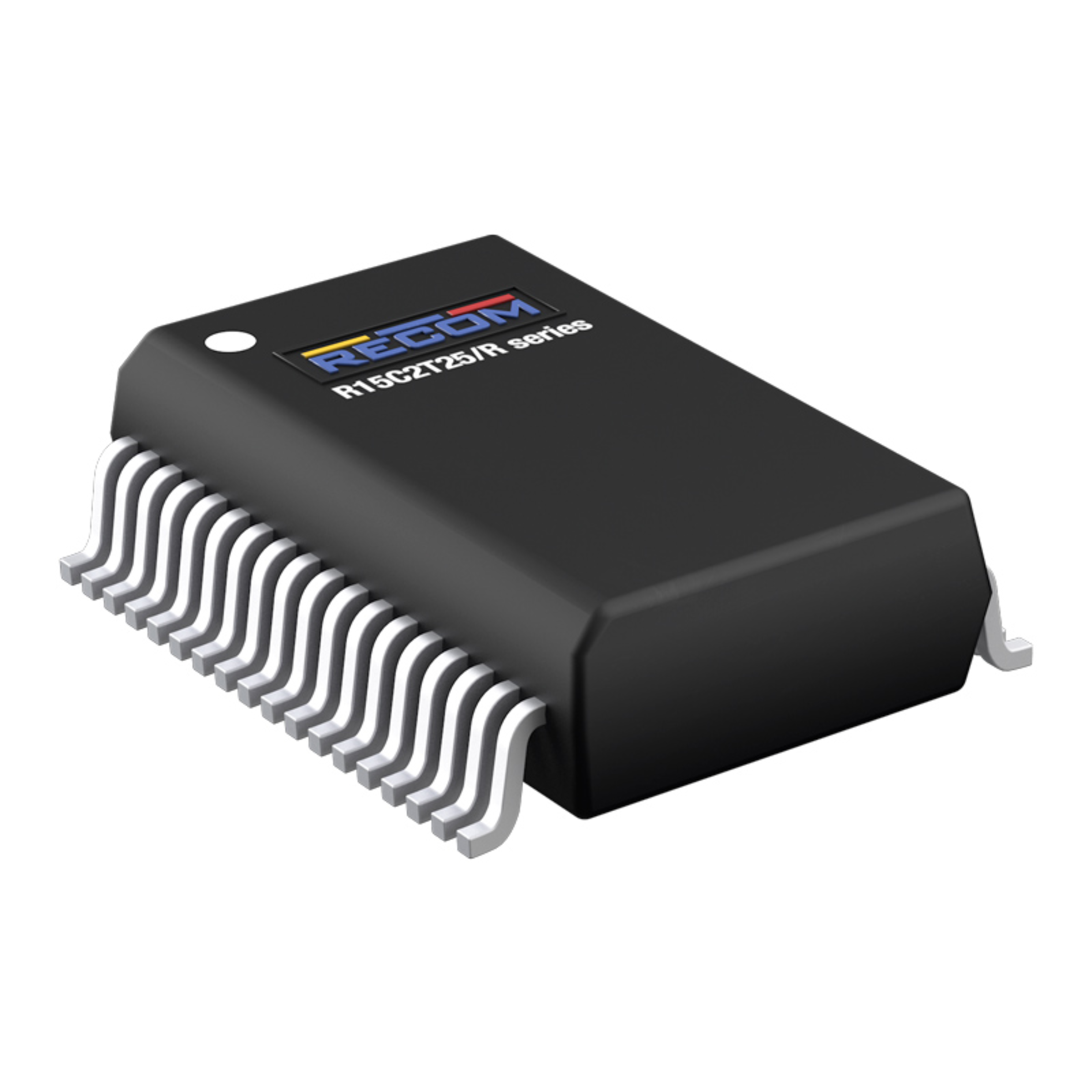

R15C2T25/R-CT

Recom DC/DC converter regulated -22,5 V -0,012 A SSOP 5.000 V

R15C2T25/R-CT
Manufacturer Part No.
R15C2T25/R-CT
Schukat Part No.
R15C2T25/R-CT
Manufacturer
Recom
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

50 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
regulated
Package/Case
SSOP
Output Power
2.5 W
Output voltage
-22.5 V
Output voltage, channel 2
22.5 V
Output current
-0.012 A
Output current, channel 2
0.100 A
Isolation voltage I/P-O/P
5,000 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Recom
Series
  • R15C2T25/R
Product group
  • M1481
Application
  • ITE
  • Industry
Operating mode
  • regulated
Package/Case
  • SSOP
Dimension: Length
  • 12.83 mm
Dimension: Width
  • 7.5 mm
Dimension: Height
  • 3.55 mm
Packaging
  • Bag
Weight
  • 0.1 g
Manufacturer's warranty (years)
  • 3
Product description
  • The R15C2T25/R 2.5W isolated DC/DC converter is a versatile solution designed for isolated gate bias voltages, particularly for transistors such as IGBTs, Si and SiC MOSFETs, and Cascode GaNs. This compact converter features a wide input voltage range of 13.5 - 18VDC and programmable asymmetrical output voltages, ensuring precise control and performance optimization for power electronics applications. With high 5kVAC/1min isolation, 1.4kVDC working voltage, high 150kV/μs CMTI, and remarkable stability up to 125°C (0.5W), it offers superior reliability, even under harsh high power, high frequency switching environments. The ultra-low isolation capacitance, less than 3.5pF, ensures minimal noise propagation across the isolation barrier. All of these exceptional features are packaged in a compact 7.5 x 12.83mm SMD form factor, making it an ideal choice for all isolated gate bias voltage needs.
Features
  • DC-OK-Signal
  • Programmable Output Voltage
  • Remote Function
  • Remote Sense

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 125 °C
Storage Temperature Min.
  • -65 °C
Storage Temperature Max.
  • 150 °C

Input

Nominal input voltage
  • 15 V
Input voltage min. DC
  • 13.5 V
Input voltage max. DC
  • 18 V
Input voltage range
  • 1:1
Efficiency
  • 45 %
Connection type, input
  • SMD

Output

Number of outputs
  • 2
Output Power
  • 2.5 W
Output voltage
  • -22.5 V
Output voltage, channel 2
  • 22.5 V
Output Voltage Min.
  • -2.5 V
Output voltage min., channel 2
  • 2.5 V
Output Voltage Max.
  • 22.5 V
Output voltage max., channel 2
  • 22.5 V
Output voltage tolerance
  • -15.15 %
Output voltage tolerance, channel 2
  • 15.15 %
Output current
  • -0.012 A
Output current, channel 2
  • 0.100 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • SMD

Safety/Certifications

Isolation voltage I/P-O/P
  • 5,000 V

Documents

Recom_Katalog.pdf
Download (pdf, 10.818 KB)
