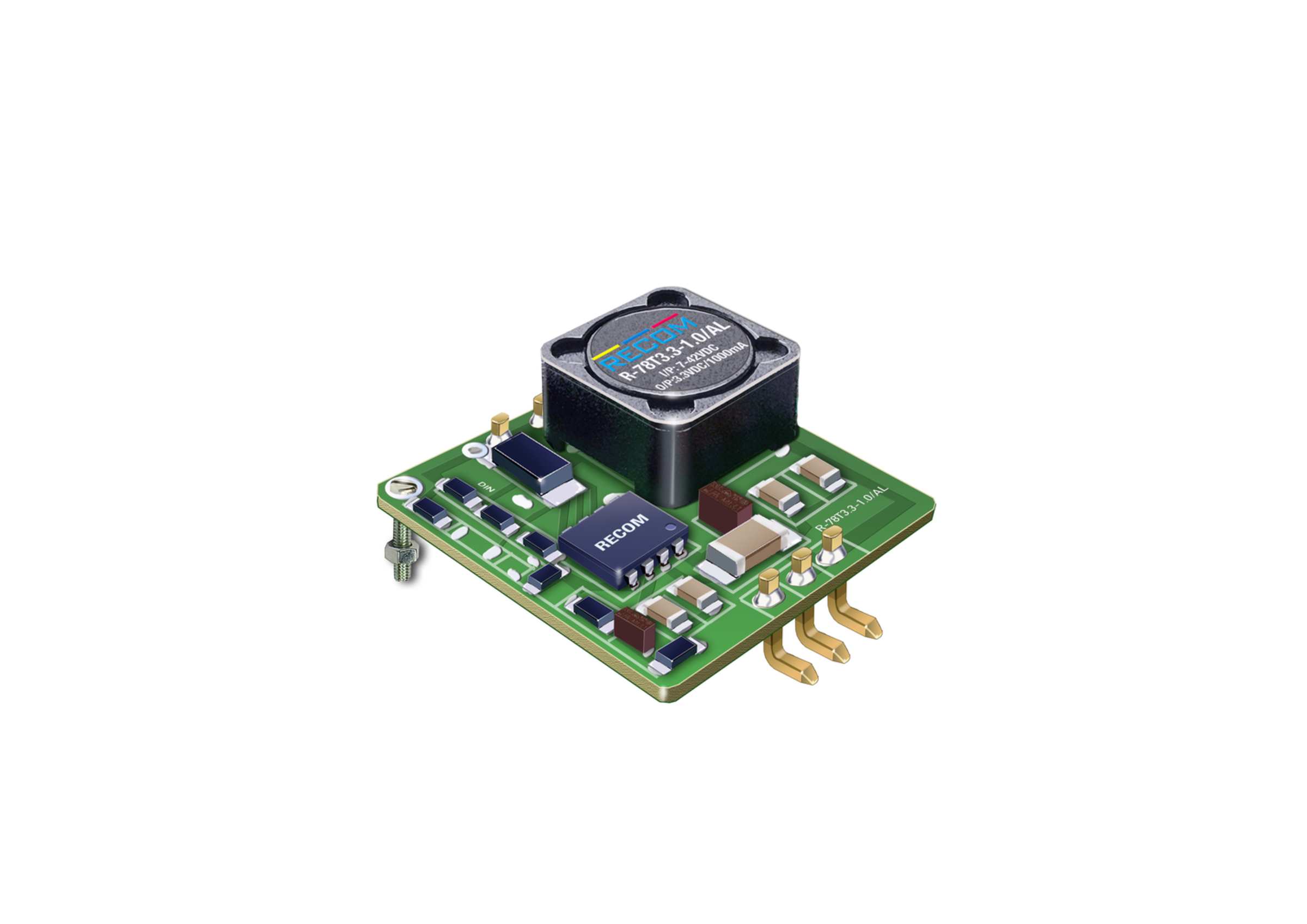

R-78T3.3-1.0/AL-R
Recom DC/DC switching regulator (non-isolated) buck 3,30V 1,000A Open Frame
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
50 Pcs.
50 Pcs.
Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 150 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Operating mode
- buck
- Package/Case
- Open Frame
- Output Power
- 3.3 W
- Output voltage
- 3.3 V
- Output current
- 1.000 A
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 6,318,000 h
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 55 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 125 °C
Input
- Input voltage min. DC
- 7 V
- Input voltage max. DC
- 42 V
- Efficiency
- 88 %
- Connection type, input
- SMD
Output
- Output Power
- 3.3 W
- Output voltage
- 3.3 V
- Output voltage tolerance
- -3 %
- Ripple & Noise
- 100 mVp-p
- Output current
- 1.000 A
- Short-circuit protection
- Overtemperature protection
- Connection type, output
- SMD
Safety/Certifications
- Approvals
- EAC
