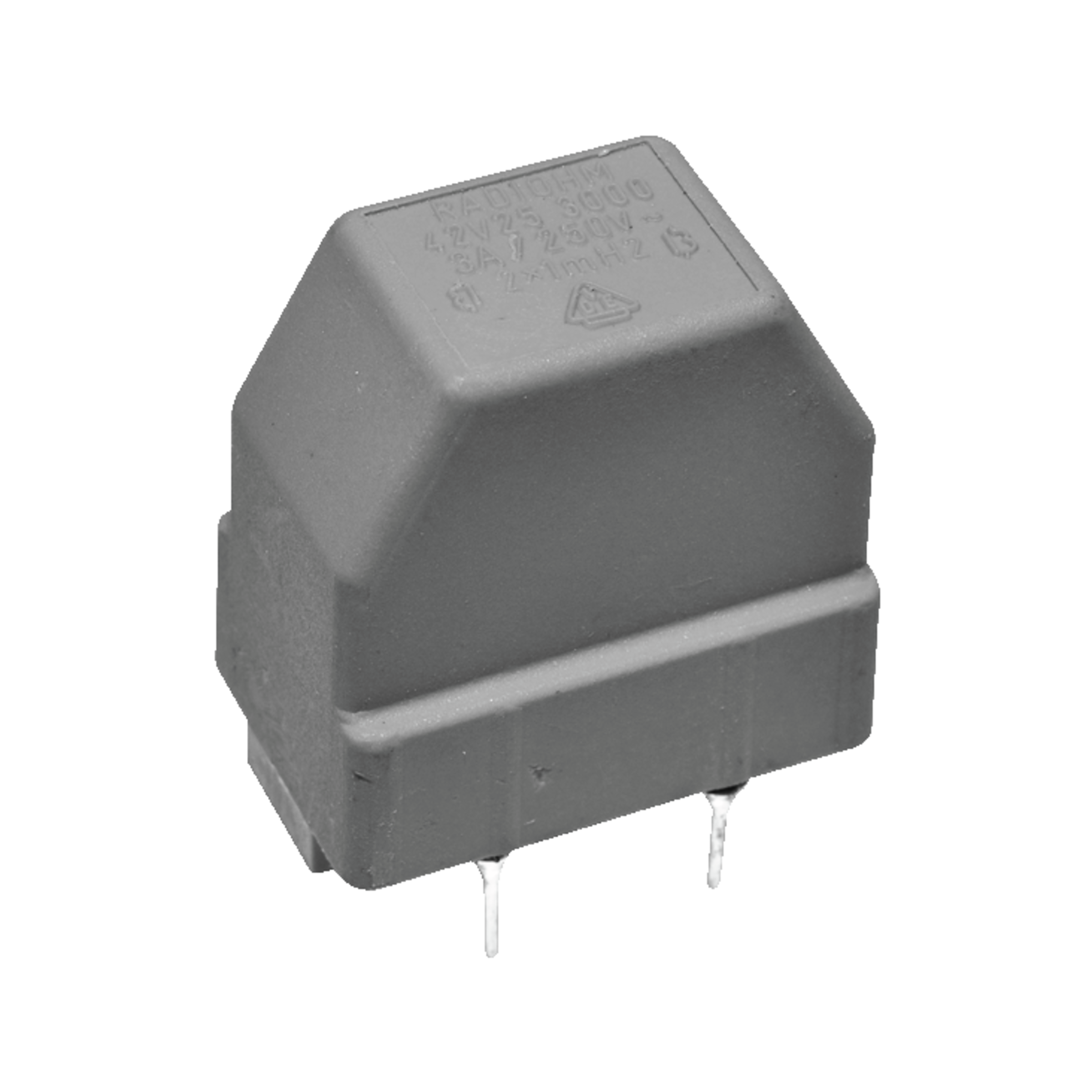

42V201000
Radiohm Inductors Current-compensated chokes 42V 1A 6,8mH -30-50% vertical partially moulded
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.004 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 361 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Kind
- Current-compensated chokes
- Inductance
- 6,8 mH
- Inductance tolerance
- -30 %
- Nominal resistance
- 400 mOhm
- Rated current
- 1 A
- Dimension: Length
- 18 mm
- Dimension: Width
- 12.5 mm
- Dimension: Height
- 20 mm
- Structure
- partially moulded
- RoHS-Conform
Specifications
Open all

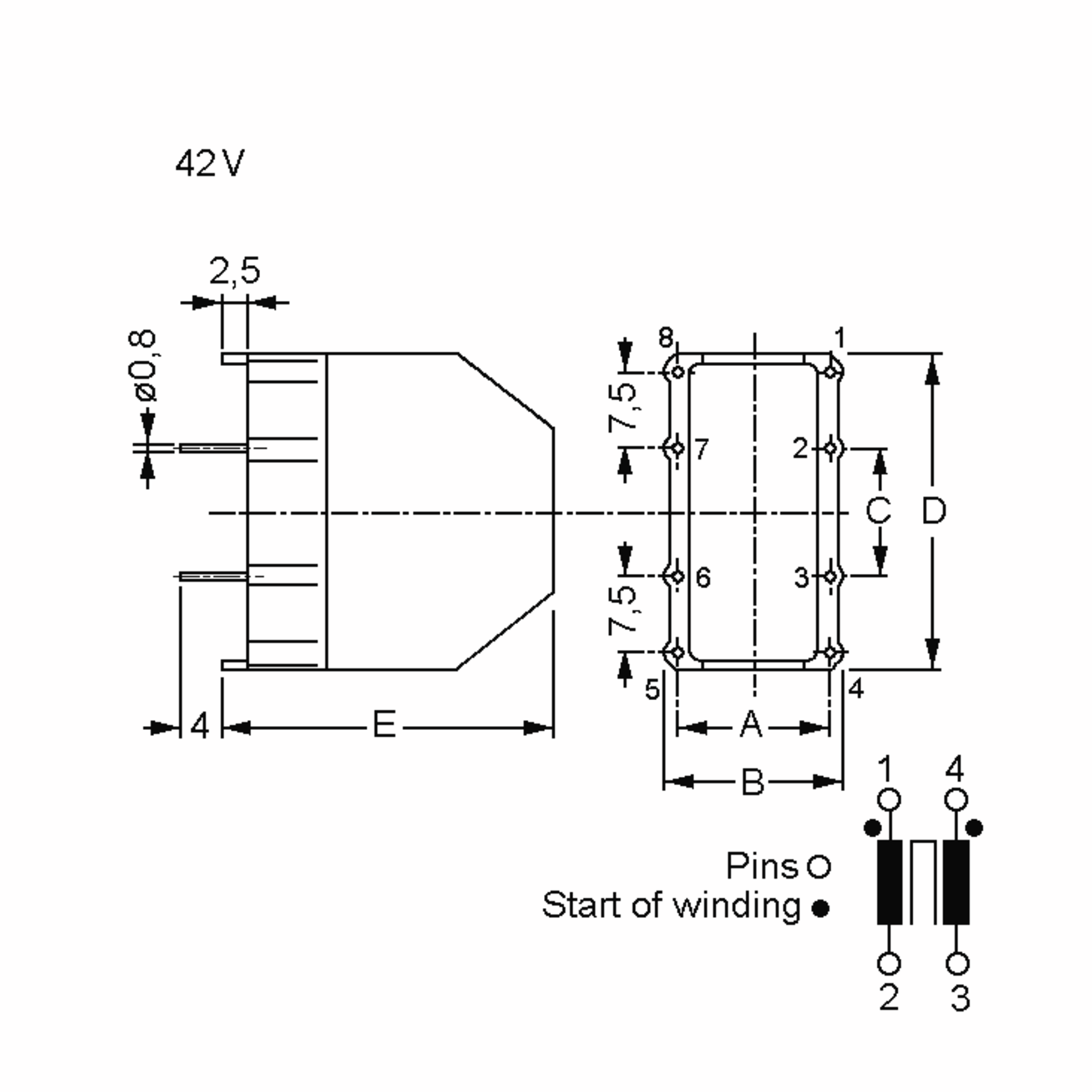

Dimensions and weights
- Dimension: Length
- 18 mm
- Dimension: Width
- 12.5 mm
- Dimension: Height
- 20 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
- Climate category
- DIN GKC (-40 … +125°C)
Technical features
- Inductance
- 6,8 mH
- Inductance tolerance
- -30 %
- Inductance losses
- < 10 % bei Gleichstromvorbelastung Iₙ
- Nominal resistance
- 400 mOhm
- Test voltage
- 1.500 V / 50 Hz, 2 s
- Rated Voltage
- 250 V
- Rated current
- 1 A
- Structure
- partially moulded
- Anzahl Wicklungen
- 2
- Humidity
- Category C
