42H172000

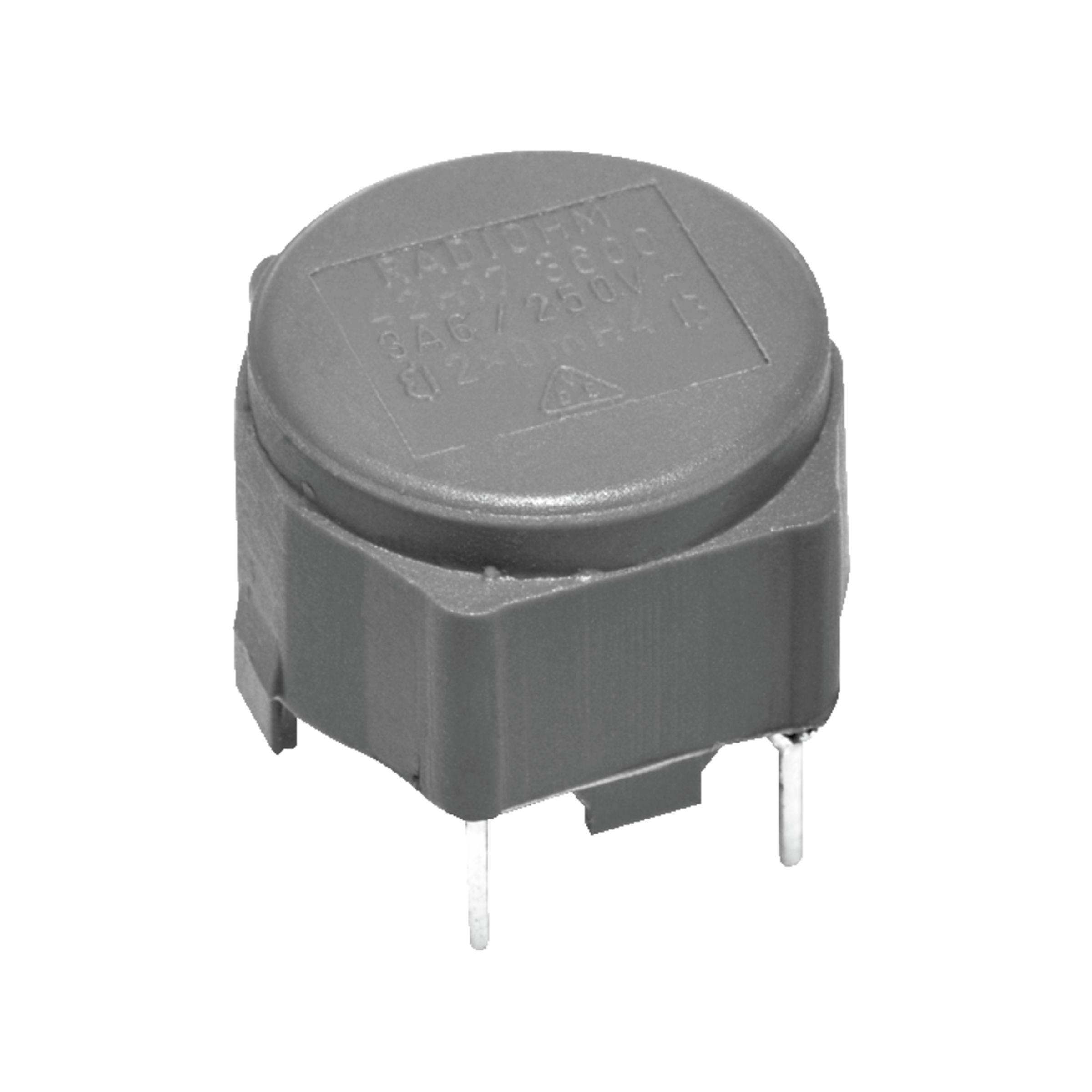

Radiohm Inductors Current-compensated chokes 42H 2A 3,9mH -30-50 horizontal partially moulded
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 19.02.2025
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 135 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50000 or multiple of 50000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Kind
- Current-compensated chokes
- Inductance
- 3,9 mH
- Inductance tolerance[%]
- -30 - 50
- Nominal resistance
- 80 mOhm
- Rated current
- 2 A

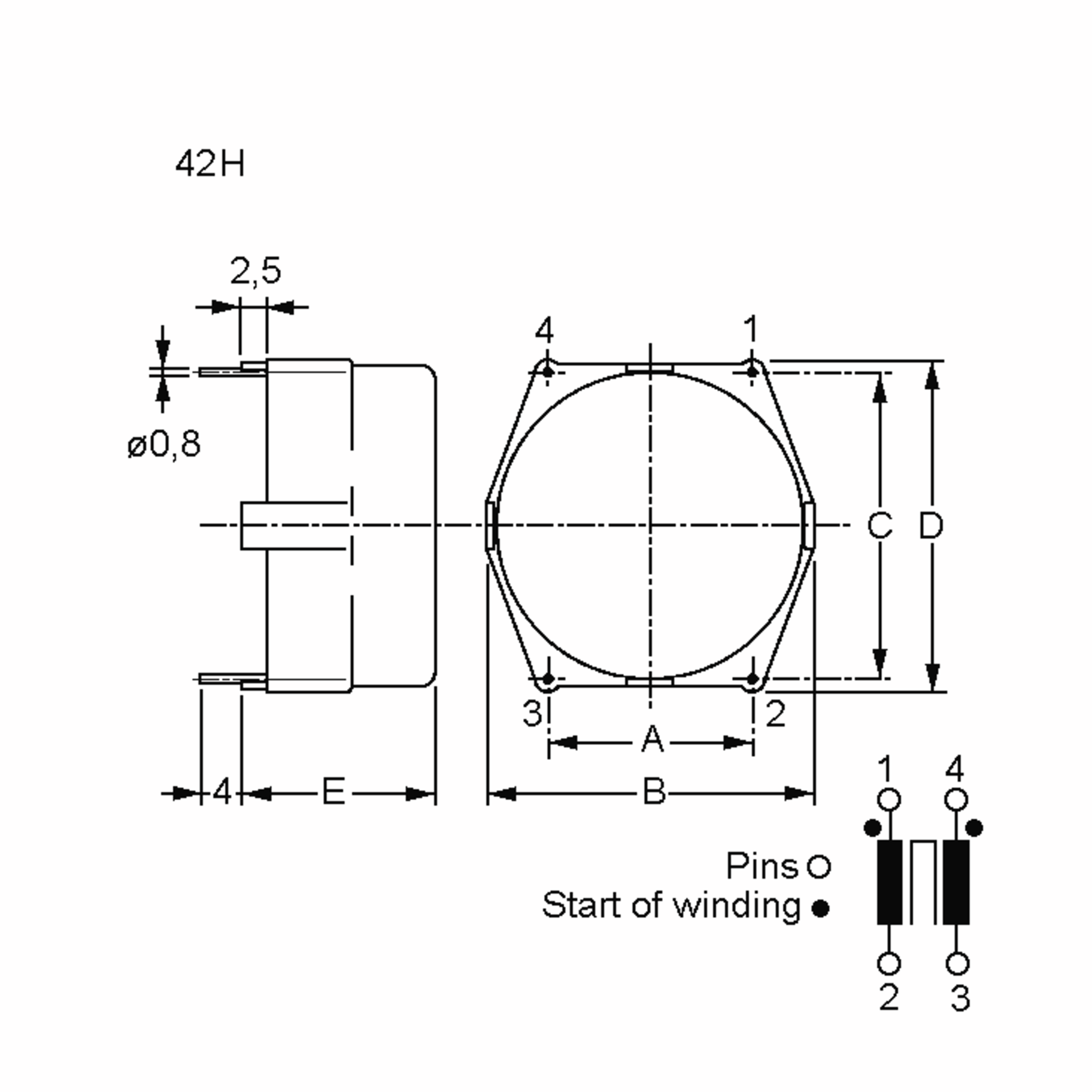

- Dimension: Length
- 17.5 mm
- Dimension: Width
- 18 mm
- Dimension: Height
- 12.5 mm
- Structure
- partially moulded
- RoHS-Conform
