ZGGZ4-1

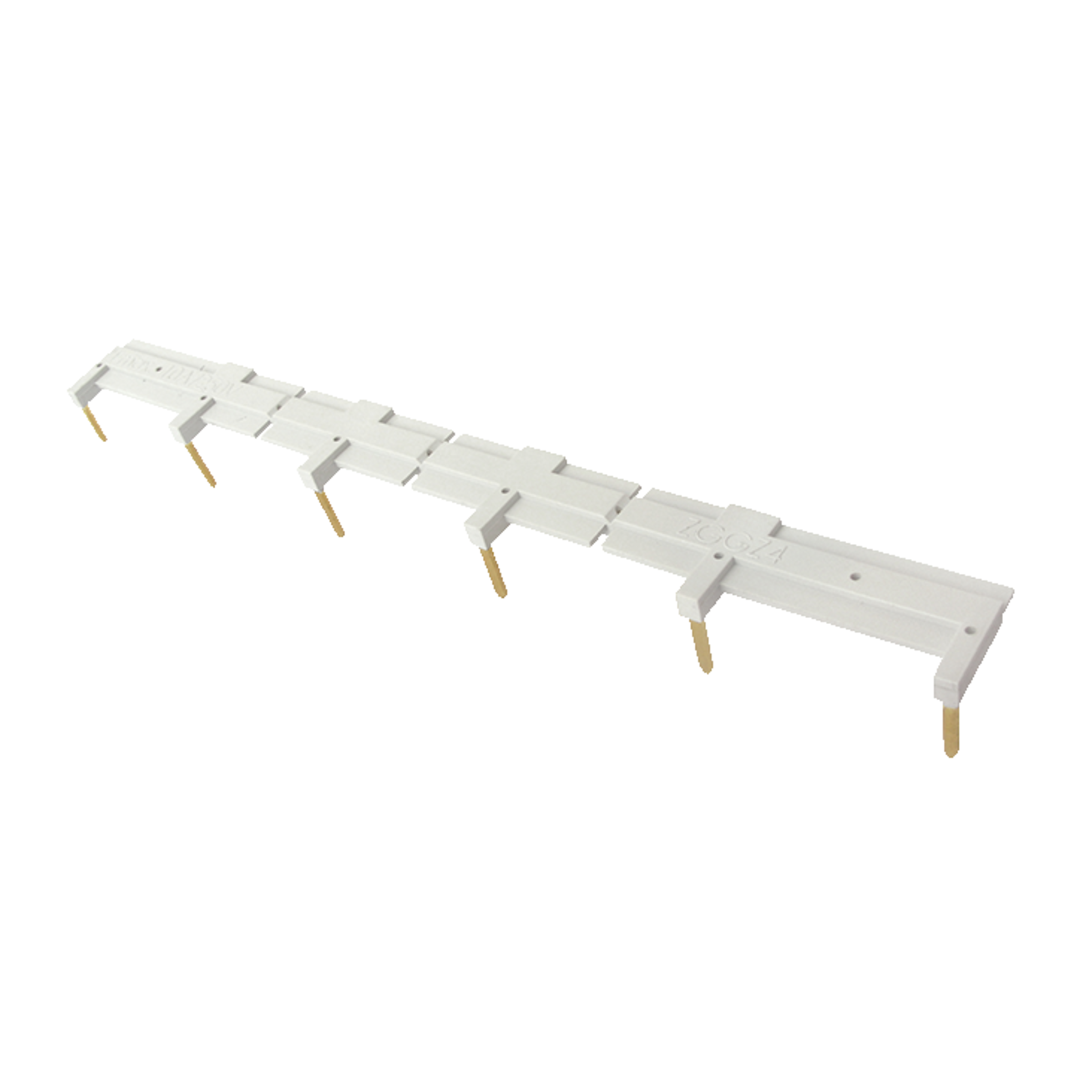

RELPOL Switching bridge ZGGZ4-1 250VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
70 Pcs. in stock
Planned delivery time
Ø 11 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable PCB relays. - Type
- Switching bridge
- Series
- ZGGZ4-1
- Termination Style
- Plug connection
- Cell size
- Holder GZT4
Relay R2N
Relay R4N
Relay RM84
Relay RM85
Relay RM85 inrush
Socket GZM2
Socket GZM4
Socket GZM80
Socket GZT2
Socket GZT80 - Coil: Nominal Voltage AC
- 250 V AC
- Dimension: Length
- 135.7 mm
- Dimension: Width
- 13.8 mm
- Dimension: Height
- 11.3 mm
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 135.7 mm
- Dimension: Width
- 13.8 mm
- Dimension: Height
- 11.3 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Coil: Nominal Voltage AC
- 250 V AC
Safety/Certifications
- Standards
- PN-EN 60715
