RM96-3011-35-1012

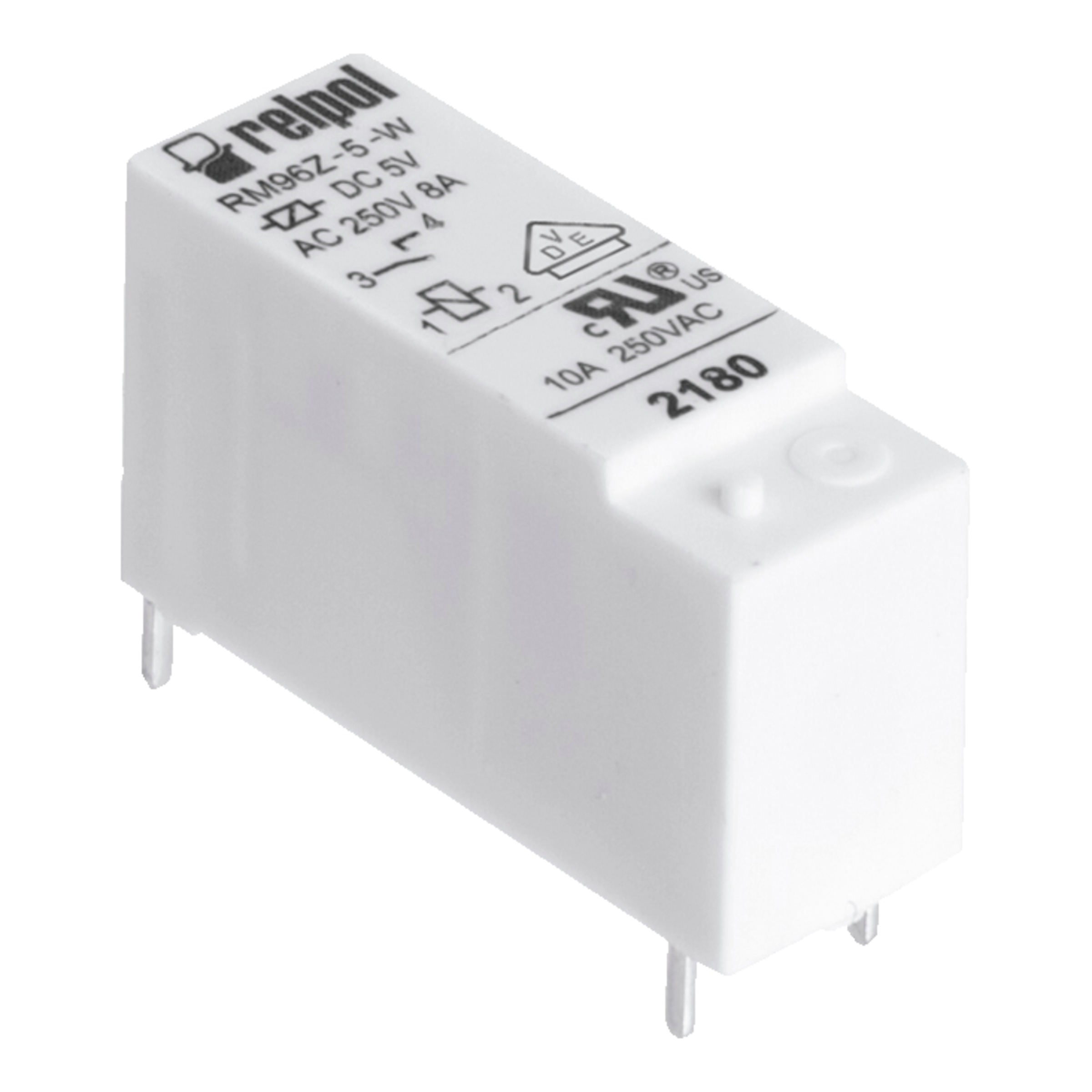

RELPOL PC relay RM96 THT SPST 8A 12VDC 600Ohm 30mmx10mmx16,2mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
136 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 19 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 19 or multiple of 19)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- RM96
- contacts
- SPST
- Contact: Switching Current (min/typ/max)
- 8 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 600 Ohm
- Protection Class
- IP67
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

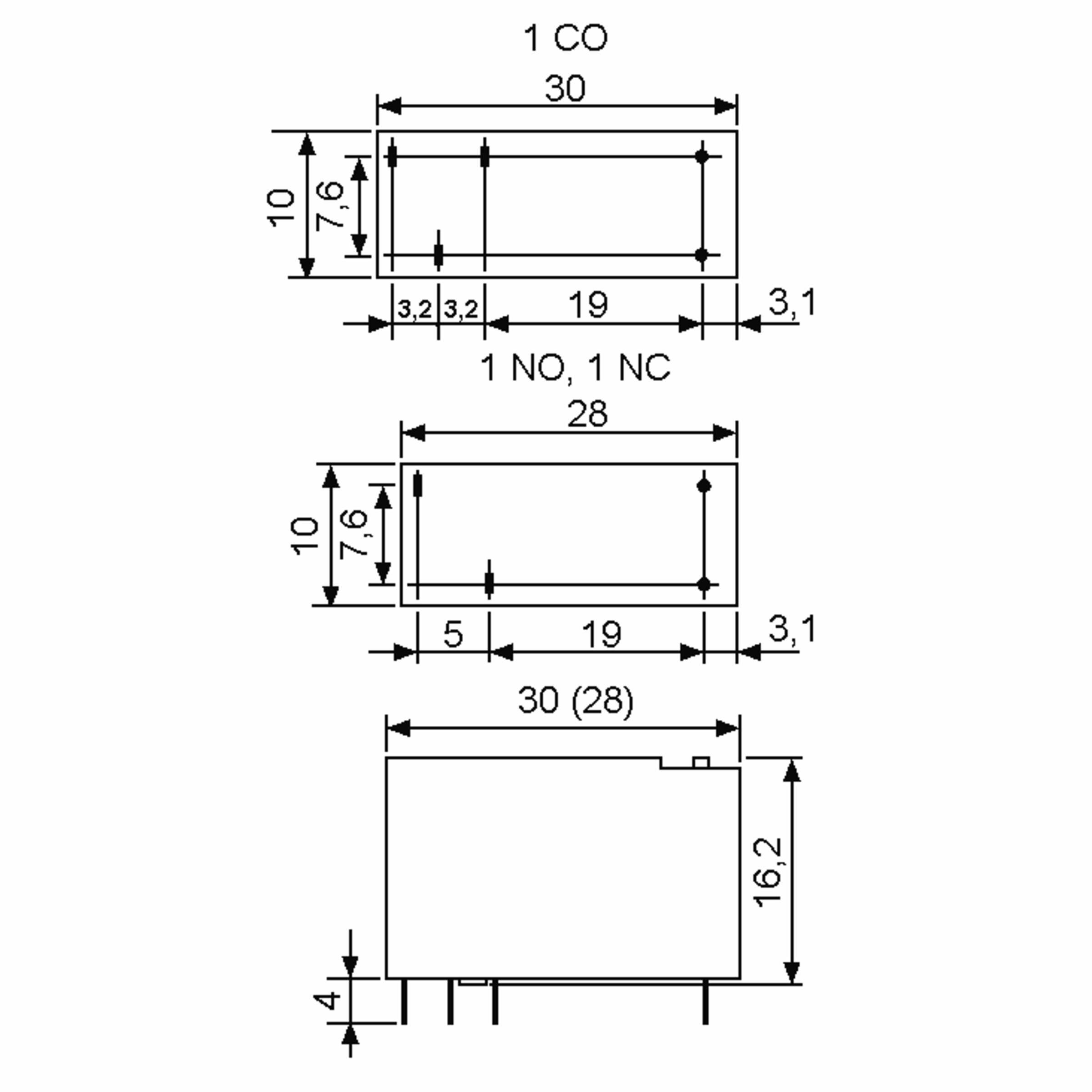

Dimensions and Weights
- Dimension: Length
- 30 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 16.2 mm
- Weight
- 11 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 80 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 8 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Continuous Current
- 15 A
- Contact: Switching Capacity (VA)
- 2,000 VA
- Contact resistance
- 100 mOhm
- Creepage distance
- 8 mm
- Coil design
- monostable
- Coil resistance
- 600 Ohm
- Inductor power
- 1,000 mW
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, min.
- 8.4 V
- Coil: Operating Voltage, max.
- 29.5 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage contact/contact
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 20 x 10^6 operations
- Service life, electrical
- 100,000 operations
- Vibration resistance
- 10 g
- Impact resistance, functional
- 20 g
- Soldering temperature, max.
- 270°C / 5s
Safety/Certifications
- Approvals
- EAC
- VDE
- cULus
- Standards
- EN 60529, EN 61810-7
- Protection Class
- IP67
- Protection class RT
- RTII
