RM87N-2011-25-5230

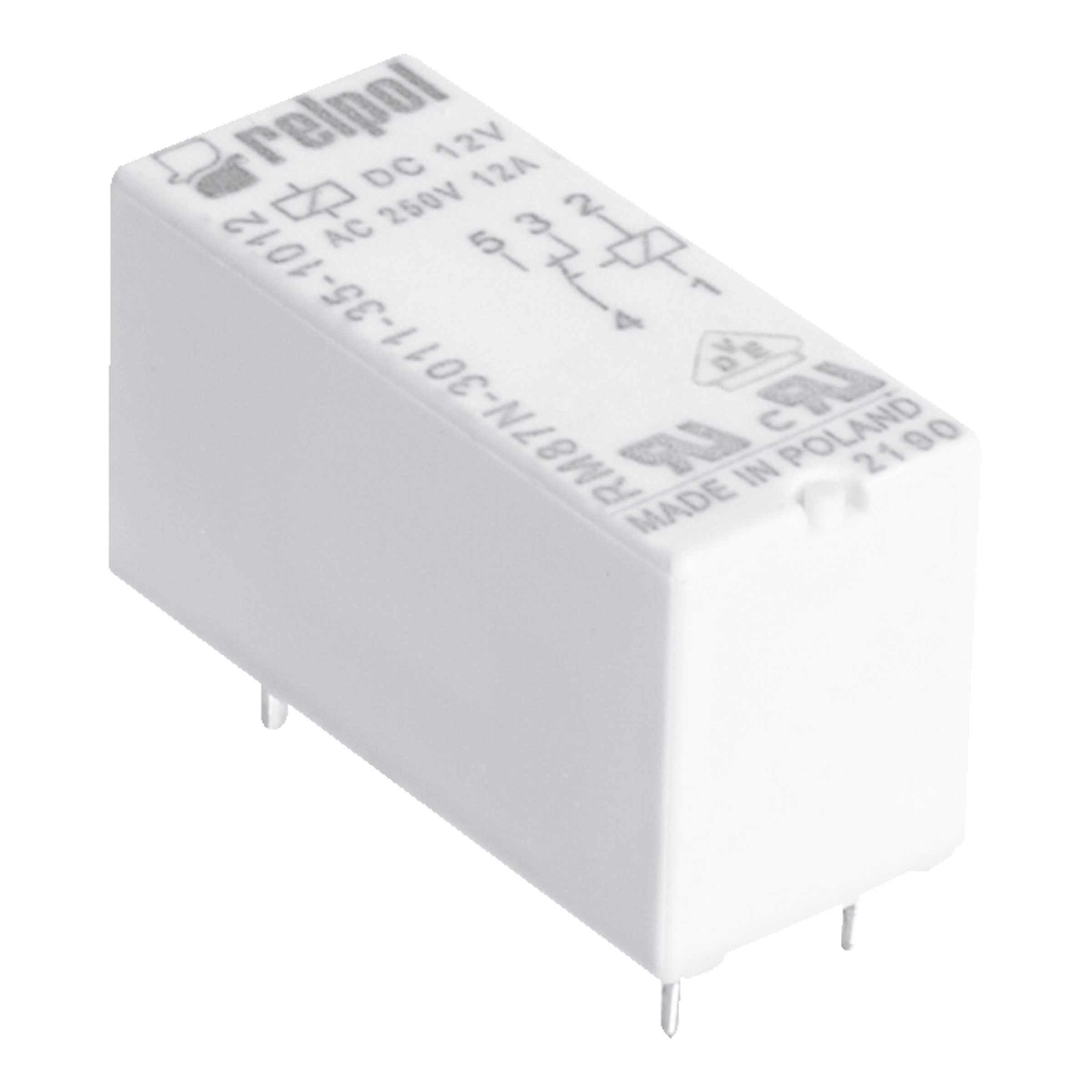

RELPOL PC relay RM87 THT SPDT 12A 230VAC 38.500Ohm 29mmx12,7mmx15,7mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
770 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- RM87

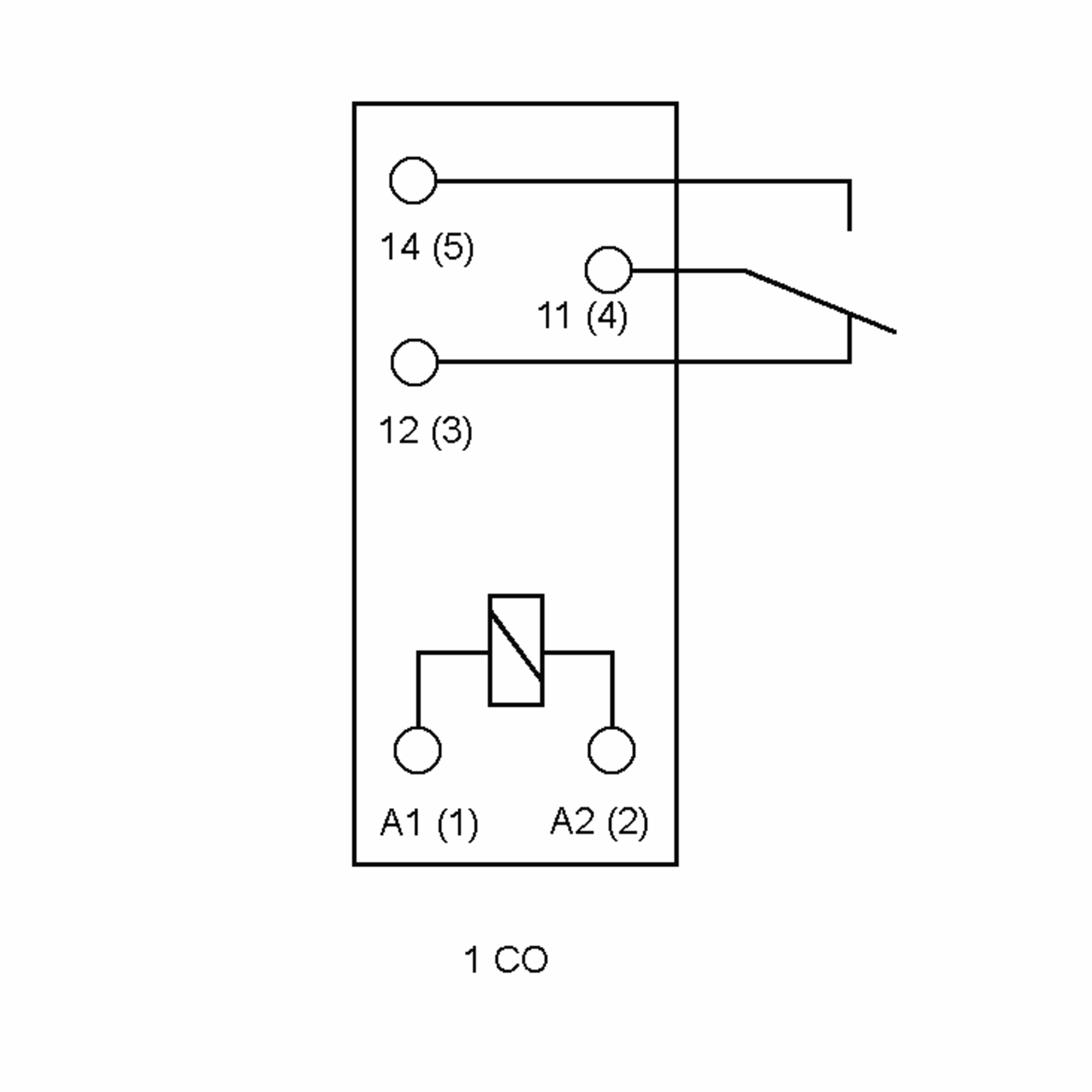

- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 12 A
- Coil: Nominal Voltage AC
- 230 V AC
- Coil resistance
- 38,500 Ohm
- Protection Class
- IP40
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

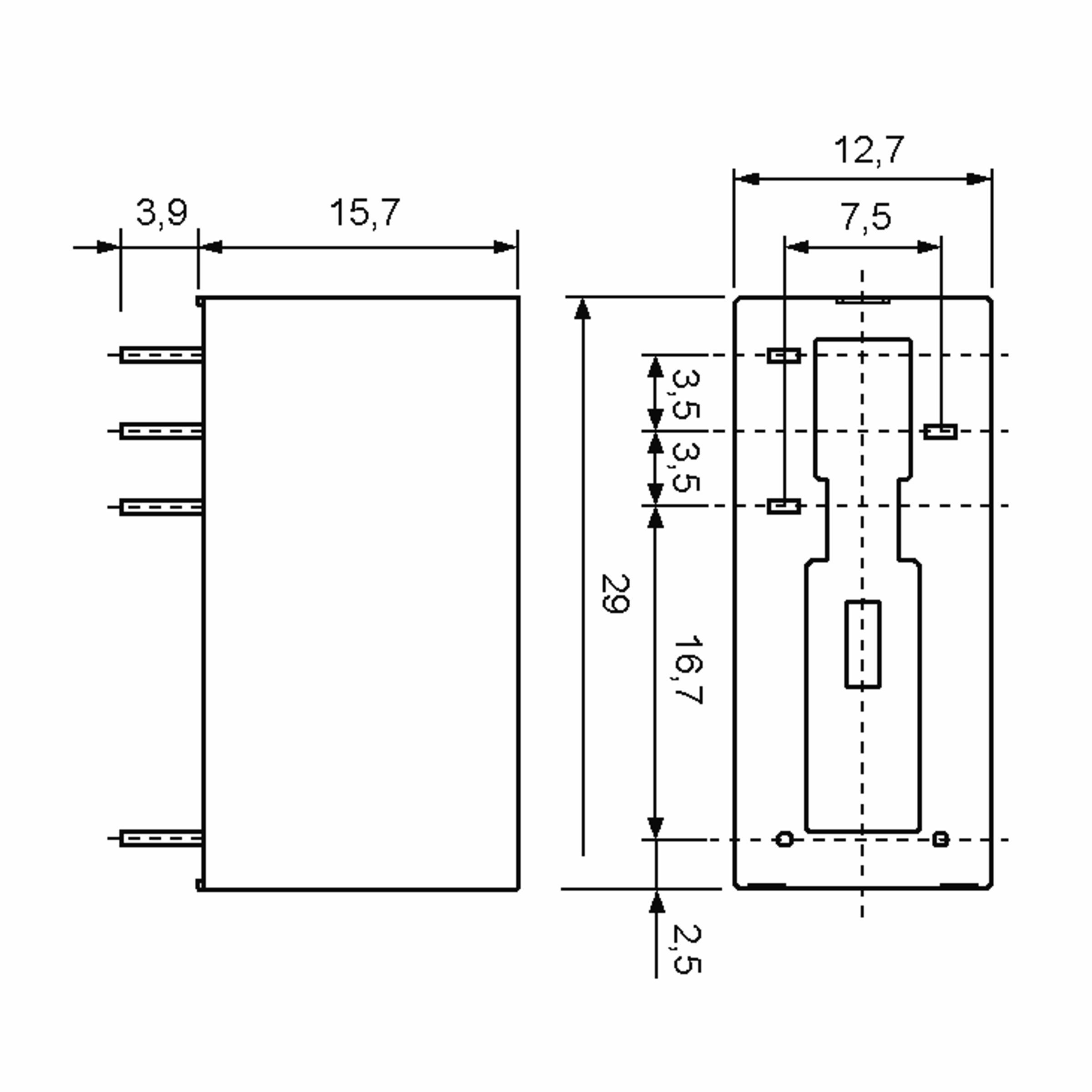

Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 14 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 12 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Switching Capacity (VA)
- 3,000 VA
- Contact resistance
- 100 mOhm
- Creepage distance
- 10 mm
- Coil design
- monostable
- Coil resistance
- 38,500 Ohm
- Inductor power
- 300 mW
- Coil: Nominal Voltage AC
- 230 V AC
- Coil: Operating Voltage, min.
- 184 V
- Coil: Operating Voltage, max.
- 276 V
- Coil: Drop-out Voltage
- 34.5 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 7 ms
- Drop-out time
- 3 ms
- Mechanical service life
- 30 x 10^6 operations
- Service life, electrical
- see data sheet
- Vibration resistance
- 10 g
- Impact resistance, functional
- 30 g
- Soldering temperature, max.
- 270°C / 5s
Safety/Certifications
- Approvals
- CCC
- EAC
- VDE
- cCSA
- cULus
- Standards
- EN 60335-1, EN 60529, EN 61810-7
- Protection Class
- IP40
- Protection class RT
- RTII
