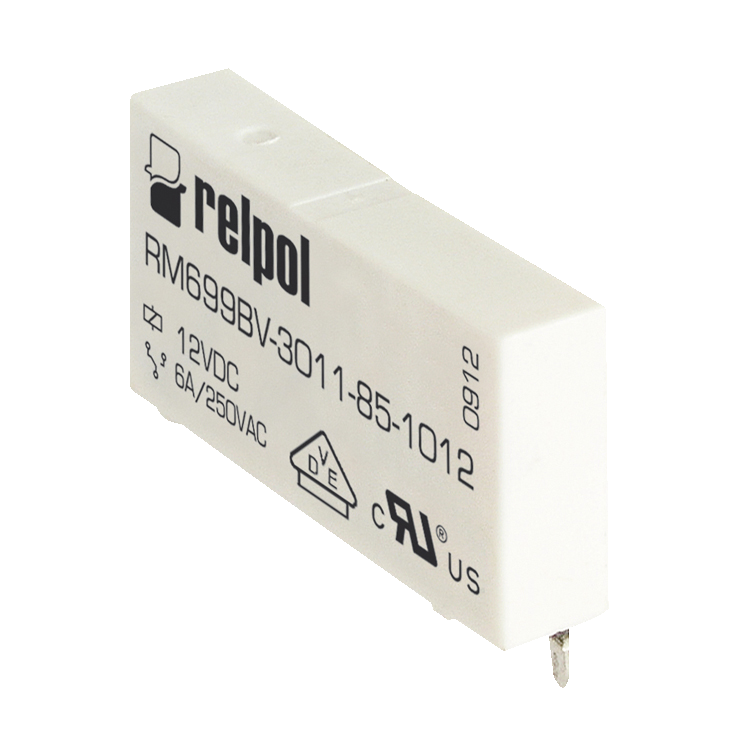

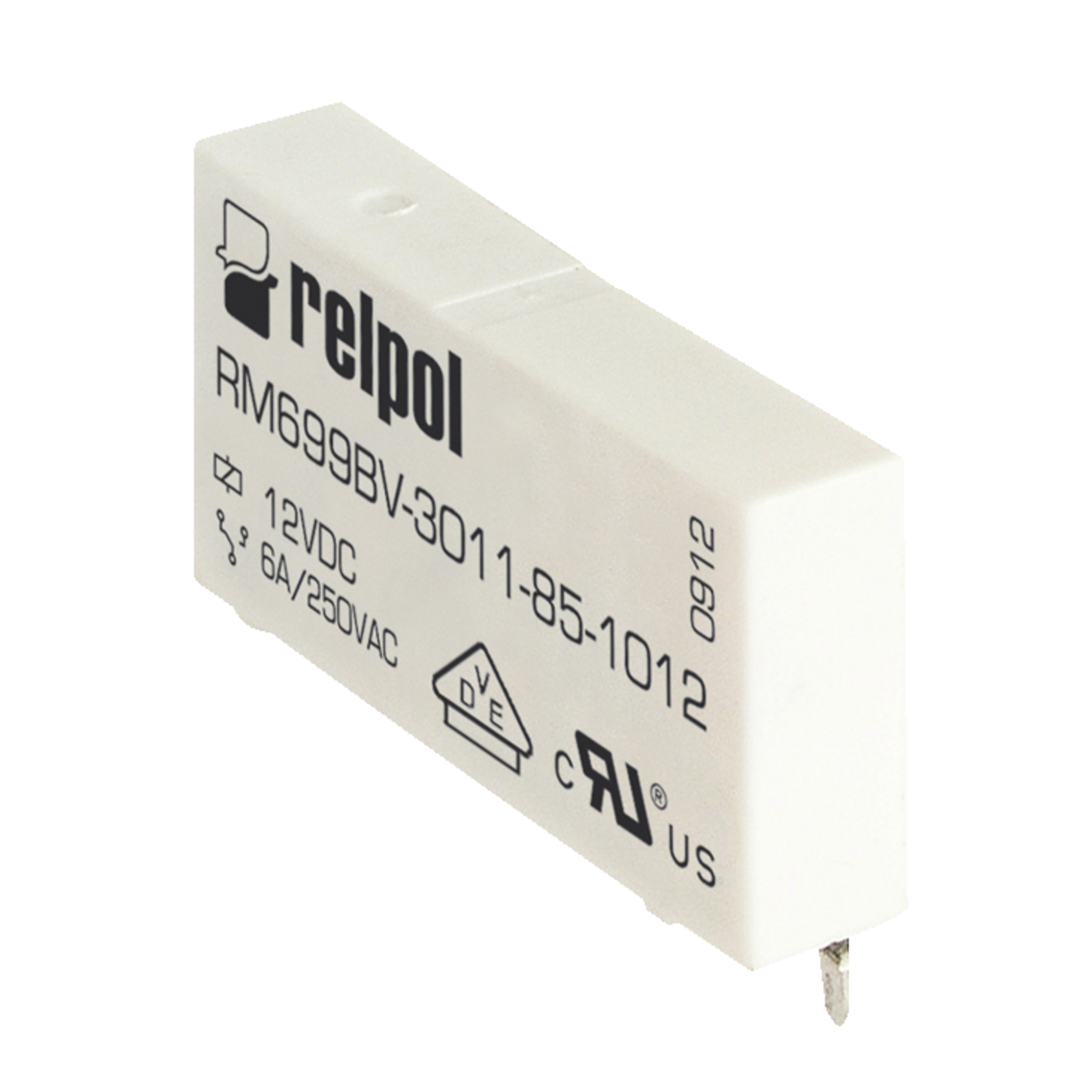

RM699BV-3011-85-1024
RELPOL PC relay RM699B THT SPST 10A 24VDC 3.390Ohm 28mmx5mmx15mm RTIII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.455 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- RM699B
- contacts
- SPST
- Contact: Switching Current (min/typ/max)
- 10 A
- Coil: Nominal Voltage DC
- 24 V DC
- Coil resistance
- 3,390 Ohm
- Protection Class
- IP67
- Protection class RT
- RTIII
- RoHS-Conform
Specifications
Open all

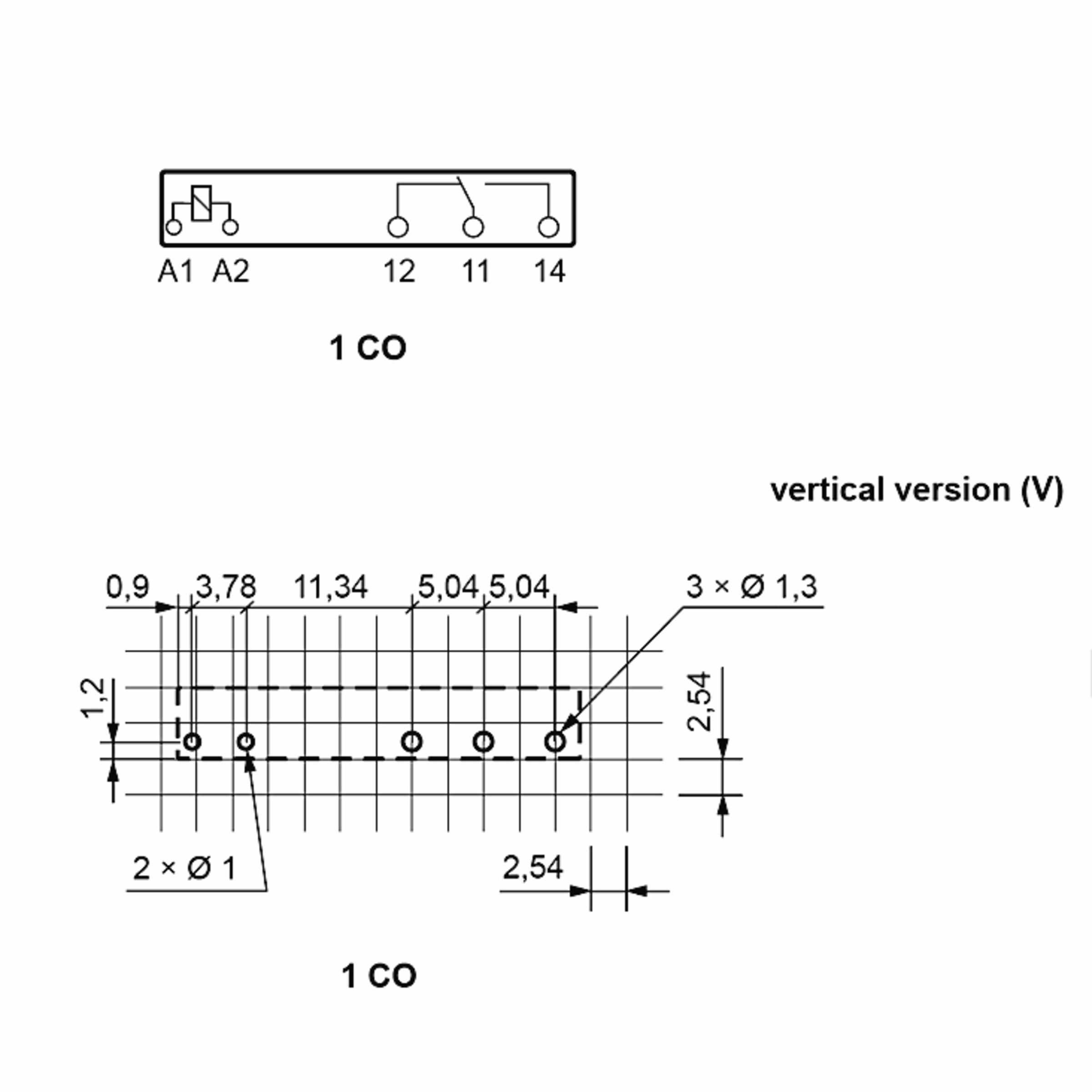

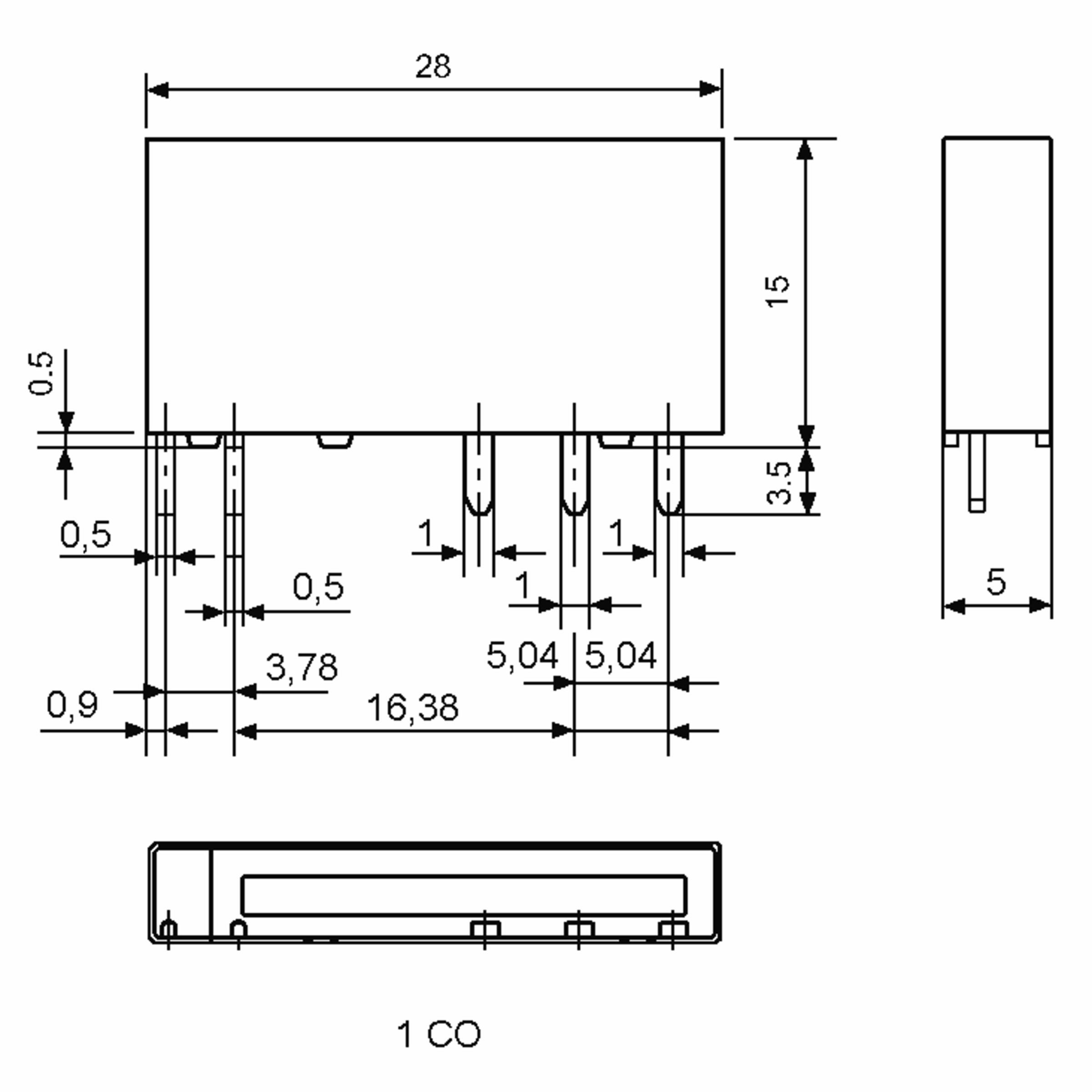

Dimensions and Weights
- Dimension: Length
- 28 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 15 mm
- Weight
- 6 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 10 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Switching Voltage, max. DC
- 250 V DC
- Contact: Inrush current
- 10 A
- Contact: Switching Capacity (VA)
- 1,500 VA
- Contact: Switching Load (W)
- 1 W
- Contact resistance
- 100 mOhm
- Creepage distance
- 8 mm
- Coil design
- monostable
- Coil resistance
- 3,390 Ohm
- Inductor power
- 170 mW
- Coil: Nominal Voltage DC
- 24 V DC
- Coil: Operating Voltage, min.
- 18 V
- Coil: Operating Voltage, max.
- 36 V
- Test voltage contact/contact
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Response time
- 8 ms
- Drop-out time
- 6 ms
- Mechanical service life
- 10^7 operations
- Service life, electrical
- see data sheet
- Vibration resistance
- 5 g
- Impact resistance, functional
- 5 g
Safety/Certifications
- Approvals
- EAC
- VDE
- cULus
- Standards
- EN 60529, EN 61810-7, EN 60664-1
- Protection Class
- IP67
- Protection class RT
- RTIII
