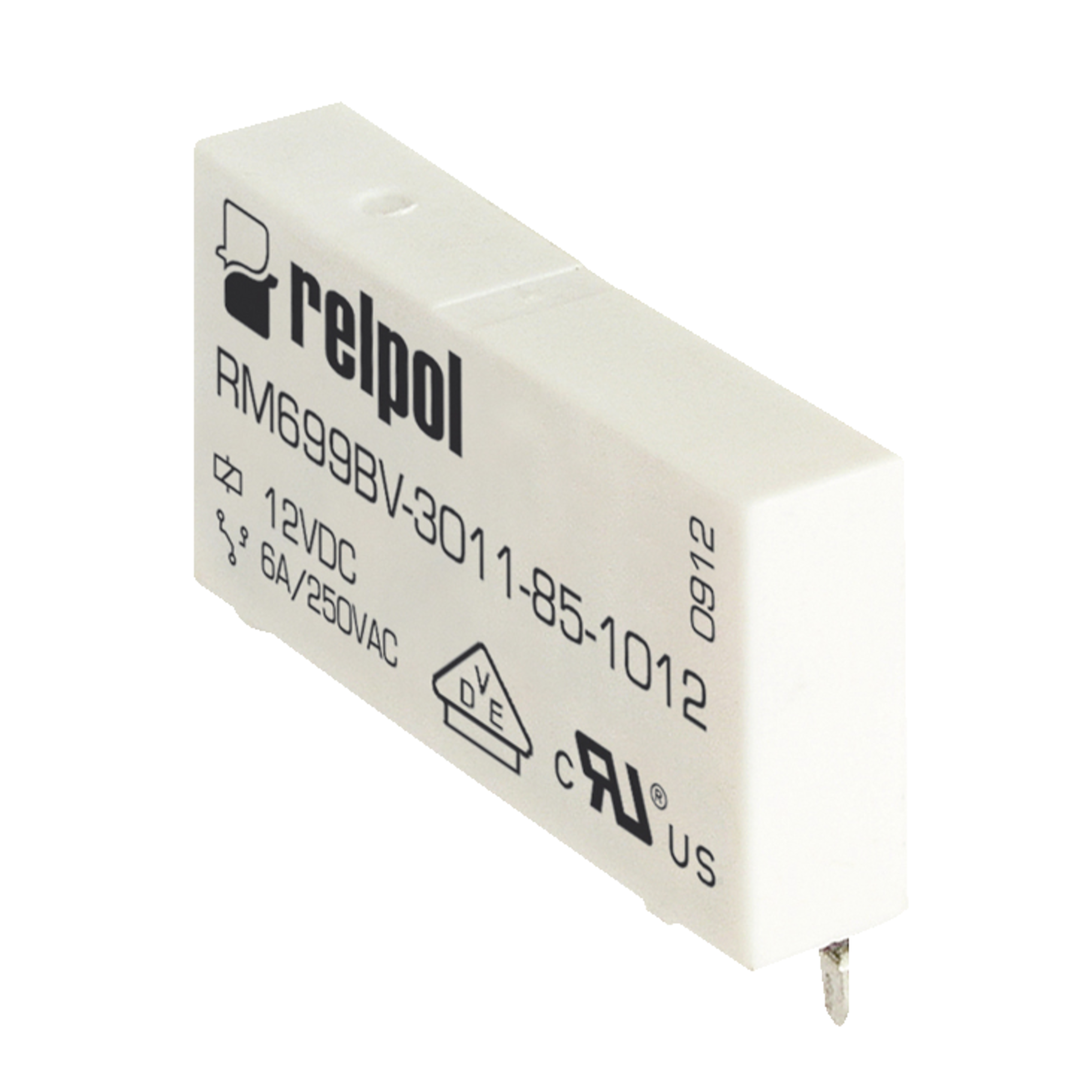

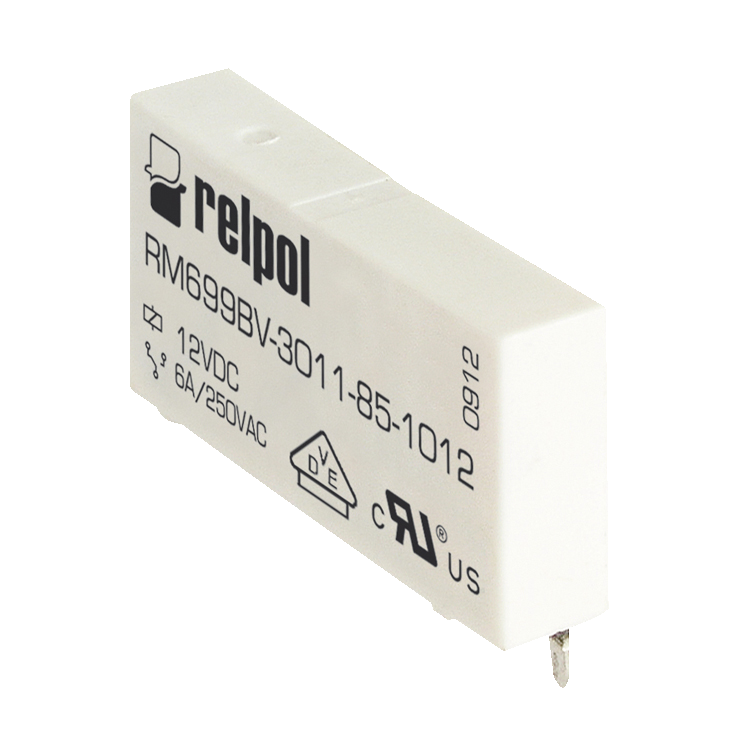

RM699BV-2011-85-1012
RELPOL Power relay RM699B THT SPST 10A 12VDC 848Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 33 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- RM699B
- Rated current
- 6.000 mA
- Rated voltage DC
- 12 V DC
- Switching current
- 10 A

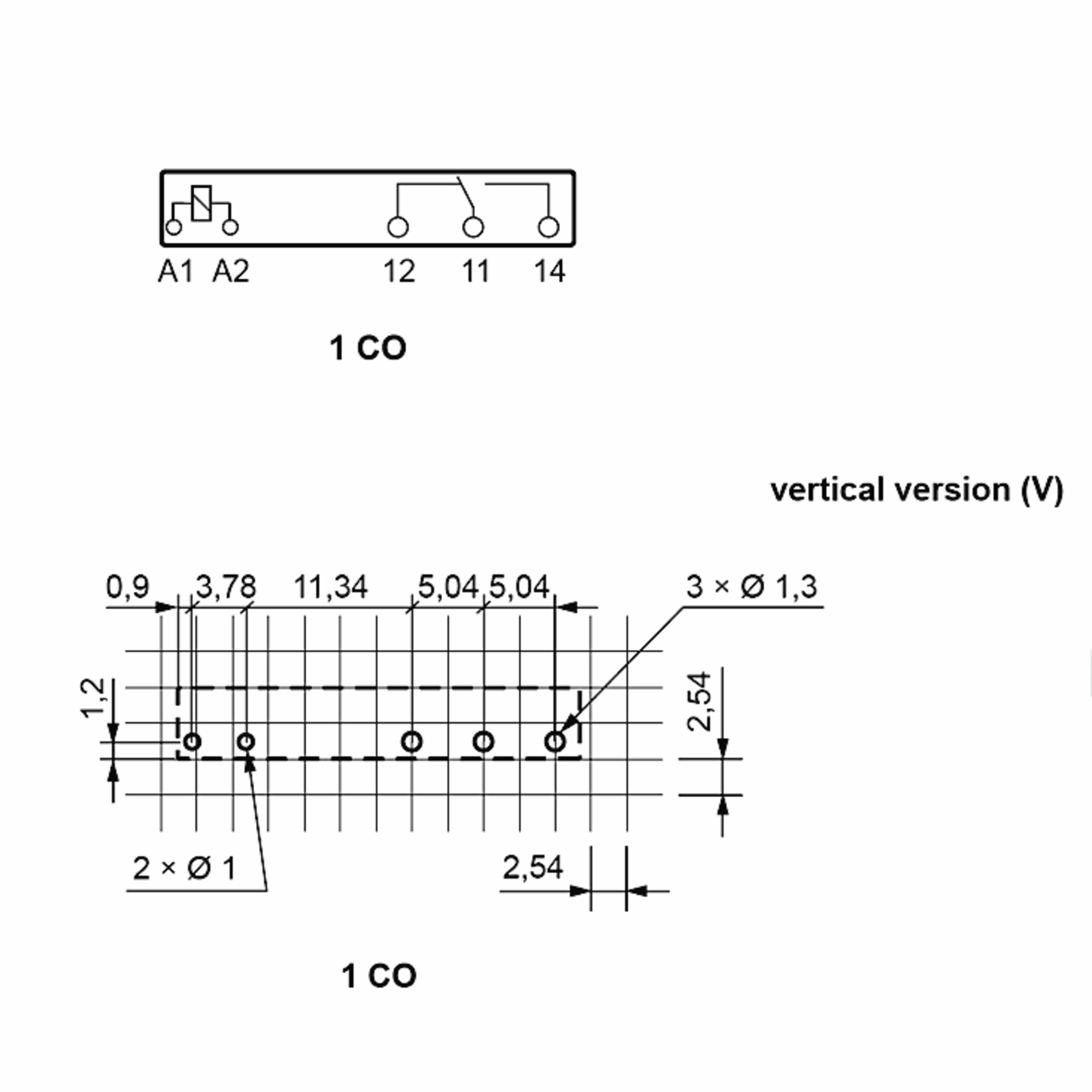

- contacts
- SPST
- Coil resistance
- 848 Ohm
- Dimension: Length
- 28 mm
- Protection Class
- IP67
- Dimension: Width
- 5 mm
- Dimension: Height
- 15 mm
- RoHS-Conform
Specifications
Open all

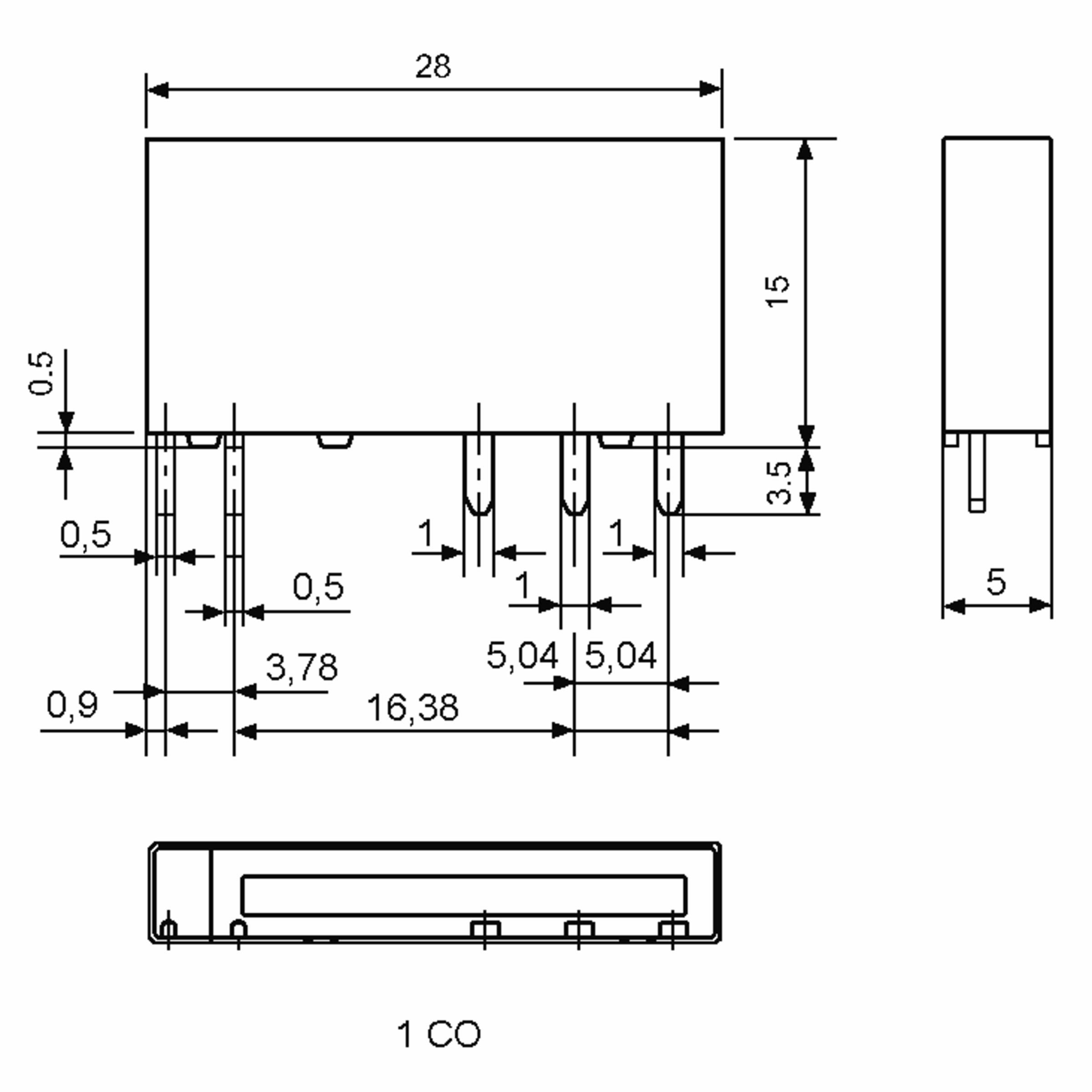

Dimensions and weights
- Dimension: Length
- 28 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 15 mm
- Weight
- 6 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 12 V DC
- Coil design
- Switching voltage, max. AC
- 400 V AC
- Switching voltage, max. DC
- 250 V DC
- Response voltage
- 9 V
- Operating voltage, max.
- 19 V
- Test voltage contact/contact
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Creepage distance
- 8 mm
- Rated current
- 6.000 mA
- Switching current
- 10 A
- Inrush current
- 10 A
- Rated power
- 170 mW
- Switching capacity (VA)
- 1,500 VA
- Switching capacity (W)
- 1 W
- Coil resistance
- 848 Ohm
- Contact resistance
- 100 mOhm
- Response time
- 8 ms
- Drop-out time
- 6 ms
- Vibration resistance
- 5 G
- Impact resistance, functional
- 5 G
Safety/Certifications
- Approvals
- EAC
- VDE
- cULus
- Standards
- EN 60529, EN 61810-7, EN 60664-1
- Protection Class
- IP67
- Protection class RT
- RTIII
