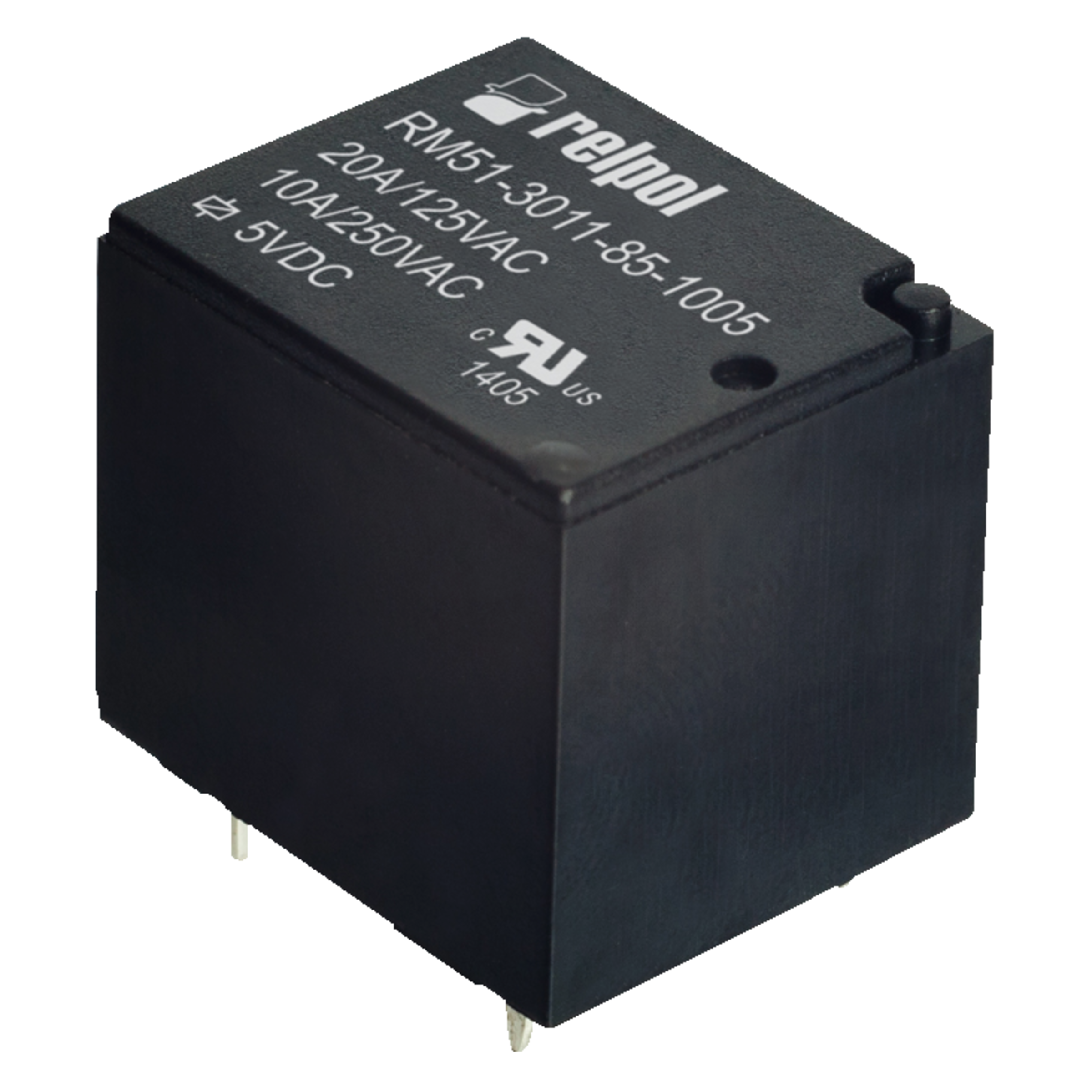

RM51-3011-85-1048
RELPOL Power relay RM51 THT SPDT 10A 48VDC 6.400Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
375 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- RM51
- Rated voltage DC
- 48 V DC
- Switching current
- 10 A

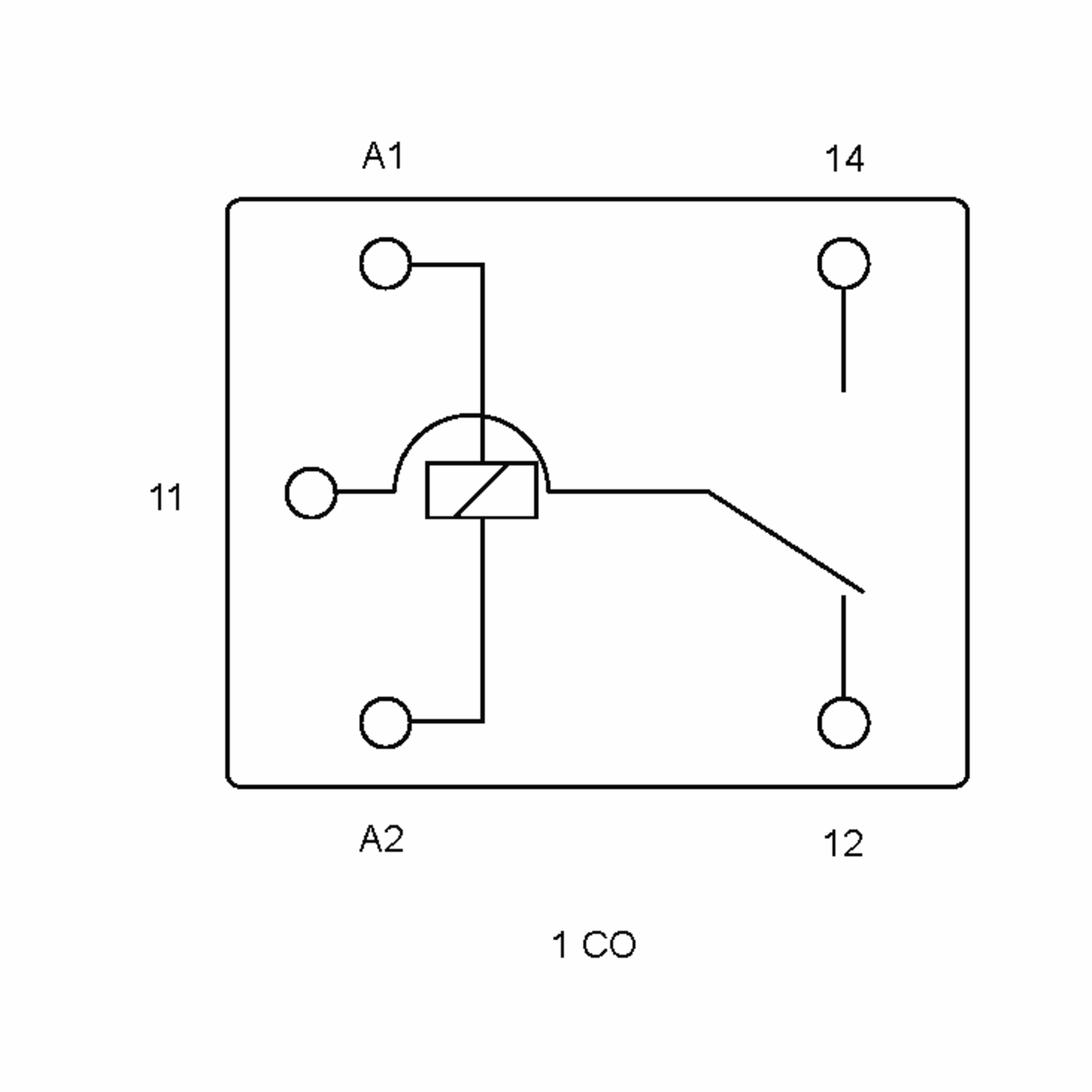

- contacts
- SPDT
- Coil resistance
- 6,400 Ohm
- Dimension: Length
- 19.5 mm
- Protection Class
- IP67
- Dimension: Width
- 16 mm
- Dimension: Height
- 17.1 mm
- RoHS-Conform
Specifications
Open all

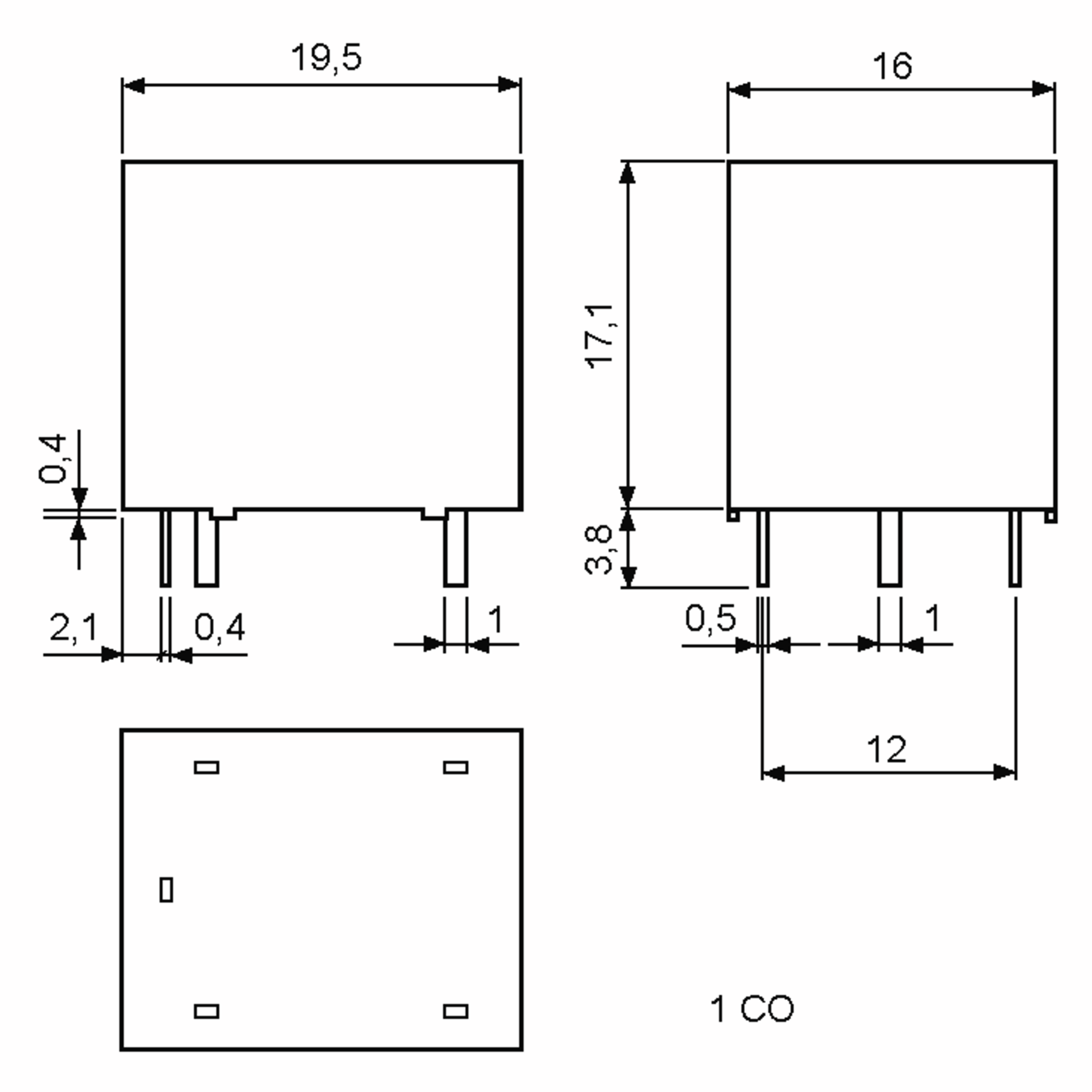

Dimensions and weights
- Dimension: Length
- 19.5 mm
- Dimension: Width
- 16 mm
- Dimension: Height
- 17.1 mm
- Weight
- 10 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 48 V DC
- Coil design
- Switching voltage, max. AC
- 277 V AC
- Response voltage
- 36 V
- Operating voltage, max.
- 62.4 V
- Test voltage contact/contact
- 1,000 V AC
- Test voltage coil/contact
- 2,500 V AC
- Creepage distance
- 1.9 mm
- Switching current
- 10 A
- Rated power
- 360 mW
- Switching capacity (VA)
- 3,000 VA
- Coil resistance
- 6,400 Ohm
- Contact resistance
- 100 mOhm
- Insulation resistance
- 250 MOhm
- Response time
- 15 ms
- Drop-out time
- 10 ms
- Vibration resistance
- 1 mm DA
- Impact resistance, functional
- 10 G
Safety/Certifications
- Approvals
- EAC
- cULus
- Standards
- EN 60664-1, IEC 60947-4-1, UL 508
- Protection Class
- IP67
- Protection class RT
- RTIII
