RM12N-3011-35-1005
RELPOL Power relay RM12N THT SPST 0,1A 250VAC 5VDC 113Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.000 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- RM12N
- Rated voltage AC
- 250 V AC
- Rated current
- 10 A
- Rated voltage DC
- 5 V DC
- Switching current
- 0.1 A
- contacts
- SPST
- Coil resistance
- 113 Ohm
- Dimension: Length
- 28.7 mm
- Protection Class
- IP67
- Dimension: Width
- 10.3 mm
- Dimension: Height
- 12.7 mm
- RoHS-Conform
Specifications
Open all

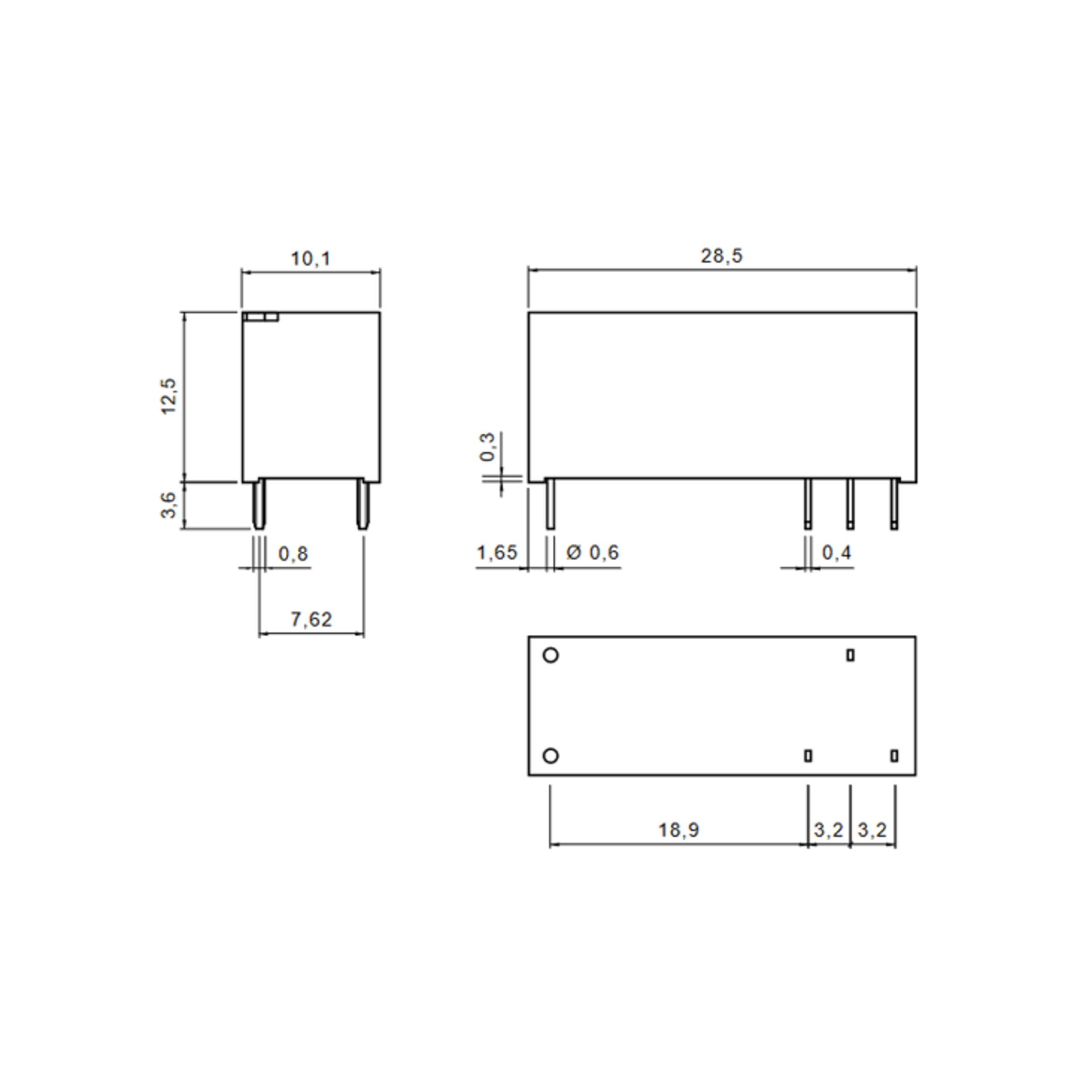

Dimensions and weights
- Dimension: Length
- 28.7 mm
- Dimension: Width
- 10.3 mm
- Dimension: Height
- 12.7 mm
- Weight
- 8 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage AC
- 250 V AC
- Rated voltage DC
- 5 V DC
- Switching voltage, max. AC
- 440 V AC
- Operating voltage, max.
- 6.5 V
- Creepage distance
- 8 mm
- Rated current
- 10 A
- Switching current
- 0.1 A
- Switching capacity (VA)
- 2,500 VA
- Coil resistance
- 113 Ohm
- Contact resistance
- 100 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 10 ms
- Drop-out time
- 5 ms
Safety/Certifications
- Approvals
- EAC
- cULus
- Protection Class
- IP67
- Protection class RT
- RTIII
