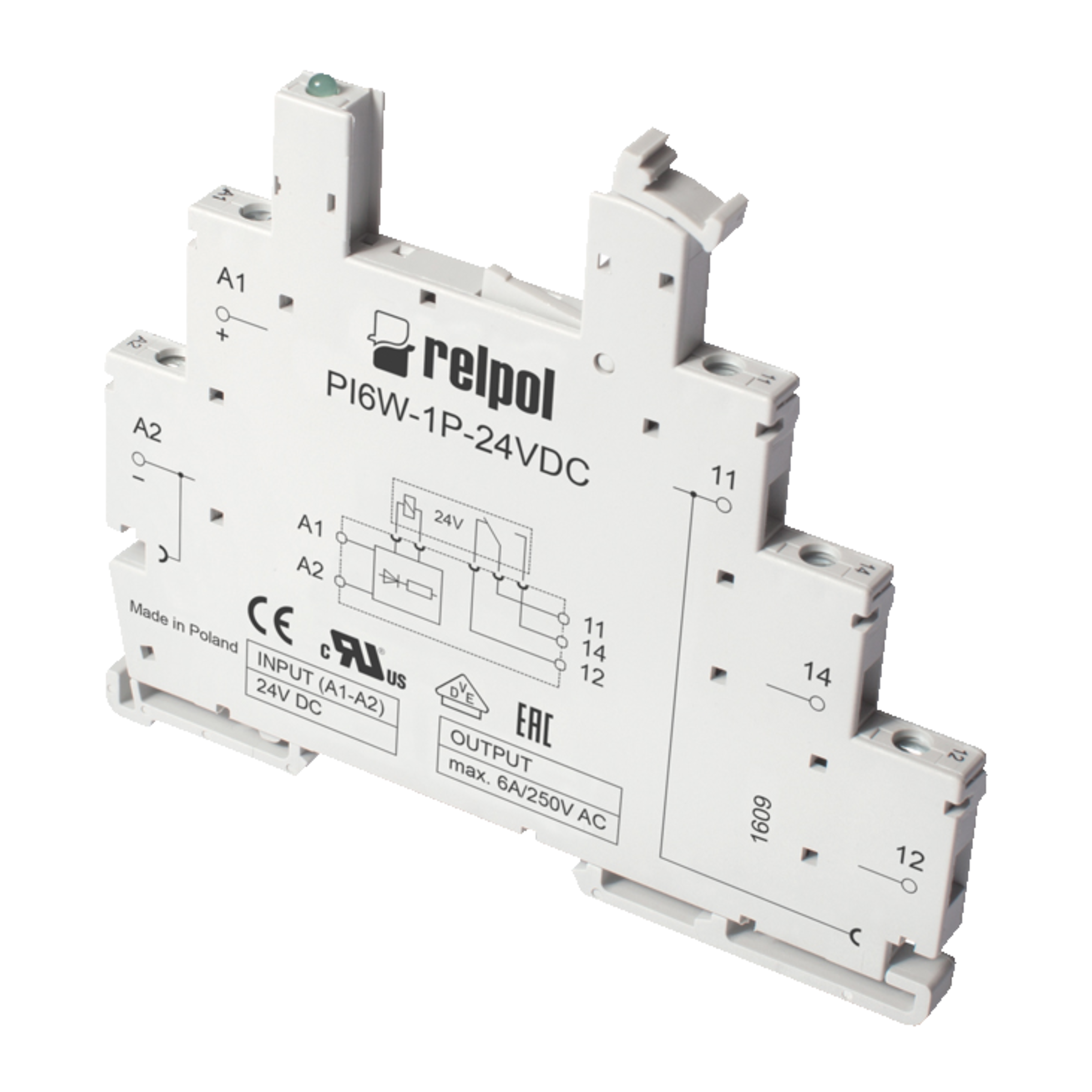

PIR6W-1P-230VAC/DC-01
RELPOL Coupling relay PIR6W SPDT 0,05A 230VAC 230VDC 74.000Ohm 98,5mmx6,2mmx85,5mm RTI IP20
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
72 Pcs. in stock
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- General:
• Here you will find suitable relay sockets and accessories. - Type
- Coupling relay
- Series
- PIR6W
- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 0.05 A
- Coil: Nominal Voltage AC
- 230 V AC
- Coil: Nominal Voltage DC
- 230 V DC
- Coil resistance
- 74,000 Ohm
- Protection Class
- IP20
- Protection class RT
- RTI
- RoHS-Conform
Specifications
Open all

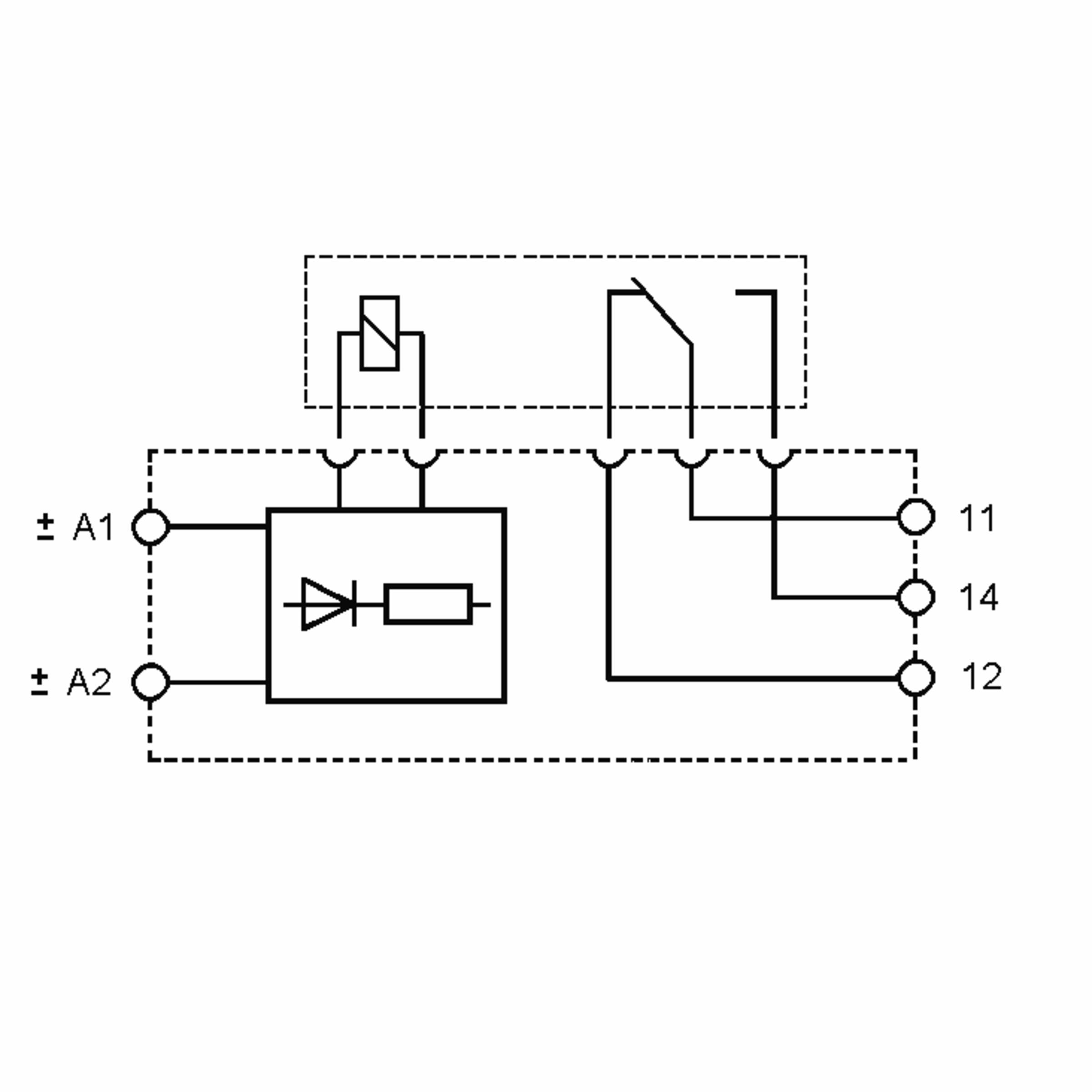

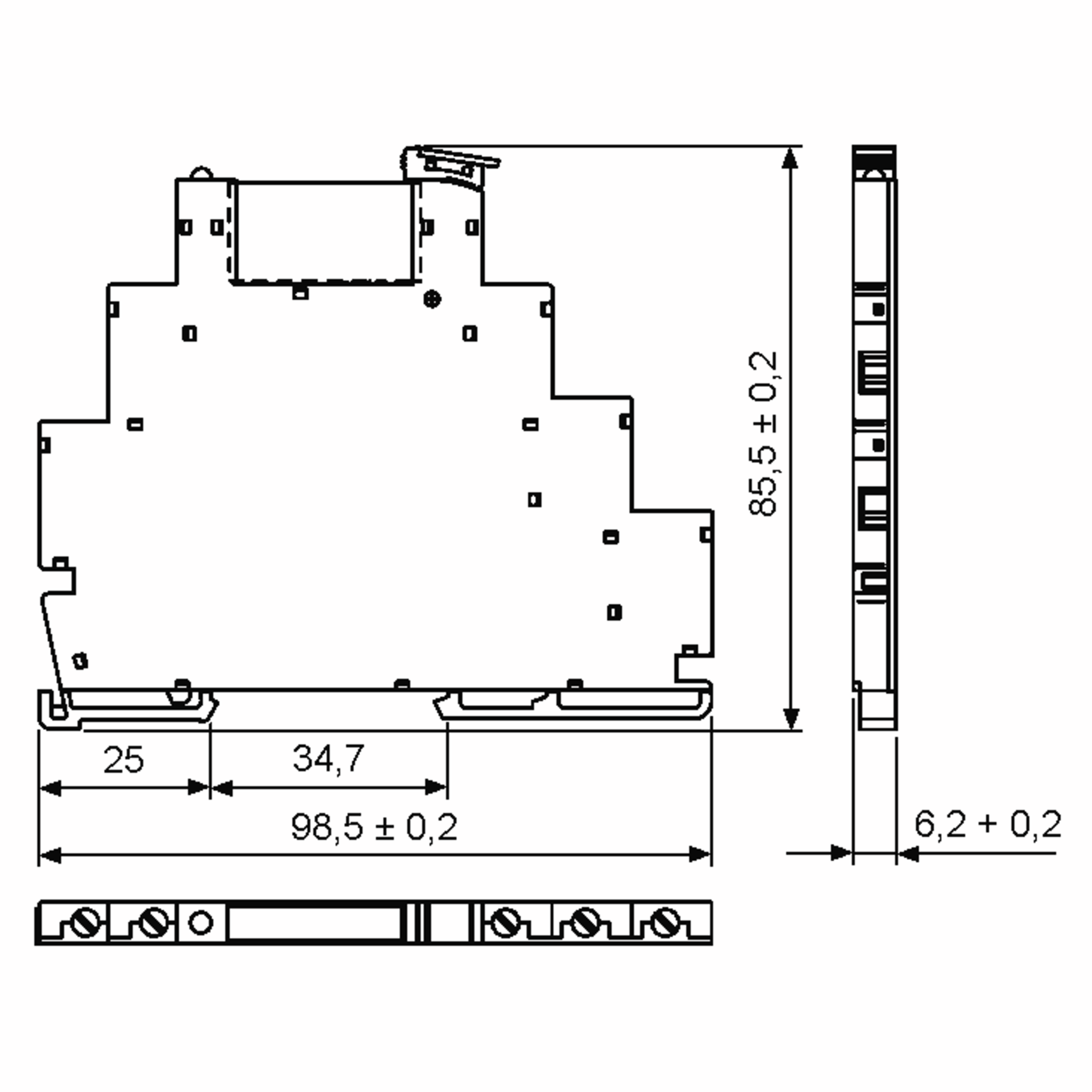

Dimensions and Weights
- Dimension: Length
- 98.5 mm
- Dimension: Width
- 6.2 mm
- Dimension: Height
- 85.5 mm
- Weight
- 45 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 50 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 0.05 A
- Contact: Switching Voltage, max. AC
- 30 V AC
- Contact: Inrush current
- 0.1 A
- Contact: Switching Capacity (VA)
- 1,200 VA
- Contact: Switching Load (W)
- 0.05 W
- Contact resistance
- 30 mOhm
- Creepage distance
- 8 mm
- Coil design
- monostable
- Coil resistance
- 74,000 Ohm
- Inductor power
- 800 mW
- Coil: Nominal Voltage AC
- 230 V AC
- Coil: Nominal Voltage DC
- 230 V DC
- Coil: Operating Voltage, min.
- 184 V
- Coil: Operating Voltage, max.
- 253 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Response time
- 15 ms
- Drop-out time
- 11 ms
- Vibration resistance
- 5 g
- Impact resistance, functional
- 10 g
Safety/Certifications
- Approvals
- CE
- EAC
- VDE
- cULus
- Standards
- EN 60715
- Protection Class
- IP20
- Protection class RT
- RTI
