GZM80

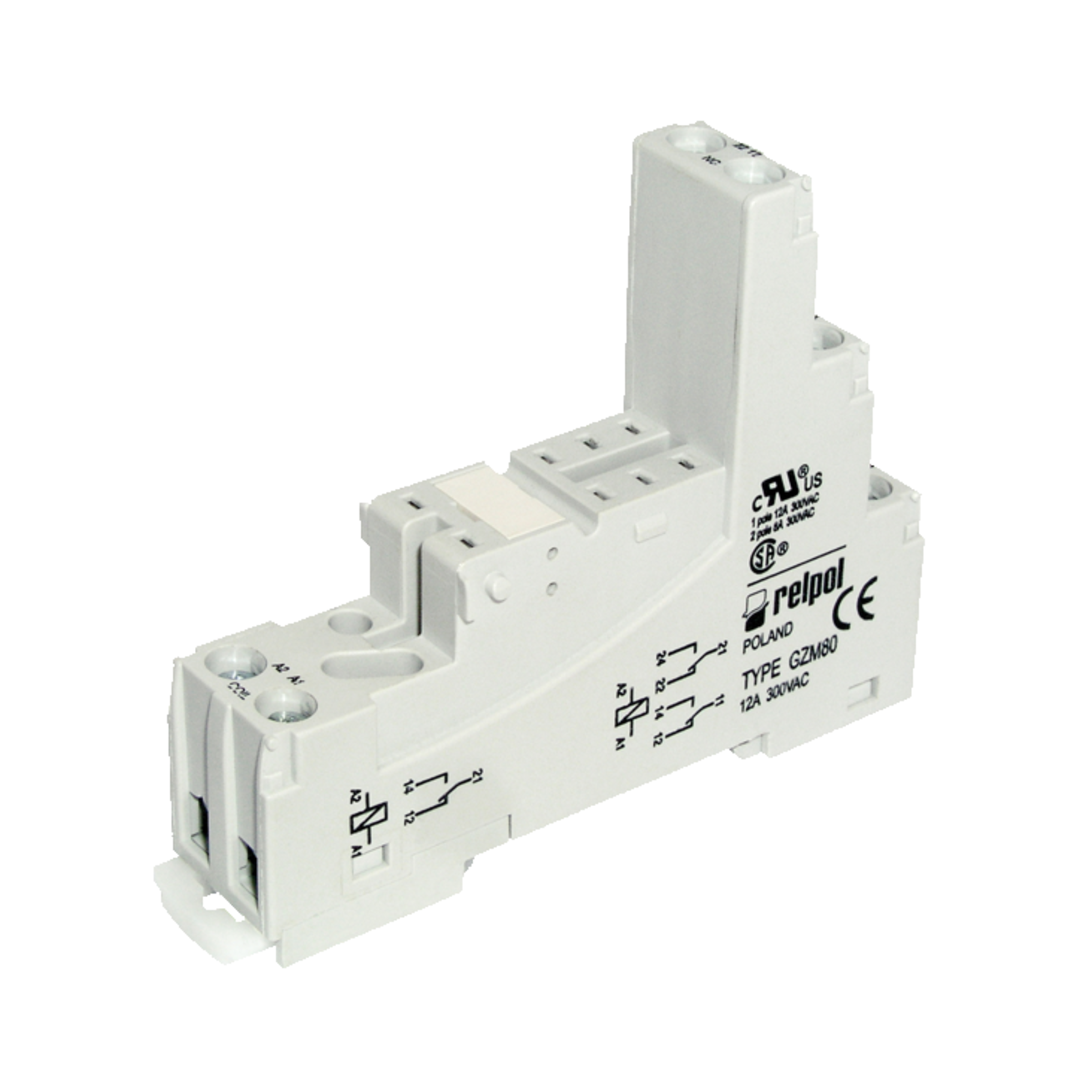

RELPOL DIN rail socket GZM80 12A 300VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.290 Pcs. in stock
Next Stock Receipt
Week 50/2024
100 Pcs.
100 Pcs.
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Termination Style
- Screw clamps
- Type
- DIN rail socket
- Cell size
- Display module M41G
Display module M91G
Display module M93G
Mounting bracket GZT80-0040
Relay RM84
Relay RM85
Relay RM85 inrush - Series
- GZM80
- Rated voltage AC
- 300 V AC
- Rated current
- 12 A
- Dimension: Length
- 78.1 mm
- Dimension: Width
- 15.9 mm
- Dimension: Height
- 61 mm
- RoHS-Conform
Specifications
Open all

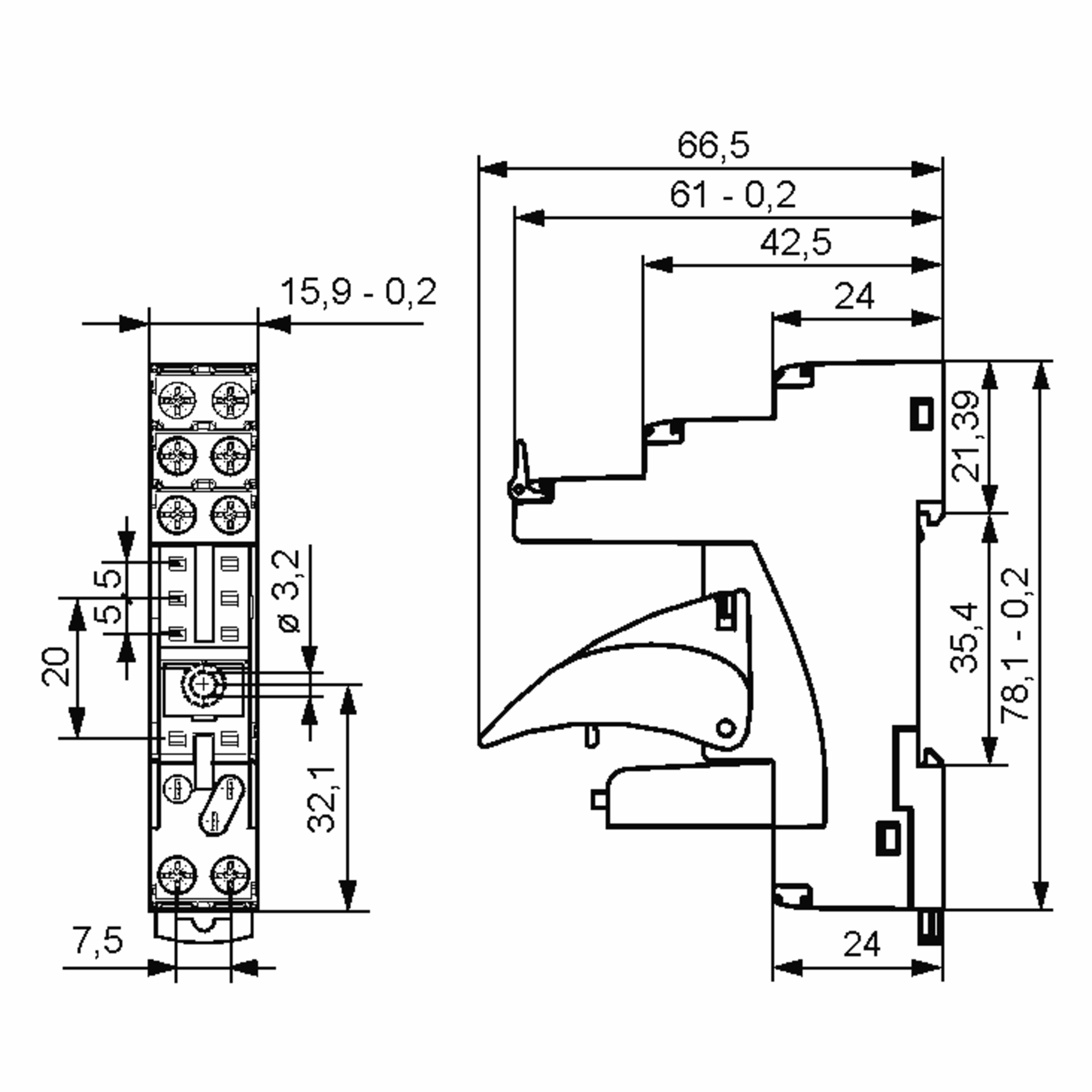

Dimensions and weights
- Dimension: Length
- 78.1 mm
- Dimension: Width
- 15.9 mm
- Dimension: Height
- 61 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage AC
- 300 V AC
- Rated current
- 12 A
Safety/Certifications
- Standards
- PN-EN 60715
