2003C239

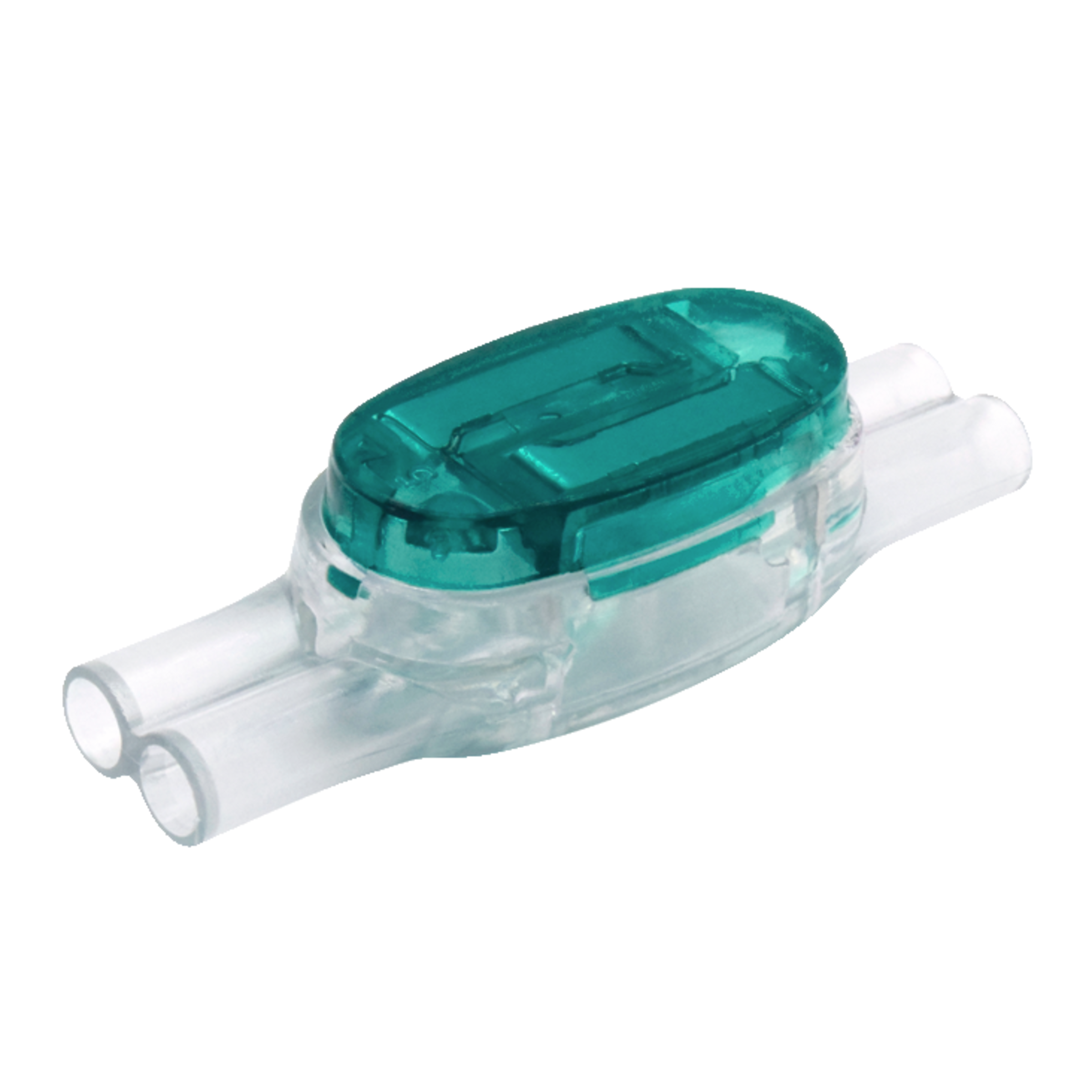

Quadrios Double wire connector 2003C 4 Pole straight transparent green verzinnt 0,9mm² 1,3mm² 19AWG 16AWG
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
500 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Double wire connector
- Connector Contact
- IDC
- Series
- 2003C
- Colour
- green
transparent - Housing material
- Polycarbonat (PC)
- Design
- Cable
- Number of poles
- 4
- Alignment
- straight
- Operating Temperature Max.
- 90 °C
- Operating Temperature Min.
- 0 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 50.7 mm
- Dimension: Width
- 14 mm
- Dimension: Height
- 13.7 mm
- Conductor cross-section (AWG), min.
- 19 AWG
- Conductor cross-section, min.
- 0.9 mm²
- Conductor cross-section (AWG), max.
- 16 AWG
- Conductor cross-section, max.
- 1.3 mm²
Operating conditions
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 90 °C
Mechanical Features
- Housing material
- Polycarbonat (PC)
- Contact Surface Input
- verzinnt
