1903EC009

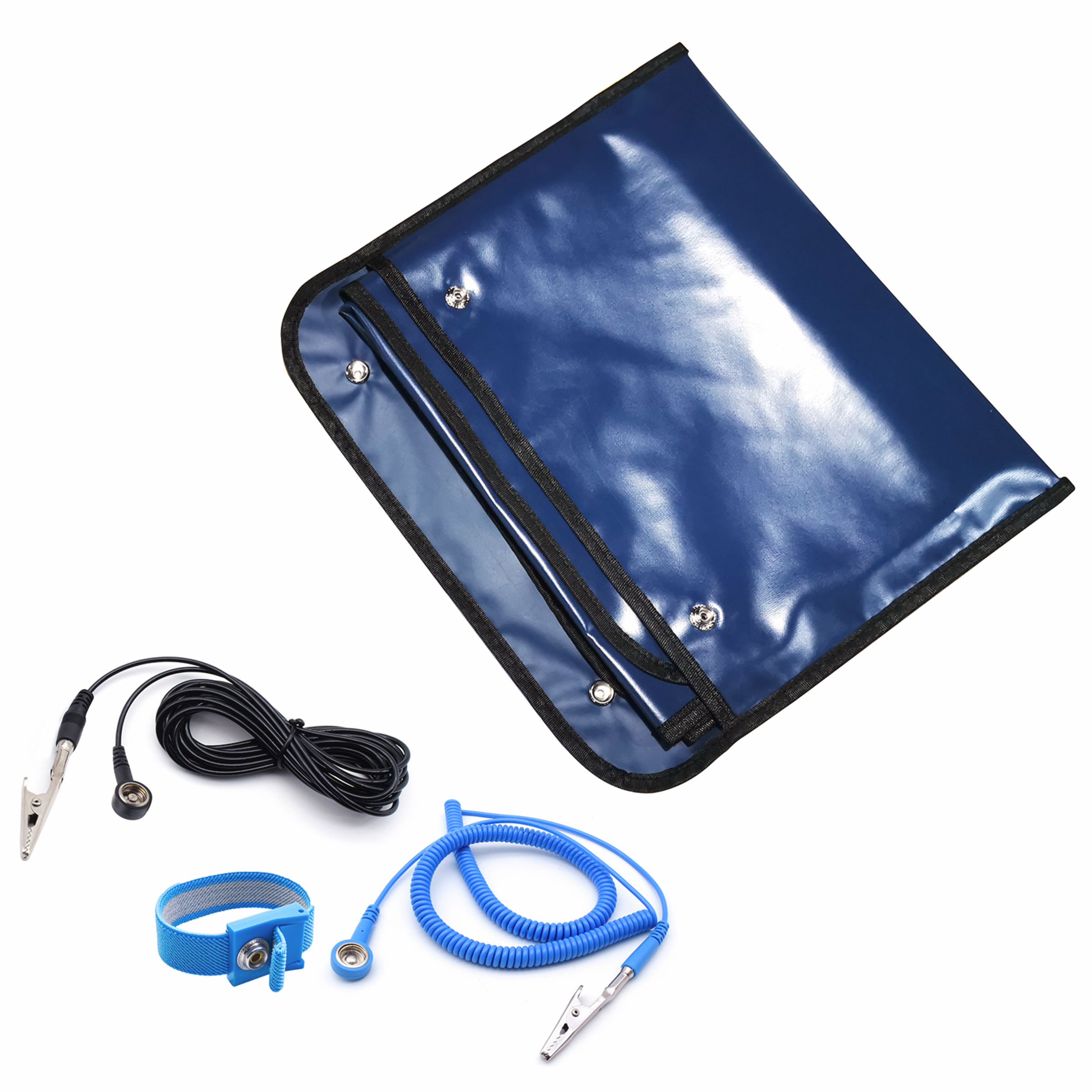

Quadrios ESD Complete Set 600mm 600mm 10mm

Manufacturer Part No.
1903EC009
Schukat Part No.
EAPSM05
Manufacturer
Quadrios
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
1 Pcs.
Next Stock Receipt
Week 46/2024
7 Pcs.
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 7 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Stud Size
10 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Quadrios
Type
  • ESD Complete Set
Series
  • 1903
Dimension: Length
  • 600 mm
Dimension: Width
  • 600 mm
Application

  • Personal earthing; workplace equipmen

Colour
  • blue
Stud Size
  • 10 mm
Features

  • - high-quality ESD table mat with 2 push-button connections- high-quality ESD table mat with 2 push-button connections
    - suitable for left- and right-handers
    - grounding spiral cable for arm wrist strap with push-button connection and alligator clip / banana plug
    - smooth earthing cable for ESD table mat with push-button connection and alligator clip / banana plug

Electrical features

Surface Insulation Resistance
  • 10⁷ Ohm Ohm

Safety/Certifications

ESD
Standards

  • EN 61340-5-1

Approvals
  • CE
