QC6A11.0592F18B23R

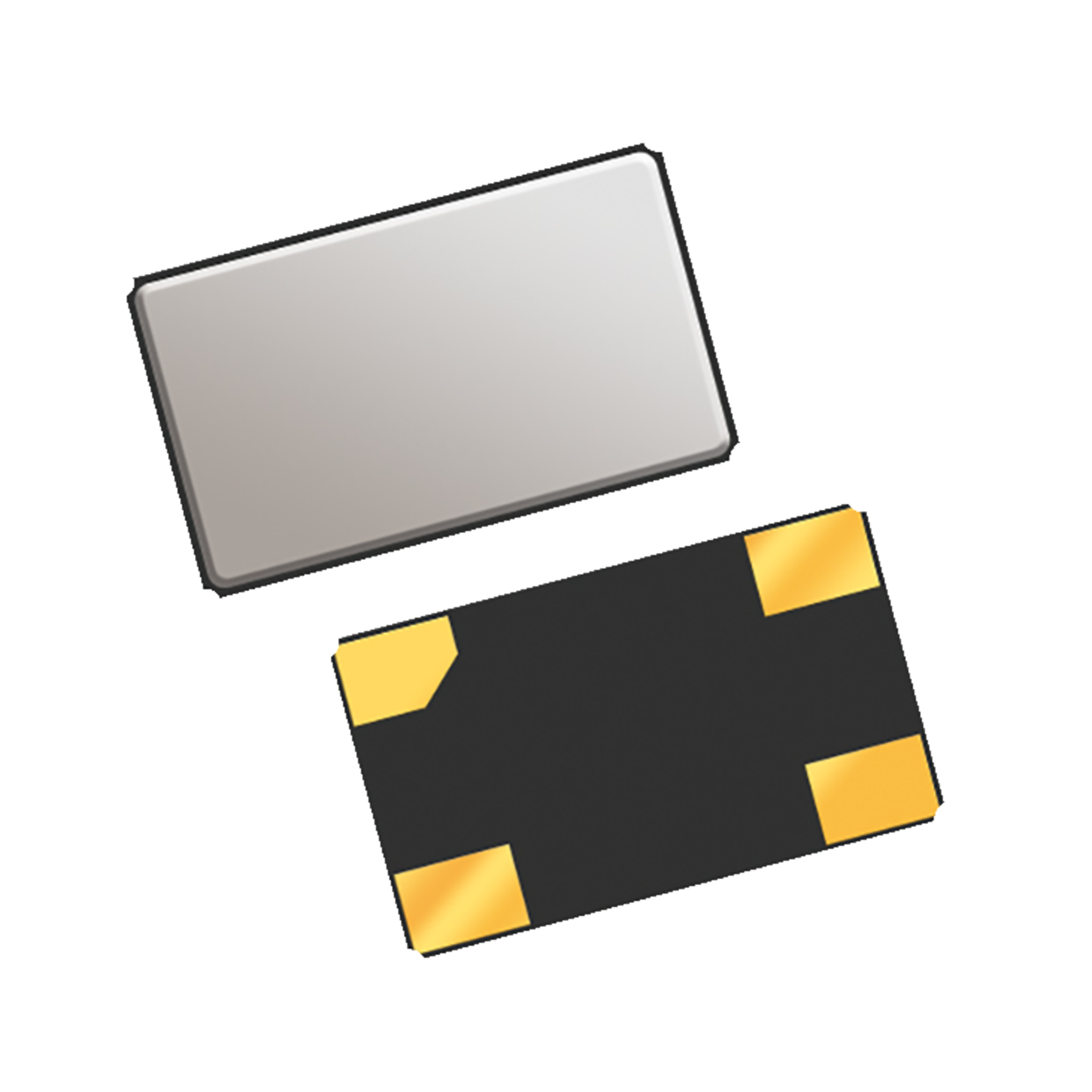

QANTEK QC6A 11,0592MHz ±20ppm 3,5mm x 6mm x 1mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- QC6A
- Frequency tolerance
- ±20 ppm
- Ageing, max.
- ±3 ppm/Jahr
- Load, max.
- 500 µW
- RoHS-Conform
Specifications
Open all

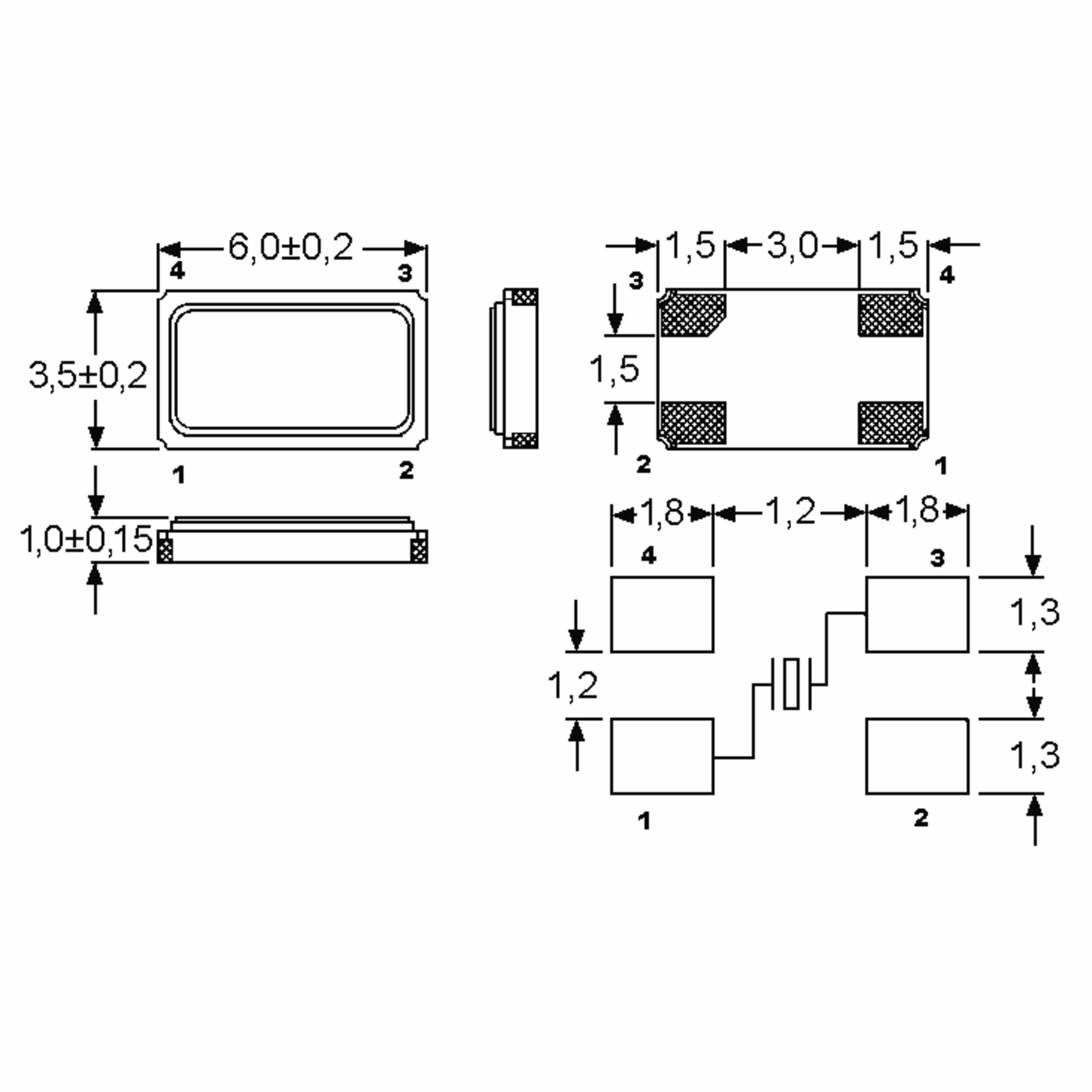

Dimensions and Weights
- Dimension: Length
- 3.5 mm
- Dimension: Width
- 6 mm
- Dimension: Height
- 1 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Minimum Storage Temperature
- -55 °C
- Maximum Storage Temperature
- 125 °C
Technical Features
- Frequency
- 11,0592 MHz
- Frequency Value
- 11.059
- 11.0592
- Frequency Unit
- MHz
- Frequency tolerance
- ±20 ppm
- Temperature stability
- ±30 ppm
- Shunt capacity, max.
- 18 pF
- Load, max.
- 500 µW
- Ageing, max.
- ±3 ppm/Jahr
