| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Assembly Type | contacts | Contact: Switching Current (min/typ/max) | Coil: Nominal Voltage AC | Coil: Nominal Voltage DC | Coil resistance | Contact: Switching Capacity (VA) | Contact: Switching Load (W) | Contact material | Dimension: Length | Dimension: Width | Dimension: Height | Protection Class | Protection class RT | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
326 |  | Manufacturers Part No. APAN314H(APAN314H) Panasonic PC relay APAN-N THT SPST-NO 5A 4,5VDC 184Ohm 20mmx5mmx12,5mm | Customer Part No. Customer Project No. | 25 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | THT | SPST-NO | 5.0 A | 4.5 V DC | 184.0 Ohm | 1250.0 VA | 150.0 W | AgNi | 20.0 mm | 5.0 mm | 12.5 mm | -40.0 °C | 90.0 °C | ||||||||
327 | | Manufacturers Part No. APAN3105(APAN3105) Panasonic PC relay APAN-N THT SPST-NO 5A 5VDC 227Ohm 20mmx5mmx12,5mm | Customer Part No. Customer Project No. | 128 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | THT | SPST-NO | 5.0 A | 5.0 V DC | 227.0 Ohm | 1250.0 VA | 150.0 W | AgNi | 20.0 mm | 5.0 mm | 12.5 mm | -40.0 °C | 90.0 °C | ||||||||
328 | | Manufacturers Part No. APAN3112(APAN3112) Panasonic PC relay APAN-N THT SPST-NO 5A 12VDC 1.309Ohm 20mmx5mmx12,5mm | Customer Part No. Customer Project No. | 173 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | THT | SPST-NO | 5.0 A | 12.0 V DC | 1309.0 Ohm | 1250.0 VA | 150.0 W | AgNi | 20.0 mm | 5.0 mm | 12.5 mm | -40.0 °C | 90.0 °C | ||||||||
329 | | Manufacturers Part No. APAN3124(APAN3124) Panasonic PC relay APAN-N THT SPST-NO 5A 24VDC 5.236Ohm 20mmx5mmx12,5mm | Customer Part No. Customer Project No. | 231 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Panasonic | THT | SPST-NO | 5.0 A | 24.0 V DC | 5236.0 Ohm | 1250.0 VA | 150.0 W | AgNi | 20.0 mm | 5.0 mm | 12.5 mm | -40.0 °C | 90.0 °C | ||||||||
330 | | Manufacturers Part No. NY-5W-K-IE(NY-5W-K-IE) FCL Components PC relay NY THT SPST-NO 5A 5VDC 208Ohm 20,1mmx5mmx17,5mm RTIII | Customer Part No. Customer Project No. | 1.035 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 10 or mul. of 5) | FCL Components | THT | SPST-NO | 5.0 A | 5.0 V DC | 208.0 Ohm | 1250.0 VA | 150.0 W | AgNi/Au | 20.1 mm | 5.0 mm | 17.5 mm | RTIII | -40.0 °C | 90.0 °C | |||||||
331 | | Manufacturers Part No. NY-12W-K-IE(NY12WKIE) FCL Components PC relay NY THT SPST-NO 5A 12VDC 1.200Ohm 20,1mmx5mmx17,5mm RTIII | Customer Part No. Customer Project No. | 395 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 10 or mul. of 5) | FCL Components | THT | SPST-NO | 5.0 A | 12.0 V DC | 1200.0 Ohm | 1250.0 VA | 150.0 W | AgNi/Au | 20.1 mm | 5.0 mm | 17.5 mm | RTIII | -40.0 °C | 90.0 °C | |||||||
332 | | Manufacturers Part No. NY-24W-K-IE(NY24WKIE) FCL Components PC relay NY THT SPST-NO 5A 24VDC 4.800Ohm 20,1mmx5mmx17,5mm RTIII | Customer Part No. Customer Project No. | 230 Pcs. Available (from stock) | (at least 10 or mul. of 5) | FCL Components | THT | SPST-NO | 5.0 A | 24.0 V DC | 4800.0 Ohm | 1250.0 VA | 150.0 W | AgNi/Au | 20.1 mm | 5.0 mm | 17.5 mm | RTIII | -40.0 °C | 90.0 °C | |||||||

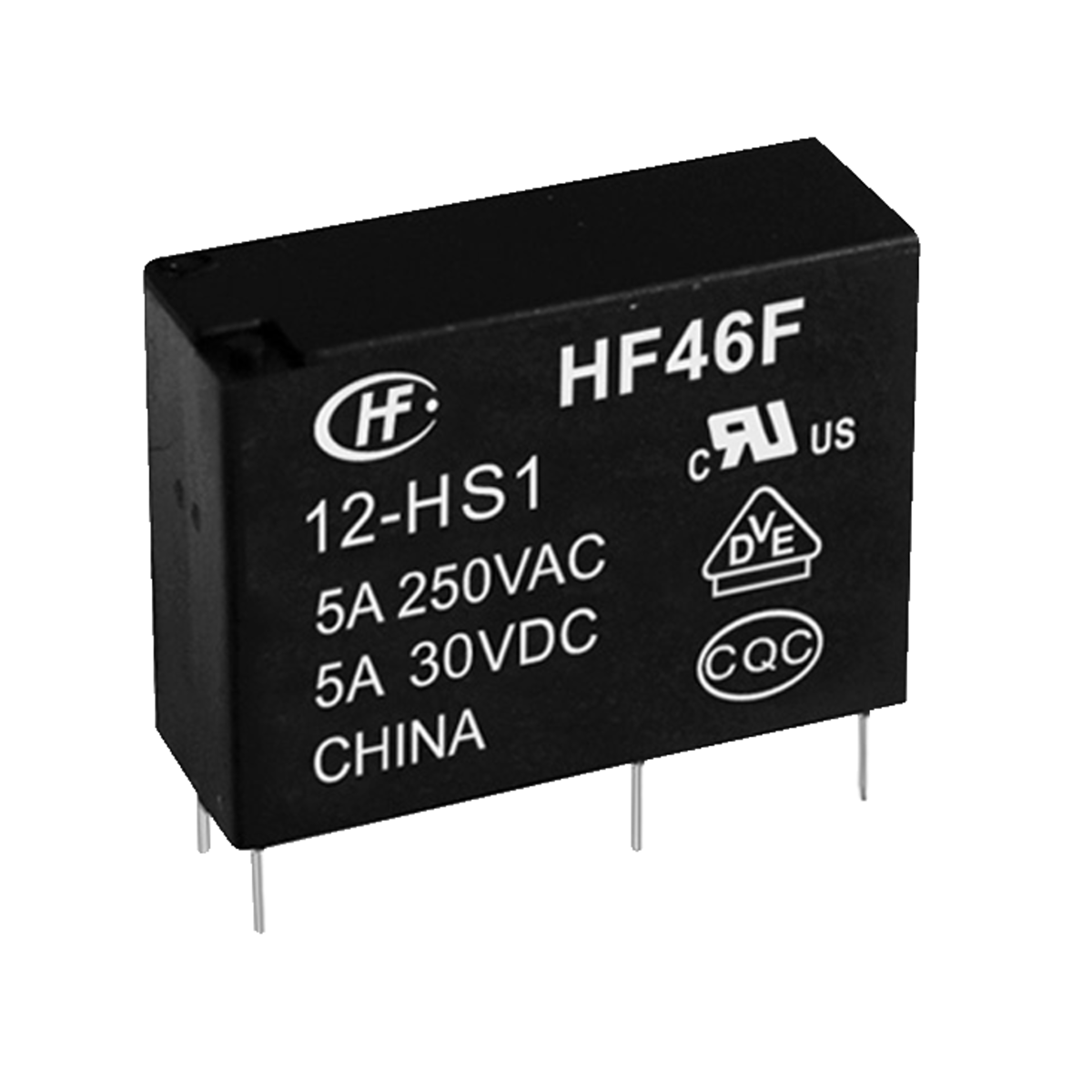

333 | | Manufacturers Part No. HF46F/12-HS1(HF46F-12-HS1) Hongfa PC relay HF46F THT SPST-NO 5A 12VDC 720Ohm 20,5mmx7mmx15,3mm | Customer Part No. Customer Project No. | 885 Pcs. Planned Delivery Time Ø 15 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPST-NO | 5.0 A | 12.0 V DC | 720.0 Ohm | 1385.0 VA | 150.0 W | AgNi | 20.5 mm | 7.0 mm | 15.3 mm | -40.0 °C | 85.0 °C | ||||||||
334 | | Manufacturers Part No. HF46F/24-HS1T(HF46F-24-HS1T) Hongfa PC relay HF46F THT SPST-NO 5A 24VDC 2.880Ohm 20,5mmx7mmx15,3mm | Customer Part No. Customer Project No. | 15 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPST-NO | 5.0 A | 24.0 V DC | 2880.0 Ohm | 1385.0 VA | 150.0 W | AgSnO2 | 20.5 mm | 7.0 mm | 15.3 mm | -40.0 °C | 85.0 °C | ||||||||
335 | | Manufacturers Part No. HF46F-G/5-HS1T(HF46F-G-5-HS1T) Hongfa PC relay HF46F THT SPST-NO 10A 5VDC 125Ohm 20,5mmx7mmx15,3mm | Customer Part No. Customer Project No. | 135 Pcs. Planned Delivery Time Ø 15 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPST-NO | 10.0 A | 5.0 V DC | 125.0 Ohm | 2770.0 VA | 300.0 W | AgSnO2 | 20.5 mm | 7.0 mm | 15.3 mm | -40.0 °C | 85.0 °C | ||||||||
336 | | Manufacturers Part No. HF46F-G/12-HS1(HF46F-G-12-HS1) Hongfa PC relay HF46F THT SPST-NO 10A 12VDC 720Ohm 20,5mmx7mmx15,3mm | Customer Part No. Customer Project No. | 625 Pcs. Planned Delivery Time Ø 15 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPST-NO | 10.0 A | 12.0 V DC | 720.0 Ohm | 2770.0 VA | 300.0 W | AgNi | 20.5 mm | 7.0 mm | 15.3 mm | -40.0 °C | 85.0 °C | ||||||||
337 | | Manufacturers Part No. HF46F-G/12-HS1T(HF46F-G-12-HS1T) Hongfa PC relay HF46F THT SPST-NO 10A 24VDC 2.880Ohm 20,5mmx7mmx15,3mm | Customer Part No. Customer Project No. | 300 Pcs. Planned Delivery Time Ø 15 Weeks Available (from stock) | (at least 5 or mul. of 5) | Hongfa | THT | SPST-NO | 10.0 A | 24.0 V DC | 2880.0 Ohm | 2770.0 VA | 300.0 W | AgSnO2 | 20.5 mm | 7.0 mm | 15.3 mm | -40.0 °C | 85.0 °C | ||||||||
338 | | Manufacturers Part No. RM699BV-2011-85-1012(RM699BV2011-851012) RELPOL PC relay RM699B THT SPST 10A 12VDC 848Ohm 28mmx5mmx15mm RTIII | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 2000 or mul. of 2000) | RELPOL | THT | SPST | 10.0 A | 12.0 V DC | 848.0 Ohm | 1500.0 VA | 1.0 W | AgNi | 28.0 mm | 5.0 mm | 15.0 mm | IP67 | RTIII | -40.0 °C | 85.0 °C | ||||||
339 | | Manufacturers Part No. RM699BV-2011-85-1024(RM699BV2011-851024) RELPOL PC relay RM699B THT SPST 10A 24VDC 3.390Ohm 28mmx5mmx15mm RTIII | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 2000 or mul. of 2000) | RELPOL | THT | SPST | 10.0 A | 24.0 V DC | 3390.0 Ohm | 1500.0 VA | 1.0 W | AgNi | 28.0 mm | 5.0 mm | 15.0 mm | IP67 | RTIII | -40.0 °C | 85.0 °C | ||||||
340 | | Manufacturers Part No. RM699BV-2011-85-1060(RM699BV2011-851060) RELPOL PC relay RM699B THT SPST 10A 60VDC 16.600Ohm 28mmx5mmx15mm RTIII | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 2000 or mul. of 2000) | RELPOL | THT | SPST | 10.0 A | 60.0 V DC | 16600.0 Ohm | 1500.0 VA | 1.0 W | AgNi | 28.0 mm | 5.0 mm | 15.0 mm | IP67 | RTIII | -40.0 °C | 85.0 °C | ||||||
341 | | Manufacturers Part No. RM699BV-3011-85-1012(RM699BV3011-851012) RELPOL PC relay RM699B THT SPST 10A 12VDC 848Ohm 28mmx5mmx15mm RTIII | Customer Part No. Customer Project No. | 1.985 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 5 or mul. of 5) | RELPOL | THT | SPST | 10.0 A | 12.0 V DC | 848.0 Ohm | 1500.0 VA | 1.0 W | AgSnO2 | 28.0 mm | 5.0 mm | 15.0 mm | IP67 | RTIII | -40.0 °C | 85.0 °C | ||||||
342 | | Manufacturers Part No. RM699BV-3011-85-1024(RM699BV3011-851024) RELPOL PC relay RM699B THT SPST 10A 24VDC 3.390Ohm 28mmx5mmx15mm RTIII | Customer Part No. Customer Project No. | 1.315 Pcs. Planned Delivery Time Ø 28 Weeks Available (from stock) | (at least 5 or mul. of 5) | RELPOL | THT | SPST | 10.0 A | 24.0 V DC | 3390.0 Ohm | 1500.0 VA | 1.0 W | AgSnO2 | 28.0 mm | 5.0 mm | 15.0 mm | IP67 | RTIII | -40.0 °C | 85.0 °C | ||||||
343 | | Manufacturers Part No. RM699BV-3211-85-1012(RM699BV3211-851012) RELPOL PC relay RM699B THT SPST 5A 12VDC 848Ohm 28mmx5mmx15mm RTIII | Customer Part No. Customer Project No. | 90 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 5 or mul. of 5) | RELPOL | THT | SPST | 5.0 A | 12.0 V DC | 848.0 Ohm | 1.2 VA | 0.05 W | AgSnO2/Au | 28.0 mm | 5.0 mm | 15.0 mm | IP67 | RTIII | -40.0 °C | 85.0 °C | ||||||
344 | | Manufacturers Part No. RM699BV-3211-85-1024(RM699BV3211-851024) RELPOL PC relay RM699B THT SPST 5A 24VDC 3.390Ohm 28mmx5mmx15mm RTIII | Customer Part No. Customer Project No. | 1.895 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 5 or mul. of 5) | RELPOL | THT | SPST | 5.0 A | 24.0 V DC | 3390.0 Ohm | 1.2 VA | 0.05 W | AgSnO2/Au | 28.0 mm | 5.0 mm | 15.0 mm | IP67 | RTIII | -40.0 °C | 85.0 °C | ||||||
345 | | Manufacturers Part No. AZ9371-1A-5DE(AZ9371-1A-5DE) Zettler PC relay AZ9371 THT SPST-NO 5A 5VDC 125Ohm 20,5mmx7,2mmx15,3mm | Customer Part No. Customer Project No. | 90 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 5.0 A | 5.0 V DC | 125.0 Ohm | 1385.0 VA | 150.0 W | AgNi | 20.5 mm | 7.2 mm | 15.3 mm | -40.0 °C | 105.0 °C | ||||||||
346 | | Manufacturers Part No. AZ9371-1A-12DE(AZ9371-1A-12DE) Zettler PC relay AZ9371 THT SPST-NO 5A 12VDC 720Ohm 20,5mmx7,2mmx15,3mm | Customer Part No. Customer Project No. | 960 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 5.0 A | 12.0 V DC | 720.0 Ohm | 1385.0 VA | 150.0 W | AgNi | 20.5 mm | 7.2 mm | 15.3 mm | -40.0 °C | 105.0 °C | ||||||||
347 | | Manufacturers Part No. AZ9371-1A-24DE(AZ9371-1A-24DE) Zettler PC relay AZ9371 THT SPST-NO 5A 24VDC 2.880Ohm 20,5mmx7,2mmx15,3mm | Customer Part No. Customer Project No. | 930 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 5.0 A | 24.0 V DC | 2880.0 Ohm | 1385.0 VA | 150.0 W | AgNi | 20.5 mm | 7.2 mm | 15.3 mm | -40.0 °C | 105.0 °C | ||||||||
348 | | Manufacturers Part No. AZ770-1C-12DE(AZ770-1C-12DE) Zettler PC relay AZ770 THT SPST-NO 5A 12VDC 320Ohm 17,85mmx10,35mmx12,55mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 5.0 A | 12.0 V DC | 320.0 Ohm | 1250.0 VA | 150.0 W | AgNi | 17.85 mm | 10.35 mm | 12.55 mm | -40.0 °C | 85.0 °C | ||||||||
349 | | Manufacturers Part No. AZ770-1C-24DE(AZ770-1C-24DE) Zettler PC relay AZ770 THT SPST-NO 5A 24VDC 1.280Ohm 17,85mmx10,35mmx12,55mm | Customer Part No. Customer Project No. | 890 Pcs. Planned Delivery Time Ø 36 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 5.0 A | 24.0 V DC | 1280.0 Ohm | 1250.0 VA | 150.0 W | AgNi | 17.85 mm | 10.35 mm | 12.55 mm | -40.0 °C | 85.0 °C | ||||||||
350 | | Manufacturers Part No. AZ770-1C-12DEK(AZ770-1C-12DEK) Zettler PC relay AZ770 THT SPST-NO 5A 12VDC 320Ohm 17,85mmx10,35mmx12,55mm | Customer Part No. Customer Project No. | 1.050 Pcs. Planned Delivery Time Ø 36 Weeks Available (from stock) | (at least 10 or mul. of 10) | Zettler | THT | SPST-NO | 5.0 A | 12.0 V DC | 320.0 Ohm | 1250.0 VA | 150.0 W | AgNi | 17.85 mm | 10.35 mm | 12.55 mm | -40.0 °C | 85.0 °C |
