Frequency-Inverters: 8 Items

Show Selected	Part No.	Indiv. Part No.	Manufacturer	Availability	Quantity	Series	Manufacturer	Number of phases	Output Power	Output voltage	Output current	Interfaces	Package/Case	Dimension: Length	Dimension: Width	Dimension: Height	Mains connection/phases	Input voltage min. AC	Input voltage max. AC	Input voltage min. DC	Input voltage max. DC	Approvals	Standards (EMC)	Standards (safety)

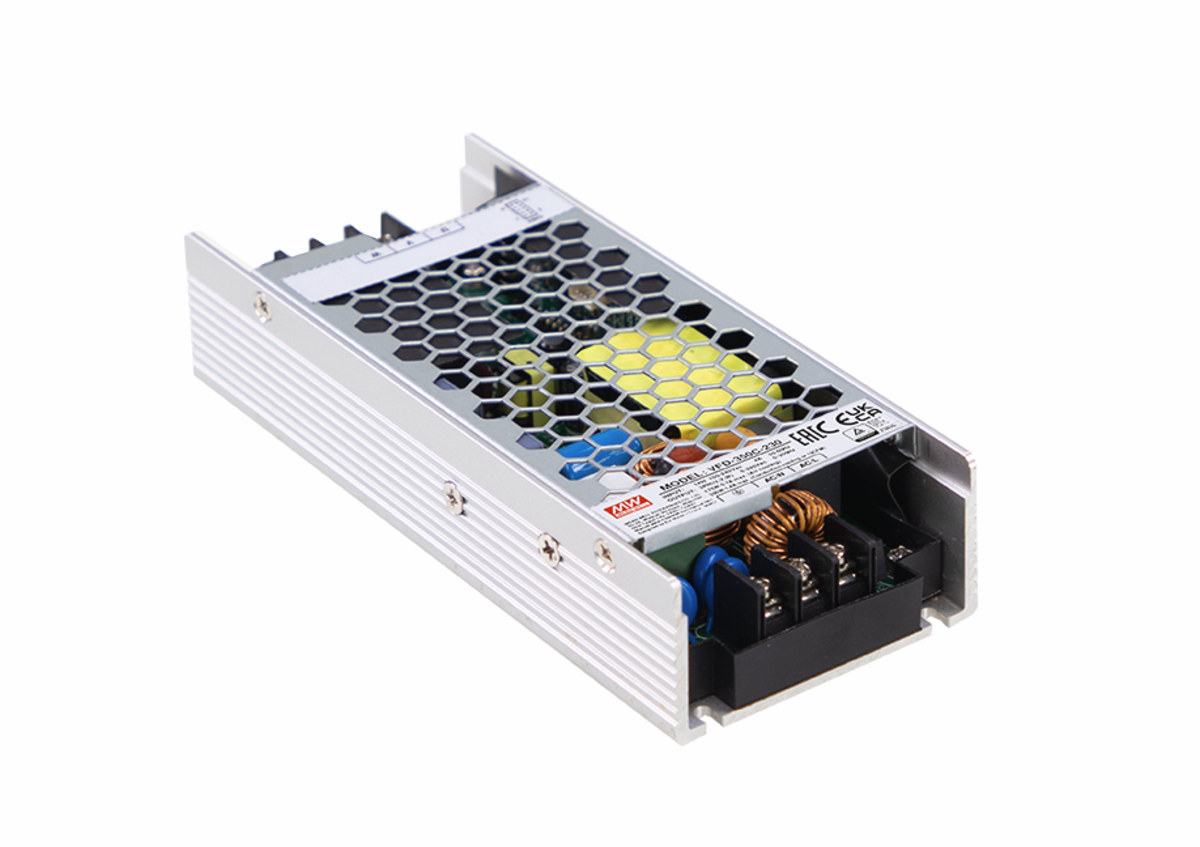

01	Manufacturers Part No. VFD-350C-230 (VFD-350C-230) MEAN WELL Frequency inverter 350W 240V 1,4A PWM	Customer Part No. Customer Project No.	MEAN WELL	10 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	VFD-350C-230	MEAN WELL	3.0	350.0 W	240.0 V	1.4 A	PWM	Enclosed Metal	146.0 mm	62.0 mm	31.0 mm	I	90.0 V	264.0 V			CE EAC EN IEC UKCA	EN 61800-3 C2 IEC 61800-3 C2	EN 61800-5-1 IEC 61800-5-1

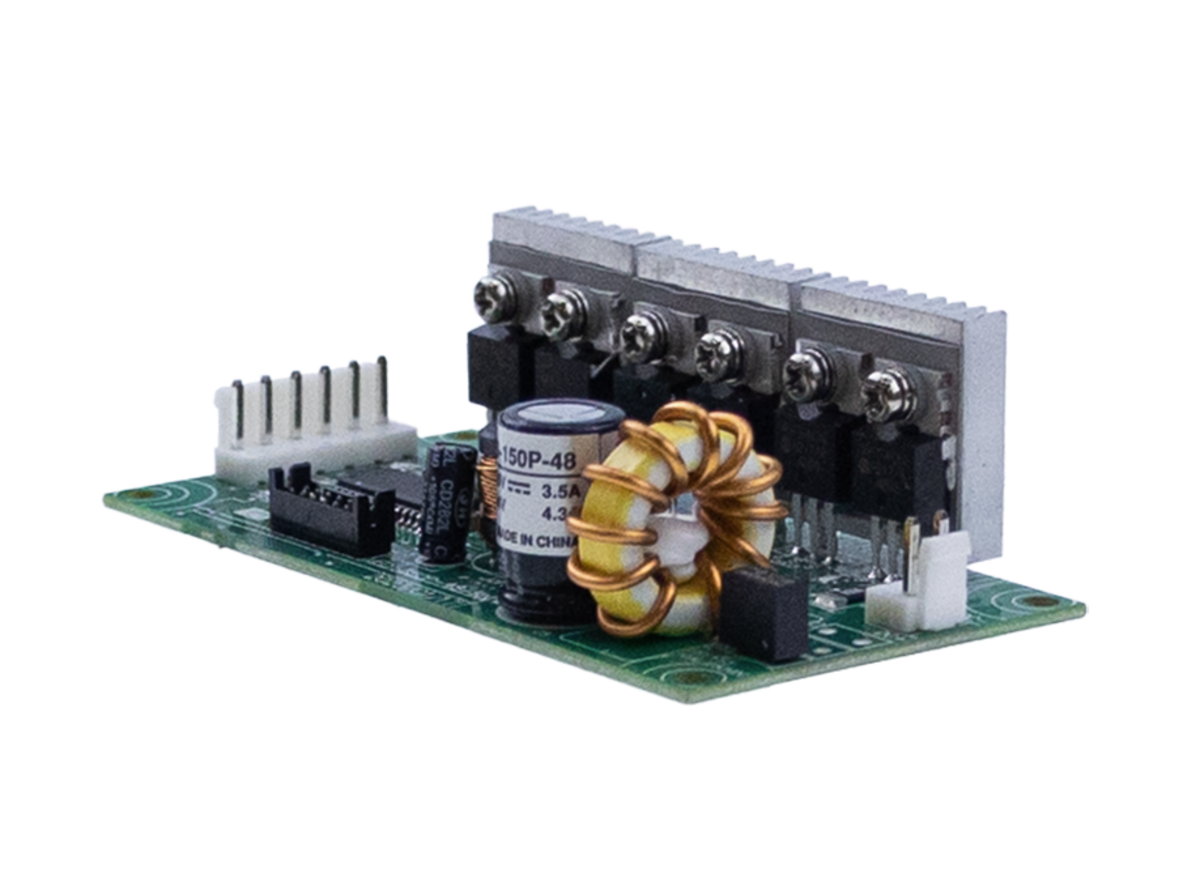

02	Manufacturers Part No. VFD-150P-48 (VFD-150P-48) MEAN WELL Frequency inverter 150W 34V 4,3A PWM	Customer Part No. Customer Project No.	MEAN WELL	10 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	VFD-150P-48	MEAN WELL	3.0	150.0 W	34.0 V	4.3 A	PWM	Open Frame	101.6 mm	50.8 mm	28.6 mm				22.0 V	55.0 V	CE EAC EN IEC UKCA	EN 61800-3 C2 IEC 61800-3 C2	EN 61800-5-1 IEC 61800-5-1

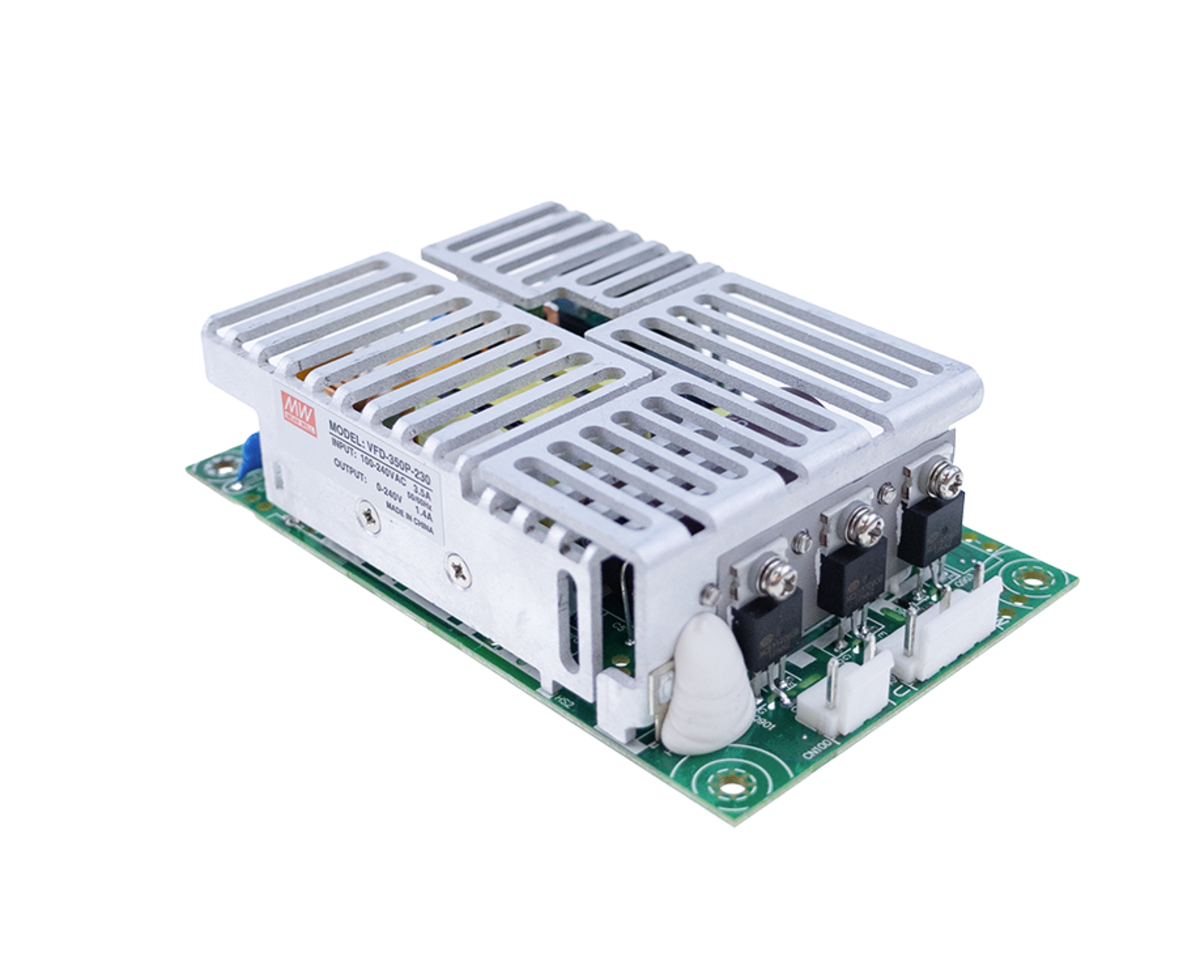

03	Manufacturers Part No. VFD-350P-230 (VFD-350P-230) MEAN WELL Frequency inverter 350W 240V 1,4A PWM	Customer Part No. Customer Project No.	MEAN WELL	9 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	VFD-350P-230	MEAN WELL	3.0	350.0 W	240.0 V	1.4 A	PWM	Open Frame	127.0 mm	76.2 mm	35.0 mm	I	90.0 V	264.0 V			CE EAC EN IEC UKCA	EN 61800-3 C2 IEC 61800-3 C2	EN 61800-5-1 IEC 61800-5-1

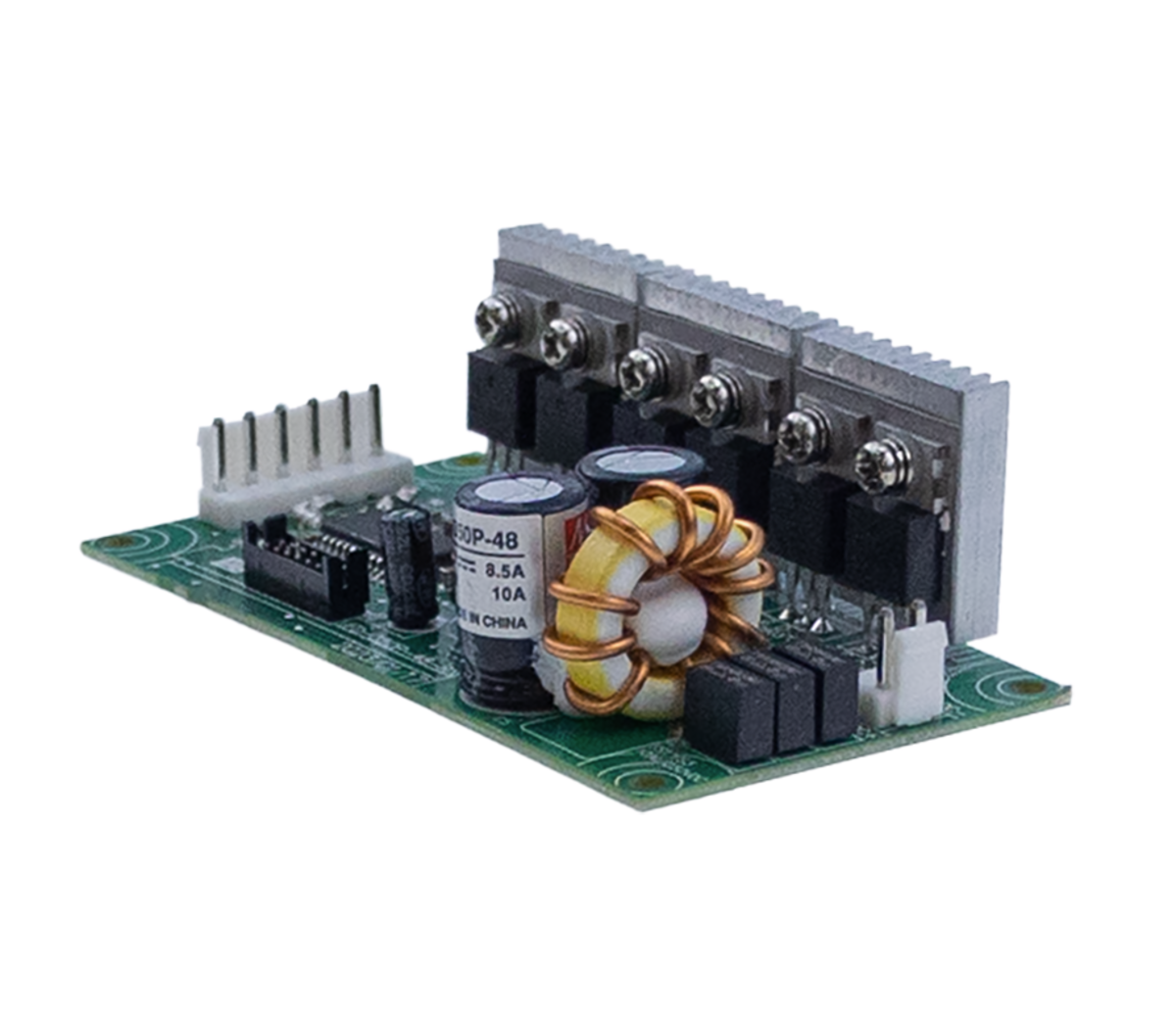

04	Manufacturers Part No. VFD-350P-48 (VFD-350P-48) MEAN WELL Frequency inverter 350W 34V 10A PWM	Customer Part No. Customer Project No.	MEAN WELL	9 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	VFD-350P-48	MEAN WELL	3.0	350.0 W	34.0 V	10.0 A	PWM	Open Frame	101.6 mm	50.8 mm	28.6 mm				20.0 V	55.0 V	CE EAC EN IEC UKCA	EN 61800-3 C2 IEC 61800-3 C2	EN 61800-5-1 IEC 61800-5-1

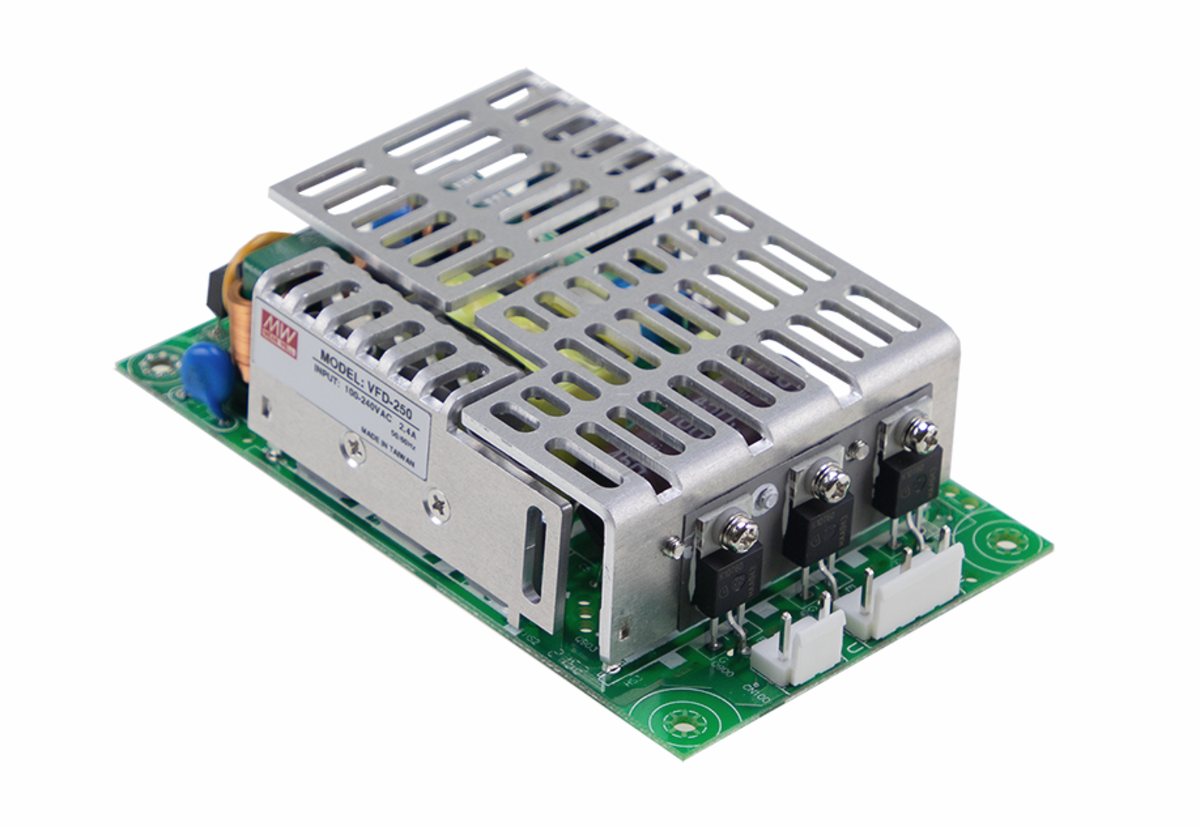

05	Manufacturers Part No. VFD-250P-230 (VFD-250P-230) MEAN WELL Frequency inverter 250W 240V 1A PWM	Customer Part No. Customer Project No.	MEAN WELL	10 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	VFD-250P-230	MEAN WELL	3.0	250.0 W	240.0 V	1.0 A	PWM	Open Frame	127.0 mm	76.2 mm	35.0 mm	I	90.0 V	264.0 V			CE EAC EN IEC UKCA	EN 61800-3 C2 IEC 61800-3 C2	EN 61800-5-1 IEC 61800-5-1

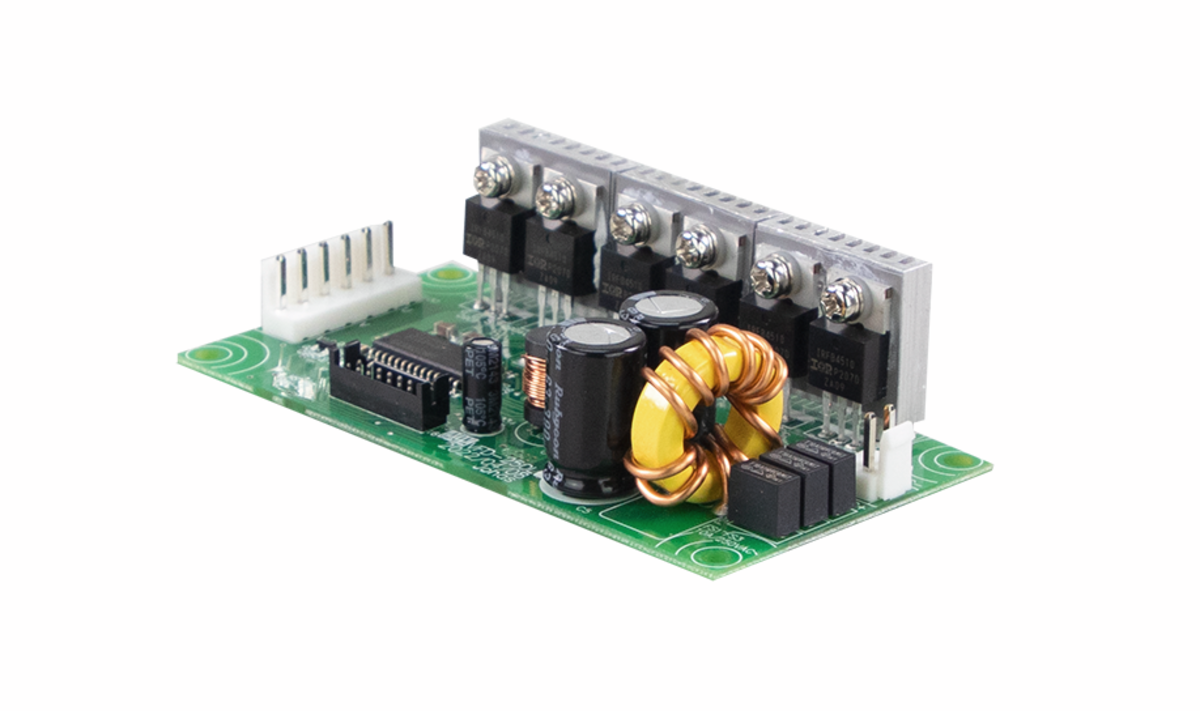

06	Manufacturers Part No. VFD-250P-48 (VFD-250P-48) MEAN WELL Frequency inverter 250W 34V 7,2A PWM	Customer Part No. Customer Project No.	MEAN WELL	10 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	VFD-250P-48	MEAN WELL	3.0	250.0 W	34.0 V	7.2 A	PWM	Open Frame	101.6 mm	50.8 mm	28.6 mm				20.0 V	55.0 V	CE EAC EN IEC UKCA	EN 61800-3 C2 IEC 61800-3 C2	EN 61800-5-1 IEC 61800-5-1

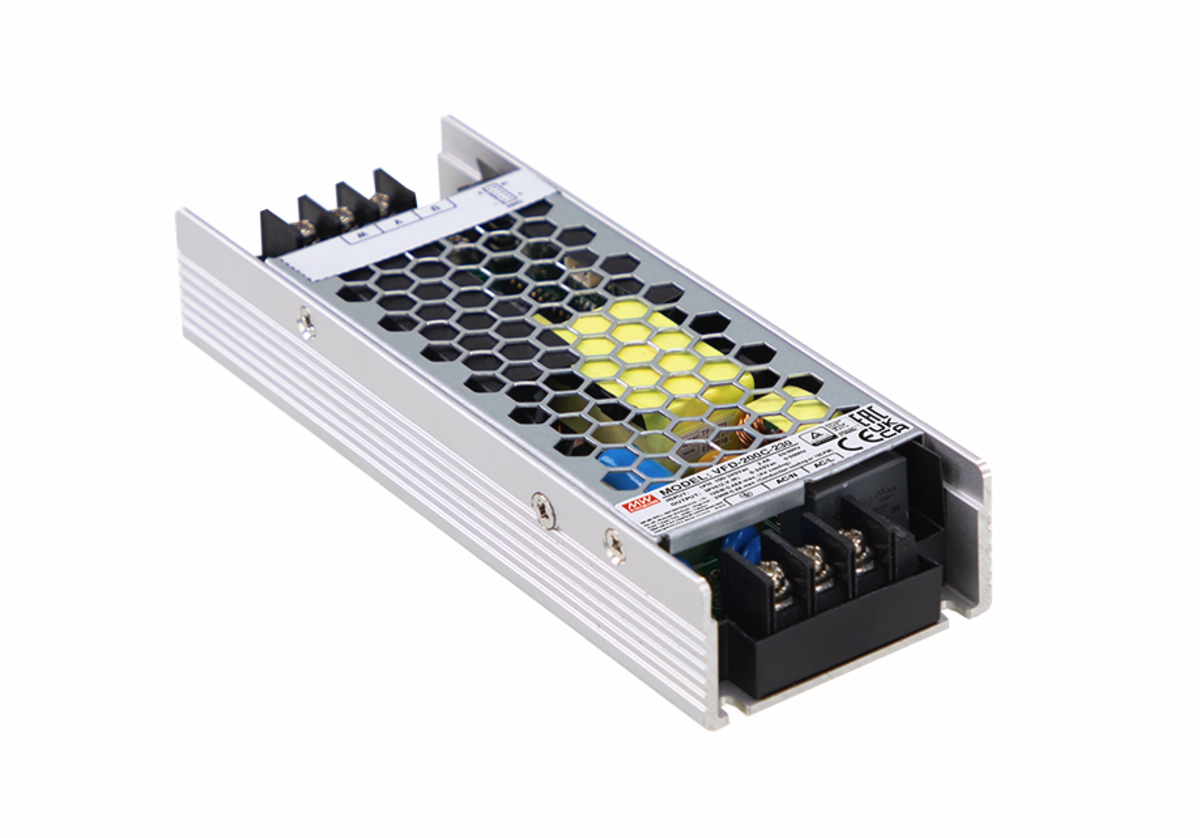

07	Manufacturers Part No. VFD-200C-230 (VFD-200C-230) MEAN WELL Frequency inverter 200W 240V 0,8A PWM	Customer Part No. Customer Project No.	MEAN WELL	10 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	VFD-200C-230	MEAN WELL	3.0	200.0 W	240.0 V	0.8 A	PWM	Enclosed Metal	146.0 mm	55.0 mm	26.0 mm	I	90.0 V	264.0 V			CE EAC EN IEC UKCA	EN 61800-3 C2 IEC 61800-3 C2	EN 61800-5-1 IEC 61800-5-1

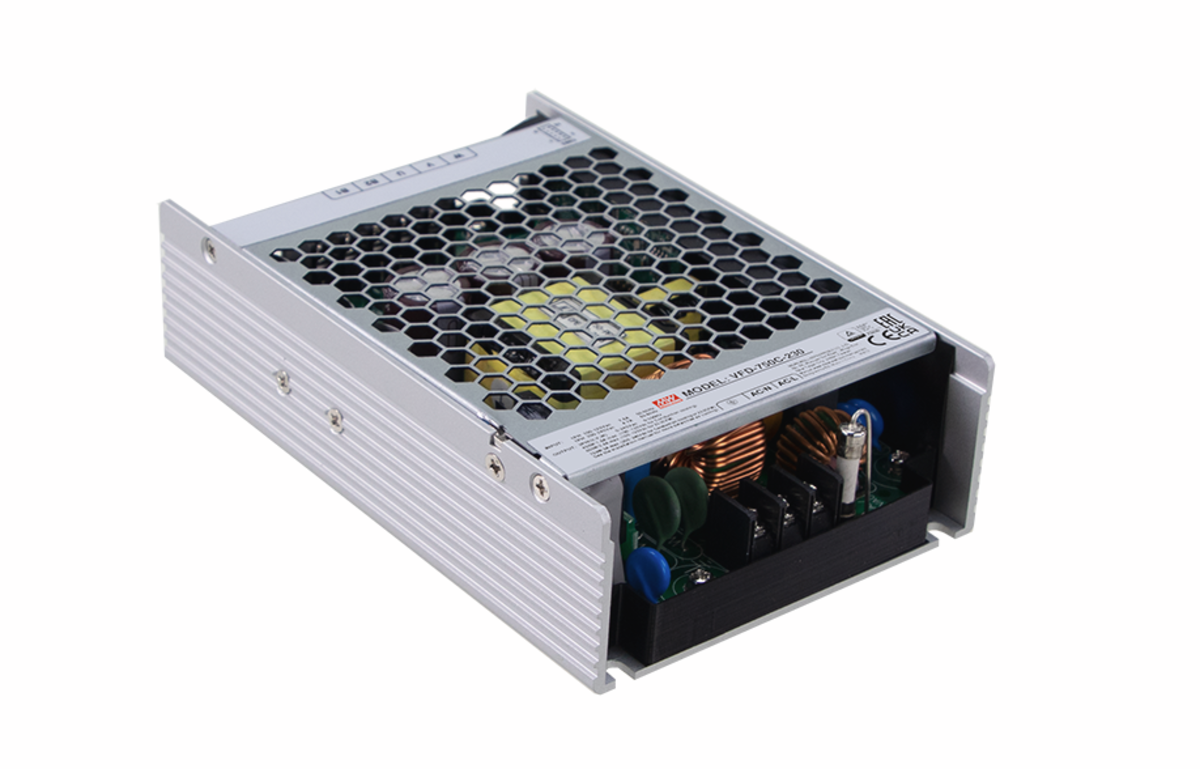

08	Manufacturers Part No. VFD-750C-230 (VFD-750C-230) MEAN WELL Frequency inverter 750W 240V 3A PWM	Customer Part No. Customer Project No.	MEAN WELL	9 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock)	(at least 1 or mul. of 1)	VFD-750C-230	MEAN WELL	3.0	750.0 W	240.0 V	3.0 A	PWM	Enclosed Metal	150.0 mm	100.0 mm	41.0 mm	I	90.0 V	264.0 V			CE EAC EN IEC UKCA	EN 61800-3 C2 IEC 61800-3 C2	EN 61800-5-1 IEC 61800-5-1

Frequency Inverters

(8 Results)
