Results (2729)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Isolation voltage I/P-O/P | Output current | Output Power | Number of outputs | Output voltage | Operating mode | Package/Case | Efficiency | Input voltage min. DC | Input voltage max. DC | Operating Temperature Min. | Operating Temperature Max. | Connection type, output | Standards (safety) | Dimension: Length | Dimension: Width | Dimension: Height | Application | Features | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

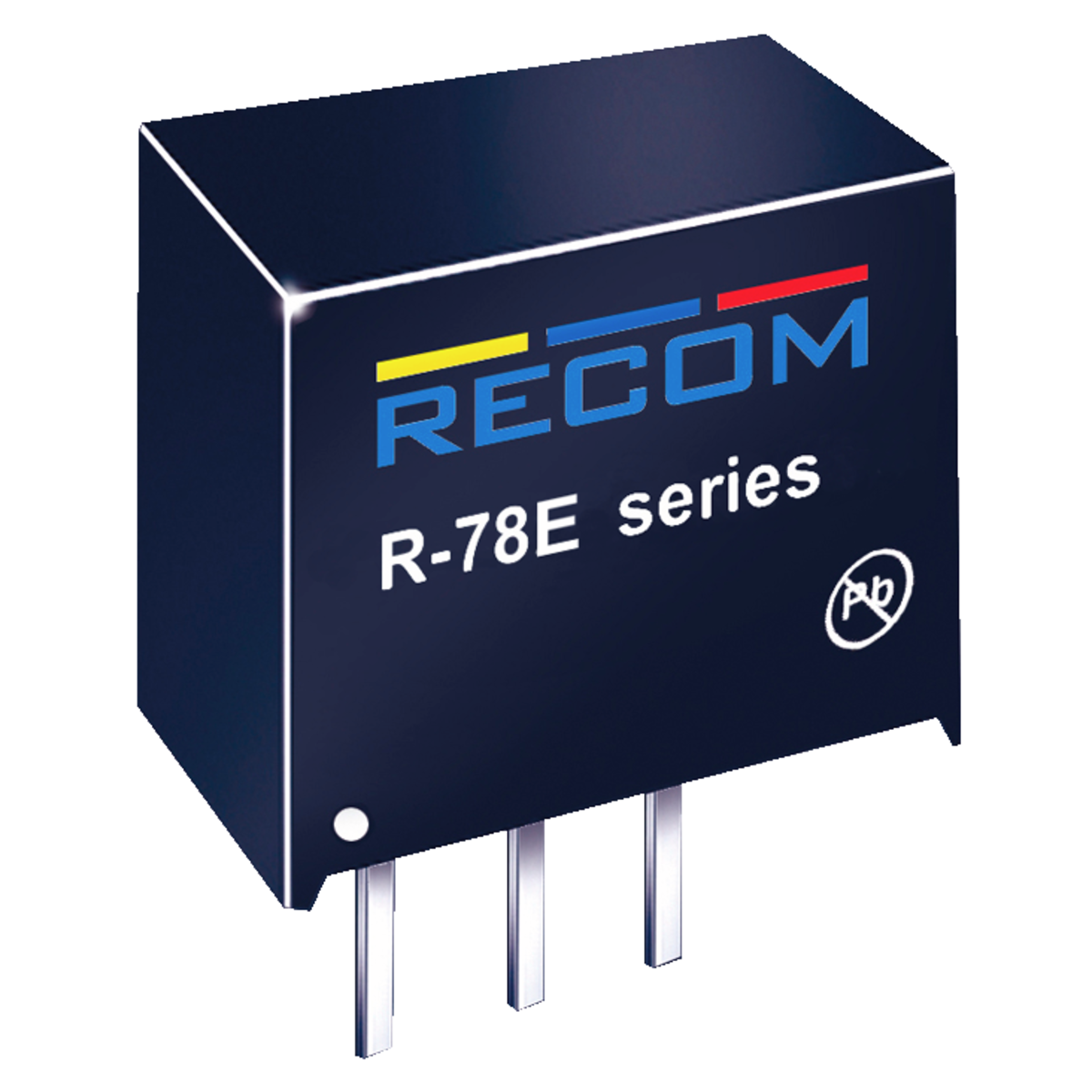

2526 |  | Manufacturers Part No. R-78E9.0-0.5(R-78E9.0-0.5) Recom DC/DC switching regulator (non-isolated) buck 9,00V 0,500A SIP3 | Customer Part No. Customer Project No. | 47 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 0.5 A | 4.5 W | 9.0 V | buck | SIP3 | 94.0 % | 12.0 V | 28.0 V | -40.0 °C | 85.0 °C | THT | EN 60950-1 IEC 60950-1 | 11.6 mm | 8.5 mm | 10.4 mm | ITE Industry | Tube | ||||||||
2527 | | Manufacturers Part No. R-78E12-0.5(R-78E12-0.5) Recom DC/DC switching regulator (non-isolated) buck 12,00V 0,500A SIP3 | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Recom | 0.5 A | 6.0 W | 12.0 V | buck | SIP3 | 95.0 % | 15.0 V | 28.0 V | -40.0 °C | 85.0 °C | THT | EN 60950-1 IEC 60950-1 | 11.6 mm | 8.5 mm | 10.4 mm | ITE Industry | Tube | ||||||||
2528 | | Manufacturers Part No. R-78E15-0.5(R-78E15-0.5) Recom DC/DC switching regulator (non-isolated) buck 15,00V 0,500A SIP3 | Customer Part No. Customer Project No. | 486 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 0.5 A | 7.5 W | 15.0 V | buck | SIP3 | 95.0 % | 18.0 V | 28.0 V | -40.0 °C | 85.0 °C | THT | EN 60950-1 IEC 60950-1 | 11.6 mm | 8.5 mm | 10.4 mm | ITE Industry | Tube | ||||||||

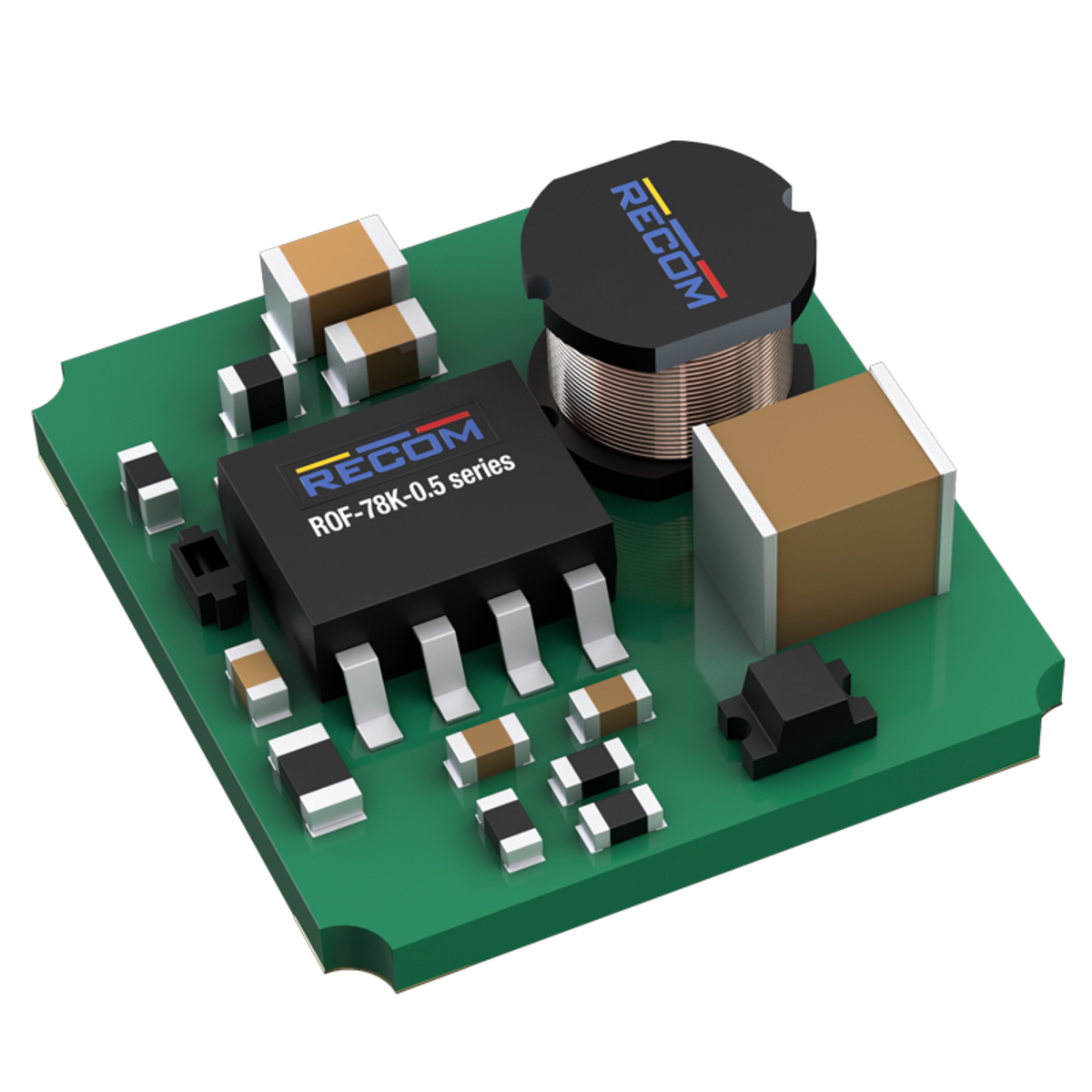

2529 | | Manufacturers Part No. ROF-78K3.3-0.5SMD-R(ROF-78K3.3-0.5SMDR) Recom DC/DC switching regulator (non-isolated) buck 3,3V 0,5A Open Frame New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order | (at least 600 or mul. of 1) | Recom | 0.5 A | 1.65 W | 3.3 V | buck | Open Frame | 83.0 % | 4.5 V | 36.0 V | -40.0 °C | 105.0 °C | SMD | 12.5 mm | 13.5 mm | 4.5 mm | ITE Industry | Remote Function | Reel | ||||||||
2530 | | Manufacturers Part No. ROF-78K5.0-0.5SMD-R(ROF-78K5.0-0.5SMDR) Recom DC/DC switching regulator (non-isolated) buck 5V 0,5A Open Frame New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order | (at least 600 or mul. of 1) | Recom | 0.5 A | 2.5 W | 5.0 V | buck | Open Frame | 85.0 % | 6.5 V | 36.0 V | -40.0 °C | 105.0 °C | SMD | 12.5 mm | 13.5 mm | 4.5 mm | ITE Industry | Remote Function | Reel | ||||||||
2531 | | Manufacturers Part No. ROF-78K6.5-0.5SMD-R(ROF-78K6.5-0.5SMDR) Recom DC/DC switching regulator (non-isolated) buck 6,5V 0,5A Open Frame New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order | (at least 600 or mul. of 1) | Recom | 0.5 A | 3.25 W | 6.5 V | buck | Open Frame | 87.0 % | 8.0 V | 36.0 V | -40.0 °C | 105.0 °C | SMD | 12.5 mm | 13.5 mm | 4.5 mm | ITE Industry | Remote Function | Reel | ||||||||
2532 | | Manufacturers Part No. ROF-78K9.0-0.5SMD-R(ROF-78K9.0-0.5SMDR) Recom DC/DC switching regulator (non-isolated) buck 9V 0,5A Open Frame New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order | (at least 600 or mul. of 1) | Recom | 0.5 A | 4.5 W | 9.0 V | buck | Open Frame | 89.0 % | 11.0 V | 36.0 V | -40.0 °C | 105.0 °C | SMD | 12.5 mm | 13.5 mm | 4.5 mm | ITE Industry | Remote Function | Reel | ||||||||
2533 | | Manufacturers Part No. ROF-78K12-0.5SMD-R(ROF-78K12-0.5SMDR) Recom DC/DC switching regulator (non-isolated) buck 12V 0,5A Open Frame New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order | (at least 600 or mul. of 1) | Recom | 0.5 A | 6.0 W | 12.0 V | buck | Open Frame | 92.0 % | 15.0 V | 36.0 V | -40.0 °C | 105.0 °C | SMD | 12.5 mm | 13.5 mm | 4.5 mm | ITE Industry | Remote Function | Reel | ||||||||
2534 | | Manufacturers Part No. ROF-78K15-0.5SMD-R(ROF-78K15-0.5SMDR) Recom DC/DC switching regulator (non-isolated) buck 15V 0,5A Open Frame New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order | (at least 600 or mul. of 1) | Recom | 0.5 A | 7.5 W | 15.0 V | buck | Open Frame | 93.0 % | 18.0 V | 36.0 V | -40.0 °C | 105.0 °C | SMD | 12.5 mm | 13.5 mm | 4.5 mm | ITE Industry | Remote Function | Reel | ||||||||
2535 | | Manufacturers Part No. ROF-78K24-0.5SMD-R(ROF-78K24-0.5SMDR) Recom DC/DC switching regulator (non-isolated) buck 24V 0,5A Open Frame New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order | (at least 600 or mul. of 1) | Recom | 0.5 A | 12.0 W | 24.0 V | buck | Open Frame | 95.0 % | 28.0 V | 36.0 V | -40.0 °C | 105.0 °C | SMD | 12.5 mm | 13.5 mm | 4.5 mm | ITE Industry | Remote Function | Reel | ||||||||

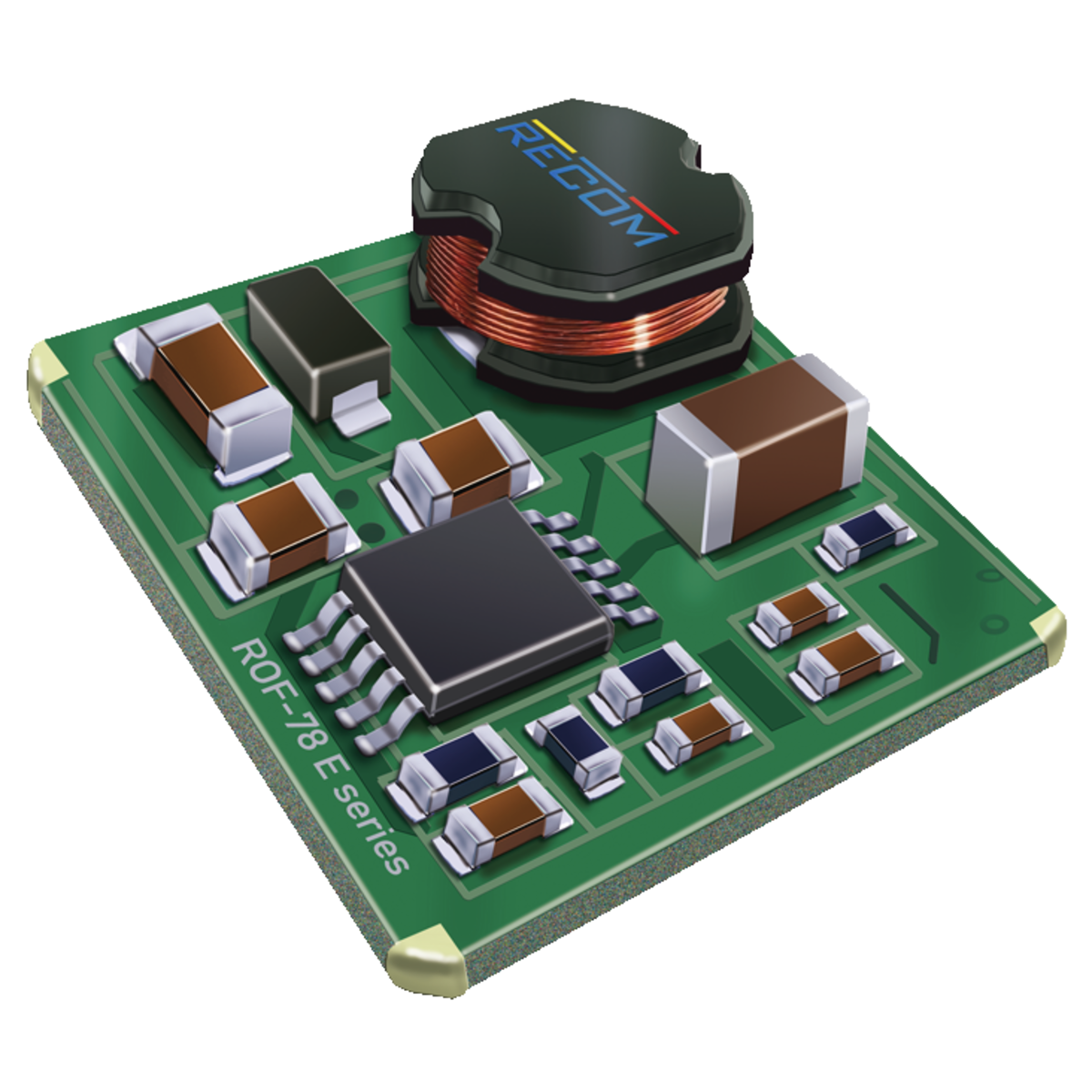

2536 | | Manufacturers Part No. ROF-78E3.3-0.5SMD-R(ROF-78E3.3-0.5SMDR) Recom DC/DC switching regulator (non-isolated) buck 3,3V 0,50A Open Frame | Customer Part No. Customer Project No. | 730 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Recom | 0.5 A | 1.65 W | 3.3 V | buck | Open Frame | 84.0 % | 5.0 V | 36.0 V | -40.0 °C | 85.0 °C | SMD | 12.5 mm | 13.5 mm | 4.0 mm | ITE Industry | Remote Function | Cardboard | ||||||||
2537 | | Manufacturers Part No. ROF-78E12-0.5SMD-R(ROF-78E12-0.5SMDR) Recom DC/DC switching regulator (non-isolated) buck 12V 0,5A Open Frame | Customer Part No. Customer Project No. | 610 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 10 or mul. of 10) | Recom | 0.5 A | 6.0 W | 12.0 V | buck | Open Frame | 92.0 % | 15.0 V | 36.0 V | -40.0 °C | 85.0 °C | SMD | 12.5 mm | 13.5 mm | 4.5 mm | ITE Industry | Remote Function | Cardboard | ||||||||
2538 | | Manufacturers Part No. ROF-78E5.0-0.5SMD-R(ROF-78E5.0-0.5SMDR) Recom DC/DC switching regulator (non-isolated) buck 5,00V 0,500A Open Frame | Customer Part No. Customer Project No. | 520 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Recom | 0.5 A | 2.5 W | 5.0 V | buck | Open Frame | 87.0 % | 9.0 V | 36.0 V | -40.0 °C | 75.0 °C | SMD | 12.5 mm | 13.5 mm | 4.0 mm | ITE Industry | Remote Function | Cardboard | ||||||||
2539 | | Manufacturers Part No. R-78E3.3-1.0(R-78E3.3-1.0) Recom DC/DC switching regulator (non-isolated) buck 3,30V 1,000A SIP3 | Customer Part No. Customer Project No. | 145 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Recom | 1.0 A | 3.3 W | 3.3 V | buck | SIP3 | 91.0 % | 7.0 V | 28.0 V | -40.0 °C | 85.0 °C | THT | EN 60950-1 IEC 60950-1 | 11.6 mm | 8.5 mm | 10.4 mm | ITE Industry | Tube | ||||||||
2540 | | Manufacturers Part No. R-78E5.0-1.0(R-78E5.0-1.0) Recom DC/DC switching regulator (non-isolated) buck 5,00V 1,000A SIP3 TOP | Customer Part No. Customer Project No. | 1.317 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Recom | 1.0 A | 5.0 W | 5.0 V | buck | SIP3 | 93.0 % | 8.0 V | 28.0 V | -40.0 °C | 85.0 °C | THT | EN 60950-1 IEC 60950-1 | 11.6 mm | 8.5 mm | 10.4 mm | ITE Industry | Tube | ||||||||
2541 | | Manufacturers Part No. R-78E12-1.0/X9(R-78E12-1.0/X9) Recom DC/DC switching regulator (non-isolated) buck 12,00V 1,000A SIP3 | Customer Part No. Customer Project No. | 121 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 1.0 A | 12.0 W | 12.0 V | buck | SIP3 | 97.0 % | 15.0 V | 27.0 V | -40.0 °C | 85.0 °C | THT | EN 60950-1 IEC 60950-1 | 11.6 mm | 8.5 mm | 10.4 mm | ITE Industry | Tube | ||||||||

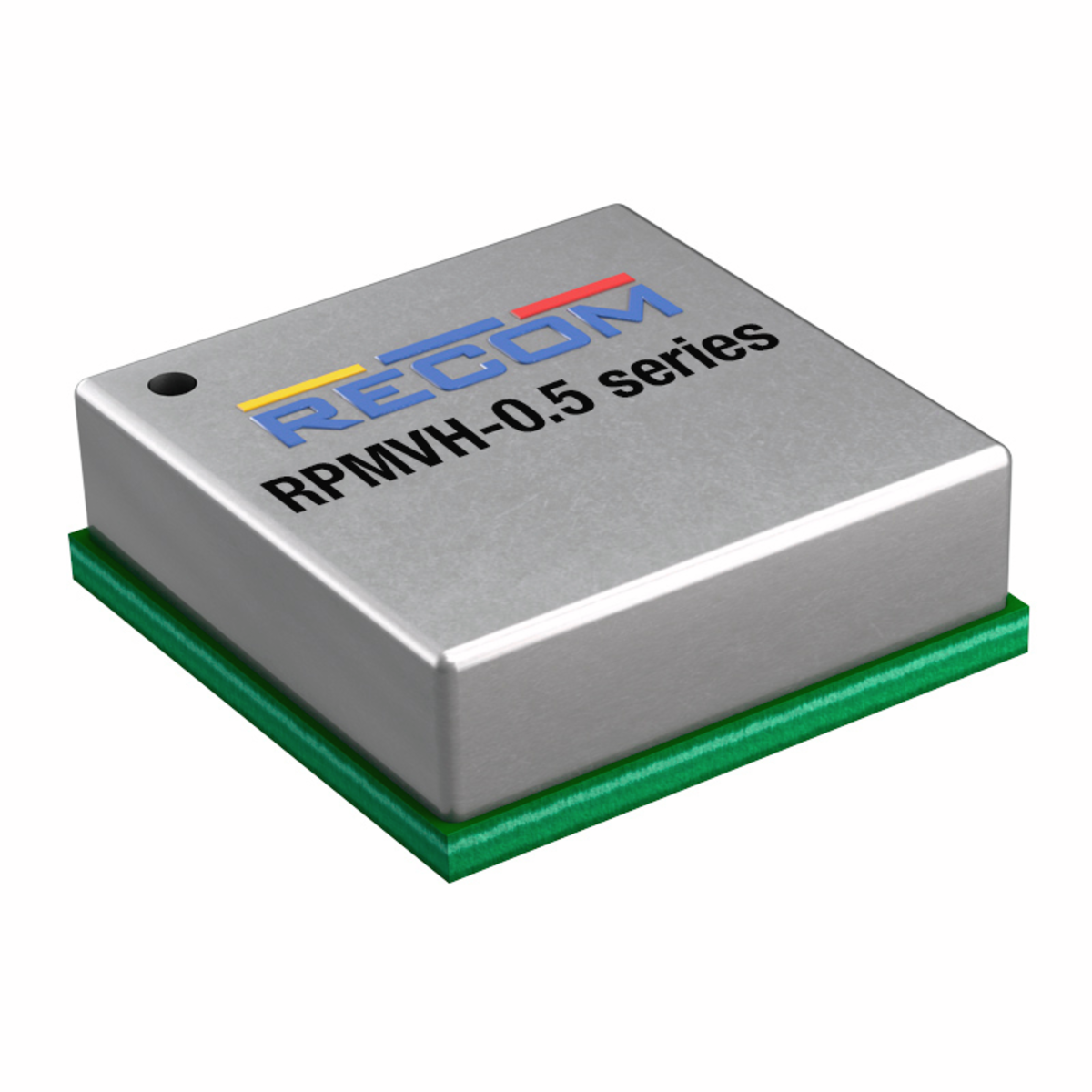

2542 | | Manufacturers Part No. RPMVH3.3-0.5-R(RPMVH3.3-0.5-R) Recom DC/DC switching regulator (non-isolated) buck 3,3V 0,5A LGA New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order | (at least 200 or mul. of 1) | Recom | 0.5 A | 1.65 W | 3.3 V | buck | LGA | 71.0 % | 6.0 V | 115.0 V | -40.0 °C | 120.0 °C | SMD | EN 62368-1 | 12.19 mm | 12.19 mm | 3.75 mm | ITE Industry | Adjustable Output Voltage DC-OK-Signal Remote Function | Reel | |||||||
2543 | | Manufacturers Part No. RPMVH3.3-0.5-CT(RPMVH3.3-0.5-CT) Recom DC/DC switching regulator (non-isolated) buck 3,3V 0,5A LGA New | Customer Part No. Customer Project No. | 60 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 0.5 A | 1.65 W | 3.3 V | buck | LGA | 71.0 % | 6.0 V | 115.0 V | -40.0 °C | 120.0 °C | SMD | EN 62368-1 | 12.19 mm | 12.19 mm | 3.75 mm | ITE Industry | Adjustable Output Voltage DC-OK-Signal Remote Function | Reel | |||||||
2544 | | Manufacturers Part No. RPMVH5.0-0.5-R(RPMVH5.0-0.5-R) Recom DC/DC switching regulator (non-isolated) buck 5V 0,5A LGA New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order | (at least 200 or mul. of 1) | Recom | 0.5 A | 2.5 W | 5.0 V | buck | LGA | 78.0 % | 7.5 V | 115.0 V | -40.0 °C | 120.0 °C | SMD | EN 62368-1 | 12.19 mm | 12.19 mm | 3.75 mm | ITE Industry | Adjustable Output Voltage DC-OK-Signal Remote Function | Reel | |||||||
2545 | | Manufacturers Part No. RPMVH5.0-0.5-CT(RPMVH5.0-0.5-CT) Recom DC/DC switching regulator (non-isolated) buck 5V 0,5A LGA New | Customer Part No. Customer Project No. | 60 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 0.5 A | 2.5 W | 5.0 V | buck | LGA | 78.0 % | 7.5 V | 115.0 V | -40.0 °C | 120.0 °C | SMD | EN 62368-1 | 12.19 mm | 12.19 mm | 3.75 mm | ITE Industry | Adjustable Output Voltage DC-OK-Signal Remote Function | Reel | |||||||
2546 | | Manufacturers Part No. RPMVH12-0.5-R(RPMVH12-0.5-R) Recom DC/DC switching regulator (non-isolated) buck 12V 0,5A LGA New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order | (at least 200 or mul. of 1) | Recom | 0.5 A | 6.0 W | 12.0 V | buck | LGA | 87.0 % | 14.5 V | 115.0 V | -40.0 °C | 120.0 °C | SMD | EN 62368-1 | 12.19 mm | 12.19 mm | 3.75 mm | ITE Industry | Adjustable Output Voltage DC-OK-Signal Remote Function | Reel | |||||||
2547 | | Manufacturers Part No. RPMVH12-0.5-CT(RPMVH12-0.5-CT) Recom DC/DC switching regulator (non-isolated) buck 12V 0,5A LGA New | Customer Part No. Customer Project No. | 60 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 0.5 A | 6.0 W | 12.0 V | buck | LGA | 87.0 % | 14.5 V | 115.0 V | -40.0 °C | 120.0 °C | SMD | EN 62368-1 | 12.19 mm | 12.19 mm | 3.75 mm | ITE Industry | Adjustable Output Voltage DC-OK-Signal Remote Function | Reel | |||||||
2548 | | Manufacturers Part No. RPMVH24-0.5-R(RPMVH24-0.5-R) Recom DC/DC switching regulator (non-isolated) buck 24V 0,5A LGA New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order | (at least 200 or mul. of 1) | Recom | 0.5 A | 12.0 W | 24.0 V | buck | LGA | 90.0 % | 28.0 V | 115.0 V | -40.0 °C | 120.0 °C | SMD | EN 62368-1 | 12.19 mm | 12.19 mm | 3.75 mm | ITE Industry | Adjustable Output Voltage DC-OK-Signal Remote Function | Reel | |||||||
2549 | | Manufacturers Part No. RPMVH24-0.5-CT(RPMVH24-0.5-CT) Recom DC/DC switching regulator (non-isolated) buck 24V 0,5A LGA New | Customer Part No. Customer Project No. | 60 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 0.5 A | 12.0 W | 24.0 V | buck | LGA | 90.0 % | 28.0 V | 115.0 V | -40.0 °C | 120.0 °C | SMD | EN 62368-1 | 12.19 mm | 12.19 mm | 3.75 mm | ITE Industry | Adjustable Output Voltage DC-OK-Signal Remote Function | Reel | |||||||

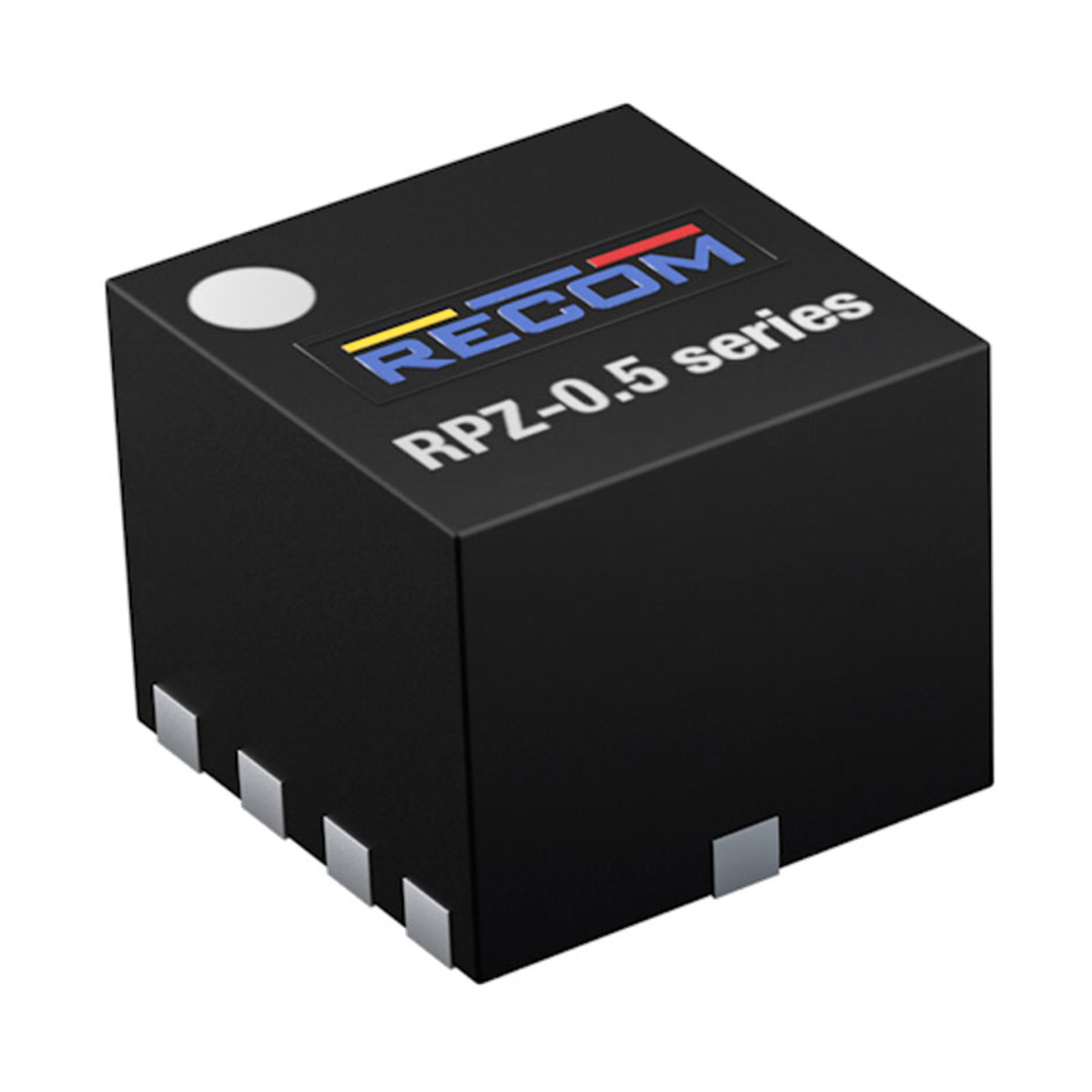

2550 | | Manufacturers Part No. RPZ-0.5-CT(RPZ-0.5-CT) Recom DC/DC switching regulator (non-isolated) buck 5V 0,5A QFN | Customer Part No. Customer Project No. | 148 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 0.5 A | 2.5 W | 5.0 V | buck | QFN | 88.0 % | 2.3 V | 5.5 V | -40.0 °C | 116.0 °C | SMD | 2.0 mm | 2.0 mm | 1.6 mm | ITE Industry | Adjustable Output Voltage Remote Function | Bag |
