Results (2752)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Isolation voltage I/P-O/P | Output current | Output Power | Number of outputs | Output voltage | Operating mode | Package/Case | Efficiency | Input voltage min. DC | Input voltage max. DC | Operating Temperature Min. | Operating Temperature Max. | Connection type, output | Standards (safety) | Dimension: Length | Dimension: Width | Dimension: Height | Application | Features | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

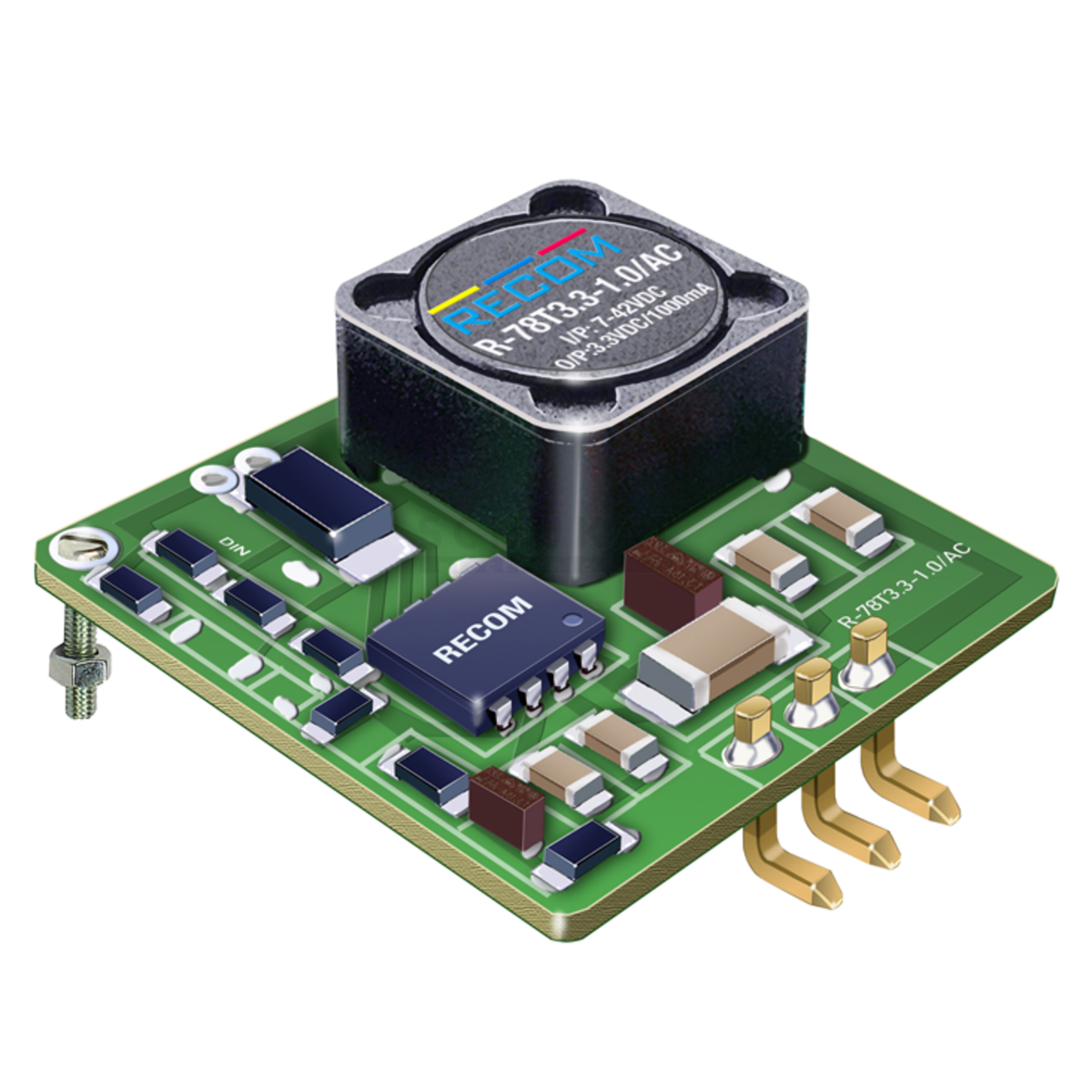

2501 |  | Manufacturers Part No. R-78T5.0-1.0/AC-R(R-78T5.0-1.0/AC-R) Recom DC/DC switching regulator (non-isolated) buck 5V 1A Open Frame | Customer Part No. Customer Project No. | 47 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 50 or mul. of 50) | Recom | 1.0 A | 5.0 W | 5.0 V | buck | Open Frame | 92.0 % | 8.0 V | 42.0 V | -40.0 °C | 55.0 °C | SMD | 23.0 mm | 27.2 mm | 10.0 mm | ITE Industry | Peak Power | Reel | ||||||||
2502 | | Manufacturers Part No. R-78T5.0-1.0/AL-R(R-78T5.0-1.0/AL-R) Recom DC/DC switching regulator (non-isolated) buck 5,00V 1,000A Open Frame | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order | (at least 50 or mul. of 50) | Recom | 1.0 A | 5.0 W | 5.0 V | buck | Open Frame | 92.0 % | 8.0 V | 42.0 V | -40.0 °C | 55.0 °C | SMD | 23.0 mm | 27.2 mm | 10.0 mm | ITE Industry | Peak Power | Reel | ||||||||

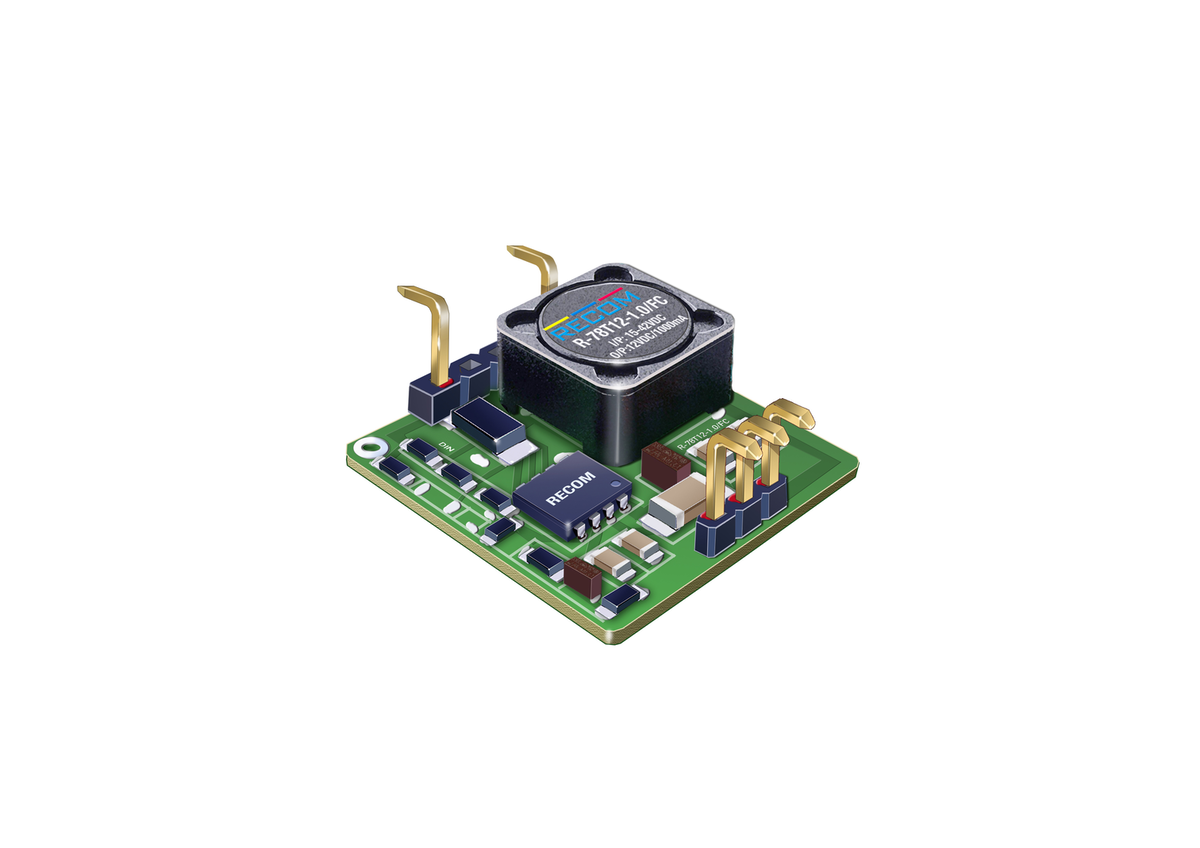

2503 | | Manufacturers Part No. R-78T5.0-1.0/FC-R(R-78T5.0-1.0/FC-R) Recom DC/DC switching regulator (non-isolated) buck 5,00V 1,000A Open Frame | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 17 Weeks Available on order | (at least 50 or mul. of 50) | Recom | 1.0 A | 5.0 W | 5.0 V | buck | Open Frame | 92.0 % | 8.0 V | 42.0 V | -40.0 °C | 55.0 °C | SMD | 23.0 mm | 29.4 mm | 8.0 mm | ITE Industry | Peak Power | Reel | ||||||||
2504 | | Manufacturers Part No. R-78T5.0-1.0/AC-TRAY(R-78T5.0-1.0/AC-T) Recom DC/DC switching regulator (non-isolated) buck 5V 1A Open Frame | Customer Part No. Customer Project No. | 33 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 1.0 A | 5.0 W | 5.0 V | buck | Open Frame | 92.0 % | 8.0 V | 42.0 V | -40.0 °C | 55.0 °C | SMD | 23.0 mm | 27.2 mm | 10.0 mm | ITE Industry | Peak Power | Tray | ||||||||
2505 | | Manufacturers Part No. R-78T12-1.0/AC-TRAY(R-78T12-1.0/AC-T) Recom DC/DC switching regulator (non-isolated) buck 12,00V 1A Open Frame | Customer Part No. Customer Project No. | 38 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 1.0 A | 12.0 W | 12.0 V | buck | Open Frame | 63.0 % | 15.0 V | 42.0 V | -40.0 °C | 55.0 °C | SMD | 23.0 mm | 27.2 mm | 10.0 mm | ITE Industry | Peak Power | Tray | ||||||||
2506 | | Manufacturers Part No. R-78T12-1.0/FC-TRAY(R-78T12-1.0/FC-T) Recom DC/DC switching regulator (non-isolated) buck 12,00V 1A Open Frame | Customer Part No. Customer Project No. | 48 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 1.0 A | 12.0 W | 12.0 V | buck | Open Frame | 63.0 % | 15.0 V | 42.0 V | -40.0 °C | 55.0 °C | SMD | 23.0 mm | 29.4 mm | 8.0 mm | ITE Industry | Peak Power | Tray | ||||||||

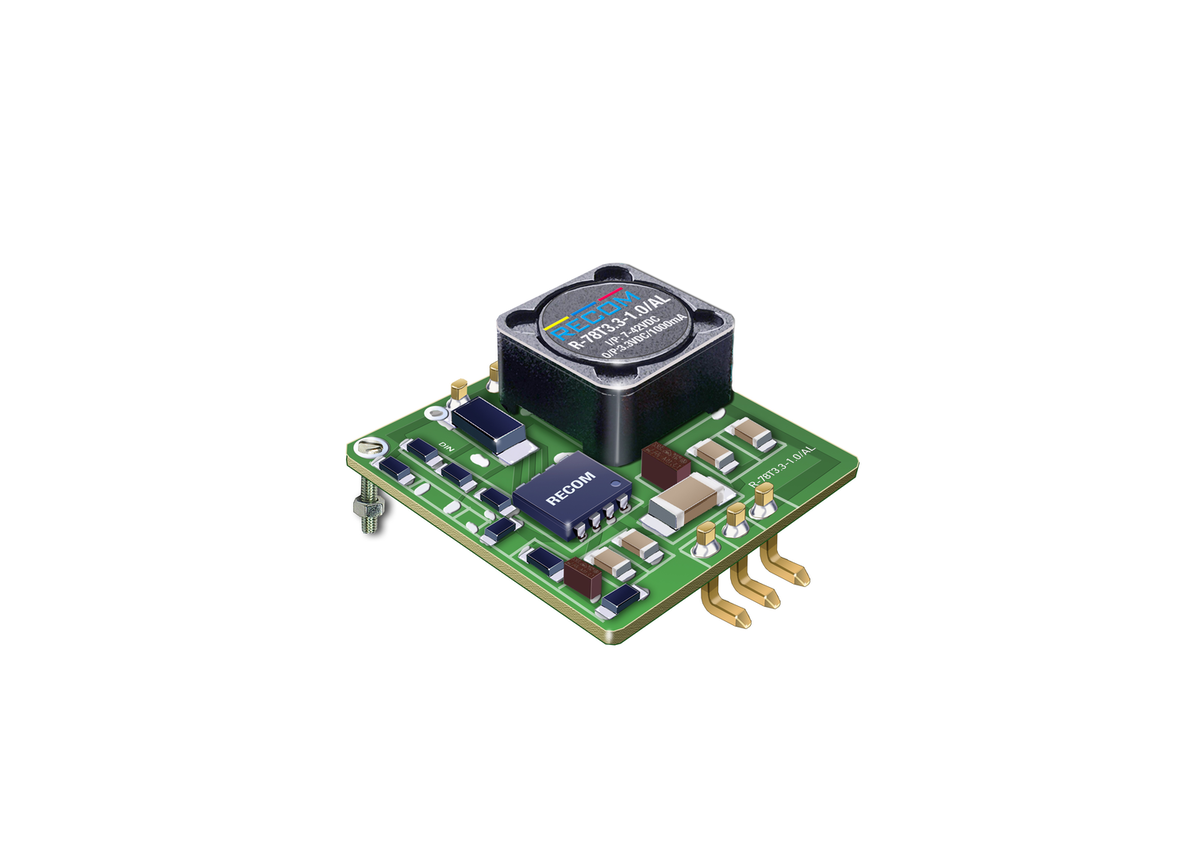

2507 | | Manufacturers Part No. R-78T12-1.0/AL-TRAY(R-78T12-1.0/AL-T) Recom DC/DC switching regulator (non-isolated) buck 12,00V 1A Open Frame | Customer Part No. Customer Project No. | 25 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 1.0 A | 12.0 W | 12.0 V | buck | Open Frame | 63.0 % | 15.0 V | 42.0 V | -40.0 °C | 55.0 °C | SMD | 23.0 mm | 27.2 mm | 10.0 mm | ITE Industry | Peak Power | Tray | ||||||||

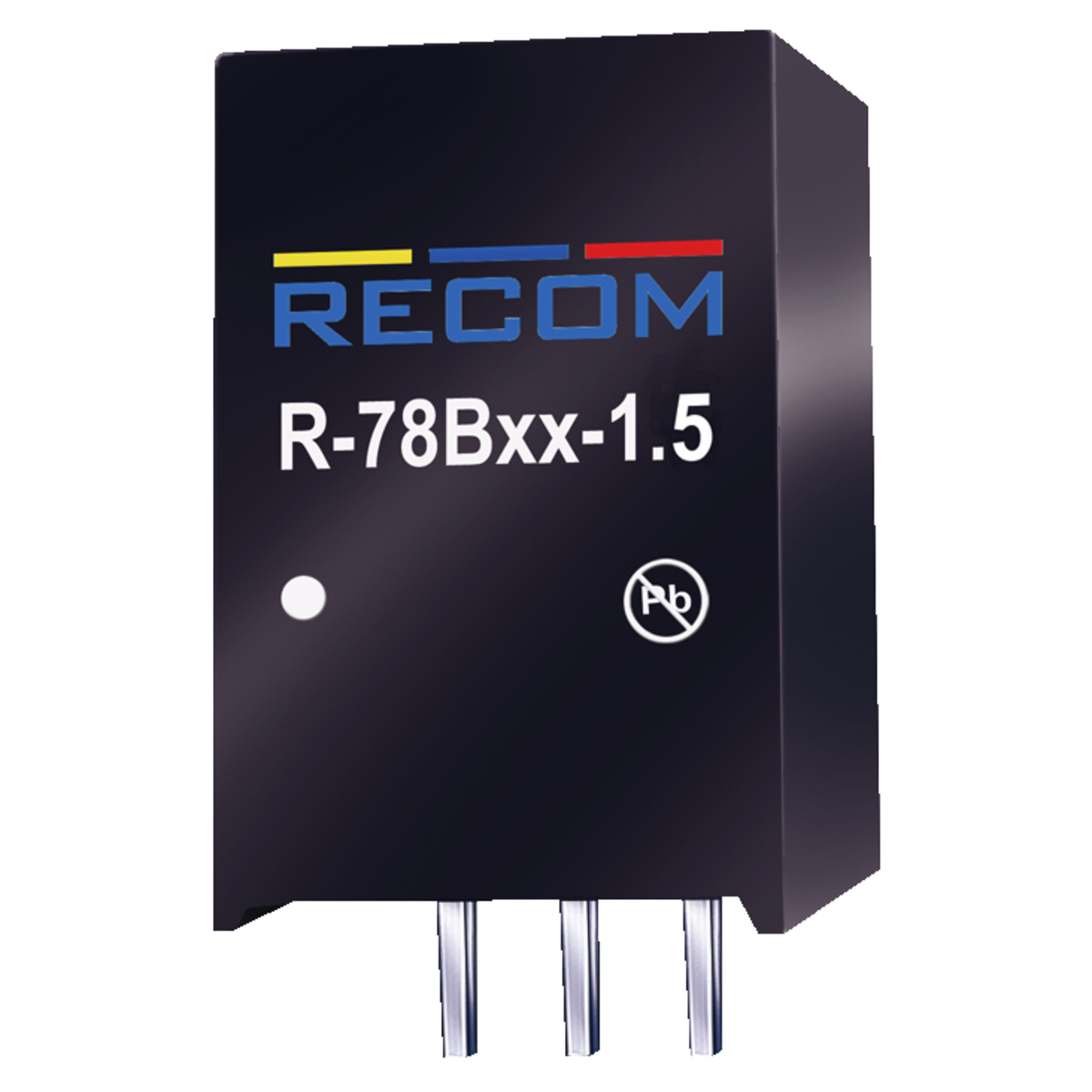

2508 | | Manufacturers Part No. R-78B3.3-1.5(R-78B3.3-1.5) Recom DC/DC switching regulator (non-isolated) buck 3,30V 1,500A SIP3 | Customer Part No. Customer Project No. | 35 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 1.5 A | 4.95 W | 3.3 V | buck | SIP3 | 91.0 % | 4.75 V | 18.0 V | -40.0 °C | 71.0 °C | THT | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||

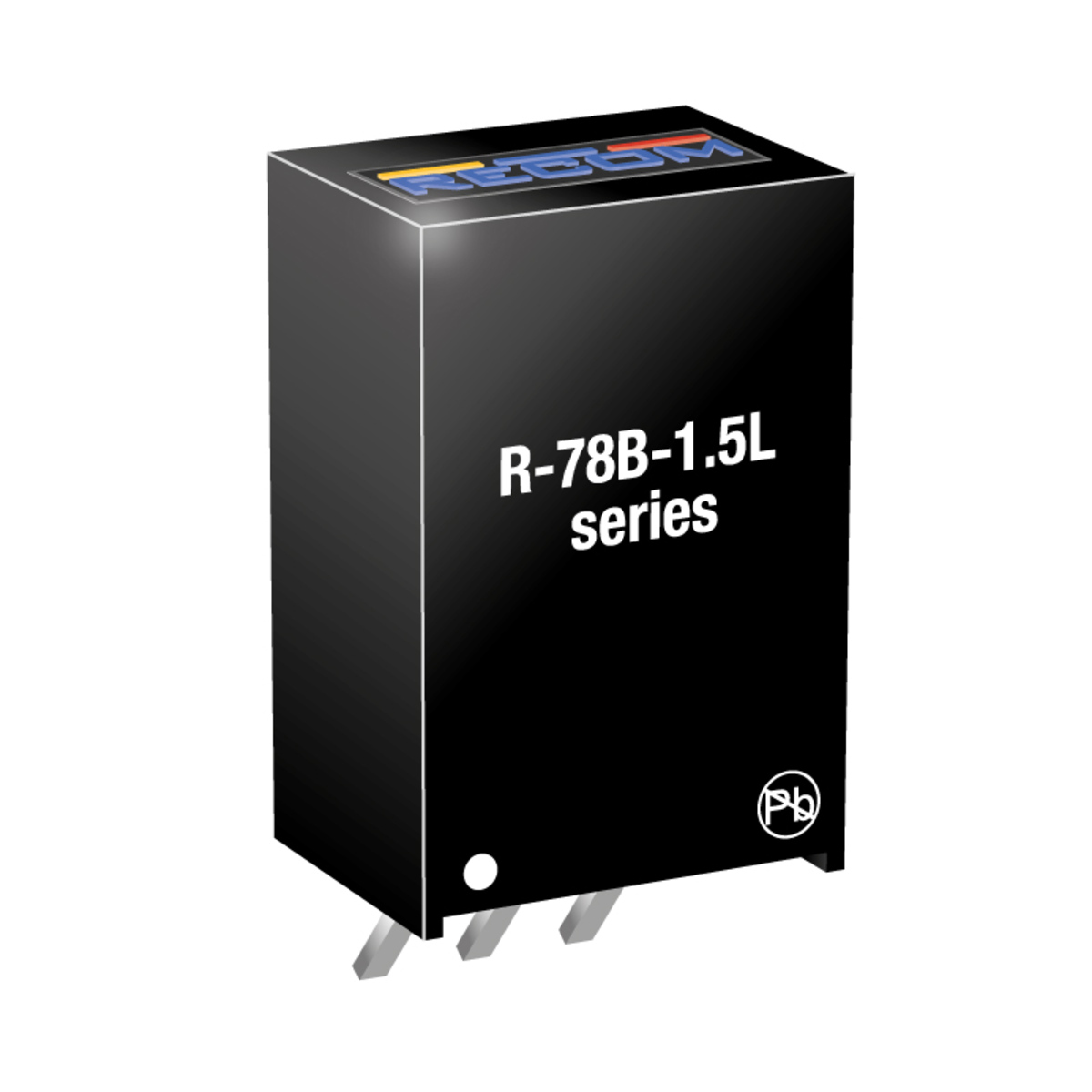

2509 | | Manufacturers Part No. R-78B3.3-1.5L(R-78B3.3-1.5L) Recom DC/DC switching regulator (non-isolated) buck 3,30V 1,500A SIP3 | Customer Part No. Customer Project No. | 322 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 1.5 A | 4.95 W | 3.3 V | buck | SIP3 | 91.0 % | 4.75 V | 18.0 V | -40.0 °C | 71.0 °C | THT | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2510 | | Manufacturers Part No. R-78B5.0-1.5(R-78B5.0-1.5) Recom DC/DC switching regulator (non-isolated) buck 5,00V 1,500A SIP3 | Customer Part No. Customer Project No. | 360 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 1.5 A | 7.5 W | 5.0 V | buck | SIP3 | 94.0 % | 6.5 V | 18.0 V | -40.0 °C | 71.0 °C | THT | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2511 | | Manufacturers Part No. R-78B5.0-1.5L(R-78B5.0-1.5L) Recom DC/DC switching regulator (non-isolated) buck 5,00V 1,500A SIP3 | Customer Part No. Customer Project No. | 289 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 1.5 A | 7.5 W | 5.0 V | buck | SIP3 | 94.0 % | 6.5 V | 18.0 V | -40.0 °C | 71.0 °C | THT | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||

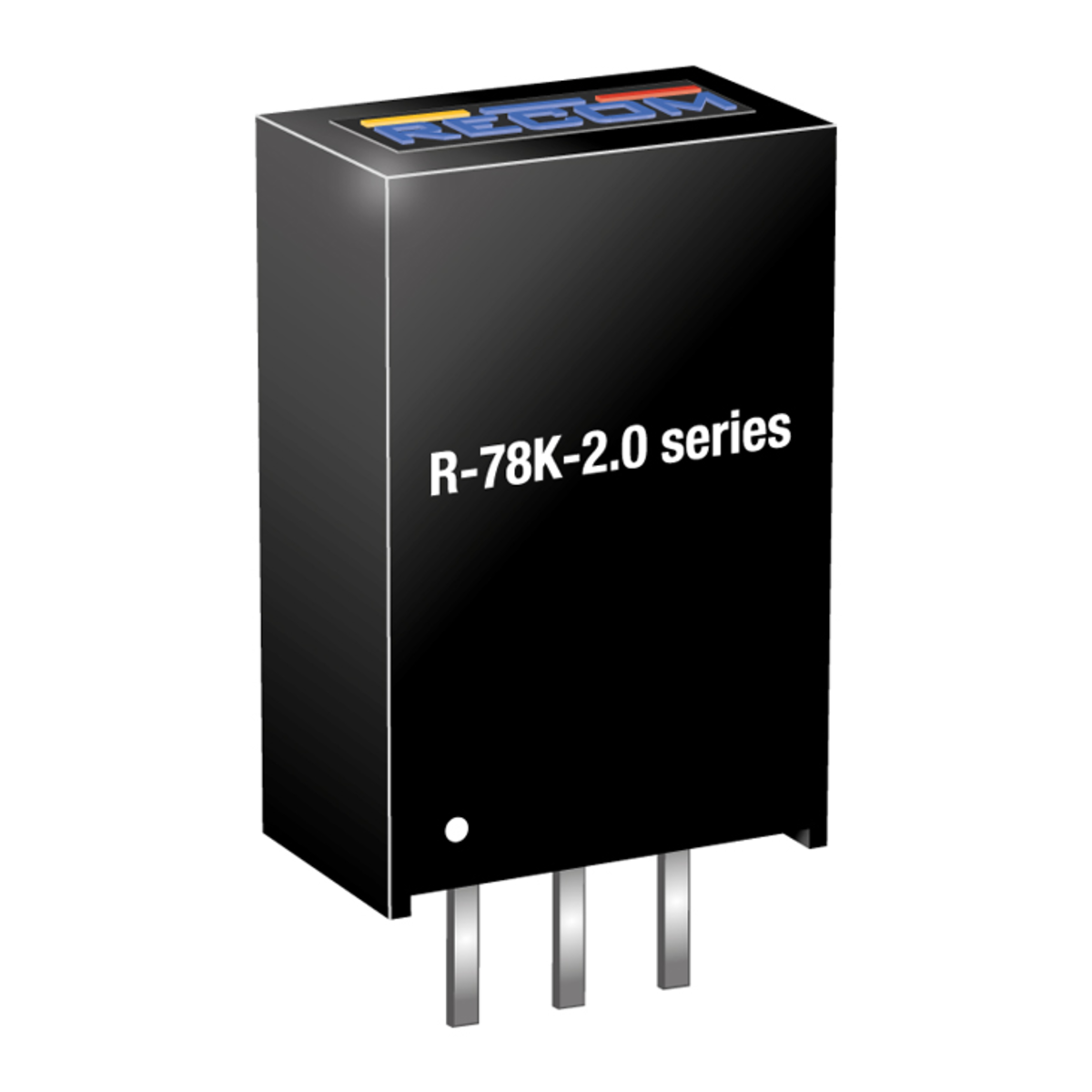

2512 | | Manufacturers Part No. R-78K1.2-2.0(R-78K1.2-2.0) Recom DC/DC switching regulator (non-isolated) buck 1,2V 2A SIP3 | Customer Part No. Customer Project No. | 5 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 2.4 W | 1.2 V | buck | SIP3 | 75.0 % | 4.5 V | 36.0 V | -40.0 °C | 90.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2513 | | Manufacturers Part No. R-78K1.5-2.0(R-78K1.5-2.0) Recom DC/DC switching regulator (non-isolated) buck 1,5V 2A SIP3 | Customer Part No. Customer Project No. | 19 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 3.0 W | 1.5 V | buck | SIP3 | 82.0 % | 4.5 V | 36.0 V | -40.0 °C | 90.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2514 | | Manufacturers Part No. R-78K1.8-2.0(R-78K1.8-2.0) Recom DC/DC switching regulator (non-isolated) buck 1,8V 2A SIP3 | Customer Part No. Customer Project No. | 41 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 3.6 W | 1.8 V | buck | SIP3 | 85.0 % | 4.5 V | 36.0 V | -40.0 °C | 90.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2515 | | Manufacturers Part No. R-78K2.5-2.0(R-78K2.5-2.0) Recom DC/DC switching regulator (non-isolated) buck 2,5V 2A SIP3 | Customer Part No. Customer Project No. | 17 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 5.0 W | 2.5 V | buck | SIP3 | 88.0 % | 4.5 V | 36.0 V | -40.0 °C | 90.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2516 | | Manufacturers Part No. R-78K3.3-2.0(R-78K3.3-2.0) Recom DC/DC switching regulator (non-isolated) buck 3,3V 2A SIP3 | Customer Part No. Customer Project No. | 48 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 6.6 W | 3.3 V | buck | SIP3 | 85.0 % | 4.5 V | 36.0 V | -40.0 °C | 90.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2517 | | Manufacturers Part No. R-78K5.0-2.0(R-78K5.0-2.0) Recom DC/DC switching regulator (non-isolated) buck 5V 2A SIP3 | Customer Part No. Customer Project No. | 978 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 10.0 W | 5.0 V | buck | SIP3 | 85.0 % | 4.5 V | 36.0 V | -40.0 °C | 90.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2518 | | Manufacturers Part No. R-78K9.0-2.0(R-78K9.0-2.0) Recom DC/DC switching regulator (non-isolated) buck 9V 2A SIP3 | Customer Part No. Customer Project No. | 33 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 18.0 W | 9.0 V | buck | SIP3 | 95.0 % | 4.5 V | 36.0 V | -40.0 °C | 90.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2519 | | Manufacturers Part No. R-78K12-2.0(R-78K12-2.0) Recom DC/DC switching regulator (non-isolated) buck 12V 2A SIP3 | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 24.0 W | 12.0 V | buck | SIP3 | 96.0 % | 4.5 V | 36.0 V | -40.0 °C | 90.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2520 | | Manufacturers Part No. R-78K15-2.0(R-78K15-2.0) Recom DC/DC switching regulator (non-isolated) buck 15V 2A SIP3 | Customer Part No. Customer Project No. | 45 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 30.0 W | 15.0 V | buck | SIP3 | 96.0 % | 4.5 V | 36.0 V | -40.0 °C | 90.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||

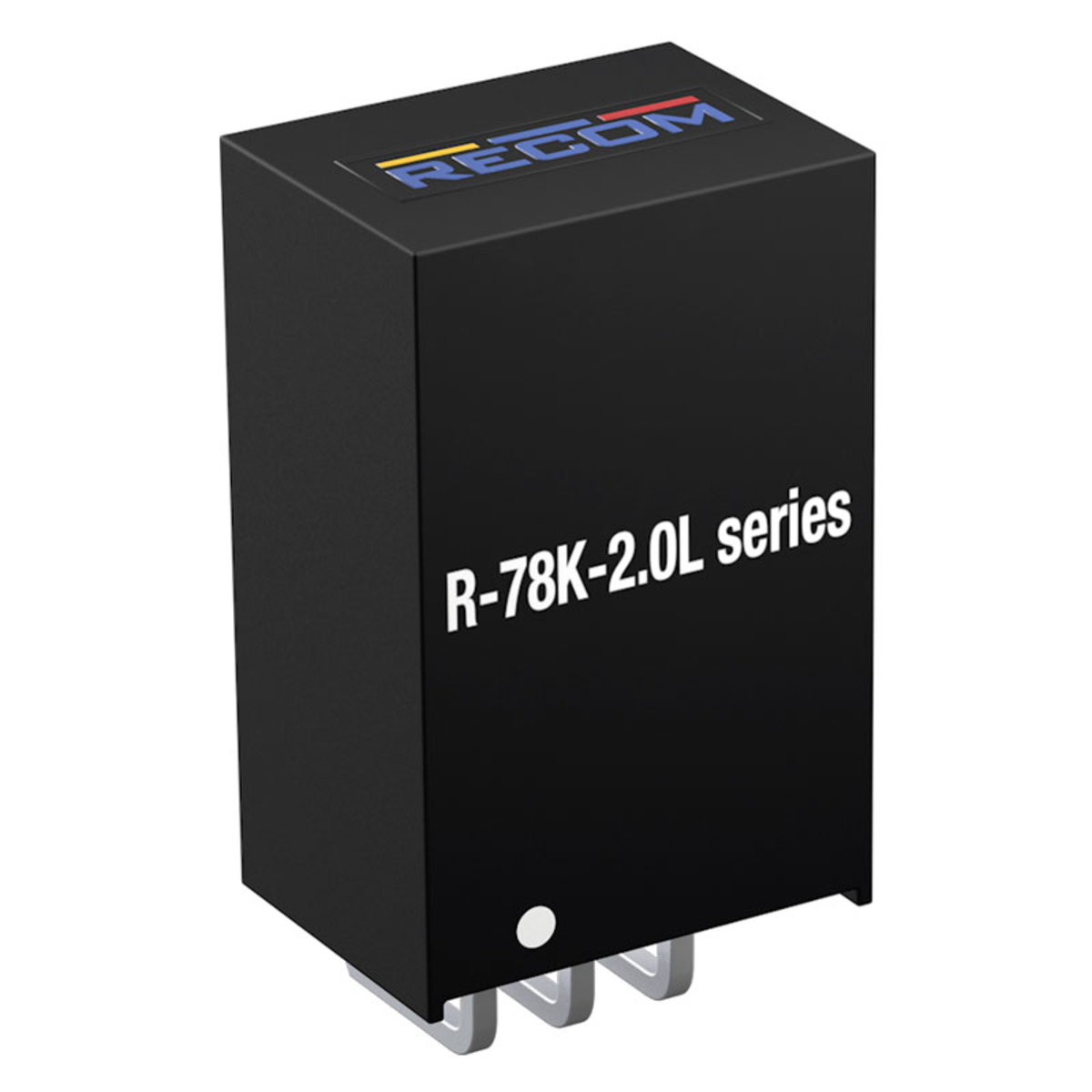

2521 | | Manufacturers Part No. R-78K1.2-2.0L(R-78K1.2-2.0L) Recom DC/DC switching regulator (non-isolated) buck 1,2V 2A SIP3 | Customer Part No. Customer Project No. | 38 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 2.4 W | 1.2 V | buck | SIP3 | 75.0 % | 4.5 V | 36.0 V | -40.0 °C | 100.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2522 | | Manufacturers Part No. R-78K1.5-2.0L(R-78K1.5-2.0L) Recom DC/DC switching regulator (non-isolated) buck 1,5V 2A SIP3 | Customer Part No. Customer Project No. | 43 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 3.0 W | 1.5 V | buck | SIP3 | 82.0 % | 4.5 V | 36.0 V | -40.0 °C | 100.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2523 | | Manufacturers Part No. R-78K1.8-2.0L(R-78K1.8-2.0L) Recom DC/DC switching regulator (non-isolated) buck 1,8V 2A SIP3 | Customer Part No. Customer Project No. | 37 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 3.6 W | 1.8 V | buck | SIP3 | 85.0 % | 4.5 V | 36.0 V | -40.0 °C | 100.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2524 | | Manufacturers Part No. R-78K2.5-2.0L(R-78K2.5-2.0L) Recom DC/DC switching regulator (non-isolated) buck 2,5V 2A SIP3 | Customer Part No. Customer Project No. | 43 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 5.0 W | 2.5 V | buck | SIP3 | 88.0 % | 4.5 V | 36.0 V | -40.0 °C | 100.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube | ||||||||
2525 | | Manufacturers Part No. R-78K3.3-2.0L(R-78K3.3-2.0L) Recom DC/DC switching regulator (non-isolated) buck 3,3V 2A SIP3 | Customer Part No. Customer Project No. | 47 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.0 A | 6.6 W | 3.3 V | buck | SIP3 | 85.0 % | 4.5 V | 36.0 V | -40.0 °C | 100.0 °C | THT | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | ITE Industry | Tube |
