Results (312)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Input voltage min. DC | Input voltage max. DC | Output voltage | Output current | Operating mode | Package/Case | Efficiency | Operating Temperature Min. | Operating Temperature Max. | Connection type, output | Application | Standards (safety) | Dimension: Length | Dimension: Width | Dimension: Height | Features | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
01 |  | Manufacturers Part No. N7803-1PV(N7803-1PV) MEAN WELL DC/DC switching regulator (non-isolated) buck 3,3V 1A Open Frame | Customer Part No. Customer Project No. | 37 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 6.0 V | 36.0 V | 3.3 V | 1.0 A | buck | Open Frame | 91.5 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
02 | | Manufacturers Part No. N7803-1PH(N7803-1PH) MEAN WELL DC/DC switching regulator (non-isolated) buck 3,3V 1A Open Frame | Customer Part No. Customer Project No. | 57 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 6.0 V | 36.0 V | 3.3 V | 1.0 A | buck | Open Frame | 91.5 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||

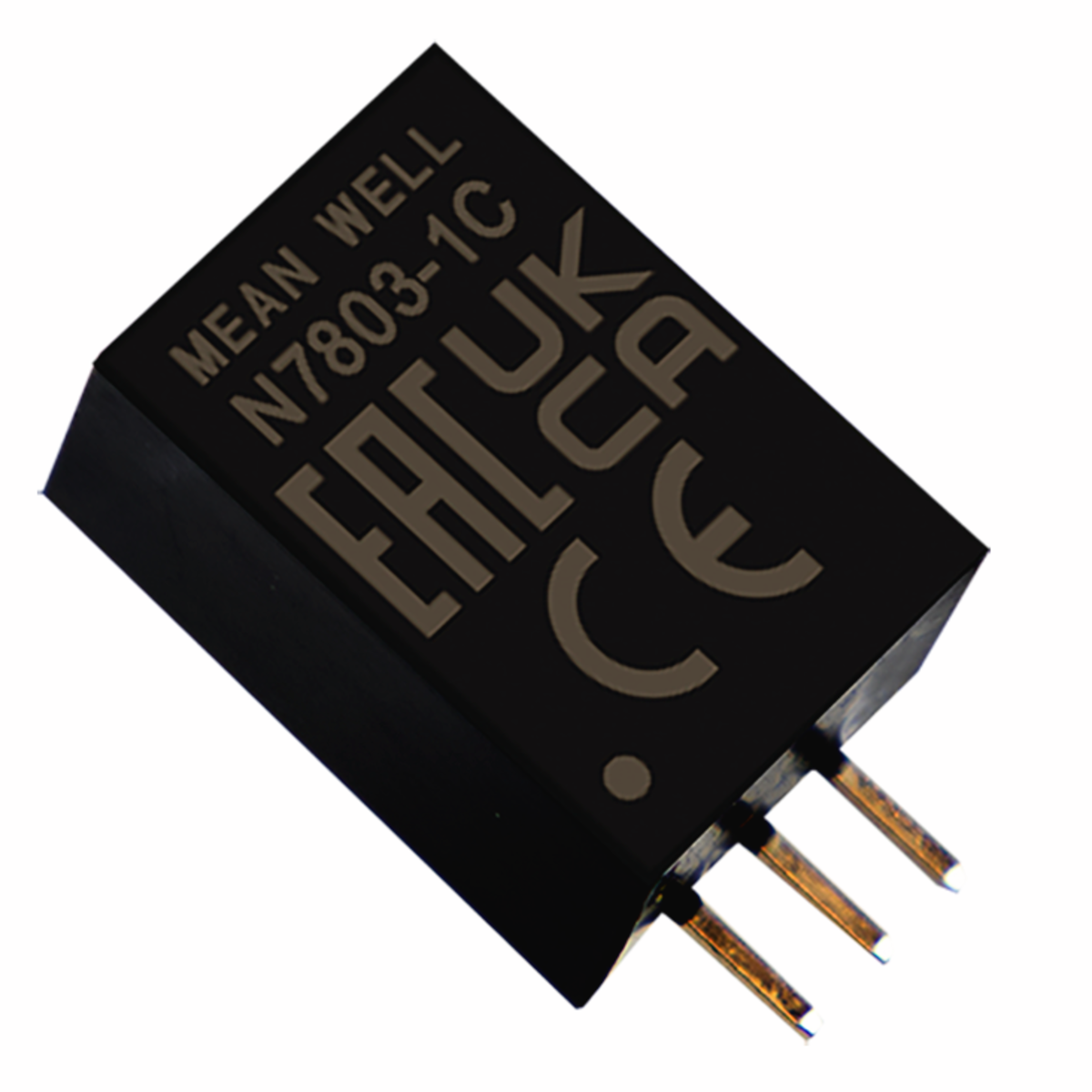

03 | | Manufacturers Part No. N7803-1C(N7803-1C) MEAN WELL DC/DC switching regulator (non-isolated) buck 3,3V 1A Enclosed | Customer Part No. Customer Project No. | 46 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 6.0 V | 36.0 V | 3.3 V | 1.0 A | buck | Enclosed | 91.5 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||

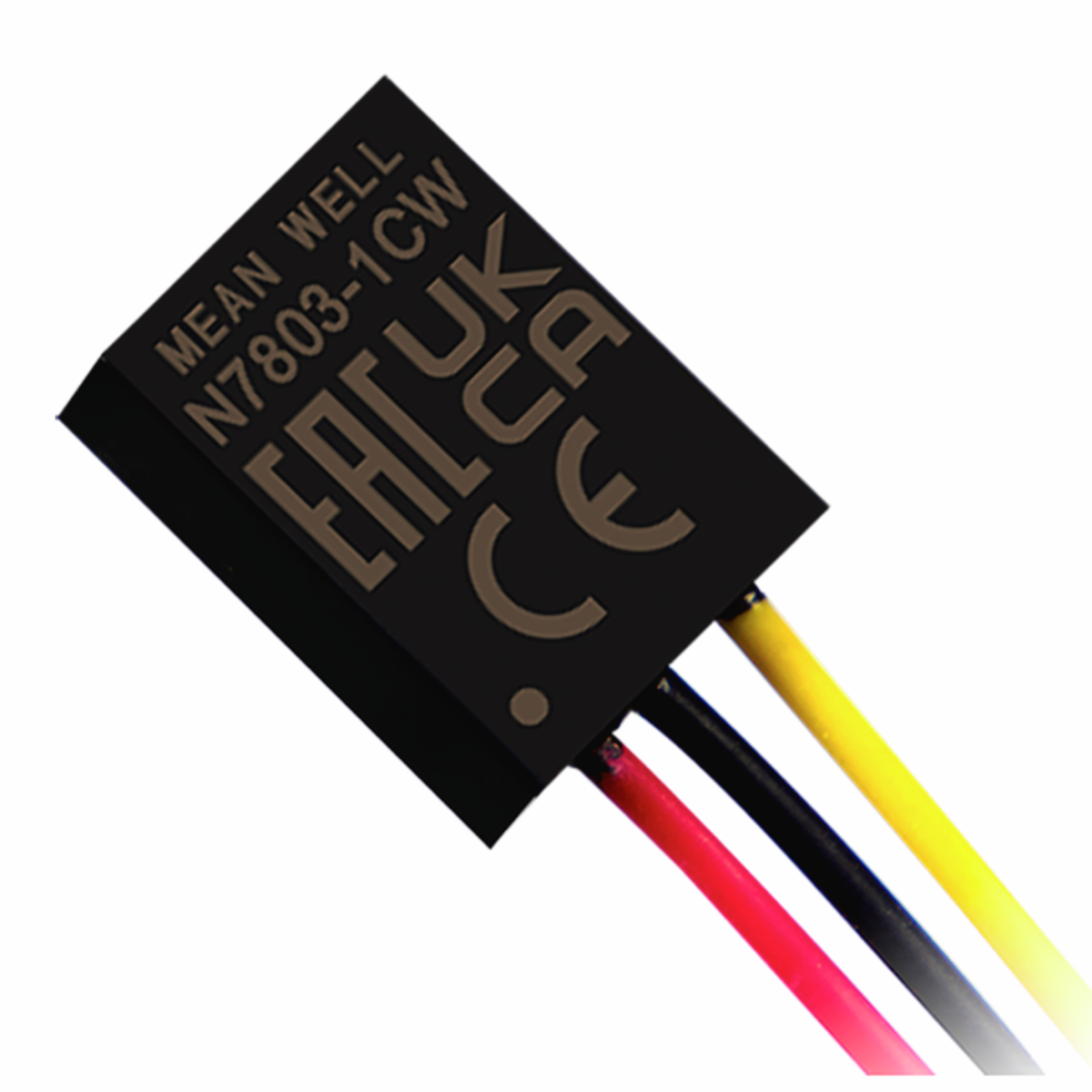

04 | | Manufacturers Part No. N7803-1CW(N7803-1CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 3,3V 1A Enclosed | Customer Part No. Customer Project No. | 30 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 6.0 V | 36.0 V | 3.3 V | 1.0 A | buck | Enclosed | 91.5 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
05 | | Manufacturers Part No. N7805-1PV(N7805-1PV) MEAN WELL DC/DC switching regulator (non-isolated) buck 5V 1A Open Frame | Customer Part No. Customer Project No. | 19 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 27.0 V | 5.0 V | 1.0 A | buck | Open Frame | 88.5 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
06 | | Manufacturers Part No. N7805-1PH(N7805-1PH) MEAN WELL DC/DC switching regulator (non-isolated) buck 5V 1A Open Frame | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 27.0 V | 5.0 V | 1.0 A | buck | Open Frame | 88.5 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
07 | | Manufacturers Part No. N7805-1C(N7805-1C) MEAN WELL DC/DC switching regulator (non-isolated) buck 5V 1A Enclosed | Customer Part No. Customer Project No. | 31 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 36.0 V | 5.0 V | 1.0 A | buck | Enclosed | 93.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
08 | | Manufacturers Part No. N7805-1CW(N7805-1CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 5V 1A Enclosed | Customer Part No. Customer Project No. | 93 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 36.0 V | 5.0 V | 1.0 A | buck | Enclosed | 93.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
09 | | Manufacturers Part No. N7809-1PV(N7809-1PV) MEAN WELL DC/DC switching regulator (non-isolated) buck 9V 1A Open Frame | Customer Part No. Customer Project No. | 10 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 13.0 V | 36.0 V | 9.0 V | 1.0 A | buck | Open Frame | 95.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
10 | | Manufacturers Part No. N7809-1PH(N7809-1PH) MEAN WELL DC/DC switching regulator (non-isolated) buck 9V 1A Open Frame | Customer Part No. Customer Project No. | 4 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 13.0 V | 36.0 V | 9.0 V | 1.0 A | buck | Open Frame | 95.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
11 | | Manufacturers Part No. N7809-1C(N7809-1C) MEAN WELL DC/DC switching regulator (non-isolated) buck 9V 1A Enclosed | Customer Part No. Customer Project No. | 6 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 13.0 V | 36.0 V | 9.0 V | 1.0 A | buck | Enclosed | 95.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
12 | | Manufacturers Part No. N7809-1CW(N7809-1CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 9V 1A Enclosed | Customer Part No. Customer Project No. | 31 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 13.0 V | 36.0 V | 9.0 V | 1.0 A | buck | Enclosed | 95.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
13 | | Manufacturers Part No. N7812-1PV(N7812-1PV) MEAN WELL DC/DC switching regulator (non-isolated) buck 12V 1A Open Frame | Customer Part No. Customer Project No. | 9 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 20.0 V | 12.0 V | 1.0 A | buck | Open Frame | 89.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
14 | | Manufacturers Part No. N7812-1PH(N7812-1PH) MEAN WELL DC/DC switching regulator (non-isolated) buck 12V 1A Open Frame | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 20.0 V | 12.0 V | 1.0 A | buck | Open Frame | 89.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
15 | | Manufacturers Part No. N7812-1C(N7812-1C) MEAN WELL DC/DC switching regulator (non-isolated) buck 12V 1A Enclosed | Customer Part No. Customer Project No. | 31 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 16.0 V | 36.0 V | 12.0 V | 1.0 A | buck | Enclosed | 95.5 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
16 | | Manufacturers Part No. N7812-1CW(N7812-1CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 12V 1A Enclosed | Customer Part No. Customer Project No. | 117 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 16.0 V | 36.0 V | 12.0 V | 1.0 A | buck | Enclosed | 95.5 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||

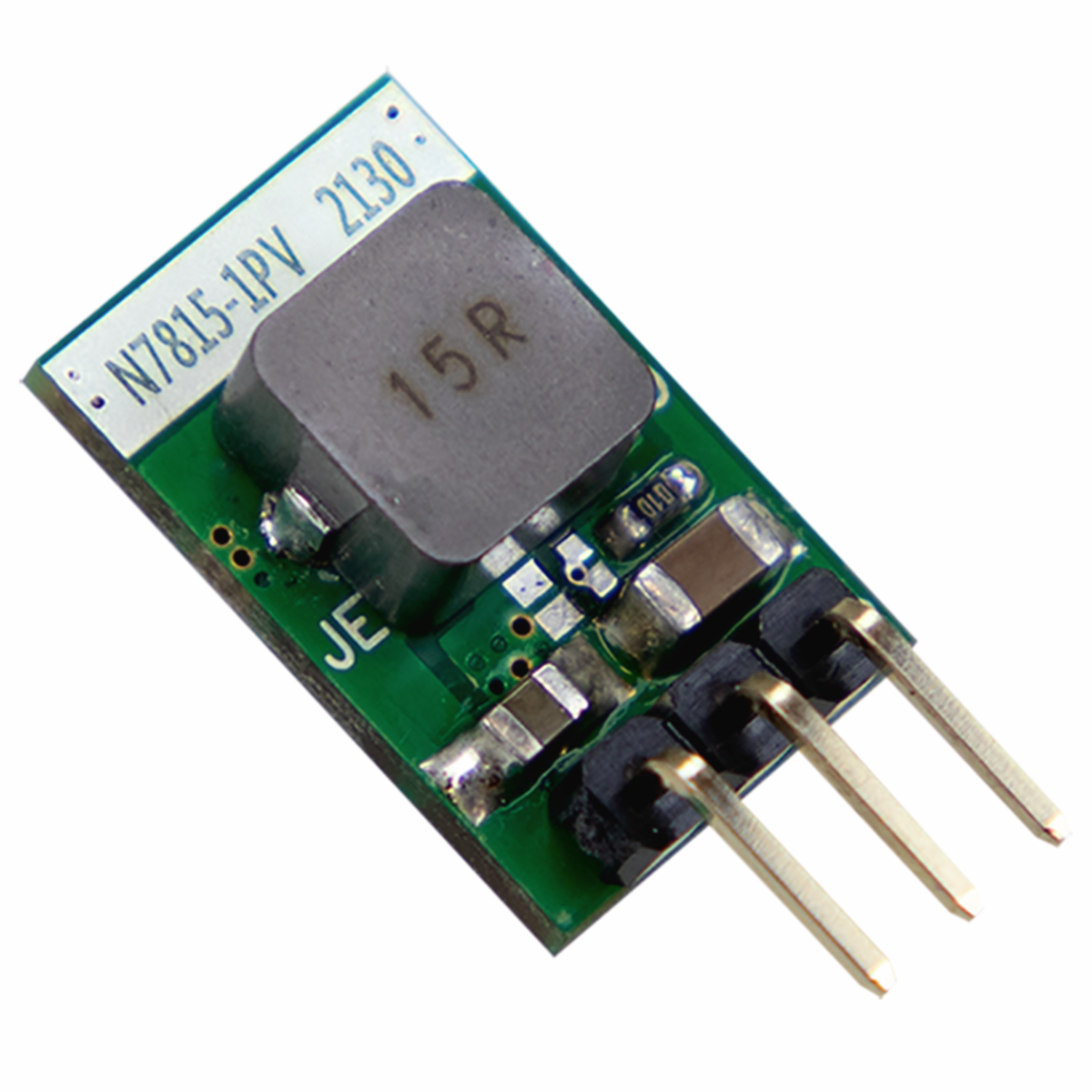

17 | | Manufacturers Part No. N7815-1PV(N7815-1PV) MEAN WELL DC/DC switching regulator (non-isolated) buck 15V 1A Open Frame | Customer Part No. Customer Project No. | 44 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 18.0 V | 15.0 V | 1.0 A | buck | Open Frame | 88.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
18 | | Manufacturers Part No. N7815-1PH(N7815-1PH) MEAN WELL DC/DC switching regulator (non-isolated) buck 15V 1A Open Frame | Customer Part No. Customer Project No. | 19 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 18.0 V | 15.0 V | 1.0 A | buck | Open Frame | 88.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
19 | | Manufacturers Part No. N7815-1C(N7815-1C) MEAN WELL DC/DC switching regulator (non-isolated) buck 15V 1A Enclosed | Customer Part No. Customer Project No. | 13 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 20.0 V | 36.0 V | 15.0 V | 1.0 A | buck | Enclosed | 96.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
20 | | Manufacturers Part No. N7815-1CW(N7815-1CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 15V 1A Enclosed | Customer Part No. Customer Project No. | 79 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 20.0 V | 36.0 V | 15.0 V | 1.0 A | buck | Enclosed | 96.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||

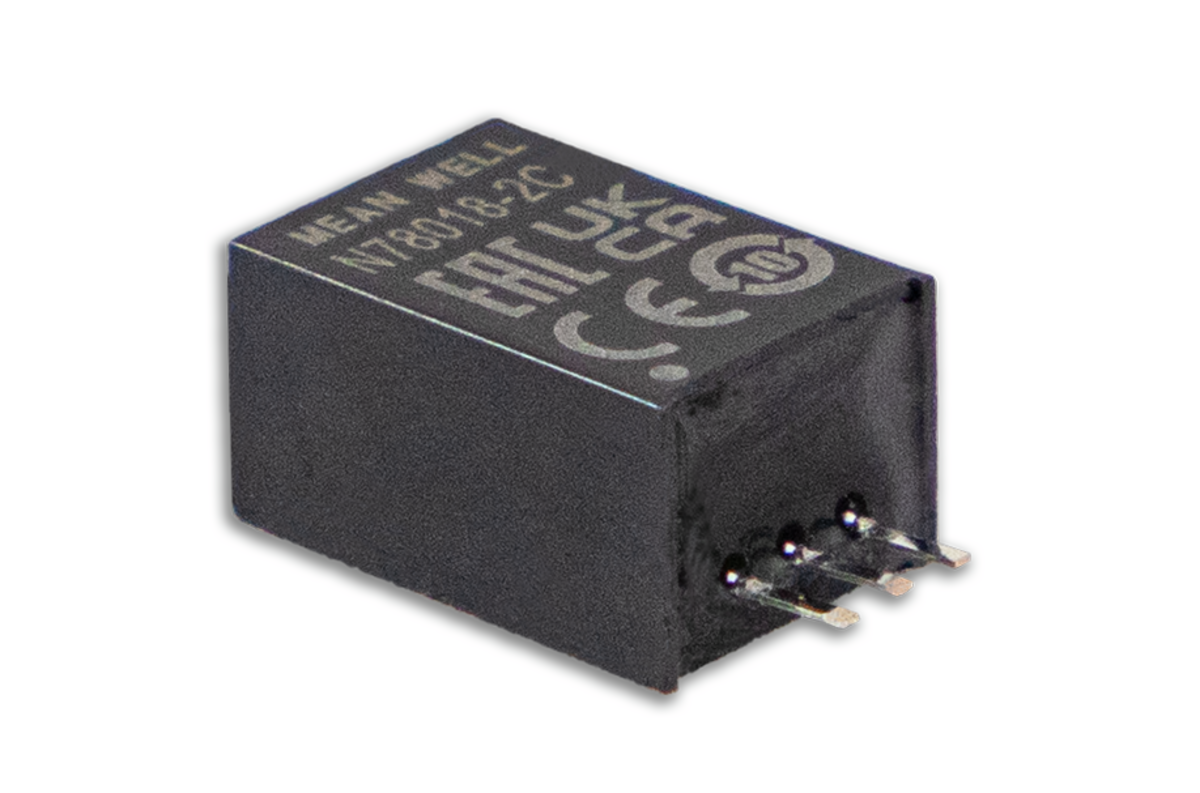

21 | | Manufacturers Part No. N78018-2C(N78018-2C) MEAN WELL DC/DC switching regulator (non-isolated) buck 1,8V 2A Enclosed | Customer Part No. Customer Project No. | 106 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 4.5 V | 28.0 V | 1.8 V | 2.0 A | buck | Enclosed | 83.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
22 | | Manufacturers Part No. N78018-2CH(N78018-2CH) MEAN WELL DC/DC switching regulator (non-isolated) buck 1,8V 2A Enclosed | Customer Part No. Customer Project No. | 67 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 4.5 V | 28.0 V | 1.8 V | 2.0 A | buck | Enclosed | 83.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
23 | | Manufacturers Part No. N78018-2CW(N78018-2CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 1,8V 2A Enclosed | Customer Part No. Customer Project No. | 78 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 4.5 V | 28.0 V | 1.8 V | 2.0 A | buck | Enclosed | 83.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
24 | | Manufacturers Part No. N78025-2C(N78025-2C) MEAN WELL DC/DC switching regulator (non-isolated) buck 2,5V 2A Enclosed | Customer Part No. Customer Project No. | 69 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 4.5 V | 32.0 V | 2.5 V | 2.0 A | buck | Enclosed | 88.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
25 | | Manufacturers Part No. N78025-2CH(N78025-2CH) MEAN WELL DC/DC switching regulator (non-isolated) buck 2,5V 2A Enclosed | Customer Part No. Customer Project No. | 69 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 4.5 V | 32.0 V | 2.5 V | 2.0 A | buck | Enclosed | 88.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube |
