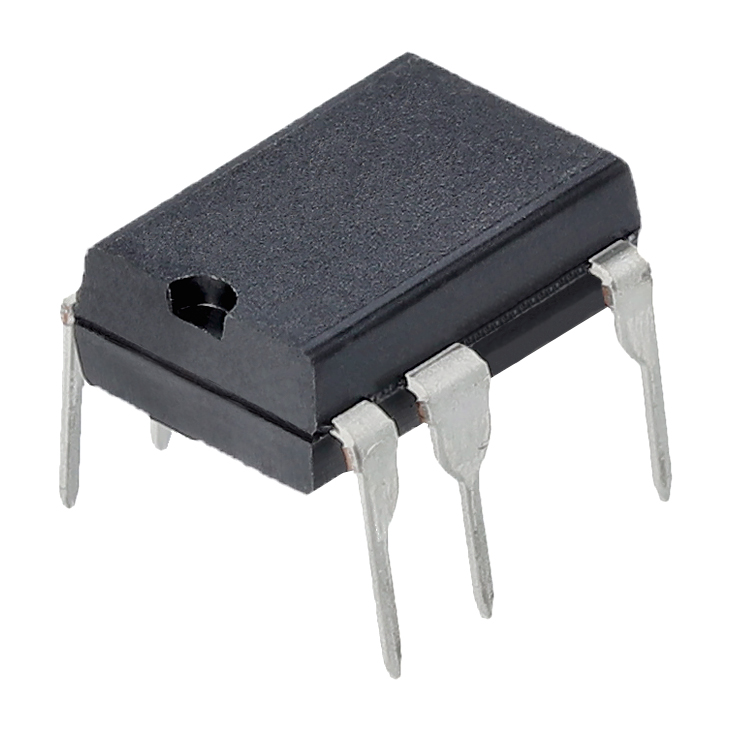

TNY276GN-TL
Power Integrations AC/DC Converter IC 19W 132kHz SMD-8
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
780 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- AC/DC Converter IC
- Supply Voltage Min.
- 85 V
- Supply Voltage Max.
- 265 V
- Output Power
- 19 W
- Switching frequency
- 132 kHz
- Manufacturer Package
- SMD-8
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 150 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- Output Power
- 19 W
- Supply Voltage Min.
- 85 V
- Supply Voltage Max.
- 265 V
- Switching frequency
- 132 kHz
- Output Voltage Min./Fixed
- 700 V
