SMFFH2410P100
Polytronics Technology Corp. SMD fuse link nimble 2410 125VAC 125VDC 1A
NEW
Manufacturer Part No.
SMFFH2410P100
Schukat Part No.
SMFFH2410P100
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
5 Pcs.
5 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD fuse
- Series
- SMFFH2410
- Characteristic
- nimble
- Package/Case
- 2410
- Rated voltage V AC
- 125 V AC
- Rated voltage V DC
- 125 V DC
- Rated current
- 1 A
- RoHS-Conform
Specifications
Open all

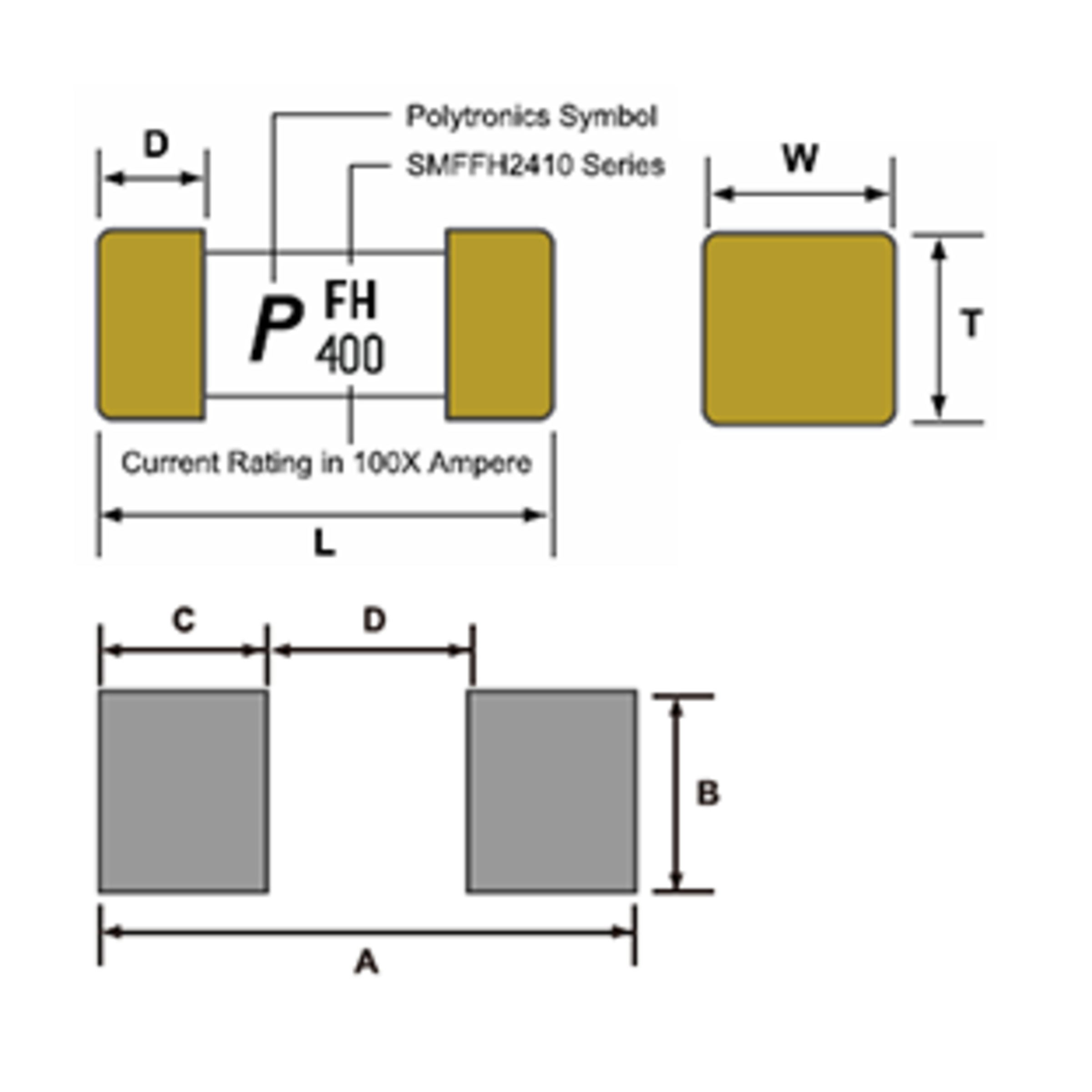

Dimensions and weights
- Dimension: Length
- 6.1 mm
- Dimension: Width
- 2.5 mm
- Dimension: Height
- 2.5 mm
Operating conditions
- Operating temperature range, min.
- -55 °C
- Operating temperature range, max.
- 125 °C
Technical features
- Rated current
- 50 A
- Rated current
- 1 A
- Melting integral
- 3.12 A²/s
- Rated voltage V AC
- 125 V AC
- Rated voltage V DC
- 125 V DC
- Solderability
- 260 °C / 10 s
Safety/Certifications
- Approvals
- cULus
- Standards
- 2011/65/EU, IEC 61249-2-21:2003
