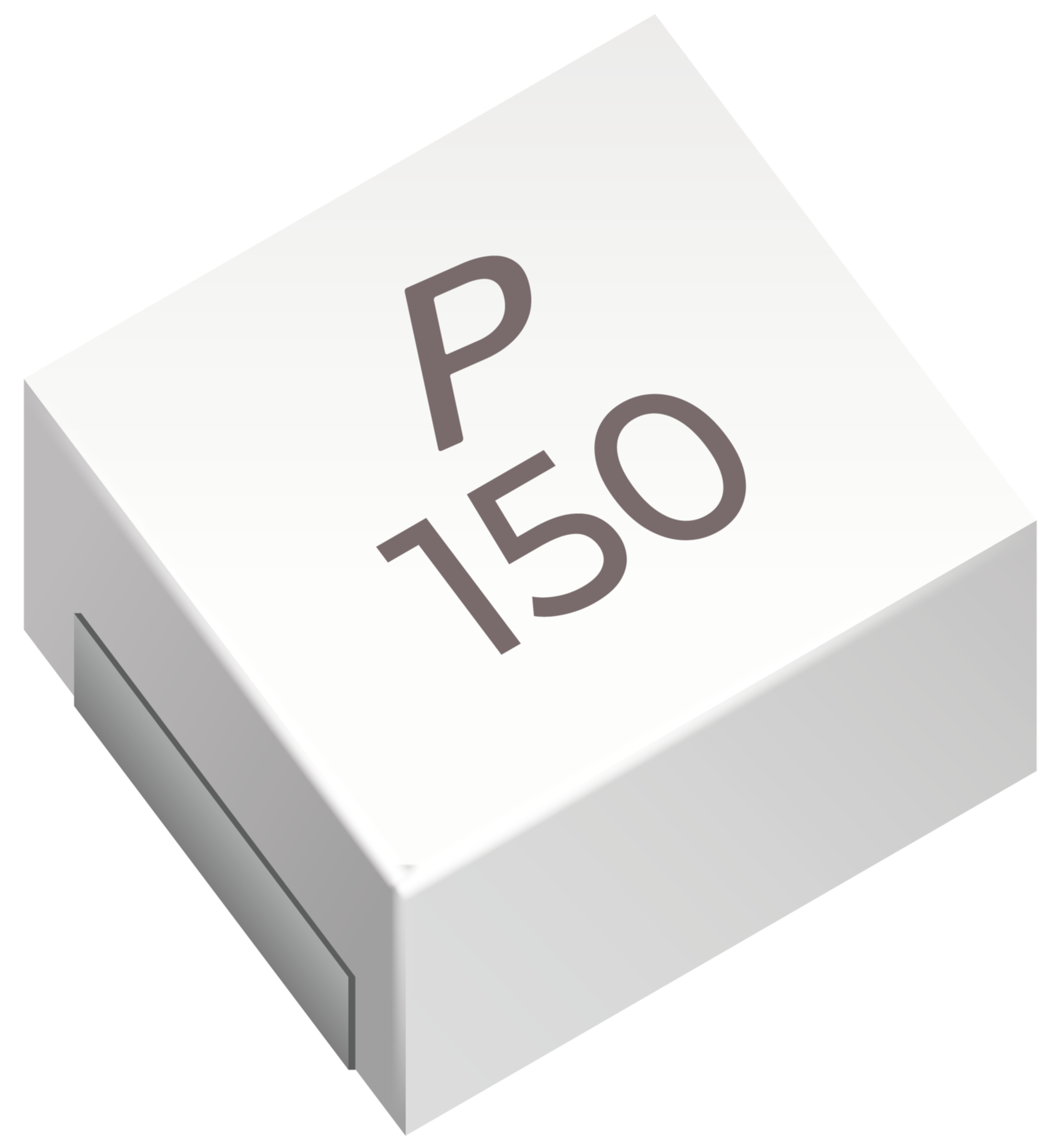

SMFF5040P070
Polytronics Technology Corp. SMD fuse SMFF5040 nimble 125VDC 70A 5040
NEW
Manufacturer Part No.
SMFF5040P070
Schukat Part No.
SMFF5040P070
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
5 Pcs.
5 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD fuse
- Series
- SMFF5040
- Characteristic
- nimble
- Package/Case
- 5040
- Rated voltage V DC
- 125 V DC
- Rated current
- 70 A
- RoHS-Conform
Specifications
Open all

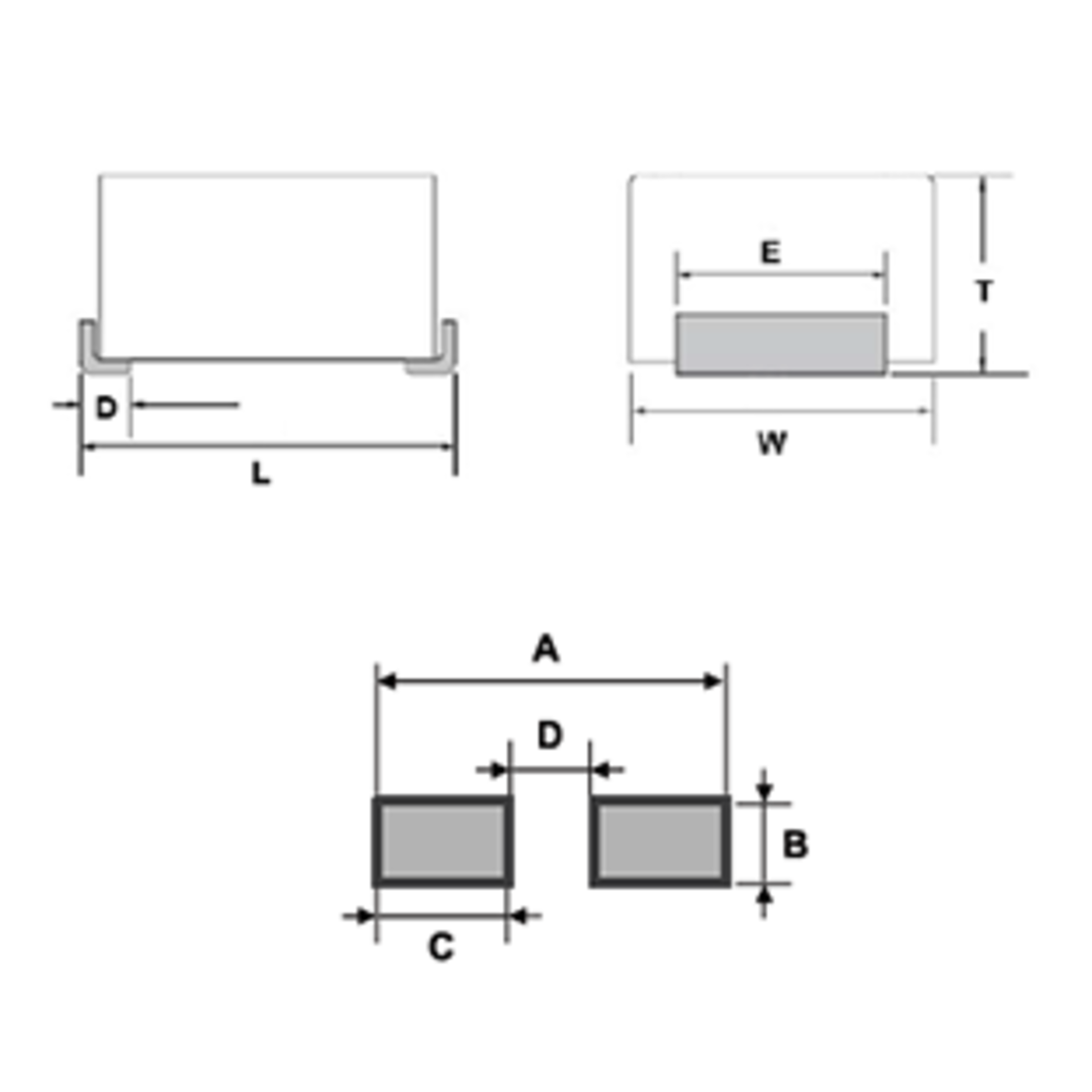

Dimensions and weights
- Dimension: Length
- 12.1 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 6.8 mm
Operating conditions
- Operating temperature range, min.
- -55 °C
- Operating temperature range, max.
- 125 °C
Technical features
- Rated current
- 1,000 A
- Rated current
- 70 A
- Melting integral
- 2,800 A²/s
- Rated voltage V DC
- 125 V DC
- Solderability
- 260 °C / 10 s
Safety/Certifications
- Standards
- 2011/65/EU, IEC 61249-2-21:2003
