SMFF2410P1000

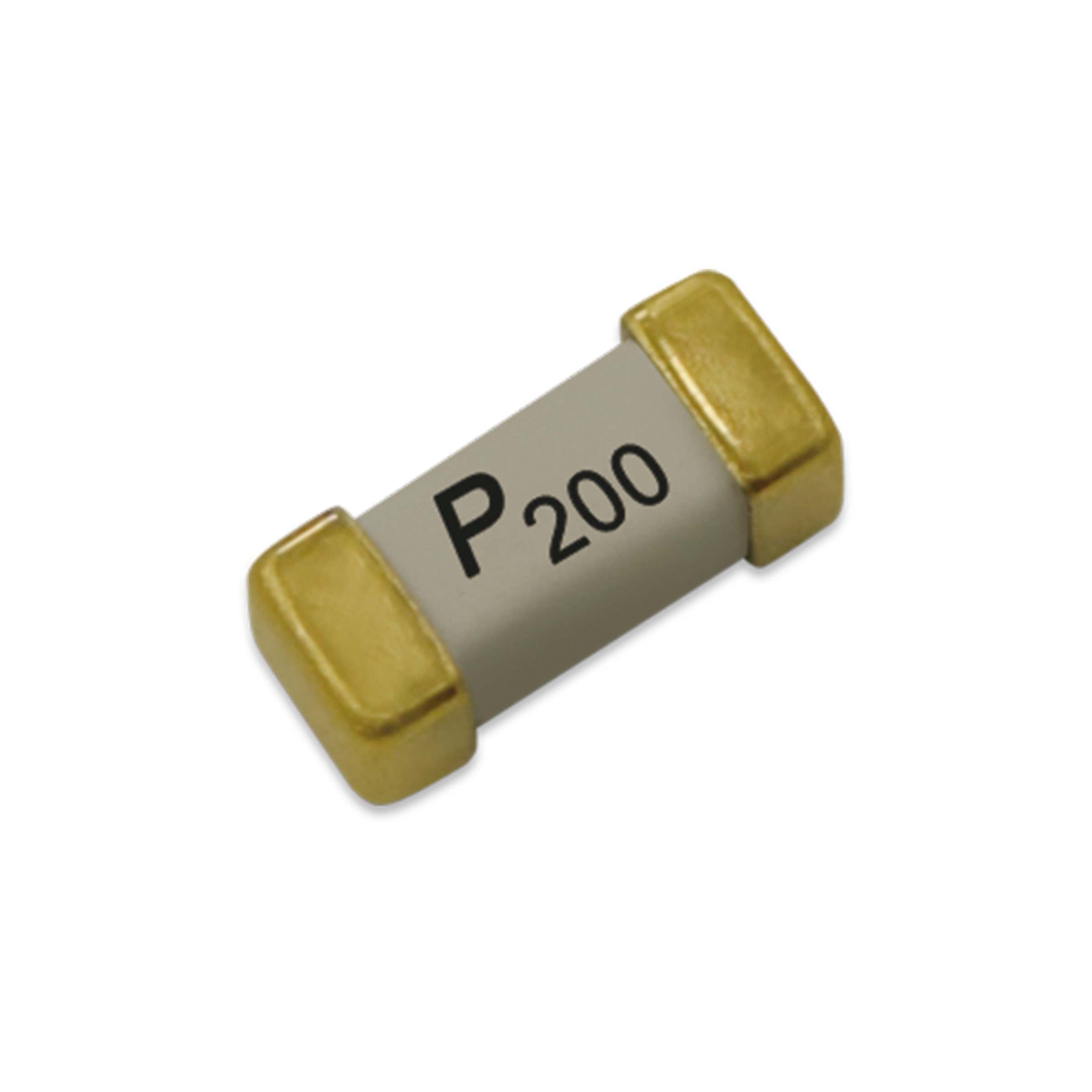

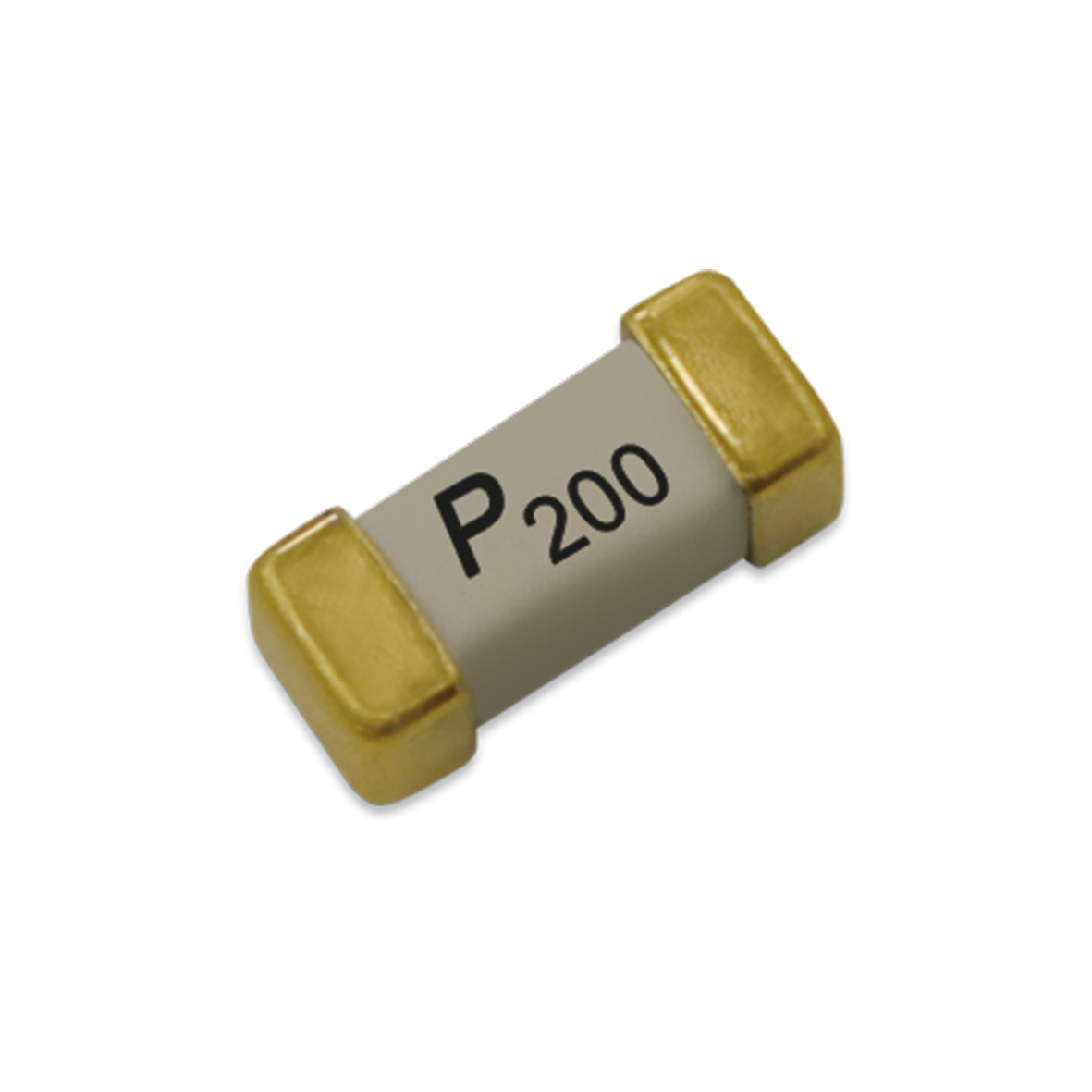

Polytronics Technology Corp. SMD fuse SMFF2410 nimble 125VAC 160VDC 10A 2410
NEW
Manufacturer Part No.
SMFF2410P1000
Schukat Part No.
SMFF2410P1000
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
500 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- SMD fuse
- Series
- SMFF2410
- Characteristic
- nimble
- Package/Case
- 2410
- Rated voltage V AC
- 125 V AC
- Rated voltage V DC
- 160 V DC
- Rated current
- 10 A
- RoHS-Conform
Specifications
Open all

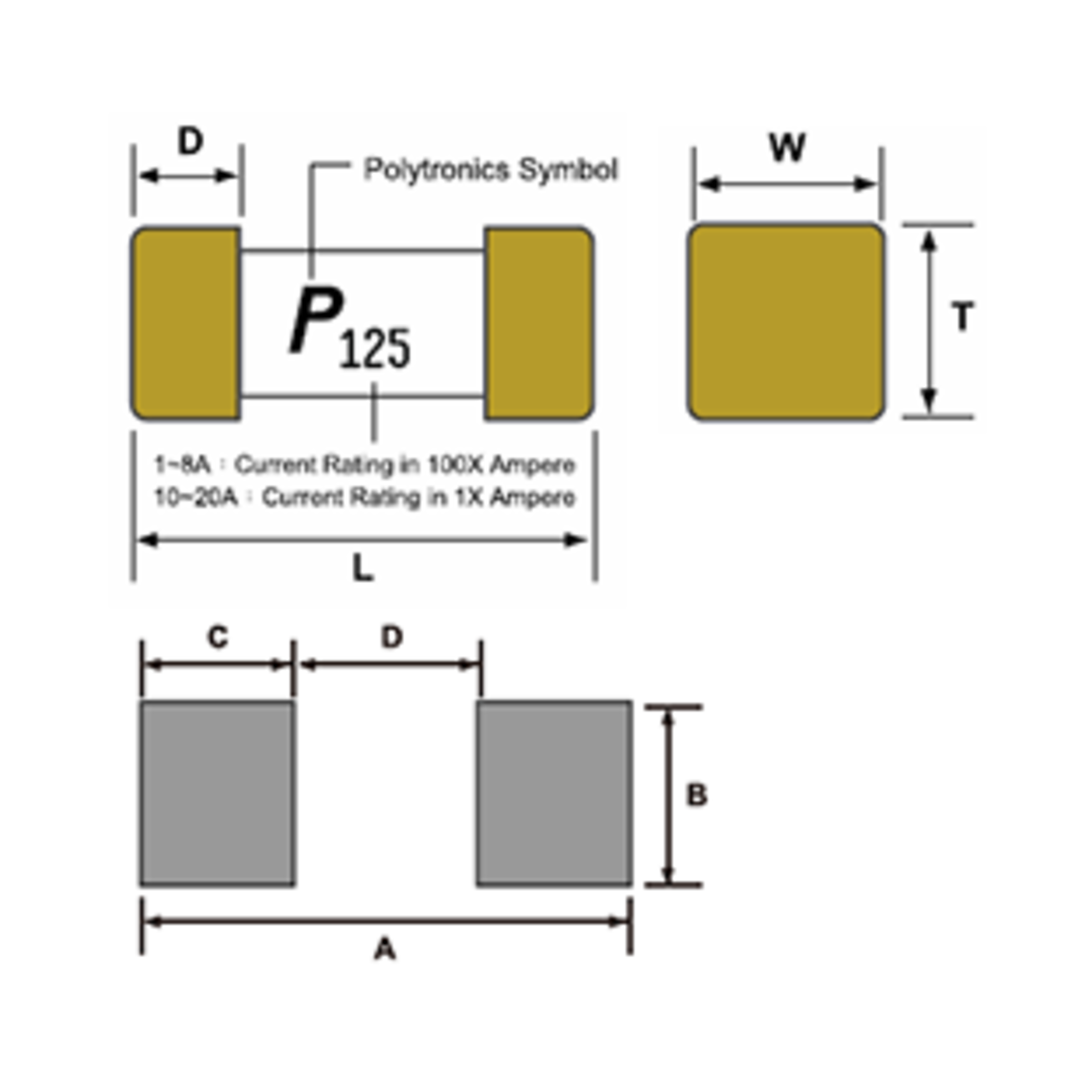

Dimensions and weights
- Dimension: Length
- 6.1 mm
- Dimension: Width
- 2.5 mm
- Dimension: Height
- 2.5 mm
Operating conditions
- Operating temperature range, min.
- -55 °C
- Operating temperature range, max.
- 125 °C
Technical features
- Rated current
- 50 A
- Rated current
- 10 A
- Melting integral
- 30.3 A²/s
- Rated voltage V AC
- 125 V AC
- Rated voltage V DC
- 160 V DC
Safety/Certifications
- Approvals
- CQC
- PSE
- cULus
- Standards
- 2011/65/EU, IEC 61249-2-21:2003
